SITE PLAN - EXISTING PAPILLION LA VISTA HIGH SCHOOL ADDITION/ RENOVATION PAPILLION LA VISTA COMMUNITY SCHOOLS BCDM NO. 3451-02 JULY 22, 2019 PARKING / DROP OFF RECONFIGURATION SITE PLAN - PROPOSED PAPILLION LA VISTA HIGH SCHOOL ADDITION/

slide-1
SLIDE 1

BCDM NO.

PAPILLION LA VISTA HIGH SCHOOL ADDITION/ RENOVATION

PAPILLION LA VISTA COMMUNITY SCHOOLS

JULY 22, 2019 3451-02

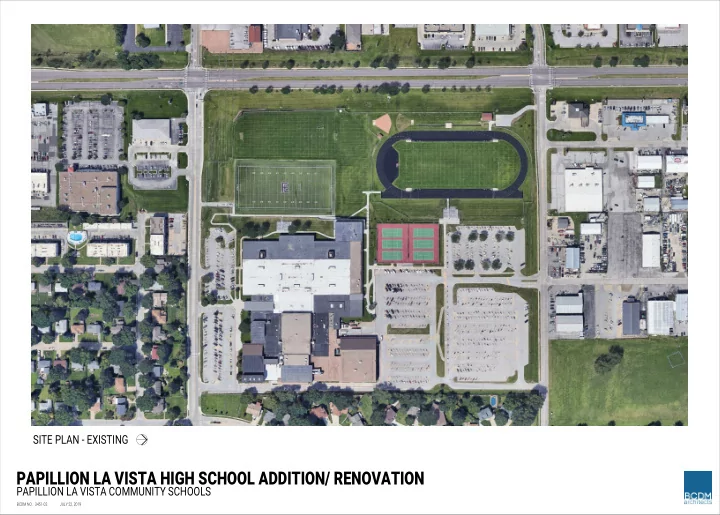

SITE PLAN - EXISTING

slide-2
SLIDE 2

PARKING / DROP OFF RECONFIGURATION

BCDM NO.

PAPILLION LA VISTA HIGH SCHOOL ADDITION/ RENOVATION

PAPILLION LA VISTA COMMUNITY SCHOOLS

JULY 22, 2019 3451-02

SITE PLAN - PROPOSED

slide-3
SLIDE 3 F.S.

UP UP UP UP UP UP

176 SF
  • SCH. PYSCH.
250 SF
  • ASST. PRIN. 103 SF
STOR. 103 SF OFFICE 81 SF BKSTR. 63 SF TLT.

NURSE

48 SF COT 47 SF COT

CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM

139 SF CUS.

CLASSROOM CLASSROOM CLASSROOM CLASSROOM SCIENCE SCIENCE CLT.

33 SF CLT. 27 SF CLT. 224 SF OFF. 188 SF OFF.

SCIENCE CLASSROOM CLASSROOM CLRM. CLASSROOM CLASSROOM

  • TECH. LAB CLRM.
  • TECH. LAB
117 SF OFFICE 299 SF PRODUCTION

CLASSROOM CLASSROOM

91 SF VEST. 88 SF ELEC. 86 SF STOR. 162 SF CUS. 249 SF WORKROOM 57 SF STOR. 560 SF WOMEN 325 SF MEN

CLASSROOM

129 SF OFFICE 243 SF WORKROOM

CLASSROOM CLASSROOM

139 SF CUS.

CLASSROOM CLASSROOM SCIENCE SCIENCE SCIENCE

101 SF OFF. 102 SF OFF. 119 SF OFF. 100 SF OFF. 102 SF OFF. 98 SF OFF.

SCIENCE SCIENCE CLASSROOM CLASSROOM CLASSROOM FOOD LAB ART CLASSROOM ART CLASSROOM

401 SF MECH. 126 SF CLAY RM. 43 SF CLT. 217 SF KILN RM.

ART CLASSROOM

217 SF OFFICE.

CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM SCIENCE

388 SF COMPUTER 222 SF TV STUDIO 221 SF TV PROD.

SCIENCE SCIENCE SCIENCE

64 SF CHEM. 177 SF
  • SCI. STOR.
717 SF SCIENCE WORKRM.

CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM VEST. OFF. CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM

318 SF MEN 283 SF WOMEN 122 SF OFF.

SCIENCE

201 SF
  • AV. EQUIP. STOR.
511 SF
  • INFO. WORK
19267 SF
  • INFO. SPEC.
93 SF CUS. 50 SF CUS. 291 SF MEN 286 SF WOMEN

CLASSROOM CLASSROOM SP. ED. CLASSROOM

146 SF TLT. 152 SF
  • ATH. OFF.
156 SF WORK 184 SF
  • ATH. DIR.
271 SF PRINC. 54 SF VAULT 42 SF W. 42 SF M. 305 SF CONF. 223 SF
  • ASST. PRIN.
137 SF MAIL 226 SF STOR.
  • INSTR. MUSIC STUDIO

OFF.

68 SF PRAC. 60 SF PRAC. 107 SF STOR. 157 SF CORR. 186 SF WORK. 110 SF COUN. 110 SF COUN. 219 SF CONF. 97 SF M. 96 SF W. 109 SF COUN. 109 SF COUN. 104 SF COUN. 96 SF CONF. 102 SF
  • SC. OFF.
114 SF STOR. 152 SF ELEC. 69 SF CLT. 185 SF CLT. 75 SF CUS.

VOCAL MUSIC

82 SF
  • CLT. 44 SF
CLT. 148 SF OFF.

DRAMA

23 SF M. 23 SF W.

CONSTRUCTION

167 SF MAKEUP 161 SF WAIT.

STAGE AUDITORIUM

206 SF CONC. 65 SF ALA CARTE STOR.

CLASSROOM CLASSROOM CLASSROOM CLASSROOM

172 SF CLT.

CLASSROOM

178 SF OFF. 256 SF CONF. 185 SF CUS.

ELEC.

60 SF O.D. STOR. 91 SF STOR.

MECH.

334 SF MECH. 71 SF TLT. 103 SF W/D 203 SF STOR. 123 SF DUST COLL. 154 SF OFF. 141 SF MECH. 118 SF WOOD STOR. 346 SF MEN 38 SF CUS. 430 SF CLOSET 450 SF WOMEN 96 SF CUS.

GYMNASIUM

254 SF WOMEN 59 SF SHWR. 421 SF CONF. 134 SF COACH 156 SF COACH 112 SF MEN 111 SF WOMEN 185 SF SHWR. 77 SF MEN 192 SF MEN 19 SF CUS. 21 SF CLT. 327 SF OFFICE 21 SF CLT. 255 SF OFFICE

WEIGHT ROOM

186 SF OFF. 122 SF MEN 122 SF WOMEN 107 SF CLT. 151 SF CLT.

MULTIPURPOSE ROOM GYM STAGE

1135 SF CLT. Redundant Room CLT. Redundant Room CLT. 96 SF CLT.

POOL BAND

165 SF WOMEN 139 SF MEN

DRAMA STORAGE CLOSET

266 SF
  • UNI. STOR.

CAREER ED. CENTER

202 SF OFF. 208 SF
  • ASST. PRIN.
111 SF S.R.O. 84 SF SEC. 365 SF BOOKSTORE

INFORMATION CENTER COMPUTER

86 SF CLT. 103 SF CLT. 122 SF ELEC. 61 SF CUS.

GIRLS LOCKER

143 SF FINISH

WOODSHOP

206 SF WELD 89 SF OFF. 142 SF STOR. 190 SF
  • CUS. OFF. BREAK

CLASSROOM

227 SF WOMEN 234 SF MEN

LOBBY CAFETERIA SERVERY

1913 SF KITCHEN 424 SF PANTRY 142 SF WOMEN 68 SF CUS. 134 SF MEN 254 SF MEN 227 SF WOMEN

BOYS LOCKER GYMNASIUM

BCDM NO.

PAPILLION LA VISTA HIGH SCHOOL ADDITION/ RENOVATION

PAPILLION LA VISTA COMMUNITY SCHOOLS

JULY 22, 2019 3451-02

MAIN LEVEL FLOOR PLAN - EXISTING

0' 30' 60'

slide-4
SLIDE 4

UP UP UP UP UP UP UP UP

RENOVATION ADDITION CIRCULATION EXISTING

2365 SF PRE-ENGINEERING LAB 3944 SF BUILDING CONSTRUCTION LAB 3042 SF MANUFACTURING / CONCEPTS LAB 2428 SF ROBOTICS LAB 762 SF STEM CLASSROOM CLASSROOM

CUST. MEN WOMEN

CLASSROOM CLASSROOM CLASSROOM

MECH/ELEC. STOR.

CLRM. CLASSROOM CLASSROOM

WOMEN JAN.

ART CLASSROOM

OFFICE WORKROOM

ART CLASSROOM CLASSROOM CLASSROOM

MECH. KILN CLAY CL.

ART CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM FOODS LAB CLRM.

MEN

CLASSROOM CLASSROOM CLASSROOM CLASSROOM SCIENCE SCIENCE SCIENCE SCIENCE COMPUTER TV STUDIO TV PROD.

ELEC. JAN.

COMPUTER

AV EQUIP. STOR.
  • INFO. WORK
TELECOM.
  • INFO. SPEC.

SCIENCE SCIENCE SCIENCE SCIENCE SCIENCE

WORK. STOR. STOR. OFFICE CLOSET

CLASSROOM CLASSROOM SCIENCE SCIENCE SCIENCE

CLOSET OFFICE OFFICE CL. CL.

OFF. OFF. DATA OFF. OFF. OFF. CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLRM. CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM TEACHERS LNG./ WRKRM.

CONFERENCE WOMEN MEN CUST. MEN JAN. WOMEN

CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM

  • SP. ED. CLRM.
MEN WOMEN JAN. TLT.

GYMNASIUM CAFETERIA

ELEC.

CONF. CORR.

MECH. KITCHEN

PANTRY MECH. W / D

SERVERY CONC. ALA CARTE STOR.

SNACK SHOP OFFICE WALK-IN COOLER TRAINER TRAINER

GYMNASIUM

CLOSET WOMEN JAN. JAN. MEN MEN CLT. CLT. WOMEN 59 SF ELEV. CL. CL.

VOCAL MUSIC

WAITING MAKEUP

DRAMA

DATA STOR. CL. CL. OFFICE JAN. WOMEN MEN TICKETS

PRACT.

UNIFORM STOR. OFFICE STOR. PRAC. PRAC.
  • INSTR. MUSIC STUDIO
MEN WOMEN CONF. COUN. COUN. WORK COUN. COUN. COUN. ESU D.P. CAREER ED. CENTER CONF.
  • SC. OFF.
  • ELEC. / JAN.
STOR. WAIT ESU D.P. NURSE COT COT TLT. STAIR BKSTR. STOR. BOOKSTORE OFF. STOR.

AUDITORIUM POOL

WEIGHTROOM

INFORMATION CENTER

CORR.

125 SF OFF. 77 SF FAMILY 54 SF T. 54 SF T. 64 SF VEST. 103 SF ELEC. 117 SF OFF. 249 SF PRINTING 57 SF STOR. RECEIVING/ STAGING/STOR
  • OUTDR. STOR.
CORR. VEST. STOR. 69 SF COMPRESSOR 3936 SF FLEXIBLE LEARNING CLASSROOM

CLASSROOM CLASSROOM

307 SF SEC. 113 SF S.R.O. 325 SF WORK 224 SF
  • ASST. PRIN.
226 SF
  • ASST. PRIN.
223 SF
  • ASST. PRIN.
340 SF PRINC. 347 SF CONF. 257 SF WAIT. 130 SF SEC. 61 SF VAULT 151 SF MAIL 56 SF T. 56 SF T. 113 SF SECU.

833 SF WORLD LANG. 846 SF ENGLISH 830 SF

  • SOC. STU.
120 SF DATA

831 SF MATH 931 SF

  • COLLAB. ZONE
87 SF ELEC. 76 SF ELEV. 282 SF MEN 311 SF WOMEN

1172 SF BIOLOGY 1168 SF BIOLOGY 831 SF MATH 831 SF

  • SOC. STU.

828 SF WORLD LANG. 837 SF ENGLISH 929 SF

  • COLLAB. ZONE
433 SF STORAGE 90 SF ELEC.

2873 SF CAFETERIA VEST. ENTRY CORR. 2879 SF PE CLASSROOM

207 SF OFFICE 277 SF
  • ATHL. DIR.
325 SF CONF. WOMEN'S ATHL LOCKER ROOM 98 SF LOCKER TLT. SHWR. TLT. 92 SF OFFICE TICKET CONC. JAN. DATA MEN'S ATHL LOCKER ROOM TLT. TLT. VEST. STAIR STAIR STAIR VEST. CONSTRUCT LDR. VEST.

STORAGE

456 SF STORAGE 152 SF ELEC. 225 SF CORR. CLASSROOM

CLASSROOM

Redundant Room WOMEN 704 SF MEN 81 SF TLT. 67 SF VEST. 54 SF TLT. 56 SF TLT. 1563 SF CAFETERIA OFFICE CLT. CLT. CLT. VEST. STOR. OFF.
  • EQUIP. STOR.
MAINTENANCE TLT. CL. 155 SF STOR. 70 SF MOTHER'S RM. 79 SF CUST. 171 SF PREP. VEST.

GYM STAGE

410 SF STOR 1357 SF INTRODUCTORY LAB 193 SF FINISH 197 SF WOMEN 43 SF CUST. 202 SF MEN 90 SF HALL 118 SF DUST COLL. 113 SF DATA CLOSET CLOSET CLOSET

MULTIPURPOSE RM.

BCDM NO.

PAPILLION LA VISTA HIGH SCHOOL ADDITION/ RENOVATION

PAPILLION LA VISTA COMMUNITY SCHOOLS

JULY 22, 2019 3451-02

0' 30' 60'

MAIN LEVEL FLOOR PLAN - PROPOSED

slide-5
SLIDE 5

UP UPPER VOLUME THEATRE UPPER VOLUME POOL UPPER VOLUME STAGE UPPER VOLUME MULTIPURPOSE ROOM UPPER VOLUME GYMNASIUM UPPER VOLUME GYMNASIUM UPPER VOLUME INSTRUMENTAL MUSIC

BCDM NO.

PAPILLION LA VISTA HIGH SCHOOL ADDITION/ RENOVATION

PAPILLION LA VISTA COMMUNITY SCHOOLS

JULY 22, 2019 3451-02

UPPER LEVEL FLOOR PLAN - EXISTING

0' 30' 60'

slide-6
SLIDE 6

UP UP OPEN TO

  • CORR. BELOW

840 SF ENGLISH 828 SF WORLD LANG. 831 SF

  • SOC. STU.

830 SF MATH 831 SF MATH 831 SF

  • SOC. STU.

828 SF WORLD LANG. 836 SF ENGLISH

79 SF FAMILY 57 SF T. 57 SF T.

UPPER VOLUME THEATRE UPPER VOLUME POOL UPPER VOLUME STAGE UPPER VOLUME MULTIPURPOSE ROOM UPPER VOLUME GYMNASIUM UPPER VOLUME GYMNASIUM

OPEN TO CORR. BELOW OPEN TO CORR. BELOW 64 SF VEST.

UPPER VOLUME INSTRUMENTAL MUSIC UPPER VOLUME MANUF. CONCEPTS LAB UPPER VOLUME BUILDING CON. LAB OPEN TO CORR. BELOW OPEN TO CORR. BELOW OPEN TO CORR. BELOW OPEN TO

  • CORR. BELOW

OPEN TO CORR. BELOW LEARNING STAIR 1172 SF BIOLOGY 1172 SF BIOLOGY

171 SF PREP. 311 SF WOMEN 282 SF MEN 87 SF ELEC. 76 SF ELEV. 151 SF STAIR

786 SF

  • COLLAB. ZONE

787 SF

  • COLLAB. ZONE

OPEN TO BELOW

STAIR

OPEN TO CORR. BELOW ROOF BELOW ROOF BELOW ROOF BELOW

RENOVATION ADDITION CIRCULATION EXISTING

BCDM NO.

PAPILLION LA VISTA HIGH SCHOOL ADDITION/ RENOVATION

PAPILLION LA VISTA COMMUNITY SCHOOLS

JULY 22, 2019 3451-02

UPPER LEVEL FLOOR PLAN - PROPOSED

0' 30' 60'

slide-7
SLIDE 7 UP UP UP UP UP UP UP

UNEXCAVATED

GROUND STOR. STORAGE
  • MECH. / ELEC.
STAIR SHOWER DRY TLT. TOILET SHOWER DRY STAIR STAIR STAIR STAIR STAIR SHOWER SHOWER STAIR GIRLS LOCKER ROOM BOYS LOCKER ROOM OFF. OFF. CNTRL. CORRIDOR STOR. WOMENS LOCKER MENS LOCKER SHOWER CLOSET CLOSET OFFICE TOILET OFFICE

BCDM NO.

PAPILLION LA VISTA HIGH SCHOOL ADDITION/ RENOVATION

PAPILLION LA VISTA COMMUNITY SCHOOLS

JULY 22, 2019 3451-02

LOWER LEVEL FLOOR PLAN - EXISTING

0' 30' 60'

slide-8
SLIDE 8

UP UP

MENS PE LOCKER ROOM WOMENS PE LOCKER ROOM TOILET DRY SHOWER OFF. OFF. CNTRL. TOILET SHOWER DRY STOR. STAIR STAIR STAIR CORR. STAIR STAIR CORR. STOR. WOMENS PE LOCKER 1448 SF MENS PE LOCKER SHOWER SHOWER
  • WMN. LKR.
SHOWER CL. JAN. TLT. OFF. CL. STAIR STAIR 59 SF ELEV. 399 SF
  • MECH. / ELEC.
2870 SF STORAGE 1017 SF GROUNDS STOR. 391 SF STAIR 319 SF CORR.

UNEXCAVATED

RENOVATION ADDITION CIRCULATION EXISTING

BCDM NO.

PAPILLION LA VISTA HIGH SCHOOL ADDITION/ RENOVATION

PAPILLION LA VISTA COMMUNITY SCHOOLS

JULY 22, 2019 3451-02

LOWER LEVEL FLOOR PLAN - PROPOSED

0' 30' 60'

slide-9
SLIDE 9

BCDM NO.

PAPILLION LA VISTA HIGH SCHOOL ADDITION/ RENOVATION

PAPILLION LA VISTA COMMUNITY SCHOOLS

JULY 22, 2019 3451-02

MAIN ENTRANCE - PERSPECTIVE

slide-10
SLIDE 10

BCDM NO.

PAPILLION LA VISTA HIGH SCHOOL ADDITION/ RENOVATION

PAPILLION LA VISTA COMMUNITY SCHOOLS

JULY 22, 2019 3451-02

STEM ENTRANCE - PERSPECTIVE
