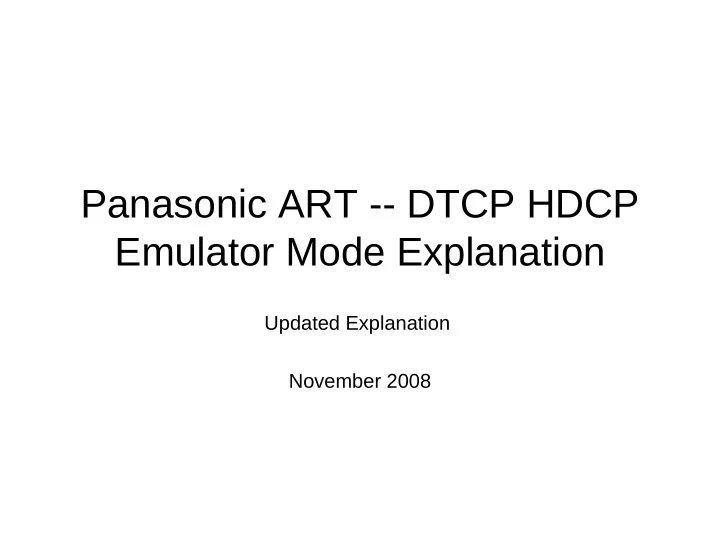

Panasonic ART -- DTCP HDCP Emulator Mode Explanation

Updated Explanation November 2008

slide-2
SLIDE 2

2

Panasonic ART

  • Review of basic DTCP HDCP Emulator Mode approach

– Ensures localization – uses DTCP localization specifications – Preserves (and implements) HDCP revocation system – Equals (or surpasses) HDCP protection levels

  • Uses AES 128-bit encryption
  • Uses HDCP robustness rules

– Requires “display only” transmission, using implicit copy never (as does HDCP) – HDCP Content Participants and DCP, LLC given third party beneficiary rights to enforce requirements of ART

  • New Panasonic ART elements

– HDCP Licensee as ART proprietor – Single Licensed Product Requirements

slide-3
SLIDE 3

3

Panasonic ART -- DTCP HDCP Emulator Mode Explanation

  • 1. The Panasonic ART would utilize DTCP

“HDCP Emulator Mode” which is

  • limited to AES 128 implementations of DTCP
  • defined using a separate new cipher algorithm

(using this newly created system, not CCI or CMS but similar scheme to CMS)

slide-4
SLIDE 4

4

Panasonic ART -- DTCP HDCP Emulator Mode Explanation

  • 2. The KSV flow would work as follows:
  • An HDCP Transmitter would initiate a proposed

transmission sequence by seeking the HDCP KSVs from the initial receiving HDCP Receiver.

  • The HDCP Receiver, knowing that it was going to

retransmit the content to the Panasonic ART Source Function, would request that Panasonic ART Source to obtain the HDCP KSVs from all downstream HDCP Receivers.

slide-5
SLIDE 5

5

Panasonic ART -- DTCP HDCP Emulator Mode Explanation

  • The Panasonic ART Source Function would then

provide the HDCP KSVs to the initial receiving HDCP Receiver for transmission back to the

  • riginating HDCP Transmitter.
  • Content would be provided to the initial receiving

HDCP Receiver by the originating HDCP Transmitter only if all HDCP KSVs are valid and non-revoked.

slide-6
SLIDE 6

6

Panasonic ART -- DTCP HDCP Emulator Mode Explanation

HDCP Source

SRM

(Sink3)

HDCP Sink1 ART Source HDCP Source ART Sink HDCP Sink2 HDCP Sink3

KSV2 KSV3 KSV1

Panasonic ART

must gather all downstream KSVs securely

Specification sets forth mechanism to convey HDCP KSV where ART Source connects with HDCP Sink as downstream device.

slide-7
SLIDE 7

7

Panasonic ART -- DTCP HDCP Emulator Mode Explanation

  • 3. Once Step 2 has been successfully

completed, the content flow would work as follows:

  • Content would flow from the initiating HDCP

Transmitter to the initial receiving HDCP Receiver and then internally from that HDCP Receiver to a Panasonic ART Source with a secure indication that it is to be handled using

  • nly the “HDCP Emulator Mode.”
slide-8
SLIDE 8

8

Panasonic ART -- DTCP HDCP Emulator Mode Explanation

  • The Panasonic ART Source would then securely

determine that the Panasonic ART Sinks that would receive the content are only those that had supplied the HDCP KSVs in Step 2 and that are

  • perating in HDCP Emulator Mode.
  • The Panasonic ART Sink would supply content
  • nly to those HDCP Receivers that supplied

KSVs or to internal displays (per normal robustness rules for decrypted HDCP Content).

slide-9
SLIDE 9

9

Panasonic ART -- DTCP HDCP Emulator Mode Explanation

  • The number of Panasonic ART Sinks (and

thereafter HDCP Receivers) that would be permitted to receive content from the Panasonic ART Source in the HDCP Emulator Mode would be limited to the normal number of DTCP Sinks permitted to receive from a single DTCP Source, 34, since that number is far less than the number

  • f HDCP Receivers that may receive HDCP

Content from an HDCP Transmitter.

slide-10
SLIDE 10

10

Panasonic ART -- DTCP HDCP Emulator Mode Explanation

  • 4. The HDCP Emulator Mode of DTCP

would be subject to separate

  • Specification (ensuring that the HDCP Emulator

Mode is clearly set out as a separate functionality)

  • Compliance Rules (ensuring that the process

described above is spelled out clearly and separately from other DTCP functions)

slide-11
SLIDE 11

11

Panasonic ART -- DTCP HDCP Emulator Mode Explanation

  • Robustness Rules (matching those of HDCP

where there are any differences from the normal DTCP Robustness Rules)

  • Licensing (e.g., through an Addendum to the

DTCP Adopter Agreement)

slide-12
SLIDE 12

12

Single Licensed Product Requirements

  • Previously, there was confusion on this point,

– This is not part of ART objective criteria – Must be inferred from provision in Compliance Rules – Not entirely clear what this actually means, since an ART necessarily uses another technology as a bridge between an HDCP Source and either an HDCP Sink

  • r a display
  • Current proposal meets this issue as described

below

slide-13
SLIDE 13

13

Single Licensed Product Requirements

  • Will consist of Initiating, Repeater, and Sink Products

paired on a transmission-by-transmission basis

– All Products will be Licensed HDCP Products – All Products will be Licensed DTCP Products – When connected using DTCP HDCP Emulator Mode technology, will be paired as a Panasonic ART Single Licensed Product pursuant to the HDCP Compliance Rules

  • Legal responsibility for each pairing will be clearly placed

with the Initiating Product (and its manufacturer/licensee), regardless of the manufacturer

  • f the Repeater and Sink products
slide-14
SLIDE 14

14

Single Licensed Product Requirements

  • Initiating Product will be required to be

manufactured under separate license, from DTLA to Panasonic

  • Panasonic, of course, will produce Initiating

Products

  • Panasonic will also be permitted to sublicense to
  • ther manufacturers, which will be permitted to

make Initiating Products on the same terms and conditions

slide-15
SLIDE 15

15

Single Licensed Product Requirements

  • Repeater and Sink products will be licensed by

DTLA based on the previously drafted DTCP HDCP Emulator Mode documents, with the following critically important differences

– Licensees will be required to agree that the Initiating Product is responsible for each ART pairing and that each ART pairing is a Single Licensed [HDCP] Product that is, as such, subject to HDCP requirements as well as DTCP HDCP Emulator Mode requirements – Licensees will be required to register their products (nature of product, model numbers, names of products) with Panasonic

slide-16
SLIDE 16

16

Single Licensed Product Requirements

– Producers of Initiating Products will be given third party beneficiary rights to enforce the DTLA license requirements on Repeater and Sink products, including seeking an injunction to prohibit further sale and distribution of both noncompliant products and products that are not registered with Panasonic – Licensees making Repeater or Sink Products will indemnify Panasonic and other Initiating Product manufacturers for any damages or other costs associated with failure by any Repeater or Sink Product to comply with the HDCP and/or DTCP Emulator Mode requirements

slide-17
SLIDE 17

17

Single Licensed Product Requirements

  • “Pairing”

– Pairing between HDCP Emulator Mode products will be done using special authentication mechanism, unique to the Panasonic ART – Responsibility for pairing, as with the overall functioning of each ART, will be placed on Initiating Product, with manufacturer of an Initiating Product being legally responsible for any failure by any ART (or any component of an ART) to comply with any of the requirements for the ART, including HDCP Compliance Rules
