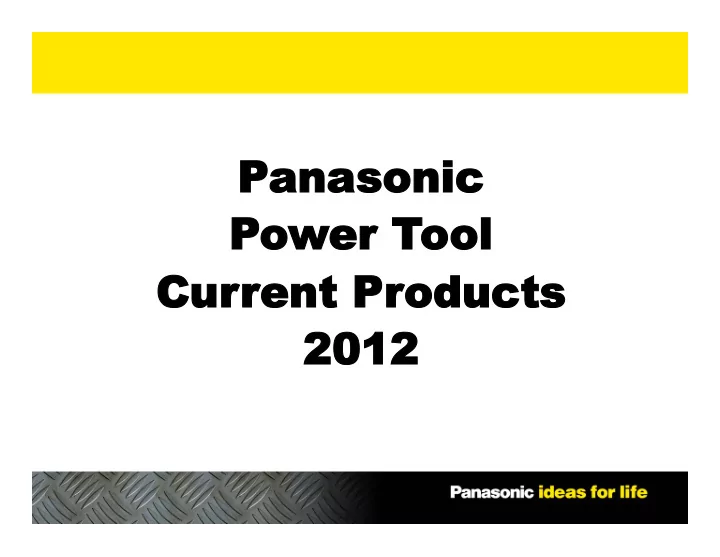

Panas anasonic onic Power er Tool ool Cur urrent ent Product oducts 2012 2012 Panasonic History Panasonic is one of the Worlds Largest Manufacturers of battery and charging technology utilized in cordless tools. Panasonic began

slide-1
SLIDE 1

Panas anasonic

  • nic

Power er Tool

  • ol

Cur urrent ent Product

  • ducts

2012 2012

slide-2
SLIDE 2

Panasonic History

Panasonic is one of the World’s Largest Manufacturers of battery and charging technology utilized in cordless tools. Panasonic began manufacturing professional cordless power tools in 1979. Panasonic is an industry leader with innovative products.

A tradition of product innovation:

! First Cordless Drill Driver with clutch ! First Drill Driver with keyless chuck ! First Drill Driver with speed control and power feed back system ! First 15 minute charging system ! First compact and light Drill Driver. ! First 2.0Ah Ni-Cd High capacity battery ! First 3.0Ah Ni-MH High capacity battery ! First 3.5Ah Ni-MH High capacity battery ! First Multi-Function Tool ! First Auto Shut-off Impact ! First Electronic Monitoring Charging System ! First IP Rated Cordless Power Tool ! First 3.1Ah “Rated” Li-ion Battery Pack ! First 3.3Ah “Rated” Li-ion Battery Pack

slide-3
SLIDE 3
slide-4
SLIDE 4
  • Tough JUST GOT TOUGHER

Panasonic introduces a new level of dust and water resistant technology for the toughness evolution.

IP56

slide-5
SLIDE 5

What is IP56?

slide-6
SLIDE 6

ToughIP products have passed the IP standard test administered by the International Electrotechnical Commission (IEC). Panasonic dust and water resistant technology has been demonstrated to comply with the IP standard by tests designed to gauge the level of protection against intrusion of solid objects and water Dust Protection Testing Water Protection Testing

What is IP56?

slide-7
SLIDE 7

Dust / Moisture Resistance Technology

Example : EY7550 / EY7551 Impact Driver / Wrench Protecting circuit from Dust & Water Protecting circuit from Dust & Water Protecting circuit from Dust & Water

18V 3.3 Ah

slide-8
SLIDE 8
  • Out of level shut off
  • Fully automatic, self leveling
  • Shock-absorbing metal housing

and rubber exterior - takes a 6' drop

  • Temp resistant: 14 – 122 F (-10 – +60 C)
  • Operation time 120 hours on 2 X D Batteries
  • Equipped with DE-TECH receiver
  • Digital readout shows exact

distance from grade

  • Arrows show direction to grade
  • 4" reception band
  • Dust and Water proof IP67
  • Takes a 10' drop

Other IP Products

Others: Navigation, Cell Phones, Digital Cameras Camcorders

slide-9
SLIDE 9

Current Product

slide-10
SLIDE 10

TM

High Capacity Li-ion Battery Pack

Confidential Information!

slide-11
SLIDE 11

Advantages & Disadvantages of Li-ion Battery

Compared to both Ni-Cd and Ni-MH battery pack

Less self discharging No memory effect Possible to add on by charging Light weight & Compact size Very weak towards Over-charge Very weak towards Over-discharge Very weak at high temperatures

(Cell property deteriorates/ Less cell life) Over-charge protection sensor needed Over-discharge protection sensor needed High temperature protection sensor needed

Doesn’t deteriorate greatly, even after not using product for extended time period

Advantages Disadvantages

slide-12
SLIDE 12

“High OutputLong Life” with Cobalt Type Li-ion

Panasonic Makita/ Milwaukee Cathode (+) Cobalt Li-ion Manganese Li-ion Anode (-) Special Carbon Special Carbon Electrolysis Fluid Organic Solvent (#2 grade petroleum) Organic Solvent (#2 grade petroleum)

Actual Output

Manganese Type Li-ion Cobalt Type Li-ion

Time with Load

Temperature

Internal Resistance For battery

Total Energy

Low internal resistance for battery

High Energy Density! Less likely to overheat!

Low resistance for good Charging and discharge efficiency

1st for PT

Cap(+) Safety Valve Insulation Gasket Case Insulation Ring Separator Anode Plate Cathode Plate Sealing Plate
slide-13
SLIDE 13

Currently Highest capacity Li-ION battery pack On the Market!!

  • EY9L50B

EY9L44B

slide-14
SLIDE 14

High Capacity 3.3Ah “R” Pack

slide-15
SLIDE 15

High Capacity 3.3Ah “R” Pack

slide-16
SLIDE 16
slide-17
SLIDE 17

IP56 56

DRILL LL DRIVERS

21.6V 14.4V 18V 15.6V

slide-18
SLIDE 18

Li-ion 18V Drill & Driver

  • Li-Ion 18V 3.3Ah Drill & Driver
  • General Construction, Plumbers,

Electricians, Finishing Carpentry

  • Heavy duty powerful 18V Drill Driver.

Compact and light weight like the 15.6V D/D. 4 Brush Motor.

EY7450LR2S

18V 18V

  • Target User
slide-19
SLIDE 19
slide-20
SLIDE 20

Drilling Speed

575 in.lbs 390 in.lbs

  • EY7460LZ

EY7450LR

478 in.lbs

EY7441LR

390 in.lbs

EY7440LZ

390 in.lbs

EY6432G

9.5

.

9.2

.

sec sec

%

8% 5%

%

HI HIGH GH

Material : t=24mm *plywood(12mm) +drywall(12mm) Drill *wood core drill!68mm 21.6V 15.6V 14.4V 14.4V

HIGH SPEED Drill

Makita’s most popular 18V DD 18V

!68mm Wood core Drill

LOW W

slide-21
SLIDE 21

IP56 56

Per ercus cussion ion tools

  • ols

28.8V 14.4V 21.6V 18V 14.4V

slide-22
SLIDE 22
  • Li-ion 18V 3.3Ah Hammer Drill & Driver
  • Heavy duty powerful masonry drilling
  • Compact Size
  • 4 Brush Motor
  • General Construction, Plumbers,

Electricians

EY7950LR2S

18V 18V Hammer Drill & Driver

IP56 Target User

slide-23
SLIDE 23
slide-24
SLIDE 24 Manufacturer Panasonic Panasonic Panasonic Makita Milwaukee DeWalt Model # EY7960LZ2S EY7950LR2S EY7940LR2S BHP454 M18 2602 DCD970 Voltage 21.6V 18V 14.4V 18V 18V 18V Battery 3.1Ah "Rated" Li-ion 3.3Ah "Rated" Li-ion 3.3Ah "Rated" Li-ion 3.0 Ah Lithium 3.0 Ah Lithium 2.4 Ah Lithium IP Approved Yes - IP56 Yes - IP56 Yes - IP 56 No No No Chuck 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" Max RPM Low: 400 High: 1,500 Low: 430 High: 1650 Low: 400 High:1,400 Low: 400 Med: 1,700 High: 6,000 Low: 450 High: 1,700 Low: 500 Med: 1,200 High: 2,000 Max BPM Low: 2,700 High:27,000 Low: 7740 High:29,700 Low: 7,200 High:25,200 Low: 1,700 Med: 6,000 High 25,500 29,000 Low: 8,500 Med: 21,250 High: 34,000 Max Torque 575 in.lbs 478 in.lbs 390 in.lbs 560 550 350 Clutch YES - 18 Stage YES - 16 Stage Yes 18 Stage Yes Yes Yes Charge Time 70 min 65 Min 55 Min 30 Min 60 Min 60 Min Weight 5.6 lbs 5.0 lbs 3.96 5.3 5.4 4.1 Watt Hours 66.9 59.4 47.52 54 54 43.2 Work Light Yes Yes Yes Yes Yes No

Hammer Drill Driver Competitive Comparison

slide-25
SLIDE 25

EY7880LZ2S 28.8V Rotary Hammer

slide-26
SLIDE 26

EY7880LZ2S – 28.8V Rotary Hammer

Objective ! Transition Rotary Hammer to Li-ion format. ! Reduce Weight ! Improve Working Capacity. Target User ! Maintenance, Electricians, Plumbers, Installers, . Mechanical, Rental Feature / Benefit ! 28.8V Li-ion Technology – Higher Voltage (120%) . Less Weight (-1.2lbs) ! Magnesium Gear Case – Improved Durability ! Dust Proof Switch – Improved Durability ! Improved Ventilation – Improved Continuous Usage.

slide-27
SLIDE 27

Best Demonstrations Driving - Use an SDS Chuck and Drive Tapcon Drilling -" or smaller SDS Shank Drill Bit in Poured Concrete Typical End Users Maintenance, Electricians, Plumbers, Installers, Mechanical, Rental, Sign Installers, Overhead Work (EY6803) Kit Format EY7880LZ2S

Model # Voltage Battery Chuck RPM BPM Gear Case Dust Proof Switch Charge Time Weight Watt Hours Dewalt DC233KL 36V 3.0Ah x 2 Li-ion 1" 0 - 1,150 0-4,400 Plastic NO 1 - Hour 7.8 lbs 108.0 Dewalt DW005K-2 24V 1.7Ah x 2 Ni-Cd - XR+ 7/8" 0 - 1,150 0-4,200 xxx NO 1 - Hour 9.3 lbs. 40.8 Bosch 11536VSR 36V 3.0Ah x 2 Li-ion 1" 0 - 960 0 - 4,260 Plastic NO 1 - Hour 9.5 lbs 108.0 Bosch 11524 24V 2.4Ah x 2 Ni-Cd (3.0Ah available) 7/8" 0 - 1,200 0 - 4,400 xxx NO 15 - Min (1 - Hour) 9.2 lbs 57.6 Hilti 36V 3.3Ah x 2 Li-ion 1" xxx xxx Aluminum NO 55 - min 10.8 lbs 118.8 Makita BHR200SAE 24V 2.0Ah x 2 NI-MH 13/16" 0 - 1,100 0 - 4,700 xxx NO 1 - Hour 8.4 lbs 48.0 Milwaukee 0756-22 28V 3.0Ah x 2 Li-ion 1" 0 - 1,400 0 - 4,700 xxx NO 1 - Hour 9.6 lbs 84.0 Panasonic EY7880LZ2S 28.8V 3.1Ah x 2 Li-ion 3/4" 0 - 920 High Speed 0 - 500 Low Speed 0 - 4,500 High Speed 0 - 2,800 Low Speed Magnesium YES 80 - min 8.4 lbs 89.3 EY7880LZ2S

EY7880LZ2S – 28.8V Rotary Hammer

slide-28
SLIDE 28

Panasonic Bosch DeWalt HILTI Figure Gear Case Magnesium Plastic Plastic Aluminum Dust Proof Switch YES NO NO NO !1/2” X1-3/5” Speed 6.5s 6.5s 9.6s 12s holes 64 38 62 67 !7/10” X 3-1/2” Speed 36s 28s 53s 133s holes 12 10 11 6 Weight Catalogue 8.4 lbs. 9.6 lbs. 8.4 lbs. 8.4 lbs. Actual 8.4 lbs. 9.6 lbs. 8.5 lbs. 8.8 lbs. Others Features Two Speed

  • !"#$!%&'(

$

  • Li-ion Rotary Hammer Comparison Chart

28.8V 36V 36V 36V

slide-29
SLIDE 29

Features - High Durability

Magnes gnesium ium Gear Gear Cas ase

Improve Cooling System!!

Big ig Vent entila ilation ion Fan an

slide-30
SLIDE 30

EY7840LR 7840LR2S 2S 14.4V 14.4V Rot

  • tar

ary Hammer Hammer Kit Kit

slide-31
SLIDE 31

EY7840LR 7840LR2S 2S 14.4V 14.4V Rot

  • tar

ary Hammer Hammer

Objective

  • Segment end users needing a lightweight rotary

hammer with " capacity For overhead use.

  • Transition hammer drill end user to rotary hammer.
  • Offer category in Li-ion format.

Target User

  • Installers (sprinkler, sign, security), mechanical,

electrical, maintenance. Feature / Benefit

  • Dual function rotary hammer and drill driver – complete

concrete anchor installation with one tool.

  • Lightweight and ergonomic – 5.1lbs, well balanced for

comfortable up, Down or sideways applications.

  • Dust Proof Switch – Improved durability.
  • Improved Ventilation – Improved continuous usage.
slide-32
SLIDE 32

IP56 56

Impact mpact tools

  • ols

18V 18V 18V 18V 14.4V 14.4V 14.4V 14.4V

slide-33
SLIDE 33

Low switch deterioration ! Approximately twice longer switch lifetime

Ordinary Switch New Panasonic Electric Switch

High Durability with Electric Switch

Motor Motor

Impact Tools – Unique Features

slide-34
SLIDE 34

#High Temperature Alarm Lamp Normal Lamp-Off High TempBlinking lamp Protect against high temperature damage

  • #Light On/Off Switch

Auto Off 5 min. timer

  • #Impact Mode 3 Speed
  • #Smart Hook
Improved large size of hook for easy handling
  • 「Lighting from underneath」

Possible to light up difficult to see areas

Hard Medium Soft

For fastening thick & long screws Fastening a self-drilling screw Fastening a screw for finish

14.4V Li-ion Impact Tools: Other Functions

#Charge Indicator Lamp Normal Lamp-Off Need Charging (out of battery) Blinking lamp Over discharge protection

Impact Tools – Unique Features

slide-35
SLIDE 35
  • Li-Ion 18V 3.3Ah Impact Driver
  • 30% faster screw driving speed than EY7540.
  • Tough and Long lasting with compact body.
  • Sheet metal contractor
  • Industrial equipment installation
  • Electrician (Electrical equipment installation)

EY7550LR2S

18V

IP56

18V Impact Driver

High Speed & Compact

slide-36
SLIDE 36
slide-37
SLIDE 37 Manufacturer Panasonic Panasonic Makita Milwaukee DeWalt Model # EY7550LR2S EY7546X BTD 144 M18 2650 DC 827 Voltage 18V 14.4V 18V 18V 18V Battery 3.3Ah "Rated" Li-ion 3.3Ah "Rated" Li-ion 3.0 Ah Lithium 3.0 Ah Lithium 2.4 Ah Lithium IP Approved Yes - IP56 Yes - IP56 No No No Brushless Motor Yes Yes Yes No No Hybrid Switch Yes Yes No No No Chuck 1/4" Quick Connect 1/4" Quick Connect 1/4" Quick Connect 1/4" Quick Connect 1/4" Quick Connect RPM Low: 0 - 1,000 Med: 0 - 1,400 High: 0 - 2,500 Low: 0 - 1,000 Med: 0 - 1,400 High: 0 - 2,500 Low: 0 - 1,300 Med: 0 - 2,000 High: 0 - 2,600 0-2,200 Low: 0 - 1,400 High: 0 - 2,700 IPM Low: 0 - 2,000 Med: 0 - 2,800 High: 0 - 3,000 Low: 0 - 2,000 Med: 0 - 2,800 High: 0 - 3,000 Low: 0 - 1,300 Med: 0 - 2,800 High: 0 - 3,400 0-3,200 Low: 0 - 1,300 Max Torque 1,370 in.lbs 1,330 in.lbs 1,420 in. lbs 1,400 in. lbs 1,330 in.lbs Charge Time 65 Min 55 Min 30 min 60 min 60 min Weight 3.5 lbs 3.3 lbs 3.3 lbs 3.2 lbs 3.1 lbs Watt Hours 59.4 47.52 54 54 19.8 Work Light Yes Yes Yes Yes No

Impact Driver Competitive Comparison

slide-38
SLIDE 38
  • Li-Ion 18V 3.3Ah Impact Wrench
  • Compact and Lightweight
  • Metal frame contractor
  • Industrial equipment installation
  • Maintenance (equipment installation)

EY7551LR2S

18V

IP56

18V Impact Wrench

Target User

slide-39
SLIDE 39

Combo Kits

EYC159LR - 18V IP Li-ion “Impact Driver ” 2pc Combo Kit EYC160LR - 18V IP Li-ion “Impact Wrench” 2pc Combo Kit EYC194LR - 14.4V IP Li-ion “Metal Cutter” 2pc Combo Kit

slide-40
SLIDE 40

Combo Kits

EYC199LR - 14.4V IP Li-ion “Impact Driver” 2pc Combo Kit EYC105LR - 14.4V IP Li-ion “Impact Wrench” 2pc Combo Kit EYC108LR - 14.4V IP Li-ion “Hammer Drill / Impact Wrench” 2pc Combo Kit

slide-41
SLIDE 41

IP56

Specialt pecialty tools

  • ols
slide-42
SLIDE 42

EY4541X 4541X – – 14.4V 14.4V Jig Jig Saw aw (tool

  • ol body

body onl

  • nly)

Objective

  • Expand 14.4V Li-ion line with core item.
  • Reduce size and weight which maintaining stable

cutting performance. Target User

  • Woodworker, Finish Carpenter

Feature / Benefit

  • Low Handle Position and Center of Gravity –

Stable Cut

  • Li-ion Lightweight – Less fatigue over extended

use

  • Lever Lock Blade System – Easy to use and

convenient

  • 3 Stage Orbital Function – Fast, Aggressive

Cutting.

slide-43
SLIDE 43

EY4640X 14.4V Grinder (tool body only)

Objective

  • Expand 14.4V Li-ion line with core item.

Target User

  • HVAC, Plumber, Electrician, Automotive

Feature / Benefit

  • Slim Line Design – Easier to work in tight spaces
  • Li-ion Lightweight – Less Fatigue over extended use
  • Increased Torque – Faster cutting of tough material.
  • On Switch Lock – Spindle Lock – Easy to use and

convenient.

slide-44
SLIDE 44

EY4542LR2M 14.4V Metal Cutter Kit

Objective

  • Transition current 15.6V metal cutter to Li-ion format.
  • Maintain current 15.6V mode performance with reduction in

size and weight.

  • Improve chip collection system.
  • Expand usage to multi purpose applications metal, wood,

plastic. Target User

  • Electrical, Mechanical, Metal Building, Fabricator, HVAC,

Plumbers, Siding Feature / Benefit

  • Versatile 3 Way Dust Collection – Eco Friendly
  • Depth of Cut Guide on Blade Guard – Maximize cutting speed and

minimize blade wear.

  • Wide Selection of Blades – Meet needs of cutting different materials.
  • Reduced Size and Weight – Less user fatigue during extended use.
slide-45
SLIDE 45

Feature of All Round Cutter

Cutting depth adjustment & Depth Guide 3- Way Dust Prevention Cut Various materials with One tool! #Cutting depth adjustment mminch Hose size dia.28mm

  • 3. Connection to

Vacuum cleaner 1.Dust Case

  • 2. Blow dust

backward #Cutting depth guide

  • n lower guard

(scale)
