SLIDE 1

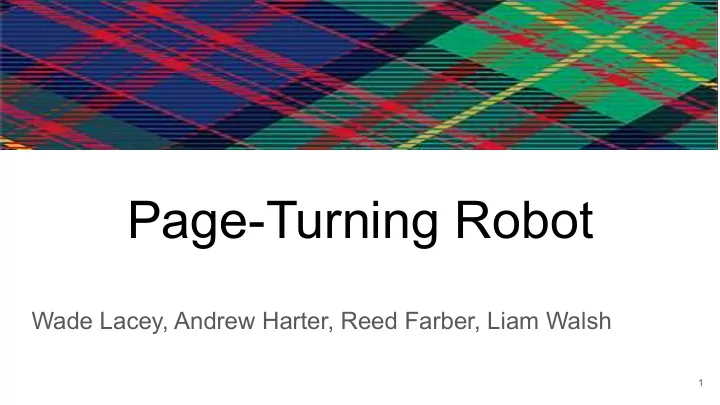

Page-Turning Robot
Wade Lacey, Andrew Harter, Reed Farber, Liam Walsh
1
The Problem
2
Page-Turning Robot Wade Lacey, Andrew Harter, Reed Farber, Liam - - PowerPoint PPT Presentation
Page-Turning Robot Wade Lacey, Andrew Harter, Reed Farber, Liam - - PowerPoint PPT Presentation
Page-Turning Robot Wade Lacey, Andrew Harter, Reed Farber, Liam Walsh 1 The Problem 2 Spinal cord injuries greatly limit mobility and dexterity Image source: https://www.slideshare.net/mrinaljoshi3/long-term-issues-in-spinal-cord-injury 3
SLIDE 2
SLIDE 3
Spinal cord injuries greatly limit mobility and dexterity
Image source: https://www.slideshare.net/mrinaljoshi3/long-term-issues-in-spinal-cord-injury
3
SLIDE 4
Separating pages from one another requires fine motor skills that many may not possess
https://www.google.com/url?sa=i&url=https%3A%2F%2Fwww.pocket-lint.com%2Fgadgets%2Freviews%2F72285-archo
4
SLIDE 5
Currently, eReaders and audio books are the only
- ptions for readers with limited dexterity
Image sources: https://canorthcentral.scbwi.org/events/an-inside-look-at-audiobooks-from-concept-to-production-webinar/ https://www.google.com/url?sa=i&url=https%3A%2F%2Fwww.pocket-lint.com%2Fgadgets%2Freviews%2F72285-archo
5
SLIDE 6
Our Solution
6
SLIDE 7
Our robot allows users to read a physical book without the precise motion needed to turn the page
Image sources: https://www.123rf.com/photo_5244619_female-hand-turning-a-page-of-an-old-book.html
7
SLIDE 8
How it works
8
SLIDE 9
For comfort and transportability, the robot is mounted
- n a lap desk
9
SLIDE 10
We utilize a wheel and flipper mechanism to turn pages, both forwards and backwards
Wheel Flipper Motor Arm
10
SLIDE 11
We utilized 3D printing to manufacture many of our components
11
SLIDE 12
The flipping action is actuated by two servos mounted on a common frame
Servo Frame 180° Servo Continuous Servo
12
SLIDE 13
To change the direction of page turning, the continuous servo can move the motor arm to either side
13
SLIDE 14
The wheel actuated by the DC motor separates a page from the rest of the book to lift it
14
SLIDE 15
The flipper arm, driven by the 180° servo, takes the raised page and flips it to the other side
15
SLIDE 16
Users can turn pages in both directions with a simple hand wave
16
SLIDE 17
Functionality
17
SLIDE 18
The individual components work together to flip any direction the user desires
18
SLIDE 19
An Arduino Uno and Adafruit motor shield work together to control the system
19
SLIDE 20
The code for the system follows this basic flow chart
20
SLIDE 21
Servo motors are coupled with ultrasonic sensors that allow for broad motions to translate into precision control
21
SLIDE 22
Reflection
22
SLIDE 23
Future focus on our gadget would be aimed at universalizing the page-turning mechanism and process for any book size
23
SLIDE 24
Our gadget allows people with mobility restrictions to read physical books without needing the fine motor skills to turn individual pages
24
SLIDE 25
Thank You!
25
SLIDE 26
Appendix
26
SLIDE 27
CAD of Mechanical Design
27
SLIDE 28
Motor mount
28
SLIDE 29
Motor arm
29
SLIDE 30
Ultrasonic sensor mount
30
SLIDE 31
Flipping arm
31
SLIDE 32
Circuit Design
32
SLIDE 33
Actuators
Wheel-Turning Motor Input Voltage: 6V No Load Speed: 85 rpm No Load Current: 100 mA Stall Torque: 5.0 kg-cm Stall Current: 1.5 A Standard (180 degree) Servo Input Voltage: 4.8V - 6V No Load Speed: 0.16 s/60° Stall Torque: 90 oz-in Continuous Servo Input Voltage: 4.8-6V No Load Speed: 0.18 s/60° Stall Torque: 44.52 oz-in
33
SLIDE 34
Continuous Servo Selection
34
SLIDE 35
Controllers
Arduino Uno Adafruit Motor Shield for Arduino:
- 2 connections for 5V 'hobby' servos
- run motors on 4.5VDC to 13.5VDC
- up to 4 bi-directional DC motors
- compatible with Arduino UNO
35
SLIDE 36
Sensors
Ultrasonic Sensors: Power supply : 5V DC Quiescent current : <2mA Effectual angle: <15° Ranging distance : 2cm Resolution : 0.3 cm 4 pins out of the module : VCC , Trig, Echo, GND.
36
SLIDE 37
Code
37
SLIDE 38
Code
38
SLIDE 39
Code
39
