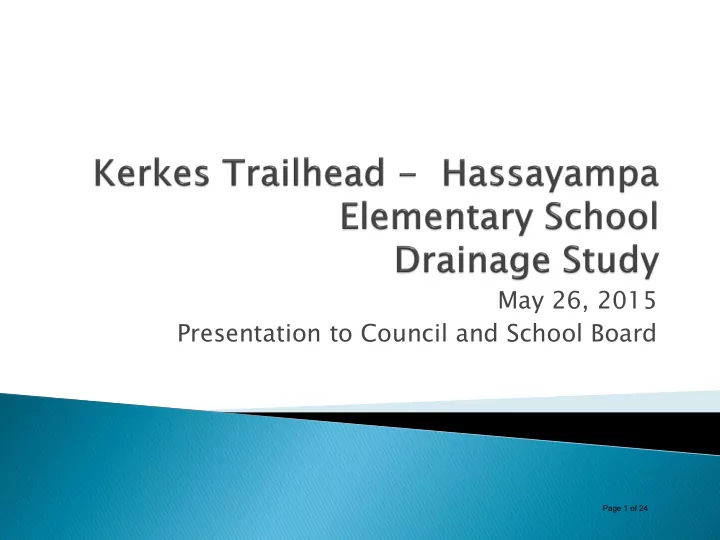

May 26, 2015 Presentation to Council and School Board

Page 1 of 24

slide-2
SLIDE 2

Page 2 of 24

slide-3
SLIDE 3

Page 3 of 24

slide-4
SLIDE 4

Page 4 of 24

slide-5
SLIDE 5

Page 5 of 24

slide-6
SLIDE 6

Two homes and a mesquite thicket were razed.

Page 6 of 24

slide-7
SLIDE 7

The gym was constructed.

Page 7 of 24

slide-8
SLIDE 8

Page 8 of 24

slide-9
SLIDE 9

Page 9 of 24

slide-10
SLIDE 10

Page 10 of 24

slide-11
SLIDE 11

Page 11 of 24

slide-12
SLIDE 12

Page 12 of 24

slide-13
SLIDE 13

This item was first before you at a combined Council/Board meeting on January 29, 2013

Council/Board entered into an IGA in November of 2014. Term of the IGA was to contract with W.C Scoutten (Town’s Engineer) to address the below items:

Town:

  • Access to Kerkes Trailhead
  • Mitigate drainage issues in the area – originates @ Yavapai/Washington
  • Creativity in seeing if two projects can overlap saving our residents $

School District:

  • Mitigate drainage affecting the school site/parking lot
  • Creativity in seeing if two projects can overlap saving our residents $

W.C. Scoutten, Inc. (now EPS Group)

  • Study existing drainage conditions
  • Investigate alternatives to address drainage issues
  • Prepare report with recommended alternative
  • Prepare cost estimate

Page 13 of 24

slide-14
SLIDE 14

No LEFT TURN

Page 14 of 24

slide-15
SLIDE 15

Page 15 of 24

slide-16
SLIDE 16

Based on 100-yr, 6-hour rainfall

52 cfs 107 cfs 173 cfs 192 cfs 213 cfs

Page 16 of 24

slide-17
SLIDE 17

 52 cfs enters school site from southwest  107 cfs enters from Valentine and Coconino

Streets

 Combines as 173 cfs along north side of

school

 Additional flow from Kerkes Street combines

for a total of 192 cfs

 Discharges to River at 213 cfs  Very little slope from Kerkes Street to River

Page 17 of 24

slide-18
SLIDE 18

 Resolves flooding at Kerkes Trailhead area  Protects school site from flooding*  Provides additional access to Kerkes Trailhead  Combines access road with drainage channel  Low-water crossing of Kerkes Street  New access and traffic circulation for school

parking lot

 Relocate school bus entry to staging area  Additional one-way exit from parking lot to bus

staging and Kerkes Street

* Up to 100-year, 6-hour rainfall

Page 18 of 24

slide-19
SLIDE 19

Proposed Storm Drain Pipes

Page 19 of 24

slide-20
SLIDE 20

Low-Water Crossing

Channel

Page 20 of 24

slide-21
SLIDE 21

[Insert cross-section diagram here]

Page 21 of 24

slide-22
SLIDE 22

 Preliminary Project Cost Estimate = $1.9 million

(not including property acquisition and permitting)

 Sanitary sewer relocation  Possible waterline and electrical relocation  Channel must be closed during wet weather with

appropriate signage

 Design channel for major stormwater flows and

heavy vehicles

 Property ownership/acquisition  Floodplain Use/Corps 404 permitting

Page 22 of 24

slide-23
SLIDE 23

 Partnership Considerations

  • Decision should be made soon to enable both parties to

move forward on respective key projects (Kerkes Trailhead and Hassayampa parking lot)

  • Funding options

 WUSD has adopted adjacent ways tax to fund this and other projects.  Short-term financing (loan or bond) could be considered.  Possible grants (one in progress).

  • Value engineering and phasing options
  • Final design process

Page 23 of 24
