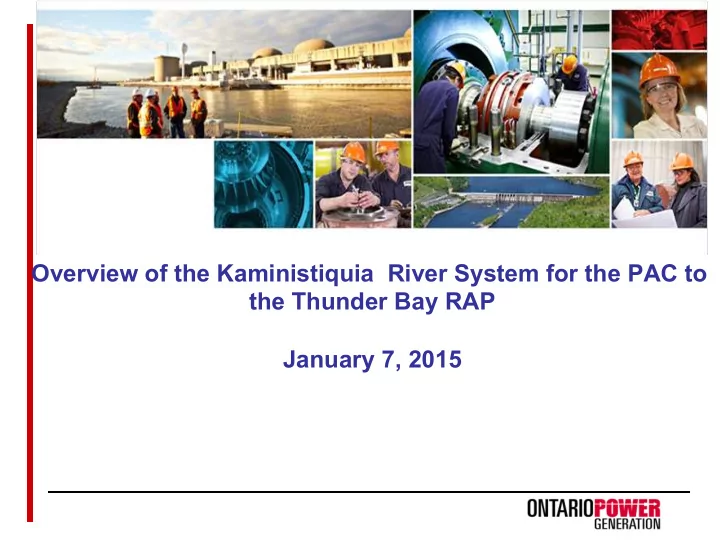

Overview of the Kaministiquia River System for the PAC to the Thunder Bay RAP January 7, 2015

slide-2
SLIDE 2

2

Presentation Overview

  • OPG and Northwest Operations
  • Kaministiquia River System Overview
  • Kam WMP and Requirements
  • Shebandowan Dam Replacement
  • opg.com for water levels and flows
slide-3
SLIDE 3

3

OPG Profile

  • 16,227 MW generating capacity
  • 65 hydro, 2 nuclear, 5 thermal
  • Produces more than half of Ontario’s electricity
slide-4
SLIDE 4

4

Northwest Operations Hydro Thermal

slide-5
SLIDE 5

5

Northwest Operations - Hydro

  • 11 hydroelectric generating stations
  • 38 generating units
  • 5 watersheds:
  • Aguasabon; Nipigon; Kaministiquia; English; Winnipeg
  • 4 Work Centers :
  • Thunder Bay ; Kenora; Ear Falls; Cameron Falls
  • 665 MW capacity
slide-6
SLIDE 6

6

Aguasabon River System

slide-7
SLIDE 7

7

Nipigon River System

slide-8
SLIDE 8

8

English River System

slide-9
SLIDE 9

9

Winnipeg River System

slide-10
SLIDE 10

10

Kaministiquia River System

slide-11
SLIDE 11

11

Northwest Operations - Thermal

  • 2 generating stations
  • 346 MW Capacity
  • Thunder Bay – 1 Unit

Advanced Biomass (135MW)

  • Atikokan – 1 Unit

Biomass (211MW)

slide-12
SLIDE 12

Kaministiquia River Watershed

Image Source: OPG. (2005). Kaministiquia River Watershed. Dam Safety & Emergency Preparedness. Dwg No.: 127-D3H-08410-0003-0001 Ver 0.

Matawin River Original Dog

  • R. Channel

Matawin River Shebandowan River

slide-13
SLIDE 13

13

Kaministiquia Watershed – Schematic

Lake Superior Kakabeka GS Aqueduct and Penstock Kakabeka Falls Dam Kaministiquia River Shebandowan River Matawin River Dam (OMNR) Matawin River Lake River Direction of Flow Dam Generating Station (GS) Greenwater Lake Greenwater Lake Dam Greenwater Creek Shebandowan Lake Shebandowan Lake Dam Kashabowie Lake Kashabowie Lake Dam Kashabowie River Penstock Silver Falls GS Dog Lake Dam Dog Lake Mabella Dam

slide-14
SLIDE 14

Kaministiquia Watershed – Profile View

Image Source: Google, Inc. Google Maps. (2011). <http://www.maps.google.com/> Image Source: OPG. (2008). Kam River System Profile. Drawing: 09421- DAH-09060-0003_V00

slide-15
SLIDE 15

Kaministiquia River System Control Structures

Silver Falls GS & Surge Tower

§ 5 Main Control Structures

§ Dog Lake Dams 1 & 2, Greenwater,

Kashabowie & Shebandowan Dams § 2 Generating Stations

§ Kakabeka Falls (25 MW) § Silver Falls (48 MW)

Kakabeka Falls GS Dog Lake Dam #2 Greenwater Lake Dam Shebandowan Lake Dam Kashabowie Lake Dam

slide-16
SLIDE 16

16

Water Management on the Kaministiquia River

slide-17
SLIDE 17

17

  • Prior to 1990 - Ontario Hydro voluntarily managed

water flows and levels for power generation as well as to accommodate other user interest groups

  • 1990 - Kaministiquia Water Management Study

provided recommendations for the operation of the river system

  • 2002 - An amendment to the Lakes & Rivers

Improvement Act (LRIA) requires all owners of water power facilities in Ontario to prepare a WMP

slide-18
SLIDE 18

Water Management Plan (WMP)

18

  • Required by the OMNR

– ‘New Business Relationship’ with hydropower industry – Amendments to the Lakes & Rivers Improvement Act (2002)

  • The Goal: Support sustainable

development of water resources for water power and other uses, while protecting and enhancing the natural ecosystems

  • Identifies water flow and level compliance

requirements

– Waterpower facilities (generating stations) – Control structures (dams)

  • Developed through a formal planning process
slide-19
SLIDE 19

The Kaministiquia River System WMP

19

  • Finalized in June of 2005
  • Valid for a 10 year period

– July 1st, 2005 – March 31st, 2015

  • Planning process involved

– Proponents (OPG & OMNR) – Regulator (OMNR) – Public Advisory Committee (PAC) & First Nations

  • Friends of the Kam
  • AbitibiBowater Pulp & Paper Canada
  • Fort William Historical Park
  • Dog Lake Campers’ Association
  • Northwestern Ontario Prospectors Association
  • Municipality of Conmee
  • Thunder Bay Soil & Crop Improvement Association
  • Municipality of Oliver-Paipoonge
  • Northwestern Ontario Sportsman’s Alliance
  • Shebandowan Lake Advisory Committee
  • Lakehead University – Wetland & Environment
slide-20
SLIDE 20
  • SAC Members

– Dog Lake Camper’s Association – Shebandowan Lake Campers Association (also represent Kashabowie) – Lakehead Region Conservation Authority – Resolute Forest Products – Fort William Historical Park – Friends of the Kam – Municipality of Oliver Paipoonge – Upper Kam Residents

OPG and OMNR are committee resources

  • Reports (2)

– Annual compliance report and letter report immediately following an

  • ut of compliance condition

– Annual summary report of the watershed

20

The Kaministiquia River System WMP

slide-21
SLIDE 21

Dog Lake

§ Water intake via underground

tunnel from south end of Dog Lake

§ Silver Falls GS operated remotely

from NWCC

§ Dog Lake Dam operated manually § Maximum output: 48 MW at 52cms § Maximum Dam outflow = 783 cms

Silver Falls Generating Station Silver Falls Generating Station Dog Lake Dam #2

slide-22
SLIDE 22

22

Dog Lake – Water Level Compliance

Data Source: OPG. (2011). NWPG Water Management Procedure. NW-PROC-P21-WM Rev. 2.

Max compliance range: 3.54m. (418.00 – 421.54m)

slide-23
SLIDE 23

– Single sluice & spillwall – Operated manually – Max outflow = 22.3cms

Data Source: OPG. (2011). NWPG Water Management Procedure. NW-PROC-06-WM Rev. 2.

Kashabowie Lake Dam

Kashabowie Lake Control Dam

slide-24
SLIDE 24

24

Kashabowie – Water Level Compliance

Max compliance range: 1.3m (458.40 – 459.70 m)

slide-25
SLIDE 25

Kashabowie – Outflow Compliance

Minimum Outflow Compliance

  • 0.5cms year round
  • 1.5cms April 15 to June 1st (for walleye

spawning )

slide-26
SLIDE 26

Shebandowan Lake Control Dam

– 5 sluice dam – Operated manually – Max outflow = 76cms

The image cannot be displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again.

Shebandowan Lake Dam

slide-27
SLIDE 27

27

Shebandowan – Water Level Compliance

Max compliance range: 1.05m (449.50 – 450.55)

slide-28
SLIDE 28

28

Shebandowan – Outflow Compliance

Minimum Outflow Compliance

  • 1cms year round (leakage)
slide-29
SLIDE 29

Kakabeka Falls Generating Station Kakabeka Falls

Kakabeka Dam, Intake and GS

– 6 manual sluices – 1 remote sluicegate – 1 ice sluice (not used) – Max outflow = 893cms – 4 unit GS – Operated remotely – Max outflow = 57cms

slide-30
SLIDE 30

30

slide-31
SLIDE 31

Kakabeka – Total Outflow Compliance

Minimum Outflow Compliance

  • 11cms winter
  • 17cms summer
slide-32
SLIDE 32

32

Kakabeka Dam – Outflow Compliance

Dam Min Outflow Compliance = 0.5cms

slide-33
SLIDE 33

33

Kakabeka Dam – Outflow Compliance

Minimum Scenic Flow Requirement Victoria Day to Thanksgiving (7am to 9pm)

  • 4.25cms weekdays
  • 8.5 weekends
slide-34
SLIDE 34

Lower Kaministiquia River Lake Sturgeon Flow Requirements

  • In 2002-05 WMP discussions – flow requirement for

lake Sturgeon was a major issue

  • 2005-2013 MNR/OPG studies
  • 2014 Instituted during May 5 – July 1

– 25 cms minimum total river flow after May 5th (upstream migration from lower river) – 14 cms minimum spill over falls May 15* – June 27 (spawning and drift) – 3cms/day spill rampdown June 27 – July1

*May 15 or when KB TW temp reaches 11C

slide-35
SLIDE 35

§ Original Dam built in 1923, replaced in 1956 § Existing dam is safe and operable, but showing signs of

deterioration consistent with end of life

§ Studies determined the preferred alternative is to replace the

dam (vs rehab, removal or do-nothing)

§ New dam will be a concrete structure similar is size and flow

capacity

§ Plan is to award contract Fall 2015, then construction during

the summers of 2016 and 2017

slide-36
SLIDE 36

OPG’s WEBSITE for Water Levels and Flows

http://www.opg.com/generating-power/hydro/northwest-ontario/river-systems/Pages/kaministiquia-river.aspx

slide-37
SLIDE 37

37

Questions…..
