Topics Overview B cell development T cell development 2/1/2005 BIOS 486A / 586A 1 Lymphocyte development overview Ag receptors in B and T cells are immensely variable Diversity is generated during development by gene

slide-1
SLIDE 1

1

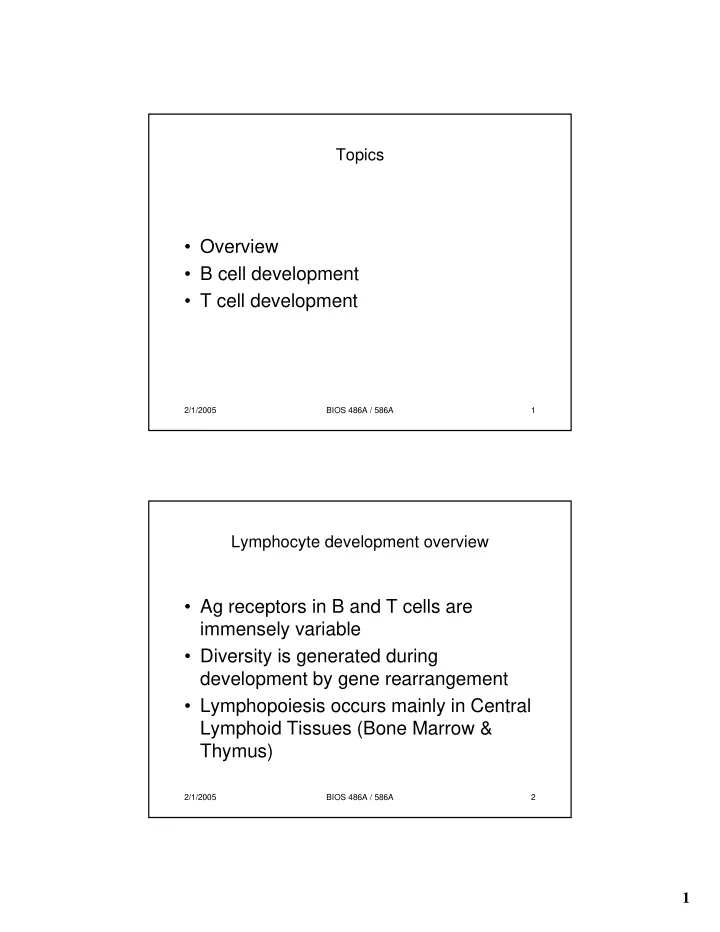

2/1/2005 BIOS 486A / 586A 1

Topics

  • Overview
  • B cell development
  • T cell development

2/1/2005 BIOS 486A / 586A 2

Lymphocyte development overview

  • Ag receptors in B and T cells are

immensely variable

  • Diversity is generated during

development by gene rearrangement

  • Lymphopoiesis occurs mainly in Central

Lymphoid Tissues (Bone Marrow & Thymus)

slide-2
SLIDE 2

2

2/1/2005 BIOS 486A / 586A 3

Lymphocyte development overview (Cont)

  • Receptor diversity is produced by gene

rearrangement and is random

  • Includes specificities that will bind to SELF
  • Lymphocytes go through a process of

selection

– Self-recognizing cells are removed from the system during development (Negative selection) – Sells that recognize self antigens weakly or that recognize self antigens in a particular way receive a survival signal (positive Selection)

2/1/2005 BIOS 486A / 586A 4

Lymphocyte development overview (Cont)

  • Negative Selection ensures Immunological

Tolerance

  • Positive Selection ensures MCH Restriction

(T-cells)

– Default fate = cell death

  • Most lymphocytes generated in the Bone

Marrow do not survive

  • In the fetus lymphocytes are generated in the

liver

slide-3
SLIDE 3

3

2/1/2005 BIOS 486A / 586A 5

  • In the fetus and juvenile individuals:
  • large production of new lymphocytes that

populate the peripheral lymphoid tissues

  • In the mature individual:

– New T cell production slows down. T cells are maintained by division of mature T cells. – New B cells are constantly being produced

2/1/2005 BIOS 486A / 586A 6

slide-4
SLIDE 4

4

2/1/2005 BIOS 486A / 586A 7

Fig 6.1

4 stages of B cell development

2/1/2005 BIOS 486A / 586A 8

  • Development requires signals from to

microenvironment to start gene rearrangements

  • Stromal cells (Stroma = mattress)

– Specific adhesion contacts via interaction

  • f cell-adhesion molecules and their

ligands – Provide growth factors that stimulate lymphocyte differentiation and proliferation

slide-5
SLIDE 5

5

2/1/2005 BIOS 486A / 586A 9

B cell early development in the Bone Marrow

2/1/2005 BIOS 486A / 586A 10

  • Development occurs in stages
  • is measured by successful

rearrangement of genes and expression

  • f receptor molecules
  • Development is accompanied by

expression of other cell surface and intracellular proteins

slide-6
SLIDE 6

6

2/1/2005 BIOS 486A / 586A 11 2/1/2005 BIOS 486A / 586A 12

  • Productive rearrangement leads to protein

expression

  • Non-productive rearrangement leas to apoptosis
slide-7
SLIDE 7

7

2/1/2005 BIOS 486A / 586A 13

B cell development in Secondary lymphoid

  • rgans
  • Immature cells complete development in secondary

lymphoid organs

– Spleen, Lymph nodes, MALT

  • Small proportion complete maturation and survive to

recirculate between Lymphoid organs and the blood

  • Survival is a consequence of competition for a place

in the pool of long-lived recirculating B cells

  • Follicular dendritic cells, located in FOLLICLES

provide survival signals to all cells

  • B cells stay for one day in follicle

2/1/2005 BIOS 486A / 586A 14

B cell selection

Immature B cells (Bone Marrow) Mature B cells (Secondary Lymphoid tissues)

Binding to Ag presented by cells? (multivalent) NO YES Apoptosis Binding to soluble Ag? NO YES Anergy Enter the secondary lymphoid tissue? YES NO Short life

slide-8
SLIDE 8

8

2/1/2005 BIOS 486A / 586A 15

T cell Development

2/1/2005 BIOS 486A / 586A 16

T cell origin

–Fetus : Bone Marrow & Liver –Infants, juveniles: Bone Marrow & Thymus – High production –Adults: Thymus atrophied – #s maintained by division of Mature T cells

slide-9
SLIDE 9

9

2/1/2005 BIOS 486A / 586A 17

Thymic stroma

2/1/2005 BIOS 486A / 586A 18

slide-10
SLIDE 10

10

2/1/2005 BIOS 486A / 586A 19

Lymphid precursor B cell precursor B cell α:β γ:δ CD8

Cytotoxic T cells

CD4

T helper cells

T cell precursor Th 1 Th 2

2/1/2005 BIOS 486A / 586A 20

T cell development

Progenitor cells enter thymus Differentiate into

  • Dendritic cells
  • γ:δ
  • α:β

Double negative cells CD3- CD4- CD8- Double positive cells CD3+ CD4+ CD8+ β chain gene rearrangement α chain gene rearrangement Single positive cells CD3+ Either CD4+ or

  • r CD8+

Fig 7.3

Cortex Medulla

7.8

slide-11
SLIDE 11

11

2/1/2005 BIOS 486A / 586A 21

MHC restriction

T cell

Antigen presenting cell MHCa MHCb MHCa

X X Y Fig 5.16 (a) (a) (a) (a) (a) (b)

2/1/2005 BIOS 486A / 586A 22

Co-stimulation / Adhesion Molecules

slide-12
SLIDE 12

12

2/1/2005 BIOS 486A / 586A 23

Positive Selection of T cells

CD3+ CD4 +CD8+

Thymic APC Good interaction between TCR – MHC?

CD3+ CD4 +CD8+ CD3+ CD4 +CD8+ CD3+ CD4 +CD8+ CD3+ CD4 +CD8+

Rescue Ensures MHC restriction

YES

Death in 3 or 4 days

NO

2/1/2005 BIOS 486A / 586A 24

CD3+ CD4 +CD8+

Very strong interaction between TCR – MHC?

Negative Selection of T cells

Thymic APC

YES

Apoptosis

NO

CD3+ CD4 + CD3+ CD4 + CD3+ CD4 + CD3+ CD4 + CD3+ CD8+ CD3+ CD8+ CD3+ CD8+ CD3+ CD8+

slide-13
SLIDE 13

13

2/1/2005 BIOS 486A / 586A 25

Fig 7.23 4th Ed

2/1/2005 BIOS 486A / 586A 26

Cell – Cell interactions in the Lymph Node

T cells enter lymph node T cells monitor APC If interaction, T cells proliferate and differentiate If no interaction, T cells leave Fig 8.2

slide-14
SLIDE 14

14

2/1/2005 BIOS 486A / 586A 27 2/1/2005 BIOS 486A / 586A 28
