Print version CEE 697z Organic Compounds in Water and Wastewater Cyanotoxins Compounds, Toxicity and Occurrence Lecture #27 CEE 697z - Lecture #27 Cyanotoxins Neurotoxins Anatoxin-a Saxitoxin Anatoxin-as Saxitoxin

slide-1
SLIDE 1

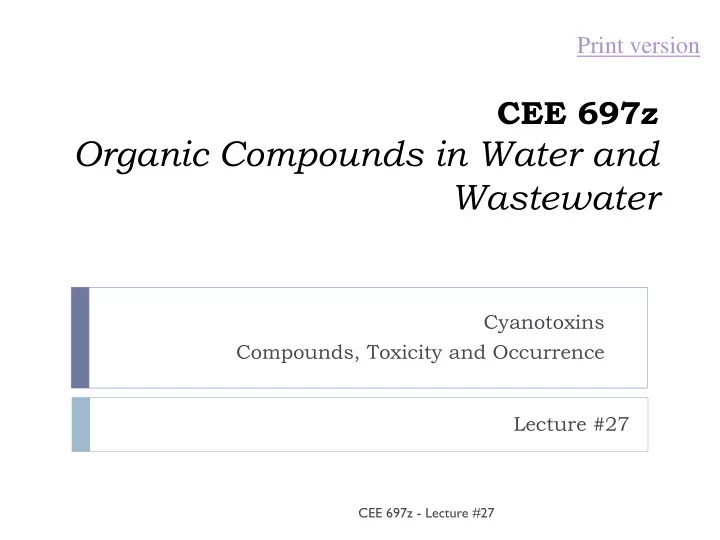

CEE 697z

Organic Compounds in Water and Wastewater

Cyanotoxins Compounds, Toxicity and Occurrence

CEE 697z - Lecture #27

Print version

Lecture #27

slide-2
SLIDE 2

Cyanotoxins

 Neurotoxins  Anatoxin-a  Anatoxin-as  Saxitoxin  β-Methylamino-L-alanine (BMAA)  Hepatotoxins  Microsystins  Nodularins  Cytotoxins  Cylindrospermopsin  Gastrointestinal and dermatotoxins  Aplysiatoxin  Lyngbyatoxin a

Anatoxin-a Anatoxin-as Saxitoxin Nodularin R Microcystin LN Cylindrospermopsin Aplysiatoxin BMAA

CEE 697z - Lecture #27

slide-3
SLIDE 3
  • Fig. 1 Structure of the

cyanobacterial neurotoxins.

Araoz, R., Molgo, J. and de Marsac, N.T. (2010) Neurotoxic cyanobacterial

  • toxins. T
  • xicon 56(5), 813-

828.

Neurotoxins

CEE 697z - Lecture #27

slide-4
SLIDE 4

Anatoxin

 An Alkaloid Neurotoxin  ฀

3 common variants

 ฀

Produced by Anabaena and other genera

 ฀

LD50 200 ug/kg

 ฀

Anatoxin-a mimics acetylcholine (Nicotinic acetylcholine receptor agonists )

 Residence of these toxins at post-synaptic cholinergic receptors results

in nerve depolarisation

 Anatoxin-as is structurally different from Anatoxin–a and is highly

toxic

Acetylcholine Anatoxin-a

CEE 697z - Lecture #27

slide-5
SLIDE 5

Saxitoxins

 Saxitoxin is usually associated with red tides in marine ecosystems

 Responsible for paralytic shelfish poisoning  Been detected in some freshwater species

CEE 697z - Lecture #27

slide-6
SLIDE 6
  • Fig. 4 Saxitoxin

analogues produced by some members of different cyanobacteria genera.

Araoz, R., Molgo, J. and de Marsac, N.T. (2010) Neurotoxic cyanobacterial

  • toxins. T
  • xicon 56(5), 813-

828.

Saxitoxins

CEE 697z - Lecture #27

slide-7
SLIDE 7

BMAA neurotoxin

  • Caused by over 30 species of cyanobacteria:
  • Ex. Microcystis, Anabaena, Nostoc, Planktothrix
  • Can cause motor neuron disease or death
  • Accumulates in brain tissue
  • Found in Guam and linked to ALS

CEE 697z - Lecture #27

slide-8
SLIDE 8

Amyotrophic Lateral Sclerosis (ALS)

  • Neurodegenerative disease
  • About 2 per 100,000 people in US
  • Can be caused by the neurotoxin BMAA
  • Symptoms
  • Muscle weakness (including speech muscles)
  • Twitching and cramping of muscles
  • Trouble with speech
  • Shortness of breath, trouble swallowing
  • Death by suffocation

CEE 697z - Lecture #27

slide-9
SLIDE 9

Parkinson’s Disease (PD)

  • Neurodegenerative Disease
  • Symptoms
  • Rigidity of muscles, slowing of movement
  • Muscle spasms or tremors
  • Loss of smell, blinking, smiling
  • Speech changes (soft, monotone, repetition)
  • Dementia in later stages

CEE 697z - Lecture #27

slide-10
SLIDE 10

Alzheimer’s

  • 7th leading cause of death
  • Most common form of dementia
  • Destroys brain cells leading to memory loss,

confusion, changes in personality, mood, behavior, problems with language

CEE 697z - Lecture #27

slide-11
SLIDE 11

Hepatotoxins

Merel, S., Walker, D., Chicana, R., Snyder, S., Baures, E. and Thomas,

  • O. (2013) State of

knowledge and concerns

  • n cyanobacterial

blooms and cyanotoxins. Environment International 59, 303- 327.

  • Cyclic peptides
  • Cause liver damage
  • Long term exposure can

lead to liver cancer

CEE 697z - Lecture #27

slide-12
SLIDE 12

Microsystins

 Polypeptide produced by Microsystis & others

 Adda is: 3-amino-9-methoxy-2,6,8-trimethyl-10-phenyldeca-4,6-dienoic

acid

 90 congeners & 200 related compounds  LD50 ~25-60 ug/kg (cyanide is 4,000 ug/kg)  Hepatotoxin and tumor promoter

CEE 697z - Lecture #27

slide-13
SLIDE 13

Nodularins

 Powerful hepatotoxins  Cyclic nonribosomal peptide

 Similar to microsystins, as both have 3-amino-9-methoxy-2,6,8-trimethyl-10-

phenyldeca-4,6-dienoic acid (Adda)

 Difference is Nodularins have 2-(methylamino)-2-dehydrobutyric acid (Mdhb)

where Microsystins have dehydroanaline  Produced by Nodularia spumigena, a cyanobacterium

 The late summer blooms of Nodularia spumigena are among the largest

cyanobacterial mass occurrences in the world.

 More in brackish waters Very similar to microcystins, except that nodularins do not bind covalently to proteins in the body and thus move more easily throughout the body and cells CEE 697z - Lecture #27

slide-14
SLIDE 14
  • Fig. 1a Structure of

microcystins and nodularins.

Merel, S., Walker, D., Chicana, R., Snyder, S., Baures, E. and Thomas, O. (2013) State of knowledge and concerns on cyanobacterial blooms and

  • cyanotoxins. Environment

International 59, 303-327. CEE 697z - Lecture #27

slide-15
SLIDE 15

Cylindrospermopsin

 Alkaloid  ฀

Produced by Cylindrospermopsis

 ฀

LD50 300 ug/kg

 ฀

Hepatotoxin and Neurotoxin

 ฀

Subtropical species recently reported in Michigan

CEE 697z - Lecture #27

slide-16
SLIDE 16

Cylindrospermopsin: Variants

 The molecular structures of cylindrospermopsin (1) and its analogs

7‐deoxy‐cylindrospermopsin (2) and 7‐epicylindrospermopsin (3).

Journal of Applied Microbiology Volume 114, Issue 3, pages 605-620, 19 NOV 2012 DOI: 10.1111/jam.12048 http://onlinelibrary.wiley.com/doi/10.1111/jam.12048/full#jam12048-fig-0001

CEE 697z - Lecture #27

slide-17
SLIDE 17

 Reference Dose =

amount that can be ingested orally by a person, above which a toxic effect may

  • ccur, on a

milligram per kilogram body weight per day basis.

Toxicity of Algal Toxins Relative to Other Toxic Compounds found in Water

Dioxin (0.000001 mg/kg-d) Microcystin LR (0.000003 mg/kg-d) Saxitoxin (0.000005 mg/kg-d) PCBs (0.00002 mg/kg-d) Cylindrospermopsin (0.00003 mg/kg-d) Methylmercury (0.0001 mg/kg-d) Anatoxin-A (0.0005 mg/kg-d) DDT (0.0005 mg/kg-d) Selenium (0.005 mg/kg-d) Alachlor (0.01 mg/kg-d) Cyanide (0.02 mg/kg-d) Atrazine (0.04 mg/kg-d) Fluoride (0.06 mg/kg-d) Chlorine (0.1 mg/kg-d) Aluminum (1 mg/kg-d) Ethylene Glycol (2 mg/kg-d) Botulinum toxin A (0.001 mg/kg-d)

T

  • xin Reference Doses

CEE 697z - Lecture #27

slide-18
SLIDE 18

US Regulatory Action

From: Cyanobacteria and Cyanotoxins: Information for Drinking Water Systems , USEPA , Ju

CEE 697z - Lecture #27

slide-19
SLIDE 19
  • Fig. 1 Origin of toxic cyanobacterial

blooms and human exposure.

Merel, S., Walker, D., Chicana, R., Snyder, S., Baures, E. and Thomas, O. (2013) State of knowledge and concerns on cyanobacterial blooms and cyanotoxins. Environment International 59, 303-327.

Exposure

CEE 697z - Lecture #27

slide-20
SLIDE 20

Funari E, Testai E. Toxigenic cyanobacteria from marine, brackish and freshwaters. Chart. Critical Reviews in Toxicology, Feb2008; 38(2):98 Available from: Academic Search Premier, Ipswich, MA. Accessed March 20, 2010.

CEE 697z - Lecture #27

slide-21
SLIDE 21

Funari E, Testai E. Toxigenic cyanobacteria from marine, brackish and freshwaters. Chart. Critical Reviews in Toxicology, Feb2008; 38(2): 101 Available from: Academic Search Premier, Ipswich, MA. Accessed March 20, 2010.

CEE 697z - Lecture #27

slide-22
SLIDE 22

http://healthvermont.gov/enviro/bg_algae/bgalgae.aspx

Lake Champlain

CEE 697z - Lecture #27

slide-23
SLIDE 23

Lake Erie; western basin

 The 2014 T

  • ledo

Ohio incident:

 On-line reports

 http://www.nytimes.com/20

14/08/05/us/lifting-ban- toledo-says-its-water-is- safe-to-drink- again.html?_r=0

 http://www.vox.com/2014/

8/3/5963645/a-toxic-algae- bloom-has-left-400000- people-in-ohio-without- drinking

CEE 697z - Lecture #27

slide-24
SLIDE 24

CEE 697z - Lecture #27

slide-25
SLIDE 25

 1 ppb WHO drinking water limit  20 ppb WHO swimming limit  60 ppb highest level for Lake Erie till 2011  84 ppb highest level for Grand Lake St. Marys

till 2010

 2000+ Grand Lake St. Marys 2010  1200 Lake Erie Maumee Bay area 2011  Carroll Water System, west of Davis-Besse,

4&5 Sept 2013, 1.4 and 3.5 ppb

Microcystin Concentrations

CEE 697z - Lecture #27

slide-26
SLIDE 26

Sampling locations and microcystin-LR concentrations (average ± S.E., µg/L) along the Lake Ontario shoreline and the associated rivers, embayments and ponds. The green vertical bar at each Lake Ontario site represents the “shoreside” sampling site. The red vertical bar at each Lake Ontario site represents samples taken in the creek, river or embayment. Vertical bars are to scale. Bars for Knauf and Georgetown Ponds, Lake Neatahwanta, Sackets Harbor “scum” and the Conesus and Silver Lake “scum” concentrations are not to scale with concentration listed above the bar. The vertical bars for the nearshore and offshore of Lake Ontario are labeled “30 m” and “100 m”

CEE 697z - Lecture #27

slide-27
SLIDE 27

Average monthly (±S.E.) microcystin-LR, total phosphorus and phycocyanin concentration (µg/L) at 37 sites in Lake Ontario from 2003–2006. Sites include streams, rivers, embayments, shoreside sites, and the nearshore and offshore zones. See Fig. 1 for location of sites.

CEE 697z - Lecture #27

slide-28
SLIDE 28

CEE 697z - Lecture #27
