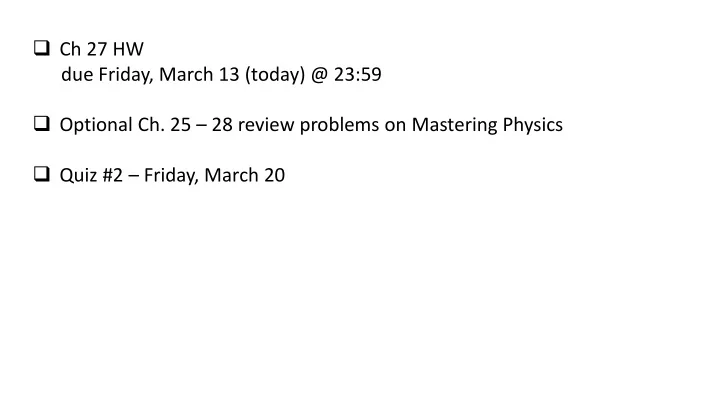

❑ Ch 27 HW due Friday, March 13 (today) @ 23:59 ❑ Optional Ch. 25 – 28 review problems on Mastering Physics ❑ Quiz #2 – Friday, March 20

SLIDE 2

The capacitor is initially unchanged. Immediately after the switch closes, the capacitor voltage is

QuickCheck 28.19

A. 0 V
B. Somewhere between

0 V and 6 V

C. 6 V
D. Undefined.

SLIDE 3

QuickCheck 28.19

A. 0 V
B. Somewhere between

0 V and 6 V

C. 6 V
D. Undefined.

The capacitor is initially unchanged. Immediately after the switch closes, the capacitor voltage is

SLIDE 4

Which capacitor discharges more quickly after the switch is closed?

QuickCheck 28.18

A. Capacitor A
B. Capacitor B
C. They discharge at

the same rate.

D. Can’t say without

knowing the initial amount of charge.

SLIDE 5

Smaller time constant τ = RC

Which capacitor discharges more quickly after the switch is closed?

QuickCheck 28.18

A. Capacitor A
B. Capacitor B
C. They discharge at

the same rate.

D. Can’t say without

knowing the initial amount of charge.

SLIDE 6

QuickCheck 28.20

The red curve shows how the capacitor charges after the switch is closed at t = 0. Which curve shows the capacitor charging if the value of the resistor is reduced?

SLIDE 7

Smaller time constant. Same ultimate amount

f charge.

The red curve shows how the capacitor charges after the switch is closed at t = 0. Which curve shows the capacitor charging if the value of the resistor is reduced?
