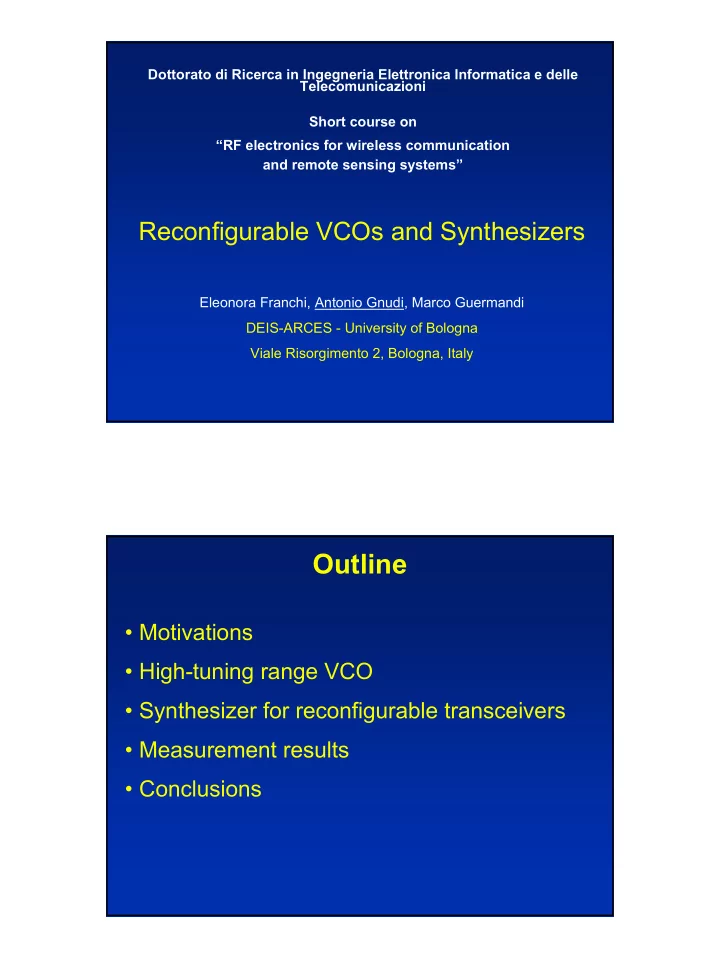

Dottorato di Ricerca in Ingegneria Elettronica Informatica e delle Telecomunicazioni Short course on “RF electronics for wireless communication and remote sensing systems” Eleonora Franchi, Antonio Gnudi, Marco Guermandi DEIS-ARCES - University of Bologna Viale Risorgimento 2, Bologna, Italy

Reconfigurable VCOs and Synthesizers

Outline

• Motivations
• High-tuning range VCO
• Synthesizer for reconfigurable transceivers
• Measurement results
• Conclusions

Motivations

Frequency synthesis for multi-standard transceivers requires: wide frequency range versatility in channel spacing high switching speed … all this with low phase-noise and low cost !

Available solutions

wide frequency range

• VCO + dividers when possible (multiband)
• switched tanks (L or C) or switched VCOs
• technology boosters (bond-wire inductances or

high CMAX / CMIN ratio capacitors)

• VCOs + mixers for frequency shift (UWB)

versatility in channel spacing & switching speed

• fractional-N PLL
• reconfigurable loop-filter

Investigated solutions

wide frequency range

• high-tuning range single-LC VCO
• designed for 0.9-2.4 GHz continuous tuning

versatility in channel spacing & switching speed

• fractional-N PLL with linearization and spurs

cancellation techniques to break the bandwidth trade-off

Main concept of high-tuning range VCO

2 0.33 3/2 0.2

γ α

5/4 0.11 3 0.5

α γ α − = + 1 1

Problems with the previous concept

• For γ = 2 (1 FF), α = 0.33 … too much

for a common LC VCO

• For α = 0.2 (achievable for LC VCO),

γ = 3/2, but what about the duty cycle?

2 0.33 3/2 0.2

γ α

5/4 0.11 3 0.5

Ideal Fvco/(3/2) with 50% duty-cycle Fvco Realistic Fvco/(3/2) with duty-cycle not good for mixer

More problems

• For I/Q mo-demodulation, both in-phase and in-

quadrature LO signals are required

• A multiplexer is necessary for the selection of

the output frequency sub-band

A more effective solution is required !!

High-tuning range VCO: architecture

0.83-2.5 GHz 2.5-3.75 GHz (±20%)

High-tuning range VCO: configuration A

1/3 Fvco 1/3 Fvco 2/3 Fvco Fvco

0.83-1.25 GHz

High-tuning range VCO: configuration B

1.25-1.87 GHz

1/2 Fvco Fvco DC Fvco

High-tuning range VCO: configuration C

1.67-2.5 GHz

2/3 Fvco 1/3 Fvco 4/3 Fvco Fvco

Schematic of the core LC-QVCO

• 5-bit capacitor

array for coarse tuning

• amplitude control

The quadrature is obtained by two Injection-Locked Oscillators (ILO) coupled by second harmonic ILO

Some theoretical results on the QVCO

Quadrature oscillation is stable in the “high-swing” regime, that is also beneficial for low phase noise “low swing” regime: Is1 Is2 in-phase Vd1 Vd2 in-phase “high swing” regime: Is1 Is2 opp.-in-phase Vd1 Vd2 in-quadrature Stability of the solutions:

QVCO explanation (1)

Stable solution

QVCO explanation (2)

Stable solutions: depending on Is0 two possible regimes VS and IS opposite in phase: Quadrature obtained

More theoretical results on the QVCO

Phase-noise analysis The QVCO and the single stage ILO have the same phase-noise x current product

nQ n dm n

i j Q V R r r ⋅ ⋅ ⋅ = ω ω θ 2 1

1

nQ n dm n

i j Q V R r r ⋅ ⋅ ⋅ = ω ω θ 2 2 1

1

Single stage ILO QVCO

More theoretical results on the QVCO

Sensitivity to tank mismatches The quadrature error is proportional to the ratio

• f the bias current over the coupling current

and to the quality factor Q In the proposed scheme the output I/Q signals are generated by the DIV2 an extremely low I/Q error is NOT required from the QVCO

        − ⋅         + ⋅ =

02 01

3 1 4 3 ω ω ω

sm s

I I Q err

High tuning VCO: circuit design style

• SCL logic for low

sensitivity to parameter variations (differential style)

• Adjustable bias current

across the different sub-bands

• Differential Gilbert cells

for the SSB mixer.

D-latch used in the MS-FF DIV2

Feedback path: DIV2 and MUX

DIV2 Constant output Buffer

Schematic of the SSB mixer

compensation for 50% duty-cycle

Effect of the duty-cycle compensation

w/o compensation Mixer outputs from simulations: with compensation

Chip micrograph

STM 0.13 µm CMOS technology

Summary of measured high-tuning range VCO performance

31.5 / 21.7 30.1 / 20.2 27.5 / 17.6 Total current (mA) < 2° < 1° < 1° Quadrature accuracy 9.5 8 5.3

• Reconf. curr. (mA)

22.1 / 12.25 22.1 / 12.25 22.1 / 12.25 LC-QVCO curr. (mA)

• 126.5 / -120
• 127.5 / -122.5
• 130 / -126

PN @ 1MHz (dBc/Hz) 1.67 / 2.5 1.25 /1.87 0.83 /1.25

• Freq. range (GHz)

C (2/3) B (1/2) A (1/3) Configuration

Phase-noise measurements

C (2 GHz) A (1 GHz)

• Meas. 0-3 GHz spectrum: configuration A

• Meas. 0-3 GHz spectrum: configuration B
• Meas. 0-3 GHz spectrum: configuration C

Possible origin of the subharmonic spur in configuration C

At the mixer output:

• fund. @ 4/3 Fvco + tone @ Fvco (1/3 Fvco offset)

At the divider output:

• fund. @ 2/3 Fvco + tone @ 1/3 Fvco (same offset)

Below -35 dBc in worst case over full frequency range

Synthesizer for reconfigurable transceivers

high-tuning range VCO The classical integer-N architecture … … is not adequate for channel spacing and switching speed

Σ∆ fractional-N synthesizer

Fractional-N obtained by varying the division ratio with a proper control sequence (α = <b(t)>): Fout = Fref x (N+α) b(t) = …001110101… high-tuning range VCO N/N+1

Why fractional synthesis?

• Easier trade off between reference frequency,

loop bandwidth and output frequency resolution. – The reference frequency can be higher than channel spacing ⇒ Increase of the loop bandwidth.

• Fine frequency step.

– The frequency resolution can be much smaller than the reference (varying α=<b(t)> in very fine steps)

• Multistandard receivers.

– Reference frequency is independent on channel spacing

First order Σ∆

• Assuming a constant input:

– The output mean is equal to the input – The quantization noise is high-pass shaped

(see explanation on next slide)

Noise shaping in first order Σ∆

General Σ∆ modulator Linear model with injected quantization noise

) ( 1 1 ) ( ) ( ) ( z H z E z Y z NTF + = =

First order:

1 1 ) ( − = z z H

s TF

f f f N π sin 2 ) ( =

High-pass noise-shaping

Σ∆ of higher order and different type

• Order = number of integrators (accumulators)
• Higher order ⇒ Stronger noise shaping,

Lower Spurs

• Feedback type (single loop): critical stability.
• MASH (Multi Stage noise Shaping):

Cascade of 1st and/or 2nd order Σ∆. Always stable. Multibit output.

Σ∆ Noise

Problems in fractional synthesis

• PLL bandwidth still limited by Σ∆ quantization

noise.

• High sensitivity to PFD-CP linearity (in band

noise leakage).

• Actually sequences generated by Σ∆ are

periodic: fractional spurs.

Spur compensation concept (1)

current injection related to the phase error at the input of the PFD, calculated by the control logic as

      + − + − ∆ = ∆ K N M n x M K n n ) ( 2 ) 1 ( ) ( π φ φ

M = 2nbit x(n) = output sequence

Spur compensation concept (2)

current injection

5+1 bits

Quantization noise shaping also in the DAC

Multi-modulus divider

SCL logic prescaler Standard CMOS logic (low-frequency part)

Linearization techniques…

dead-zone suppression buffers to equalize loads

P-N mismatch dead-zone gain enhancement

Typical linearity problems of the PFD-CP

… in the PFD Linearization techniques … in the CP

Matching: size and bias Vbias = low-pass filtered version of Vout

Alternative linearization technique: pulse injection

In lock conditions the sunk current pulse forces the PFD-CP to work in the linear part of its characteristic.

Fixed number

• f VCO cycles

Circuit implementation

• integrated in 0.13 µm CMOS STM technology …
• … with the exception of the Σ∆ modulator, the

control logic block of the compensation scheme and the largest capacitance of the loop filter

• Σ∆ sequences are computed off-line and passed to

the chip by a pattern generator

• 70 MHz differential mode clock internally divided by

two (35 MHz Fref )

• total area 1.8 x 2.0 mm2

Measured settling time

• 75 KHz measured 3-dB closed-loop bandwidth
• 105 µs settling time

Measured phase-noise plus spurs

• Conf. C

2.4 GHz

• utput

integer division ratio same integer ratio + fractional w/o comp. 2 dB decrease @ 10 MHz when compensation ON (not shown)

The amount of spur reduction depends on loop bandwidth

700 kHz BW 200 kHz BW

curve A: integer N curve B: same N + fractional curve C: same N + fractional + spur compensation

From former STM designs

Effect of linearization techniques

15 dB reduction of the in-band fractional spur when linearization is turned ON in the PFD-CP

15 dB

Summary of measured performance

88 Power consumption (mW)

• 126 (A), -120 (B), -114.5 (C)

PN @ 1 MHz offset (dBc/Hz)

• 60

In band fractional spur (dBc) 11 (A), 16 (B), 22 (C) Output frequency resolution (Hz) 105 Linear settling time (µs) 75 3-dB closed loop bandwidth (KHz) 863-2403 Frequency (MHz)

Conclusions

• integrated fractional synthesizer with

continuous output frequency in the 0.9-2.4 GHz band

• it combines high-tuning range with high

frequency resolution

• high-tuning range achieved thanks to a suitable

VCO scheme

• spurs compensation + linearization techniques

adopted in the synthesizer
