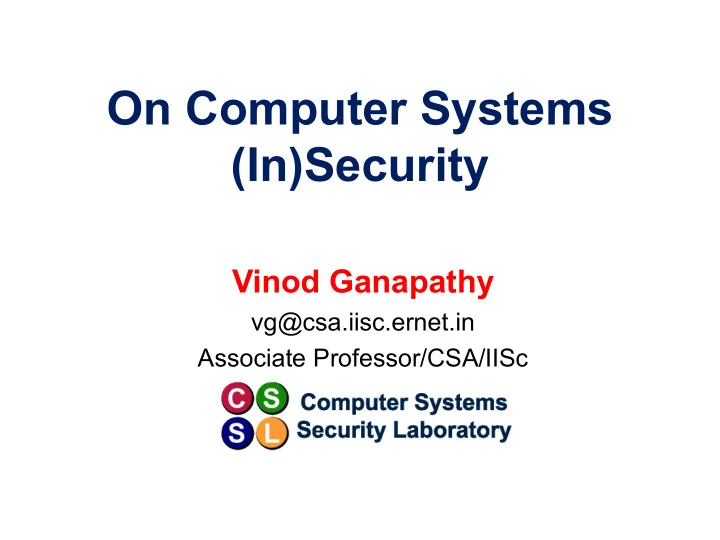

On Computer Systems (In)Security

Vinod Ganapathy

vg@csa.iisc.ernet.in Associate Professor/CSA/IISc

My goal today

To convince you that:

• 1. Computer systems are difficult to secure

2 Vinod Ganapathy - CSA Undergraduate Symposium

My goal today

To convince you that:

• 1. Computer systems are difficult to secure
• 2. Computer systems security is a fruitful

research area

3 Vinod Ganapathy - CSA Undergraduate Symposium

My goal today

To convince you that:

• 1. Computer systems are difficult to secure
• 2. Computer systems security is a fruitful

research area

• 3. You need to apply to the CSA/IISc Ph.D.

program and work on these problems 

4 Vinod Ganapathy - CSA Undergraduate Symposium

Vinod Ganapathy - CSA Undergraduate Symposium 5

Vinod Ganapathy - CSA Undergraduate Symposium 6

There a re no solutions,

• nly

problems

“There are no solutions, only problems.”

Layered computer system design

Modern computer systems are built using layers of abstraction

7

Memory I/O devices CPU

Hardware

Vinod Ganapathy - CSA Undergraduate Symposium

Layered computer system design

Modern computer systems are built using layers of abstraction

8

Memory I/O devices CPU

Hardware Operating System

Syscalls

Process List Kernel Code

IDT …

Vinod Ganapathy - CSA Undergraduate Symposium

Layered computer system design

Modern computer systems are built using layers of abstraction

9

Memory I/O devices CPU

Hardware Operating System

Syscalls

Process List Kernel Code

IDT …

Utilities & Libraries

ls, ps, & bash utilities libc gcc …

Vinod Ganapathy - CSA Undergraduate Symposium

Layered computer system design

Modern computer systems are built using layers of abstraction

10

User app

Memory I/O devices CPU

Hardware Operating System

Syscalls

Process List Kernel Code

IDT …

User app

Utilities & Libraries

ls, ps, & bash utilities libc gcc …

…

Vinod Ganapathy - CSA Undergraduate Symposium

Fundamental principle in security

11

User app

Memory I/O devices CPU

Hardware Operating System

Syscalls

Process List Kernel Code

IDT …

User app

Utilities & Libraries

ls, ps, & bash utilities libc gcc …

…

The lower you go, the more control you have

Least control Most control

Vinod Ganapathy - CSA Undergraduate Symposium

12

User app

Hardware Operating System Utilities & Libraries

Example: Malware detection

Vinod Ganapathy - CSA Undergraduate Symposium

13

User app

Hardware Operating System

Malware detector

Utilities & Libraries

Example: Malware detection

Vinod Ganapathy - CSA Undergraduate Symposium

14

User app

Hardware Operating System

Malware detector

Utilities & Libraries

Example: Malware detection

cat ps ls

…

TCB Trusted Layer

Vinod Ganapathy - CSA Undergraduate Symposium

15

User app

Hardware Operating System

Malware detector

Utilities & Libraries

But utilities may be compromised!

cat ps ls

Vinod Ganapathy - CSA Undergraduate Symposium

16

User app

Hardware Operating System

Malware detector

Utilities & Libraries

But utilities may be compromised!

cat ps ls

1 1

Show me file contents

Vinod Ganapathy - CSA Undergraduate Symposium

17

User app

Hardware Operating System

Malware detector

Utilities & Libraries

But utilities may be compromised!

cat ps ls

2 1

Show me file contents

2 Fake, benign

content

Vinod Ganapathy - CSA Undergraduate Symposium

18

User app

Hardware Operating System

Malware detector

Utilities & Libraries

Solution: Query the OS

System call API

1 1

Query with syscall

TCB

Vinod Ganapathy - CSA Undergraduate Symposium

19

User app

Hardware Operating System

Malware detector

Utilities & Libraries

Solution: Query the OS

System call API

1 2

Query with syscall OS reads file

2

TCB

Vinod Ganapathy - CSA Undergraduate Symposium

20

User app

Hardware Operating System

Malware detector

Utilities & Libraries

Solution: Query the OS

System call API

1 2 3

Query with syscall OS reads file Returns true file content

3

TCB

Vinod Ganapathy - CSA Undergraduate Symposium

21

User app

Hardware Operating System

Malware detector

Utilities & Libraries

OS detects malicious utilities too

System call API

A B

cat

cat file Read file

A B

diff vs ?

A B

TCB

Vinod Ganapathy - CSA Undergraduate Symposium

22

User app

Hardware Operating System

Malware detector

Utilities & Libraries

What if the OS is malicious?

System call API

Vinod Ganapathy - CSA Undergraduate Symposium

23

Hardware Operating System

Malware detector

Utilities & Libraries

Rootkit = Malware that infects OS

System call API

Rootkits hide malware from detectors  Long-term stealth

…

Vinod Ganapathy - CSA Undergraduate Symposium

How does an OS get infected?

• Exploits of kernel vulnerabilities:

– Injecting malicious code by exploiting a memory error in the kernel

• Privilege escalation attacks:

– Exploit a root process and use resulting administrative privileges to update the kernel

• Social engineering attacks:

– Trick user into installing fake kernel updates

• Defeated via signature verification of kernel updates
• Trivial to perform prior to the Windows Vista OS

Vinod Ganapathy - CSA Undergraduate Symposium 24

How prevalent are rootkits?

• 2010 Microsoft report: 7% of all infections

from client machines due to rootkits[1]

• 2016 HummingBad Android rootkit:[2]

– Up to 85 million Android devices infected? – Earns malware authors $300,000 each week through fraudulent mobile advertisements

• Used in many high-profile incidents:

– Torpig and Storm botnets – Sony BMG (2005), Greek wiretapping (2004/5)

25

[1] Microsoft Malware Protection Center, “Some Observations on Rootkits,” January 2010, https://blogs.technet.microsoft.com/mmpc/2010/01/07/some-observations-on-rootkits [2] CheckPoint Software, “From HummingBad to Worse,” July 2016, http://blog.checkpoint.com/wp-content/uploads/2016/07/HummingBad-Research-report_FINAL-62916.pdf

Vinod Ganapathy - CSA Undergraduate Symposium

26

User app

Hardware Operating System

Malware detector

Utilities & Libraries

How can we detect rootkits?

System call API

Hypervisor (a.k.a. Virtual Machine Monitor)

Ask for help from the layers below

TCB

Vinod Ganapathy - CSA Undergraduate Symposium

27

User app

Hardware Operating System

Malware detector

Utilities & Libraries

How low can we go?

Hypervisor

[Bluepill, Subvert]

TCB

Vinod Ganapathy - CSA Undergraduate Symposium

28

User app

Operating System

Malware detector

Utilities & Libraries

How low can we go?

Hardware [Stuxnet, Trojaned ICs] ???

TCB

Vinod Ganapathy - CSA Undergraduate Symposium

Example 1: Linux Adore rootkit

int main() {

• pen(…)

... return(0) }

sys_open(...) { ... } sys_open System call table

29

OS kernel User app

Vinod Ganapathy - CSA Undergraduate Symposium

Example 1: Linux Adore rootkit

int main() {

• pen(…)

... return(0) }

sys_open(...) { ... } evil_open(...) { malicious(); sys_open(...) } evil_open System call table

30

OS kernel User app

Vinod Ganapathy - CSA Undergraduate Symposium

Example 1: Linux Adore rootkit

int main() {

• pen(…)

... return(0) }

sys_open(...) { ... } evil_open(...) { malicious(); sys_open(...) } evil_open System call table

31

OS kernel User app

Vinod Ganapathy - CSA Undergraduate Symposium

Violated: Function pointer values in system call table should not change

Example 2: Windows Fu rootkit

run_list next_task run_list next_task run_list next_task

all-tasks: Used for process accounting run-list: Used by the scheduler to select processes for execution

Process A Process B Process C

32

Vinod Ganapathy - CSA Undergraduate Symposium

Example 2: Windows Fu rootkit

run_list next_task run_list next_task run_list next_task run_list next_task

all-tasks: Used for process accounting run-list: Used by the scheduler to select processes for execution

Hidden process Process A Process B Process C

33

Vinod Ganapathy - CSA Undergraduate Symposium

Example 2: Windows Fu rootkit

run_list next_task run_list next_task run_list next_task run_list next_task

all-tasks: Used for process accounting run-list: Used by the scheduler to select processes for execution

Hidden process Process A Process B Process C

34

Vinod Ganapathy - CSA Undergraduate Symposium

Violated: run-list ⊆ all-tasks

Next up? Rootkits on IoT devices!

35

Example: Smart phone rootkits

Vinod Ganapathy - CSA Undergraduate Symposium 36

Snoop on private phone conversations Track user location using GPS Email sensitive documents to attacker Stealthily enable camera and microphone Exhaust the battery Enable world-wide DDoS attacks [October 2016]

How can devices be misused?

• 1. Malicious end-users can leverage

sensors to exfiltrate or infiltrate unauthorized data

• 2. Malicious apps on devices can achieve

similar goals even if end-user is benign

37

Government or corporate office

• Problem: Sensitive documents and

meetings can be ex-filtrated using the camera, microphone and storage media

• Current solution: Physical security scans,

device isolation

38

Faraday cages

Challenge: Bring your own device

39

Classroom and exam setting

40

Classroom and exam setting

• Problem: Personal devices can be used

to infiltrate unauthorized information

41

[Financial Crypto 2014] [NY Times July 2012]

Classroom and exam setting

• Current solution: Deterrence via rules and
• threats. Invigilation to ensure compliance

42

Challenge: Assistive devices

• Students may wish to use devices for

legitimate reasons:

– Smart glass or contacts for vision correction – Bluetooth-enabled hearing aids – Smart watches to monitor time

43

Other social settings

• Restaurants, conferences, gym locker

rooms, private homes, …

• Problems:

– Recording private conversations – Pictures of individuals taken and posted to social networks without their consent – Pictures and videos of otherwise private locations, e.g., private homes

44

Other social settings

• Current solutions: Informal enforcement
• Challenge: Social isolation 

45

“For the first time ever this place, Feast, in NYC just asked that I remove Google Glass because customers have complained of privacy concerns […] I left”

 Early example of

sensory malware

[CCS 2011]

• Use accelerometer

and record keystroke press vibrations

• Up to 80% accuracy

in word recovery

Malicious apps exploiting sensors

46

Sensory malware

Malicious apps exploiting sensors

47

• Attacks have now been demonstrated

using every imaginable sensor

• Attack accuracy will improve with each

generation of devices and sensors

[NDSS 2011] [NDSS 2013] [USENIX Security 2014]

Sensory malware

So what’s the takeaway?

48

Vinod Ganapathy - CSA Undergraduate Symposium 49

There a re no solutions,

• nly

problems

“There are no solutions, only problems.” OK, I lied.

So what’s the takeaway?

50

• All the problems that I told you about today

have solutions.

• But not perfect ones -- can never be!
• Computer systems security is a game of cat-

and-mouse -- it always has been!

So what’s the takeaway?

51

• Computer systems security is rich, vibrant

area of research

• You can get involved and make a difference

URL: http://www.csa.iisc.ernet.in/~vg Email: vg@csa.iisc.ernet.in
