SLIDE 1
What is Security?
Attacker
Threat
Assets
Counter- measure
Computer Security Foundations What is Security? Attacker Assets - - PowerPoint PPT Presentation
Computer Security Foundations What is Security? Attacker Assets - - PowerPoint PPT Presentation

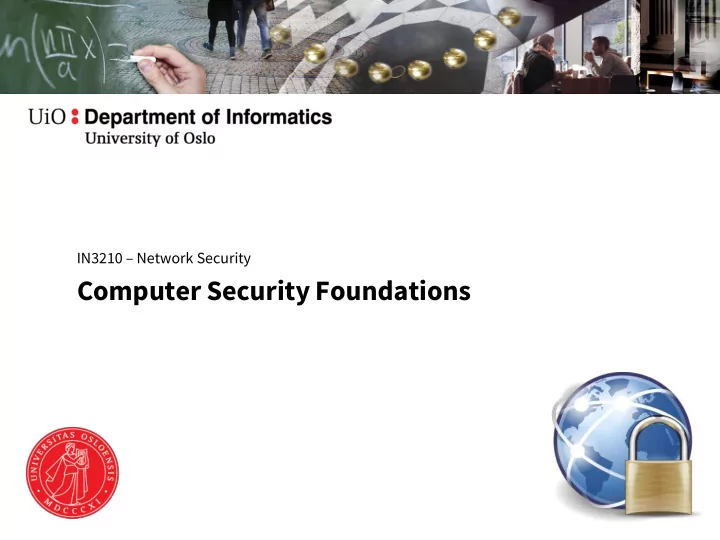

IN3210 Network Security Computer Security Foundations What is Security? Attacker Assets Threat Counter- measure Computer Security Security of computers and networks Protection of digital assets Axioms of Computer Security:
SLIDE 2
SLIDE 3
Computer Security
⚫ Security of computers and networks ⚫ Protection of digital assets ⚫ Axioms of Computer Security:
− Confidentiality (e.g. of transmitted secret information) − Integrity (e.g. of stored data) − Availability (e.g. of services)
⚫ Further goals:
− Authenticity − Non-repudiation − Privacy
SLIDE 4
Motivations for attacks
⚫ Financial advantages
− Free of charge use service with costs − Performing financial transactions − → Spoofing different identity
⚫ “Fun”
− Challenging security systems
⚫ “Revenge”
− Vandalism − Intrigues
⚫ Political or religious motives
SLIDE 5
Security Threats
⚫ Examples for attacks
− Services:
▪ Denial-of-Service
− Communication:
▪ Eavesdropping ▪ Modification
− Stored data:
▪ Espionage ▪ Deletion ▪ „Vandalism“
⚫ Basic attack measures
- n communication
− Sniffing − Redirection, e.g.
▪ ARP Spoofing ▪ DNS Poisoning ▪ Phishing
− Man-in-the-middle
SLIDE 6
“Nomenclature”
⚫ The “good” ones:
− Alice − Bob
⚫ The “bad” ones:
− Eve (passive attacker) − Mallory (active attacker)
6
Bob Alice Eve Mallory
SLIDE 7
Sniffing
⚫ Requires access to the communication medium ⚫ Passive Attacks, e.g.:
− Eavesdropping − Traffic analysis
Bob Alice Eve
SLIDE 8
Redirection
⚫ Can be used as preparation for man-in-the middle attacks
Bob Alice Eve / Mallory
SLIDE 9
Man-in-the-middle
⚫ Passive attacks (see „Sniffing“) ⚫ Active attacks, e.g.
− Packet drop − Packet modification − Packet injection − Packet replay
Alice Bob Eve / Mallory
SLIDE 10
Adversary Model
⚫ Important question:
− What capabilities do I assume for the attacker? − What kind of attacks can the attacker perform?
⚫ → Adversary model ⚫ Required for implementing countermeasures/testing
security protocols
⚫ Typical adversary model (Dolev and Yao, 1983):
− The attacker can perform any of the aforementioned action on transmitted packets − The attacker can not break “secure” algorithms (e.g. AES)
⚫ Security schemes (e.g. cryptographic protocols) must
guarantee their security goals in the presence of this attacker
10
SLIDE 11
Attack Examples
11
SLIDE 12
ARP
⚫ Address Resolution Protocol ⚫ Maps inside local networks from IP address to MAC address
10.0.0.8 Who has 10.0.0.8? 10.0.0.8 = FA … B3 FA … B3
SLIDE 13
ARP Spoofing (Redirection Attack)
10.0.0.8 Who has 10.0.0.8? 10.0.0.8 = DC … A7 10.0.0.24 FA … B3 DC … A7
SLIDE 14
IP Protocol
⚫ Properties:
− Connection-less − Adressing: source + target IP address − No QoS − No acklowledgement − No protection of packet order − No protection from packet loss / duplication
⚫ No mechanisms for:
− Confidentiality − Integrity − Authenticity − Non-repudiation − Anonymity
SLIDE 15
IP Address Spoofing
Network 129.13.182.* Network 131.234.142.*
IP Packet Router Router Source Destination 131.234.142.34 129.13.182.17 Data
C 131.234.142.34 B 129.13.182.17
A
Message from C
SLIDE 16
IP Address Spoofing
⚫ Principle:
− Attacker (A) sends packet to B using source IP address of C − Possible response is sent back to C
⚫ Variants:
− Denial of Service on C − Tricking B (or C):
▪ Response not required (e.g. DNS spoofing) ▪ Response can be anticipated ▪ Response can still be read by A (e.g. ARP spoofing)
⚫ Works better with connectionless protocols like UDP or ICMP
than for example with TCP C A B
SLIDE 17
Denial-of-Service (DoS)
⚫ Attacker tries to overload the target service or network ⚫ → „Service Denial“ for legitimate users ⚫ Attack can target different service layers:
− Network (e.g. gateway, TCP/IP stacks) − Representation (e.g. XML processing) − Application − Database
⚫ Attacker looks for the bottleneck inside the service
processing chain!
SLIDE 18
DoS Example: SYN Flooding
SYN SYN ACK ACK SYN SYN ACK SYN SYN ACK SYN SYN ACK Client Server Client Server
SLIDE 19
DDoS: Distributed DoS
⚫ Often executed by multiple attackers: Distributed Denial of
service (DDoS)
⚫ Either controlled by botnet or „crowd“
SLIDE 20
DDoS: Mirai Botnet
⚫ Millions of infected IoT devices (routers, IP cameras) ⚫ Offers DDoS as a service:
50.000 devices for 2 weeks: 3000$ - 4000$
Image Source: https://fossbytes.com/live-map-shows-record-breaking-mirai-malware-attacking-country/ Image Source: http://www.bleepingcomputer.com/news/security/you-can-now-rent-a-mirai-botnet-of-400-000-bots/
SLIDE 21
DDoS: Mirai Botnet
⚫ Illustrating the infection with Mirai
Quelle: Twitter
SLIDE 22
DDoS: Mirai Botnet
⚫ One victim
22 Source: http://krebsonsecurity.com/
SLIDE 23
Attack Examples
⚫ ... many more to come throughout the class
23
