Offshore Wind Energy Presented to the Philadelphia Section S ociet - - PowerPoint PPT Presentation

Slide 1

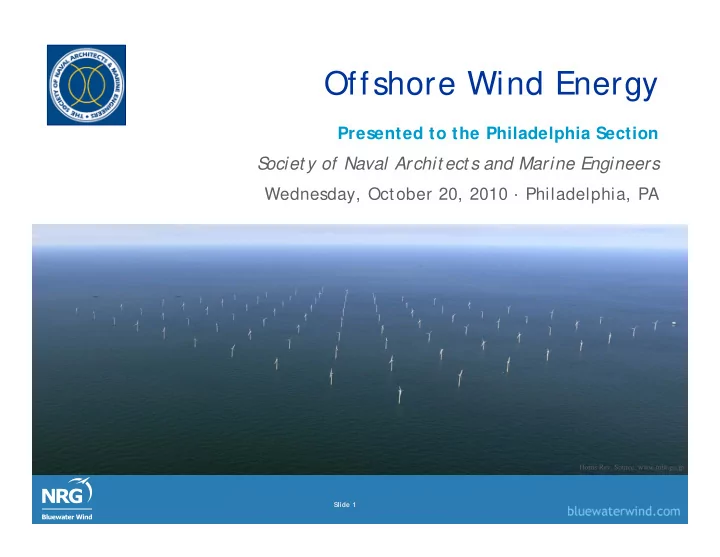

Offshore Wind Energy

Presented to the Philadelphia Section

S

• ciet y of Naval Archit ect s and Marine Engineers

Wednesday, October 20, 2010 · Philadelphia, PA

Horns Rev, Source: www.mlit.go.jp

Slide 2

Example Offshore Wind Park Layout

Slide 3

9 countries with completed offshore wind parks 16 wind parks under-construction (during Q1 & Q2 2010) 43 completed offshore wind parks 830 wind turbines installed (by year-end of 2009) 1991 year of first offshore wind installation 2396 MW of total installed capacity (as of June 2010) 3972 MW of capacity under-construction (during Q1 & Q2 2010) 34000 MW of capacity awarded in UK “ Round 3”

Offshore Wind Works

By the Numbers

Slide 4

Offshore Wind Market – Europe

• Oceans of opportunity

Europe’ s offshore wind potent ial is enormous and able to power Europe seven times over.

• Huge developer interest

Over 100 GW of offshore wind proj ects are already in various stages of planning. If realized, these proj ects would produce 10%

• f the European Union’ s electricity.
• Repeating the onshore success

EWEA has a target of 40 GW of offshore wind by 2020, an average annual market growth of 28% . The EU market for onshore wind grew an average 32% per year from 1992-2004.

“ Oceans of Opport unit y”

• ver 100 GW planned

European Market Projection 2009 EWEA Report

Source: EWEA

Slide 5

RPS

Why Go Offshore With Wind?

POPULATION WIND

Slide 6

East Coast at Night

Slide 7 Slide 7

• U.S

. Department of Energy (DOE) report 20% Wind Energy by 2030 included 54 GW offshore t o accomplish that goal.

• DOE recently announced A National Vision and Call to

Action for creating a U.S . offshore wind industry.

• $100M allocated to offshore wind research and test

facilities through the American Reinvestment and Recovery Act.

• RI and NJ completed competitive processes for

proposed proj ects.

• A DE utility has signed a ratified Power Purchase

Agreement (PPAs) with a developer. PPAs have been signed in MA and RI as well.

• NJ passed t he Offshore Wind Economic Development

Act, providing for energy certificates, tax credit s, and financial incentives

• S

ignificant interest in t he Great Lakes, including competively-bid RFPs for a pilot project in OH and utility-scale project in NY.

• First federal lease signed for proj ect in MA, under

preliminary leasing process.

• Federal leasing process initiated off of DE and

anticipated to begin near-t erm for proj ects off the coast of MD and VA.

U.S. Offshore Wind Projects (Ocean)

3372 TOTAL 300 TX W.E.S .T. 10 GA S

• uthern Company

450 DE Bluewater Wind 1050 NJ New Jersey BPU 700 NY New York Power Authority 379 RI Rhode Island 15 MA Hull Municipal 468 MA Cape Wind Size in MW State Project

U.S. Offshore Wind Industry Highlights

“ …we are est ablishing a program t o aut horize…t he leasing

• f federal wat ers for proj ect s t o generat e elect ricit y from

wind …t his will open t he door t o maj or invest ment s in

• ffshore clean energy …t here is enormous int erest in wind

proj ect s off t he coast s of New Jersey and Delaware, and t oday’ s announcement will enable t hese proj ect s t o move forward.” President Barack Obama, April 22, 2009

Offshore Wind Market – United States

Slide 8 Slide 8

Offshore Wind Market – United States

Source: U.S. Department of Energy

Slide 9

Foundation Types

Source: Ramboll

Jacket

Tripod

Source: Ramboll

Tripod

Source: Statoil-Hydro

Float ing

Source: Bard

Tripile

Source: Ramboll

Monopile

Source: Ramboll

Gravity-Based

Slide 10

Offshore Wind Turbines

A B C D E F

Image Sources: (a) vestas.com, (b) vestas.com, (c) w1.siemens.com, (d) repower.de, (e) bard-offshore.de, (f) multibrid.com

A| Vestas V90, 3 MW B| Vestas V112, 3 MW C| S iemens S WT-3.6-107, 3.6 MW D| REpower 5M, 5 MW E| Bard 5.0, 5 MW F| AREVA Multibrid M5000, 5 MW

Slide 11

CONCEPT DESIGN PRELIMINARY DESIGN DETAILED DESIGN

START FINISH

General Characteristics (e.g. energy

• utput, site)

Site Data (e.g. wind resource, water depth) Identify Components (e.g. turbine)

Offshore Wind Park - Design Spiral

Identify Foundations, Structures, and Installation Method Identify Layout and Plan Operations

Slide 12

Design Standards

Slide 13

Engineering Analysis - Examples

Source: DNV

Slide 14

Marine Activities Overview

Pre-Construction

– Avian S

tudies

– Geophysical Investigations – Geotechnical Investigations – Met Tower Installation – Wave S

ensor Deployment

– S

taging Port Development

Construction

– Foundation Installation – S

ub-sea Electrical Cable Installation

– Offshore S

ubstation Installation

– Turbine Installation

Post-Construction

– O&M Activities – Decommissioning

Slide 15

Avian Studies

Overview of Studies

Source: www.detect-inc.com

• Visual Transects

– Requires moving vessel – Conducted in all seasons

• Radar

– Requires stationary

platform

– Conducted during

spring and fall migration periods

Source: www.capecodtoday.com

Slide 16

Site Characterization

Geophysical and Geotechnical Investigations

Source: www.alpineocean.com Source: http://oceanexplorer.noaa.gov Source: www.fugro.com

Slide 17

Wind & Wave Sensor Deployment

Additional Inputs for Design Process

• Deploy wind buoy for site-

specific wind information

• S

upplements NOAA records and wind models

• Records ocean current profiles

and directional wave measurements at proj ect site

• Deployed in trawl-resistant

bottom mount (TRBM)

• S

erviced approx. every 90 days

NOAA Station #44009 Source: www.ndbc.noaa.gov Source: RERL U-Mass

Slide 18

Met Tower Installation

Met Tower Designs

Cape Wind Horns Rev W.E.S.T.

Slide 19

Met Tower Instrumentation

Platform Can Support Additional Equipment

Source: Oldbaum Services Presentation at EWEC 2007 Source: NortekUSA Presentation to Bluewater Wind Beatrice, Source: www.detect-inc.com

Avian Radar Acoustic Wave & Current Profiler LIDAR

Slide 20

Staging Port Development

Receive and Pre-Assemble Components

Scroby Sands, Source: www.2004ewec.info

Slide 21

Slide 22

Foundation Installation

Handling a Monopile

Source: RPS Energy Presentation

Slide 23

Source: www.Q7wind.nl

Foundation Installation

Handling a Transition Piece

Slide 24

Sub-sea Electrical Cable Installation

Receive, Deploy, and Connect Cables

Source: www.q7wind.nl Source: www.q7wind.nl Source: www.mika.no

Slide 25

Offshore Substation Installation

Lifting a Transformer Platform

Slide 26

Turbine Installation

Assembling a Tower and Lifting a Bunny Ear

Source: www.mammoetvanoord.com

Slide 27

O&M Activities

Accessing a Wind Turbine

Source: www.eurocopter.co.uk

Slide 28

Decommissioning

End of Project Life

• At the end of proj ect life turbines will be

removed.

• The removal sequence is roughly the reverse
• f the construction sequence.

Slide 29 Slide 29

Existing Installation Approaches

A F E B G C D H

Sources: (b) A2Sea / Mike Page, (e) www.geotimes.org, (f) www.gl-group.com, (h) www.semcollc.com

Slide 30

Turbine Installation Vessel – Wärtsilä Design

Slide 31

Turbine Installation Vessel – TIGER Grant

• Tiger Grant (Round II) application by Philadelphia Regional

Port Authority (PRPA) in collaboration with NRG Bluewater

• Tiger Grant (Round II) funds were requested to support the

construction of one Wartsila design turbine installation vessel (TIV) at the Philadelphia Aker S hipyard

• Grant award announcements expected before the end of 2010

Slide 32

Kevin Pearce, NRG Bluewater Wind kevin@ bluewaterwind.com 201.850.3691

Contact Information

Slide 33
