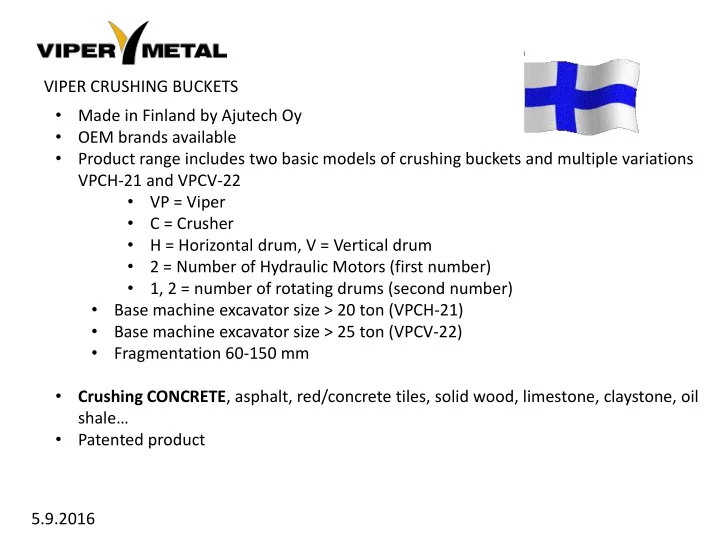

SLIDE 1 5.9.2016 VIPER CRUSHING BUCKETS
- Made in Finland by Ajutech Oy
- OEM brands available
- Product range includes two basic models of crushing buckets and multiple variations
VPCH-21 and VPCV-22
- VP = Viper
- C = Crusher
- H = Horizontal drum, V = Vertical drum
- 2 = Number of Hydraulic Motors (first number)
- 1, 2 = number of rotating drums (second number)
- Base machine excavator size > 20 ton (VPCH-21)
- Base machine excavator size > 25 ton (VPCV-22)
- Fragmentation 60-150 mm
- Crushing CONCRETE, asphalt, red/concrete tiles, solid wood, limestone, claystone, oil
shale…
SLIDE 2 5.9.2016 VIPER CRUSHING BUCKETS Typical applications
- Crushing concrete in demolition worksites, crushing construction waste:
concrete, hard asphalt, concrete/red tiles, limestone/sandstone/claystone/oil shale, wood and other hard demolition materials. Steel bars just go through without effecting the capacity
Viper VPCH-21 crushing demolition waste Viper VPCV-22 crushing concrete blocks
SLIDE 3 5.9.2016 VIPER CRUSHING BUCKETS Viper crushing buckets benefits Structural Strength
- Viper buckets are manufactured using 100 % wear steel (Hardox HB 400/500)
- Example VPCH-21 (2500 kg) vs. competitor (3950 kg); VPCV-22 (3100 kg) vs.
competitor (5750 kg)
- 53 - 81% lighter bucket weight resulting in less dead weight and more crushing
material weight /production per bucket, fuel savings, capacity improvement
- 13 - 31% larger bucket volume compared to jaw crushing buckets (VPCH-21:
1,3 m3 compared to 1,0 m3 (typical jaw crushing bucket). VPCV-22: 1,7 m3 compared to 1,5 m3 (typical jaw crushing bucket). Improved productivity and ability to crush larger objects Power Line Strength
- Patented design using slow rotating crushing drums
- Hydraulic motors inside of the drums, fully protected of damages
Flexibility and ease of use
- Bolted coupling, easy to change couplings
- One man operated easy and light to move to various job sites
- No daily maintenance like competition
- Affordable easy to change crushing teeth (hardox) or hard metal buttons,
available locally world-wide
SLIDE 4 5.9.2016 VIPER SCRUSHING BUCKETS Viper crushing buckets benefits Increased productivity
- Compared to jaw crushing buckets the capacity of Viper crushing bucket with
same fragmentation is app twice as much
- Steel bars do not cause jamming (clock and anti-clock rotation)
- The Viper crushing bucket opening is large allowing crushing large objects
(Viper VPCH-21; 1500 x 1350 mm compared typical jaw crusher 950 x 520 mm and VPCV-22; 1750 x 1450 mm compared typical jaw crusher 1250 x 560 mm) Increased safety
- Slow rotating drums not causing similar danger/risk of flying particles as fast
moving jaw crushers buckets Extra attachments
- Bucket teeth, hard rock type
- Hard metal cutting teeth
- Dust suppression system to eliminate dust in populated areas
- Magnet to separate the iron from waste material
- Bottom grids to VPCH-21 to adjust the seamless fragmentation size min 0-60
mm
SLIDE 5
5.9.2016 VIPER CRUSHING BUCKETS Viper crushing buckets benefits summary New patented technology Structure Strength – less weight – more volume - more production Power line Strength – oversized components – durability – extra power No daily maintenance – no time wasted in maintenance – trouble free operation Increased capacity and durability using patented rotating drum technology MSRP (Price) benefit Viper is 20 - 35% more affordable compared to jaw crushers Result: Up to 100% more capacity compared to conventional jaw crusher buckets Up to 50% lighter than jaw crusher buckets - fuel savings – ability to crush large particles Oversized components ensure smooth, long life operation
SLIDE 6
5.9.2016
100% wear steel (hardox) making the bucket lighter, large opening to crush large concrete blocks Bolted, easy-to-change bolted hardox (or alternatively hard metal buttons) crushing teeth, available world-wide. Patented structure
SLIDE 7
5.9.2016
Bolted crushing counter teeth – easy to change / hard metal weld Adjustable bottom grid(s) is extra attachment allowing seamless fragmentation 0-60/150 mm Alternatively hard metal button crushing teeth
SLIDE 8
5.9.2016 Viper VPCV-22 crushing claystone Viper VPCH-21 crushing concrete Please also see video clips Viper in action crushing concrete: https://www.youtube.com/channel/UC1XpE74Pw1r8YQHvlwJ_gQw https://www.youtube.com/channel/UCQjBk1MjErsl_ZiKtCKW-Dg
