Nonlinear matrix equations and canonical factorizations

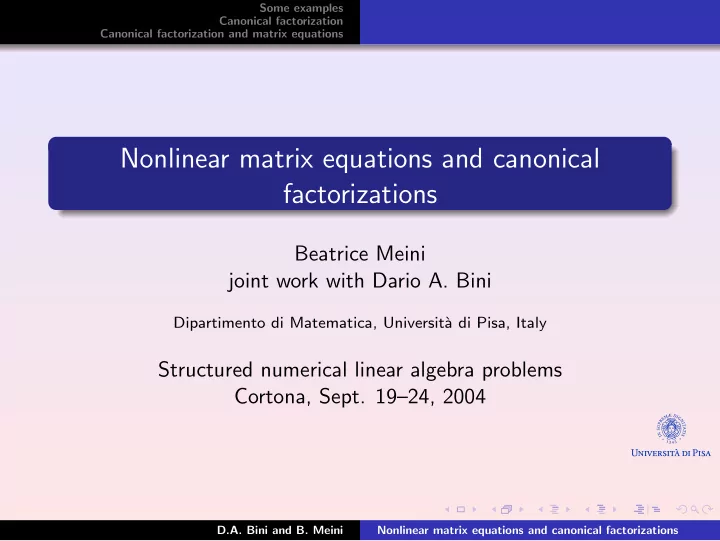

Beatrice Meini joint work with Dario A. Bini

Dipartimento di Matematica, Universit` a di Pisa, Italy

Structured numerical linear algebra problems Cortona, Sept. 19–24, 2004

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-2
SLIDE 2

Some examples Canonical factorization Canonical factorization and matrix equations

Outline

1

Some examples Quadratic matrix equations Matrix pth root: X p = A Power series matrix equations

2

Canonical factorization

3

Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-3
SLIDE 3

Some examples Canonical factorization Canonical factorization and matrix equations

Outline

1

Some examples Quadratic matrix equations Matrix pth root: X p = A Power series matrix equations

2

Canonical factorization

3

Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-4
SLIDE 4

Some examples Canonical factorization Canonical factorization and matrix equations

Outline

1

Some examples Quadratic matrix equations Matrix pth root: X p = A Power series matrix equations

2

Canonical factorization

3

Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-5
SLIDE 5

Some examples Canonical factorization Canonical factorization and matrix equations Quadratic matrix equations Matrix pth root Power series matrix equations

Outline

1

Some examples Quadratic matrix equations Matrix pth root: X p = A Power series matrix equations

2

Canonical factorization

3

Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-6
SLIDE 6

Some examples Canonical factorization Canonical factorization and matrix equations Quadratic matrix equations Matrix pth root Power series matrix equations

Quadratic matrix equations

Given the m × m matrix polynomial A(z) = A−1 + zA0 + z2A1 such that det A(z) has zeros |ξ1| ≤ · · · ≤ |ξm| < |ξm+1| ≤ · · · ≤ |ξ2m| compute the solution G of A−1 + A0X + A1X 2 = 0 such that λ(G) = {ξ1, . . . , ξm}. Such G is called the minimal solvent (Gohberg, Lancaster, Rodman ’82) Applications Quadratic eigenvalue problems (damped vibration problems), polynomial factorization, Markov chains, etc.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-7
SLIDE 7

Some examples Canonical factorization Canonical factorization and matrix equations Quadratic matrix equations Matrix pth root Power series matrix equations

Functional interpretation (Gohberg, Lancaster, Rodman ’82)

1 The

matrix function S(z) = z−1A−1+A0+zA1 can be factorized as S(z) = (A0 + zA1G)(I − z−1G) where

det(A0 + zA1G) = 0 for |z| ≤ 1; det(I − z−1G) = 0 for |z| ≥ 1.

2 Conversely: if

S(z) = (U0 + zU1)(L0 + z−1L−1) = U(z)L(z) where det U(z) = 0 for |z| ≤ 1 and det L(z) = 0 for |z| ≥ 1, then G = −L−1

0 L−1 is the minimal right solvent.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-8
SLIDE 8

Some examples Canonical factorization Canonical factorization and matrix equations Quadratic matrix equations Matrix pth root Power series matrix equations

Functional interpretation (Gohberg, Lancaster, Rodman ’82)

1 The

matrix function S(z) = z−1A−1+A0+zA1 can be factorized as S(z) = (A0 + zA1G)(I − z−1G) where

det(A0 + zA1G) = 0 for |z| ≤ 1; det(I − z−1G) = 0 for |z| ≥ 1.

2 Conversely: if

S(z) = (U0 + zU1)(L0 + z−1L−1) = U(z)L(z) where det U(z) = 0 for |z| ≤ 1 and det L(z) = 0 for |z| ≥ 1, then G = −L−1

0 L−1 is the minimal right solvent.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-9
SLIDE 9

Some examples Canonical factorization Canonical factorization and matrix equations Quadratic matrix equations Matrix pth root Power series matrix equations

Matrix pth root

Assumptions A ∈ Cm×m with no eigenvalues on the closed negative real axis. Definition The principal matrix pth root of A, A1/p, is the unique matrix X such that:

1 X p = A. 2 The eigenvalues of X lie in the segment

{ z : −π/p < arg(z) < π/p }. Applications Computation of the matrix logarithm, computation

  • f the matrix sector function (control theory).

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-10
SLIDE 10

Some examples Canonical factorization Canonical factorization and matrix equations Quadratic matrix equations Matrix pth root Power series matrix equations

Functional interpretation

Theorem (Bini, Higham, Meini 04) Assume p = 2q, where q is odd. Let S(z) = z−q

p

  • j=0

zj p j

  • A + (−1)j+1I
  • .

If U(z) = U0 + zU1 + · · · + zqUq is such that det U(z) = 0 for |z| ≤ 1, and S(z) = U(z)U(z−1) then A1/p = −σ−1(qI + 2U′(−1)U(−1)−1) where σ = 1 + 2 ⌊q/2⌋

j=1

cos(2πj/p).

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-11
SLIDE 11

Some examples Canonical factorization Canonical factorization and matrix equations Quadratic matrix equations Matrix pth root Power series matrix equations

Power series matrix equations

An application M/G/1-type Markov chains, introduced by

  • M. F. Neuts in the 80’s, which model a large variety
  • f queueing problems.

Problem Given nonnegative matrices Ai ∈ Rm×m, i ≥ −1, such that +∞

i=−1 Ai is stochastic, compute the

minimal component-wise solution G, among the nonnegative solutions, of X = A−1 + A0X + A1X 2 + · · ·

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-12
SLIDE 12

Some examples Canonical factorization Canonical factorization and matrix equations Quadratic matrix equations Matrix pth root Power series matrix equations

Some properties of G

Let φ(z) = zI − +∞

i=−1 zi+1Ai.

If the M/G/1-type Markov chain is positive recurrent, then: G is row stochastic. det φ(z) has exactly m zeros in the closed unit disk. The eigenvalues of G are the zeros of det φ(z) in the closed unit disk. Therefore G is the spectral minimal solution, i.e., ρ(G) ≤ ρ(X) for any other possible solution X.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-13
SLIDE 13

Some examples Canonical factorization Canonical factorization and matrix equations Quadratic matrix equations Matrix pth root Power series matrix equations

The induced factorization

The function S(z) = I − +∞

i=−1 ziAi can be factorized as

S(z) =

  • I −

+∞

  • i=0

ziUi

  • (I − z−1G),

|z| = 1, where: U(z) = I − +∞

i=0 ziUi is analytic for |z| < 1, convergent for

|z| ≤ 1, and det U(z) = 0 for |z| ≤ 1; L(z) = I − z−1G is analytic for |z| > 1, convergent for |z| ≥ 1, and det L(z) = 0 for |z| > 1, det L(1) = 0.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-14
SLIDE 14

Some examples Canonical factorization Canonical factorization and matrix equations Quadratic matrix equations Matrix pth root Power series matrix equations

The induced factorization

The function S(z) = I − +∞

i=−1 ziAi can be factorized as

S(z) =

  • I −

+∞

  • i=0

ziUi

  • (I − z−1G),

|z| = 1, where: U(z) = I − +∞

i=0 ziUi is analytic for |z| < 1, convergent for

|z| ≤ 1, and det U(z) = 0 for |z| ≤ 1; L(z) = I − z−1G is analytic for |z| > 1, convergent for |z| ≥ 1, and det L(z) = 0 for |z| > 1, det L(1) = 0.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-15
SLIDE 15

Some examples Canonical factorization Canonical factorization and matrix equations Quadratic matrix equations Matrix pth root Power series matrix equations

The induced factorization

The function S(z) = I − +∞

i=−1 ziAi can be factorized as

S(z) =

  • I −

+∞

  • i=0

ziUi

  • (I − z−1G),

|z| = 1, where: U(z) = I − +∞

i=0 ziUi is analytic for |z| < 1, convergent for

|z| ≤ 1, and det U(z) = 0 for |z| ≤ 1; L(z) = I − z−1G is analytic for |z| > 1, convergent for |z| ≥ 1, and det L(z) = 0 for |z| > 1, det L(1) = 0.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-16
SLIDE 16

Some examples Canonical factorization Canonical factorization and matrix equations

Outline

1

Some examples Quadratic matrix equations Matrix pth root: X p = A Power series matrix equations

2

Canonical factorization

3

Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-17
SLIDE 17

Some examples Canonical factorization Canonical factorization and matrix equations

Wiener algebra

Definition (W) The Wiener algebra W is the set of complex m × m matrix valued functions A(z) = +∞

i=−∞ ziAi such that +∞ i=−∞ |Ai| is finite.

Definition (W+ and W−) The set W+ ( W−) is the subalgebra of W made up by power series of the kind +∞

i=0 ziAi (+∞ i=0 z−iAi).

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-18
SLIDE 18

Some examples Canonical factorization Canonical factorization and matrix equations

Canonical factorization

Definition (Canonical factorization) Let A(z) = +∞

i=−∞ ziAi ∈ W. A canonical factorization of A(z) is

a decomposition A(z) = U(z)L(z), |z| = 1, where U(z) = +∞

i=0 ziUi ∈ W+ and L(z) = +∞ i=0 z−iL−i ∈ W−

are invertible for |z| ≤ 1 and 1 ≤ |z| ≤ ∞, respectively. Definition (Weak canonical factorization) The above decomposition is a weak canonical factorization if U(z) = +∞

i=0 ziUi ∈ W+ and L(z) = +∞ i=0 z−iL−i ∈ W− are

invertible for |z| < 1 and 1 < |z| ≤ ∞, respectively.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-19
SLIDE 19

Some examples Canonical factorization Canonical factorization and matrix equations

Canonical factorization

Definition (Canonical factorization) Let A(z) = +∞

i=−∞ ziAi ∈ W. A canonical factorization of A(z) is

a decomposition A(z) = U(z)L(z), |z| = 1, where U(z) = +∞

i=0 ziUi ∈ W+ and L(z) = +∞ i=0 z−iL−i ∈ W−

are invertible for |z| ≤ 1 and 1 ≤ |z| ≤ ∞, respectively. Definition (Weak canonical factorization) The above decomposition is a weak canonical factorization if U(z) = +∞

i=0 ziUi ∈ W+ and L(z) = +∞ i=0 z−iL−i ∈ W− are

invertible for |z| < 1 and 1 < |z| ≤ ∞, respectively.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-20
SLIDE 20

Some examples Canonical factorization Canonical factorization and matrix equations

An example: S(z) = +∞

i=−1 ziAi

Location of the zeros of det(zS(z)) Canonical factorization Weak canonical factorization

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-21
SLIDE 21

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Outline

1

Some examples Quadratic matrix equations Matrix pth root: X p = A Power series matrix equations

2

Canonical factorization

3

Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-22
SLIDE 22

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Some questions

Let S(z) = +∞

i=−1 ziAi ∈ W and define A(z) = zS(z). Consider +∞

  • i=−1

AiX i+1 = 0 (1)

1 Existence of a canonical factorization =

⇒ existence of a spectral minimal solution? Viceversa?

2 What can we say if the canonical factorization is weak? 3 Can we transform a weak canonical factorization into a

canonical factorization?

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-23
SLIDE 23

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Existence of solutions and canonical factorization

Theorem If there exists a c.f. S(z) = U(z)L(z), L(z) = L0 + z−1L−1, |z| = 1, then G = −L−1

0 L−1 is the unique solution of (1) such that

ρ(G) < 1, and it is the spectral minimal solution. Conversely, if there exists a solution G of (1) such that ρ(G) < 1 and if A(z) has exactly m roots in the open unit disk, det A(z) = 0 for |z| = 1, then S(z) has a c.f. S(z) = (U0 + zU1 + · · · )(I − z−1G), |z| = 1.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-24
SLIDE 24

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Existence of solutions and canonical factorization

Theorem If there exists a c.f. S(z) = U(z)L(z), L(z) = L0 + z−1L−1, |z| = 1, then G = −L−1

0 L−1 is the unique solution of (1) such that

ρ(G) < 1, and it is the spectral minimal solution. Conversely, if there exists a solution G of (1) such that ρ(G) < 1 and if A(z) has exactly m roots in the open unit disk, det A(z) = 0 for |z| = 1, then S(z) has a c.f. S(z) = (U0 + zU1 + · · · )(I − z−1G), |z| = 1.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-25
SLIDE 25

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Existence of solutions and weak factorization

Theorem If there exists a weak c.f. S(z) = U(z)L(z), L(z) = L0 + z−1L−1, |z| = 1, such that G = −L−1

0 L−1 is power bounded, then G is a spectral

minimal solution of (1) such that ρ(G) ≤ 1. Conversely, if S′(z) ∈ W, if there exists a power bounded solution G of (1) such that ρ(G) = 1, and if all the zeros of det A(z) in the

  • pen unit disk are eigenvalues of G then there exists a weak c.f. of

S(z). In general, weak c.f. = ⇒ unique spectral minimal solution. Can we transform a weak c.f. into a c.f?

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-26
SLIDE 26

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Existence of solutions and weak factorization

Theorem If there exists a weak c.f. S(z) = U(z)L(z), L(z) = L0 + z−1L−1, |z| = 1, such that G = −L−1

0 L−1 is power bounded, then G is a spectral

minimal solution of (1) such that ρ(G) ≤ 1. Conversely, if S′(z) ∈ W, if there exists a power bounded solution G of (1) such that ρ(G) = 1, and if all the zeros of det A(z) in the

  • pen unit disk are eigenvalues of G then there exists a weak c.f. of

S(z). In general, weak c.f. = ⇒ unique spectral minimal solution. Can we transform a weak c.f. into a c.f?

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-27
SLIDE 27

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Existence of solutions and weak factorization

Theorem If there exists a weak c.f. S(z) = U(z)L(z), L(z) = L0 + z−1L−1, |z| = 1, such that G = −L−1

0 L−1 is power bounded, then G is a spectral

minimal solution of (1) such that ρ(G) ≤ 1. Conversely, if S′(z) ∈ W, if there exists a power bounded solution G of (1) such that ρ(G) = 1, and if all the zeros of det A(z) in the

  • pen unit disk are eigenvalues of G then there exists a weak c.f. of

S(z). In general, weak c.f. = ⇒ unique spectral minimal solution. Can we transform a weak c.f. into a c.f?

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-28
SLIDE 28

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Shift technique: removing zeros of modulus 1

Before shifting After shifting

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-29
SLIDE 29

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Assumptions

S(z) = +∞

i=−N ziAi ∈ W and S′(z) ∈ W, where N ≥ 1.

There is only one simple zero λ of det S(λ) on the unit circle. v is a vector such that S(λ)v = 0, v = 0. In problems arising in Markov chains these assumptions are satisfied, moreover λ = 1 and v = (1, 1, . . . , 1)T.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-30
SLIDE 30

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Shift technique

Define

  • S(z) = S(z)(I − z−1λQ)−1,

Q = vuT where u is any fixed vector such that vTu = 1. Let A(z) = zN S(z). Then:

  • S(z) = +∞

i=−N zi

Ai ∈ W. if z ∈ {0, λ}, then det A(z) = 0 ⇐ ⇒ det A(z) = 0; det A(0) = 0 and A(0)v = 0; det A(z) = 0 if |z| = 1.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-31
SLIDE 31

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Shift technique

Define

  • S(z) = S(z)(I − z−1λQ)−1,

Q = vuT where u is any fixed vector such that vTu = 1. Let A(z) = zN S(z). Then:

  • S(z) = +∞

i=−N zi

Ai ∈ W. if z ∈ {0, λ}, then det A(z) = 0 ⇐ ⇒ det A(z) = 0; det A(0) = 0 and A(0)v = 0; det A(z) = 0 if |z| = 1.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-32
SLIDE 32

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Shift technique

Define

  • S(z) = S(z)(I − z−1λQ)−1,

Q = vuT where u is any fixed vector such that vTu = 1. Let A(z) = zN S(z). Then:

  • S(z) = +∞

i=−N zi

Ai ∈ W. if z ∈ {0, λ}, then det A(z) = 0 ⇐ ⇒ det A(z) = 0; det A(0) = 0 and A(0)v = 0; det A(z) = 0 if |z| = 1.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-33
SLIDE 33

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Shift technique

Define

  • S(z) = S(z)(I − z−1λQ)−1,

Q = vuT where u is any fixed vector such that vTu = 1. Let A(z) = zN S(z). Then:

  • S(z) = +∞

i=−N zi

Ai ∈ W. if z ∈ {0, λ}, then det A(z) = 0 ⇐ ⇒ det A(z) = 0; det A(0) = 0 and A(0)v = 0; det A(z) = 0 if |z| = 1.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-34
SLIDE 34

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Shift technique

Define

  • S(z) = S(z)(I − z−1λQ)−1,

Q = vuT where u is any fixed vector such that vTu = 1. Let A(z) = zN S(z). Then:

  • S(z) = +∞

i=−N zi

Ai ∈ W. if z ∈ {0, λ}, then det A(z) = 0 ⇐ ⇒ det A(z) = 0; det A(0) = 0 and A(0)v = 0; det A(z) = 0 if |z| = 1.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-35
SLIDE 35

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Weak − → canonical factorization

If S(z) has a weak canonical factorization S(z) = U(z)L(z) where det U(z) = 0 if |z| = 1, then S(z) has a canonical factorization

  • S(z) =

U(z) L(z), where

  • U(z) = U(z),
  • L(z) = L(z)(I − z−1λQ)−1

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-36
SLIDE 36

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Back to matrix equations

Let S(z) = +∞

i=−1 ziAi and let G, with ρ(G) = |λ|, be the

spectral minimal solution of +∞

i=−1 AiX i+1 = 0.

Then the matrix equation

+∞

  • i=−1
  • AiX i+1 = 0

has one minimal spectral solution

  • G = G − λQ.

Moreover ρ( G) = ρ2(G) < 1.

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-37
SLIDE 37

Some examples Canonical factorization Canonical factorization and matrix equations Some questions Existence of solutions Shift technique

Computational issues

Shift technique = ⇒ larger isolation ratio of the roots of S(z) with respect to the unit circle. Experimentally, larger isolatio ratio = ⇒ faster speed of convergence of functional iterations, cyclic reduction. Experimentally, larger isolatio ratio = ⇒ better numerical stability A theorethical proof of the latter experimental observations is still missing

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations

slide-38
SLIDE 38

New book

Numerical Methods for Structured Markov Chains D.A. Bini (University of Pisa)

  • G. Latouche (Universit´

e Libre de Bruxelles)

  • B. Meini (University of Pisa)

Oxford University Press, 2005

D.A. Bini and B. Meini Nonlinear matrix equations and canonical factorizations
