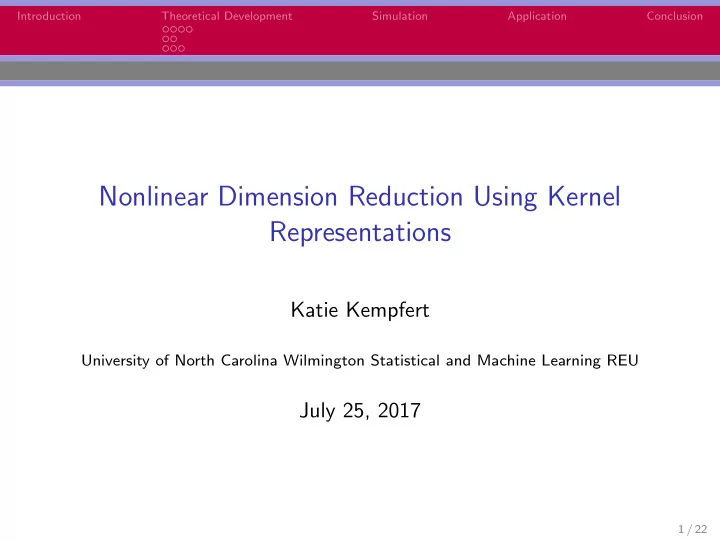

Nonlinear Dimension Reduction Using Kernel Representations

Katie Kempfert

University of North Carolina Wilmington Statistical and Machine Learning REU

July 25, 2017

1 / 22

Introduction Theoretical Development Simulation Application Conclusion

Outline

Introduction Theoretical Development Kernel Principal Component Analysis (KPCA) Supervised Kernel Principal Component Analysis (SKPCA) Kernel Fisher’s Discriminant Analysis (KFDA) Simulation Application Conclusion

2 / 22

Introduction Theoretical Development Simulation Application Conclusion

Introduction

◮ Dimensionality reduction techniques have become more

popular with the rise of big data.

◮ In particular, dimensionality reduction is important for image

processing.

◮ Features extracted from images often have very high

dimension, especially because redundant information and noise is contained in the features.

◮ Dimensionality reduction can be used to find meaningful

patterns in the data.

3 / 22

Introduction Theoretical Development Simulation Application Conclusion Kernel Principal Component Analysis (KPCA)

Principal Component Analysis (PCA)

◮ Let X be a data matrix with covariance matrix Σ. ◮ In standard PCA, we assume the directions of variability in X

are linear.

◮ Hence, we seek some transformation of X

Y

n×d = X n×p

A

p×d,

(1) such that A is an orthogonal matrix.

◮ This optimization problem can be expressed as the following

eigenproblem: Σai = λiai, i = 1, . . . , d, (2) where λ1 ≥ λ2 ≥ ... ≥ λd are eigenvalues with associated eigenvectors ai.

4 / 22

Introduction Theoretical Development Simulation Application Conclusion Kernel Principal Component Analysis (KPCA)

Nonlinear Mapping

◮ A disadvantage of standard PCA is that it can only identify

linear directions of variability.

◮ We overcome this by mapping X into some higher-dimensional

Hilbert space Rq via the nonlinear function Φ: Φ :Rn → Rq X → Z (3)

◮ The goal is to find Φ such that the directions of variability in

Φ(X) = Z are linear.

5 / 22

Introduction Theoretical Development Simulation Application Conclusion Kernel Principal Component Analysis (KPCA)

Example of Nonlinear Mapping

Figure 1: Intuition of KPCA

6 / 22

Introduction Theoretical Development Simulation Application Conclusion Kernel Principal Component Analysis (KPCA)

Kernel Trick

◮ Performing PCA in a higher-dimensional space like Rq may

present computational complexities.

◮ In order to reduce the complexity, we use the kernel trick:

k(xi, xj) = Φ(xi), Φ(xj), i, j = 1, 2, ..., n (4)

◮ The kernel is substituted for any dot product used in the

covariance or Grammian matrix.

◮ Then we can essentially perform PCA on Z in Rq.

7 / 22

Introduction Theoretical Development Simulation Application Conclusion Supervised Kernel Principal Component Analysis (SKPCA)

SKPCA Problem

◮ PCA and KPCA are unsupervised methods, since they do not

consider a response variable when identifying directions of variability in the data.

◮ SKPCA is a generalization of PCA and KPCA which

incorporates class information.

◮ This is done by solving the maximization problem

tr(βKHLHKβt)

β

, (5) where Kij = k(xi, xj) is the kernel matrix as defined for KPCA, Lij = l(yi, yj) = 1(yi = yj) × k(xi, xj) is the link matrix, and Hij = 1(i = j) − 1

n is the Hat matrix, for i, j = 1, ..., n.

8 / 22

Introduction Theoretical Development Simulation Application Conclusion Supervised Kernel Principal Component Analysis (SKPCA)

SKPCA Solution

Assuming K is non-singular, this is a regular eigenproblem, since we have Av = λBv, which implies B−1Av = λv, (6) where λ = vtAv

vtKv , B = K, and A = KHLHK, and B−1Av is

symmetric.

9 / 22

Introduction Theoretical Development Simulation Application Conclusion Kernel Fisher’s Discriminant Analysis (KFDA)

Fisher’s Discriminant Analysis (FDA)

◮ FDA is a popular dimension reduction technique in statistical

and machine learning.

◮ Given a dataset with m classes, FDA aims to find the best set

• f features to discriminate between the classes.

◮ FDA is a supervised method; for every observation xi, FDA

uses a class label associated with it.

◮ FDA can only identify groups that are linearly separable.

10 / 22

Introduction Theoretical Development Simulation Application Conclusion Kernel Fisher’s Discriminant Analysis (KFDA)

◮ In standard FDA, we seek to maximize the following objective

function J(v): J(v) = vtSBv vtSW v , (7) where SB is the between classes scatter matrix, SW is the within classes scatter matrix, and v is a p x 1 vector. SB

p×p =

• c

( ¯ xc − ¯ x)( ¯ xc − ¯ x)t SW

p×p =

• c
• i∈c

(xi − ¯ xc)(xi − ¯ xc)t (8)

◮ The solution to the maximization of J(v) is the eigenproblem

S

1 2

BSW −1S

1 2

Bu = λu.

(9)

11 / 22

Introduction Theoretical Development Simulation Application Conclusion Kernel Fisher’s Discriminant Analysis (KFDA)

Kernel Trick

◮ FDA can be generalized to KFDA to accommodate

nonlinearities in the data.

◮ Similar to KPCA and SKPCA, this is achieved through the

kernel trick.

◮ Basically, any occurrence of the dot product in the scatter

matrices is replaced with the kernel function k(xi, xj) = Φ(xi), Φ(xj), i, j = 1, 2, ..., n. (10)

12 / 22

Introduction Theoretical Development Simulation Application Conclusion

Simulation Summary

◮ KPCA, SKPCA, and KFDA are applied to 3 simulation

datasets generated in R.

◮ For all methods, a modification of the radial basic function

(RBF) k(xi, xj) = e−δ||xi−xj||2 (11) is used.

◮ The tuning parameter δ is chosen through a grid search for

each combination of dimensionality reduction method and dataset.

◮ For data visualization purposes, plots comparing the original

data and the reduced dimension data in two dimensions (the projections) are given for each dataset.

13 / 22

Introduction Theoretical Development Simulation Application Conclusion

Three Ring Data

(a) Original Data (b) KFDA Projections in 2D (c) KPCA Projections in 2D (d) SKPCA Projections in 2D

14 / 22

Introduction Theoretical Development Simulation Application Conclusion

Wine Chocolate Data

(a) Original Data (b) KFDA Projections in 2D (c) KPCA Projections in 2D (d) SKPCA Projections in 2D

15 / 22

Introduction Theoretical Development Simulation Application Conclusion

Swiss Roll Data

(a) Original Data (b) KFDA Projections in 2D (c) KPCA Projections in 2D (d) SKPCA Projections in 2D

16 / 22

Introduction Theoretical Development Simulation Application Conclusion

Introduction to MORPH-II

◮ MORPH-II is a face imaging database used by over 500

researchers worldwide for a variety of race, gender, and age face imaging tasks.

◮ It includes 55,134 mugshots of 13,617 individuals collected

• ver a 5-year span.

◮ Additionally, MORPH-II provides relevant metadata such as

subject ID number, picture number, date of birth, date of arrest, race, gender, and age.

◮ On average, there are 4 images per subject, with ages ranging

from 16 to 77 years.

17 / 22

Introduction Theoretical Development Simulation Application Conclusion

Process for MORPH-II

• 1. Clean, pre-process, and subset MORPH-II database.
• 2. Extract a number of features from MORPH-II images:

biologically-inspired features (BIFs), histogram of oriented gradients (HOGs), and local binary patterns (LBPs).

• 3. Use KPCA, SKPCA, and KFDA to reduce the dimension of

the feature data.

• 4. Perform gender classification with a linear support vector

machine (SVM), taking reduced dimension data as input.

• 5. Compare results for all combinations of dimensionality

reduction technique and feature type.

18 / 22

Introduction Theoretical Development Simulation Application Conclusion

Tuning Parameters

◮ The dimension reduction techniques used on MORPH-II

require careful tuning of parameters.

◮ Tuning is done on a subset of 1000 ”even” images from

MORPH-II using two-fold cross-validation.

◮ The tuning parameters (including number of dimensions)

which yield the highest average gender classification accuracy

• n the subset of 1000 images are the ones which will be used
• n the full set of images in MORPH-II.

19 / 22

Introduction Theoretical Development Simulation Application Conclusion

Results from MORPH-II Subset

Table 1: Feature Type Tuning Summary

Values KFDA Ac- curacy KPCA Ac- curacy SKPCA Accuracy LBP r=1,2,3 s=10,12,14,16,18,20 80.80% (r=1,s=10) 85.20% (r=1,s=14) 86.00% (r=1,s=10) HOG

• =4,6,8

s=4,6,8,10,12,14 79.40% (o=8,s=4) 90.40% (o=4,s=4) 88.90% (o=4,s=4) BIF g=0.1,0.2,...,1.0 (s=15-29,7-37) 83.50% (g=0.4,s=15- 29) 90.40% (g=0.1,s=15- 29) 89.80% (g=1.0,s=15- 29)

In all cases, linear SVM with cost c = 1 is used to classify gender.

20 / 22

Introduction Theoretical Development Simulation Application Conclusion

Results from MORPH-II

◮ The proposed machine learning pipeline for MORPH-II has

not yet been used on the full set of images.

◮ This process requires the use of high-performance computing,

due to the size of MORPH-II, the dimension of extracted features, and the computational complexity of kernel-based methods.

◮ Hopefully, in the future a supercomputer can be used

successfully for the task.

21 / 22

Introduction Theoretical Development Simulation Application Conclusion

Conclusion

◮ Dimension reduction techniques can increase computational

efficiency and improve classification (or prediction accuracy), because they identify meaningful patterns in the data.

◮ KFDA, KPCA, and SKPCA are particularly powerful, flexible

techniques.

◮ However, further research is necessary to understand how they

work.

◮ In particular, further directions involve investigating tuning

parameters.

◮ Additionally, we would like to further understand the

differences between these techniques in terms of preserving local structure of the data.

22 / 22
