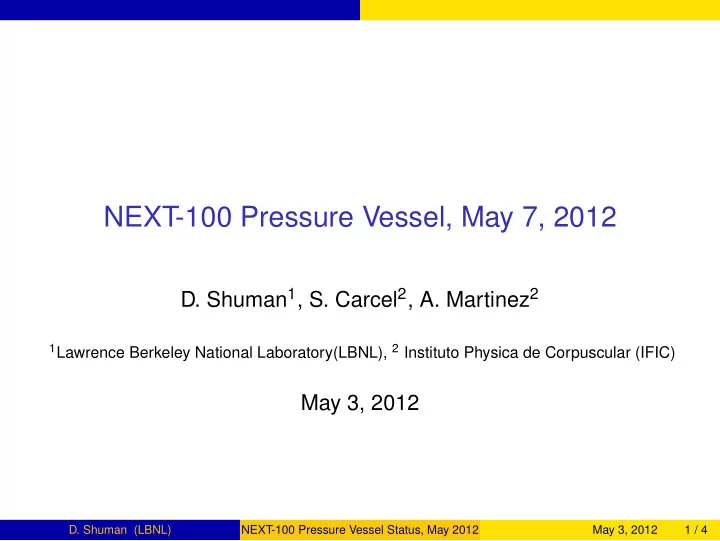

NEXT-100 Pressure Vessel, May 7, 2012

• D. Shuman1, S. Carcel2, A. Martinez2

1Lawrence Berkeley National Laboratory(LBNL), 2 Instituto Physica de Corpuscular (IFIC)

May 3, 2012

• D. Shuman (LBNL)

NEXT-100 Pressure Vessel Status, May 2012 May 3, 2012 1 / 4

Table of Contents

1

NEXT-100 Pressure Vessel Progress to Date NEXT100 Pressure Vessel Parameters

• D. Shuman (LBNL)

NEXT-100 Pressure Vessel Status, May 2012 May 3, 2012 2 / 4

NEXT-100 Pressure Vessel Progress to Date

Vessel Design simplified, Material chosen.

Torispheric heads identical - 4 nozzles each - extra capacity Head nozzles shortened - extensions will be used as needed Nozzle extensions and cover plates contain O-ring grooves and pumpout ports

Manufacturer chosen - Movesa , Madrid

Site visit Fall 2011 - one other mfr. visited Capable and versatile mfr. - boilers, reactors for food and pharmaceutical, turnkey processing systems Separate facilities for stainless steel vs carbon steel Convenient for frequent vists during fabrication

User Design Specification Completed (ASME)

Specifies all vessel requirements and operating conditions Now goes to Mfr. and Certifying Authority for review and approval

• Mfr. will recalculate - final design must be agreed upon

Head thickness may meet EU code, but not ASME

• D. Shuman (LBNL)

NEXT-100 Pressure Vessel Status, May 2012 May 3, 2012 3 / 4

NEXT-100 Pressure Vessel NEXT100 Pressure Vessel Parameters

Parameter qty units Active Volume Radius 53 cm Active Volume Length 130 cm Maximum Operating Pressure (MOP) (differential) 14.0 bar Maximum Allowable Working pressure (MAWP) (differential) 15.4 bar Minimum Allowable Pressure (differential) 1.5 bar Inner diameter 136 cm Outer Diameter, Vessel 138 cm Outer Diameter, Flanges 148 cm Length, inside inner shielding 2.28 m Length, end to end, axial 2.86 m Vessel Material, Austenitic Stainless Steel, Alloy 316Ti Cylindrical Vessel Wall thickness 10 mm Torispheric Head Wall thickness 10.5 mm Flange thickness, head to vessel (each) 4.15 cm Bolt Diameter (Inconel 718), head to vessel flanges 16 mm Bolt length, head to vessel flanges 11 cm Number of Bolts, each head to vessel flange 132 Mass, Vessel and both heads 1200 kg Mass, Internal copper shielding (12 cm) 10000 kg Total Detector and Vessel Weight 12000 kg

• D. Shuman (LBNL)

NEXT-100 Pressure Vessel Status, May 2012 May 3, 2012 4 / 4
