SLIDE 1

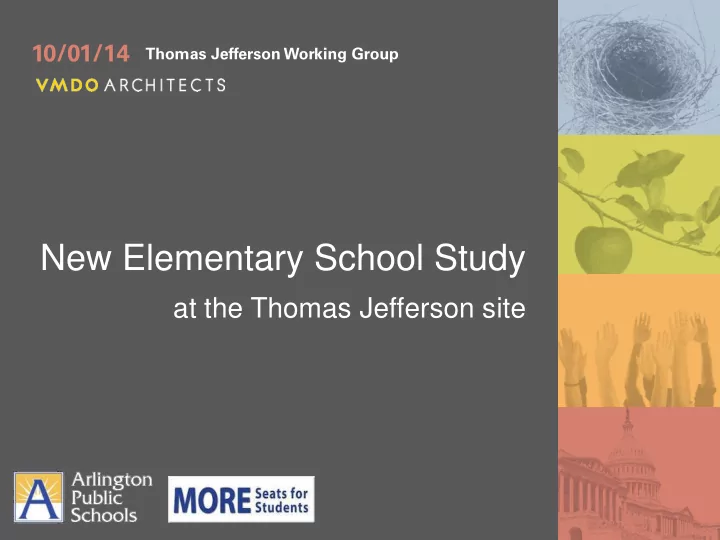

New Elementary School Study

at the Thomas Jefferson site

Thomas Jefferson Working Group

10/01/14

SLIDE 2

01 Oct 2014

IT ’ S A B OUT T H E K I D S

O u r C l i e n t ’ s C l i e n t s

SLIDE 3

OU R C L I E N T ’ S C L I E N T S

S U S T A I N A B I L I T Y + L E A R N I N G

SLIDE 4

sustainability

Set, and enthusiastically work towards, the highest goals possible. Make it student centered. Make it local: well known places are well loved. Make it verifiable.

SLIDE 5

Academics Creativity Social/Civic Health/Nature/Play Emotional Wellbeing

SLIDE 6

01 Oct 2014

E X I ST I N G C O N D IT I O N S

Thomas Jefferson site

SLIDE 7

1. Retain the current wooded eastern end of “TJ Park” as is. 2. Maintain a cohesive park; ensure no significant loss of green space and no net loss of recreational programming. 3. Consider the neighborhood impacts of traffic and parking and ensure safety of existing pedestrian walkways and bikeways. 4. Ensure that the community center would remain available for use. 5. Ensure the building massing is compatible with adjacent neighborhood.

summary of TJWG charge

SLIDE 8

1. Improve site amenities for the County Fair and

ther events.

2. Plan now for potential expansion of middle school to 1,300 students, including traffic and parking issues. 3. Coordinate prominent entrances to middle school, new school, community center and theater. 4. Coordinate prominent entrances to middle school, new school and community amenities

going beyond the charge

SLIDE 9

public land for schools

Land area greater than 3.5 acres An existing school site adjacent to more than

ne acre of County Board owned property

Close to transit Centrally located within County

Arlington County Board, May 13, 2014

SLIDE 10

advantages of joint use

Many of the “core” spaces already exist, allowing for an efficient K-5 building.

(auditorium, gym, fields)

K-8 campus allows flexibility as cohorts change.

SLIDE 11

program assumptions

725 student K-5 school will be a 120,000 gsf building.

(perhaps as low as 100,000 gsf)

Middle school will eventually expand by 25,000 gsf to accommodate 1,300 students. No funding in current CIP for MS expansion, but master planning for it now.

Conservative assumptions on GSF in order to do a good test fit of building footprints and massing

SLIDE 12

01 Oct 2014

P RO P E RT Y L I N E S

Thomas Jefferson site

SLIDE 13

01 Oct 2014

TJ PA R K D E L I N E AT I O N

D P R , 0 9 / 0 3 / 2 0 1 4

SLIDE 14

01 Oct 2014

“ TJ PA R K ”

A C C O R D I N G T O F R I E N D S O F T H O M A S J E F F E R S O N P A R K

SLIDE 15

01 Oct 2014

C O M P R E H E N S I V E V I E W

Thomas Jefferson site

SLIDE 16

01 Oct 2014

ST I L L L I F E W IT H F RU IT D I S H O N A TA B L E

P a b l o P i c a s s o , 1 9 1 4 - 1 5

SLIDE 17

01 Oct 2014

N O N E W S C HOO L B U I L D I N G A R E AS

Thomas Jefferson site

Not feasible

r desirable

to build over existing structures Open, permeable green space:

nce lost,

lost forever.

SLIDE 18

01 Oct 2014

P O LYS C A P E S

E V E R Y S P A C E S E R V E S M O R E T H A N O N E P U R P O S E

SLIDE 19

01 Oct 2014

C O M M U N IT Y GA R D E N

P O S S I B L E N E W L O C A T I O N S ?

Thomas Jefferson site

SLIDE 20

01 Oct 2014

C O M M U N IT Y GA R D E N

G R E A T S O U T H E R N E X P O S U R E B E T W E E N S L O P E A N D F I E L D

Thomas Jefferson site

SLIDE 21

01 Oct 2014

GA R D E N S O N A N D A ROU N D S L O P E S

F I N D I N G W A Y S T O I N C R E A S E S P A C E U T I L I T Y

SLIDE 22

01 Oct 2014

P L AY O N A N D A ROU N D S L O P E S

F I N D I N G W A Y S T O I N C R E A S E S P A C E U T I L I T Y

SLIDE 23

01 Oct 2014

C O M M U N IT Y P L AY G ROU N D

P O S S I B L E N E W L O C A T I O N S ?

Thomas Jefferson site

SLIDE 24

01 Oct 2014

C O M M U N IT Y P L AY G ROU N D

R O C K Y R U N E X A M P L E

Thomas Jefferson site

SLIDE 25

01 Oct 2014

PA RT I A L B E L OW G R A D E ST RU C T U R E D PA R K I N G

U S E S L O P E S T O K E E P C O U R T S C L O S E T O E X I S T I N G G R A D E

Thomas Jefferson site

173 net new spaces. Could reduce to 54 spaces,

r build courts
ver

structured parking

SLIDE 26

01 Oct 2014

R E L I E V E P R E S S U R E AT I N T E RS E C T I O N S

E X P L O R E O P T I O N S T O S E P A R A T E B U S L O O P F R O M C A R S

Thomas Jefferson site

SLIDE 27

01 Oct 2014

E X I S IT I N G S IT E C O N D IT I O N S

B A S E D O N 2 0 0 9 S U R V E Y

SLIDE 28

01 Oct 2014

S C H E M E O N E

4 S T O R Y E S B U I L D I N G & 4 S T O R Y M S A D D I T I O N

SLIDE 29

01 Oct 2014

S C H E M E O N E

P I C T U R A L V I E W F R O M S W

SLIDE 30

01 Oct 2014

S C H E M E T WO

3 S T O R Y E S B U I L D I N G & 3 S T O R Y M S A D D I T I O N

SLIDE 31

01 Oct 2014

S C H E M E T WO

P I C T U R A L V I E W F R O M S W

SLIDE 32

01 Oct 2014

S C H E M E T H R E E

3 S T O R Y E S B U I L D I N G & 2 S T O R Y M S A D D I T I O N

SLIDE 33

01 Oct 2014

S C H E M E T H R E E

P I C T U R A L V I E W F R O M S W

SLIDE 34

01 Oct 2014

S C H E M E F OU R

3 S T O R Y E S B U I L D I N G & 2 S T O R Y M S A D D I T I O N

SLIDE 35

01 Oct 2014

S C H E M E F OU R

P I C T U R A L V I E W F R O M S W
