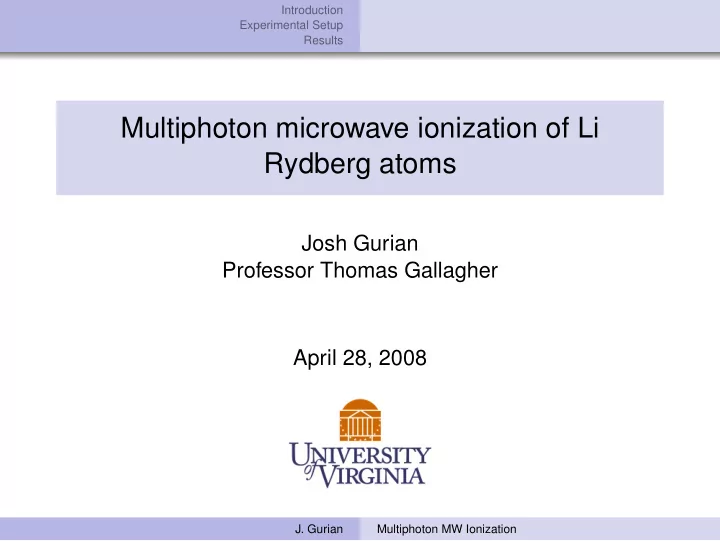

Multiphoton microwave ionization of Li Rydberg atoms

Josh Gurian Professor Thomas Gallagher April 28, 2008

  • J. Gurian

Multiphoton MW Ionization

slide-2
SLIDE 2

Introduction Experimental Setup Results

Outline

Introduction Experimental Setup kHz Dye Laser Project Experimental Apparatus Results Ionization Steps Final State Distribution

  • J. Gurian

Multiphoton MW Ionization

slide-3
SLIDE 3

Introduction Experimental Setup Results

Rydberg atom overview

◮ W = −1

2n2

◮ r ∝ n2 ◮ Lifetime ∝ n3 ◮ ωkepler ∝ 1/n3 ◮ Vcoulomb = − 1 |z|

  • 6
  • 2

2

  • 10
  • 6
  • 2

2 6 10 z V

  • J. Gurian

Multiphoton MW Ionization

slide-4
SLIDE 4

Introduction Experimental Setup Results

Rydberg atom overview

◮ W = −1

2n2

◮ r ∝ n2 ◮ Lifetime ∝ n3 ◮ ωkepler ∝ 1/n3 ◮ V = − 1 |z| + Ez

  • 6
  • 2

2

  • 10
  • 6
  • 2

2 6 10 z V

  • J. Gurian

Multiphoton MW Ionization

slide-5
SLIDE 5

Introduction Experimental Setup Results

Field Ionization

  • 6
  • 2

2

  • 10
  • 6
  • 2

2 6 10 z V

◮ V = − 1 |z| + Ez ◮ dV dz = 0

  • J. Gurian

Multiphoton MW Ionization

slide-6
SLIDE 6

Introduction Experimental Setup Results

Field Ionization

  • 6
  • 2

2

  • 10
  • 6
  • 2

2 6 10 z V

◮ V = − 1 |z| + Ez ◮ dV dz = 0 ◮ V = −2

√ E

  • J. Gurian

Multiphoton MW Ionization

slide-7
SLIDE 7

Introduction Experimental Setup Results

Field Ionization

  • 6
  • 2

2

  • 10
  • 6
  • 2

2 6 10 z V

◮ V = − 1 |z| + Ez ◮ dV dz = 0 ◮ V = −2

√ E

◮ E = W 2

4

  • J. Gurian

Multiphoton MW Ionization

slide-8
SLIDE 8

Introduction Experimental Setup Results

Field Ionization

  • 6
  • 2

2

  • 10
  • 6
  • 2

2 6 10 z V

◮ E = W 2

4

◮ W = −1 2n2 + 3 2nkE

  • J. Gurian

Multiphoton MW Ionization

slide-9
SLIDE 9

Introduction Experimental Setup Results

Field Ionization

  • 6
  • 2

2

  • 10
  • 6
  • 2

2 6 10 z V

◮ E = W 2

4

◮ W = −1 2n2 + 3 2nkE ◮ E =

1 9n4

  • J. Gurian

Multiphoton MW Ionization

slide-10
SLIDE 10

Introduction Experimental Setup Results

Scaled Frequency

Important characteristic: ω0 = ω ωkepler = ωn3 Previous work for ω0 ≤ 1:

◮ van Leeuwen et al., PRL 55 (1985) ◮ Jensen et al., PRL 62 (1989) ◮ Pillet et al., PRA 30 (1984) ◮ Noel et al., PRA 62 (2000)

  • J. Gurian

Multiphoton MW Ionization

slide-11
SLIDE 11

Introduction Experimental Setup Results

Microwave Ionization

Pillet et al., PRA 30 (1984)

  • J. Gurian

Multiphoton MW Ionization

slide-12
SLIDE 12

Introduction Experimental Setup Results

Photoionization limit?

What happens as we approach the photoionization limit, when ω0 → n?

  • J. Gurian

Multiphoton MW Ionization

slide-13
SLIDE 13

Introduction Experimental Setup Results

Cartoon

  • 300
  • 250
  • 200
  • 150
  • 100
  • 50

Normalized electron signal (arb) Binding energy (GHz) MW Ionization Cartoon

  • J. Gurian

Multiphoton MW Ionization

slide-14
SLIDE 14

Introduction Experimental Setup Results

Cartoon

  • 107.1
  • 89.25
  • 71.4
  • 53.55
  • 35.7
  • 17.85

17.85 Normalized electron signal (arb) Binding energy (GHz) MW Ionization Cartoon

  • J. Gurian

Multiphoton MW Ionization

slide-15
SLIDE 15

Introduction Experimental Setup Results

Cartoon

  • 107.1
  • 89.25
  • 71.4
  • 53.55
  • 35.7
  • 17.85

17.85 Normalized electron signal (arb) Binding energy (GHz) MW Ionization Cartoon No MW 0.11 mV/cm

  • J. Gurian

Multiphoton MW Ionization

slide-16
SLIDE 16

Introduction Experimental Setup Results

Cartoon

  • 107.1
  • 89.25
  • 71.4
  • 53.55
  • 35.7
  • 17.85

17.85 Normalized electron signal (arb) Binding energy (GHz) MW Ionization Cartoon No MW 0.11 mV/cm 0.67 mV/cm

  • J. Gurian

Multiphoton MW Ionization

slide-17
SLIDE 17

Introduction Experimental Setup Results

Cartoon

  • 107.1
  • 89.25
  • 71.4
  • 53.55
  • 35.7
  • 17.85

17.85 Normalized electron signal (arb) Binding energy (GHz) MW Ionization Cartoon No MW 0.11 mV/cm 0.67 mV/cm 1.83 mV/cm

  • J. Gurian

Multiphoton MW Ionization

slide-18
SLIDE 18

Introduction Experimental Setup Results

Cartoon

  • 107.1
  • 89.25
  • 71.4
  • 53.55
  • 35.7
  • 17.85

17.85 Normalized electron signal (arb) Binding energy (GHz) MW Ionization Cartoon No MW 0.11 mV/cm 0.67 mV/cm 1.83 mV/cm 3.8 mV/cm

  • J. Gurian

Multiphoton MW Ionization

slide-19
SLIDE 19

Introduction Experimental Setup Results

Cartoon

  • 107.1
  • 89.25
  • 71.4
  • 53.55
  • 35.7
  • 17.85

17.85 Normalized electron signal (arb) Binding energy (GHz) MW Ionization Cartoon No MW 0.11 mV/cm 0.67 mV/cm 1.83 mV/cm 3.8 mV/cm 6.6 mV/cm

  • J. Gurian

Multiphoton MW Ionization

slide-20
SLIDE 20

Introduction Experimental Setup Results kHz Dye Laser Project Experimental Apparatus

Outline

Introduction Experimental Setup kHz Dye Laser Project Experimental Apparatus Results Ionization Steps Final State Distribution

  • J. Gurian

Multiphoton MW Ionization

slide-21
SLIDE 21

Introduction Experimental Setup Results kHz Dye Laser Project Experimental Apparatus

Coherent Evolution-30 Nd:YLF Laser

  • 100

100 200 300 400 500 600 700 Normalized photodiode signal (arb) Relative time (ns)

  • J. Gurian

Multiphoton MW Ionization

slide-22
SLIDE 22

Introduction Experimental Setup Results kHz Dye Laser Project Experimental Apparatus

Coherent Evolution-30 Nd:YLF Laser

◮ 1st Pulse: 20ns ◮ 2nd Pulse: 35ns ◮ 3rd Pulse: 41ns

  • 100

100 200 300 400 500 600 700 Normalized photodiode signal (arb) Relative time (ns) First Pulse Second Pulse Third Pulse

  • J. Gurian

Multiphoton MW Ionization

slide-23
SLIDE 23

Introduction Experimental Setup Results kHz Dye Laser Project Experimental Apparatus

Laser Setup

Pump Laser PC PC PBS

❅ ❅ ❅

PBS

  • Dump

BS

  • BS ❅

❅ ❅

Dye Laser Dye Laser Dye Laser Amp

❅ ❅ ❅ ❅

  • ❅

❅ ❅ ❅ ❅ ❅ ❅ ❅

  • ❅

❅ ❄ ✲ ❄ ❄ ✛ ✻ ✻ ✲✻ ✻ ✛ ✛ ✛ ✻ ✛ ❄ ✛ ✻ ✛ ❄ ✻

1 2 3

✻ ✻ ✛ ✛

  • J. Gurian

Multiphoton MW Ionization

slide-24
SLIDE 24

Introduction Experimental Setup Results kHz Dye Laser Project Experimental Apparatus

Experimental Setup

  • J. Gurian

Multiphoton MW Ionization

slide-25
SLIDE 25

Introduction Experimental Setup Results kHz Dye Laser Project Experimental Apparatus

Experimental Setup

  • J. Gurian

Multiphoton MW Ionization

slide-26
SLIDE 26

Introduction Experimental Setup Results kHz Dye Laser Project Experimental Apparatus

Timing

200 400 600 800 1000 time (ns) 0-2V/cm Laser Pulses 100-500 ns MW Pulse Field Pulse

  • J. Gurian

Multiphoton MW Ionization

slide-27
SLIDE 27

Introduction Experimental Setup Results kHz Dye Laser Project Experimental Apparatus

Experimental Setup

  • J. Gurian

Multiphoton MW Ionization

slide-28
SLIDE 28

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Outline

Introduction Experimental Setup kHz Dye Laser Project Experimental Apparatus Results Ionization Steps Final State Distribution

  • J. Gurian

Multiphoton MW Ionization

slide-29
SLIDE 29

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Cartoon

  • 107.1
  • 89.25
  • 71.4
  • 53.55
  • 35.7
  • 17.85

17.85 Normalized electron signal (arb) Binding energy (GHz) MW Ionization Cartoon No MW 0.11 mV/cm 0.67 mV/cm 1.83 mV/cm 3.8 mV/cm 6.6 mV/cm

  • J. Gurian

Multiphoton MW Ionization

slide-30
SLIDE 30

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Microwave Ionization Steps - Powers

  • 178.5 -160.65 -142.8 -124.95 -107.1
  • 89.25
  • 71.4
  • 53.55
  • 35.7
  • 17.85

Normalized electron signal (arb) Binding energy (GHz) 200ns MW pulse at 17.850GHz 0.125 V/cm 0.25 V/cm 0.5 V/cm 1 V/cm

  • J. Gurian

Multiphoton MW Ionization

slide-31
SLIDE 31

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Pulsewidths

  • 178.5 -160.65 -142.8 -124.95 -107.1
  • 89.25
  • 71.4
  • 53.55
  • 35.7
  • 17.85

Normalized electron signal (arb) Binding energy (GHz) Various MW pulsewidths at 17.850GHz, 1 V/cm 100ns 200ns 300ns 400ns 500ns

  • J. Gurian

Multiphoton MW Ionization

slide-32
SLIDE 32

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Ionization Rate

0.01 0.1 1 200 400 600 800 1000 1200 1400 Relative remaining population (arb) pulsewidth (ns) 1.5 MW photons from ionization limit 1 V/cm

  • 2 db
  • 4 db
  • 6db
  • 8db
  • 10db
  • J. Gurian

Multiphoton MW Ionization

slide-33
SLIDE 33

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Theoretical Predictions

Γexp(n ≈ 360, E ≈ 0.8V/cm, 50ns) = 5.6 × 106s−1 Hoogenraad and Noordam, PRA 57 (1998): < n|r|n′ >≈ 0.4108n−3/2n′−3/2 ω5/3 We can calculate the ionization rate: Γ = 2π| < n|r|ǫ > E|2 Γ(n = 360, E = 0.8V/cm) = 8.2 × 107s−1 Γ(n = 360, E = 0.2V/cm) = 5.6 × 106s−1

  • J. Gurian

Multiphoton MW Ionization

slide-34
SLIDE 34

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Bias Field

  • 178.5 -160.65 -142.8 -124.95 -107.1
  • 89.25
  • 71.4
  • 53.55
  • 35.7
  • 17.85

Normalized electron signal (arb) Binding energy (GHz) Bias voltages on top plate for 200ns MW pulse at 17.850 GHz, 1 V/cm 0 V/cm 8.5 mV/cm 17 mV/cm 85 mV/cm

  • J. Gurian

Multiphoton MW Ionization

slide-35
SLIDE 35

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Final State Distribution

E = 1/9n4

200 400 600 800 1000 time (ns) Laser Pulses Field Pulse

  • J. Gurian

Multiphoton MW Ionization

slide-36
SLIDE 36

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Final State Distribution

Final State Distribution without MW pulse

  • 214.2-196.35-178.5-160.65-142.8-124.95-107.1 -89.25 -71.4 -53.55 -35.7 -17.85

Binding energy (GHz) 50 100 150 200 250 300 350 400 Relative Time (ns)

  • J. Gurian

Multiphoton MW Ionization

slide-37
SLIDE 37

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Final State Distribution

E = 1/9n4

200 400 600 800 1000 time (ns) 1 V/cm Laser Pulses 200 ns MW Pulse Field Pulse

  • J. Gurian

Multiphoton MW Ionization

slide-38
SLIDE 38

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Final State Distribution

Final State Distribution with 200ns 17.85 GHz 1 V/cm MW pulse

  • 214.2-196.35-178.5-160.65-142.8-124.95-107.1 -89.25 -71.4 -53.55 -35.7 -17.85

Binding energy (GHz) 50 100 150 200 250 300 350 400 Relative Time (ns)

  • J. Gurian

Multiphoton MW Ionization

slide-39
SLIDE 39

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Summary

◮ Introduction to Rydberg field ionization ◮ Overview of microwave ionization ◮ Experiment setup ◮ First results for microwave multiphoton ionization of

Rydberg Li atoms

  • J. Gurian

Multiphoton MW Ionization

slide-40
SLIDE 40

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Thanks

Professor Tom Gallagher

  • Dr. Haruka Maeda
  • Dr. Ed Shuman

Paul Tanner Jianing Han Jirakan Nunkaew Don Norum Hyunwook Park National Science Foundation

  • J. Gurian

Multiphoton MW Ionization

slide-41
SLIDE 41

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Final State Distribution Comparison

Final State Distribution without MW pulse

  • 214.2-196.35-178.5-160.65-142.8-124.95-107.1 -89.25 -71.4 -53.55 -35.7 -17.85

Binding energy (GHz) 50 100 150 200 250 300 350 400 Relative Time (ns) Final State Distribution with 200ns 17.85 GHz 10dbm MW pulse

  • 214.2-196.35-178.5-160.65-142.8-124.95-107.1 -89.25 -71.4 -53.55 -35.7 -17.85

Binding energy (GHz) 50 100 150 200 250 300 350 400 Relative Time (ns)

  • J. Gurian

Multiphoton MW Ionization

slide-42
SLIDE 42

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Dye laser output

0.2 0.4 0.6 0.8 1 20 40 60 80 100 Normalized photodiode signal (arb) Time (nanoseconds) 671nm Dye Laser Pulse 813nm Dye Laser Pulse 615nm Dye Laser Pulse

  • J. Gurian

Multiphoton MW Ionization

slide-43
SLIDE 43

Introduction Experimental Setup Results Ionization Steps Final State Distribution

Atomic Conductance

Schelle, Delande, and Buchleitner:

  • J. Gurian

Multiphoton MW Ionization
