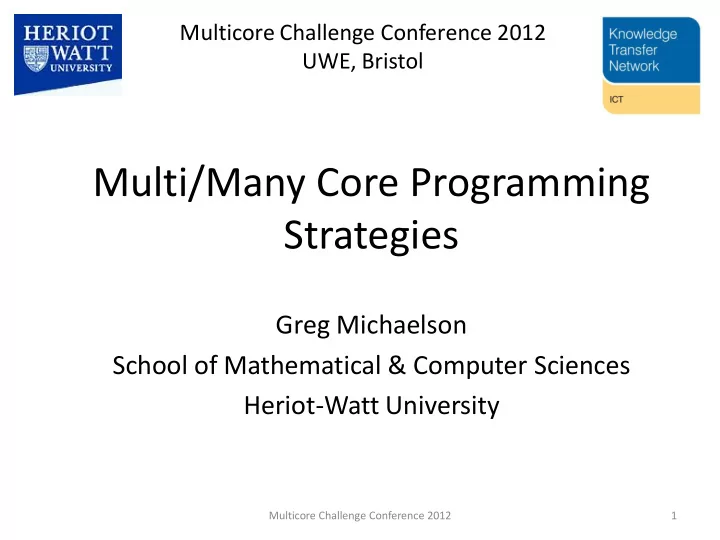

SLIDE 1

Multicore Challenge Conference 2012 UWE, Bristol

Multi/Many Core Programming Strategies

Greg Michaelson School of Mathematical & Computer Sciences Heriot-Watt University

1 Multicore Challenge Conference 2012

SLIDE 2

Overview

good old fashioned

parallel computing based on lots of identical single CPUs is

ver

Multicore Challenge Conference 2012 2

PE PE PE Network RAM PE PE PE RAM RAM RAM Network Shared memory Distributed memory

SLIDE 3

Overview

Moore’s Law implications

have changed

– speed of CPUs now stable at ~3.5 GHz – performance increases from multi- & many-core CPUs

Multicore Challenge Conference 2012 3

Intel 4004 – 1971

http://en.wikipedia.org/wiki/Intel_4004

Intel Core I7 – 2008

http://en.wikipedia.org/wiki/Intel_Core_i7

SLIDE 4

Overview

multi-processor

architectures increasingly hierarchical & heterogeneous

message passing grids
f clusters of:

– now: shared memory multi-core

Multicore Challenge Conference 2012 4

Hector – Edinburgh Parallel Computer Centre

464 compute blades with…
4 compute nodes with…
2 *12-core processors.
44,544 cores

http://www.hector.ac.uk/abouthector/hectorbasics/

SLIDE 5

Overview

multi-processor

architectures increasingly hierarchical & heterogeneous

message passing grids
f clusters of:

– soon: message passing many-core arrays

Multicore Challenge Conference 2012 5

SCC – Intel Research

http://techresearch.intel.com/ProjectDetails.aspx?Id=1

SLIDE 6

Overview

cores also have SIMD processors (MMX/SSE)
non-uniform memory

– differing degrees/levels of private & shared cache

old programming strategies break down

– one size no longer fits all

need for hybrid strategies

Multicore Challenge Conference 2012 6

SLIDE 7

Overview

developing multi-

processor software is still a black art

would like:

– low effort – flexibility – scalability – future proof – re-use

Multicore Challenge Conference 2012 7

SLIDE 8

Overview

different approaches:

– require different effort – offer different degree of control over:

task division
communications
process placement

Multicore Challenge Conference 2012 8

SLIDE 9

Methodological choices

Multicore Challenge Conference 2012 9

START

SLIDE 10

Methodological choices

Multicore Challenge Conference 2012 10

automatic parallelisation START

SLIDE 11

Automatic Parallelisation

vector/array parallelisation
implicit

– e.g. SIMD in C with gcc

language directives

– Fortrans: Fortran 90; F; High Performance Fortran

Multicore Challenge Conference 2012 11

SLIDE 12

Automatic Parallelisation

Multicore Challenge Conference 2012 12

low effort

– no communications – no/minimal task division

poor flexibility/scalability

– good for regular problems – good on uniform architectures

SLIDE 13

Methodological choices

Multicore Challenge Conference 2012 13

do it yourself automatic parallelisation START

SLIDE 14

Methodological choices

Multicore Challenge Conference 2012 14

skeleton do it yourself automatic parallelisation START

SLIDE 15

Algorithmic skeletons

capture common

patterns of data & control parallelism

– e.g. pipeline; farm; divide & conquer

skeleton libraries

for C/Java

Multicore Challenge Conference 2012 15

stage 1 stage 2 stage N worker farmer worker worker pipeline process farm

SLIDE 16

Algorithmic skeletons

capture common

patterns of data & control parallelism

– e.g. pipeline; farm; divide & conquer

skeleton libraries

for C/Java

Multicore Challenge Conference 2012 16

parent parent/ child parent/ child parent/ child parent/ child parent/ child parent/ child divide & conquer

SLIDE 17

Algorithmic skeletons

industrial frameworks
e.g. Google Map-

Reduce

Apache Hadoop

Multicore Challenge Conference 2012 17

Google Map-Reduce

http://labs.google.com/papers/mapreduce-osdi04-slides/index-auto- 0008.html

SLIDE 18

Algorithmic skeletons

industrial frameworks
e.g. Microsoft Dryad

Multicore Challenge Conference 2012 18

Microsoft Dryad

www.wikibench.eu/CloudCP2011/wp-content/.../Isaacs-keynote.ppsx

SLIDE 19

Algorithmic skeletons

can choose appropriate skeleton for problem

class

medium effort to use skeleton

library/industrial framework

– must fit problem to skeleton

high effort to develop own skeletons

– must make communication & task division explicit

Multicore Challenge Conference 2012 19

SLIDE 20

Algorithmic skeletons

can hand tune for:

– problem – irregularity – scalability – process placement

strong potential re-use of components

Multicore Challenge Conference 2012 20

SLIDE 21

Methodological choices

Multicore Challenge Conference 2012 21

skeleton do it yourself automatic parallelisation programmed parallelisation START

SLIDE 22

Methodological choices

Multicore Challenge Conference 2012 22

skeleton do it yourself automatic parallelisation programmed parallelisation

perating

system START

SLIDE 23

Operating system

independent programs

– realised as threads

communication via pipes/sockets
bolted together with shell scripts

Multicore Challenge Conference 2012 23

SLIDE 24

Operating system

low effort
highly dependent on underlying operating

system for:

– communication – scheduling – process placement

unpredictable performance

Multicore Challenge Conference 2012 24

SLIDE 25

Methodological choices

Multicore Challenge Conference 2012 25

skeleton do it yourself automatic parallelisation programmed parallelisation

perating

system explicit processes START

SLIDE 26

Methodological choices

Multicore Challenge Conference 2012 26

skeleton do it yourself automatic parallelisation programmed parallelisation

perating

system explicit processes library START

SLIDE 27

Library

shared memory

– OpenMP

platform & architecture independent

– Posix Threads

Unix/Linux specific/architecture independent

– Intel Threading Building Blocks

platform/architecture independent

Multicore Challenge Conference 2012 27

SLIDE 28

Library

distributed memory

– MPI & PVM

specialised hardware

– SIMD on MMX/SSE – CUDA & OpenCL for GPU arrays

Multicore Challenge Conference 2012 28

SLIDE 29

Library

now common to use:

– MPI for inter-cluster – OpenMP for intra-cluster

medium to high effort

– explicit communication & task division

can shape algorithm to architecture
best for irregular problem/architecture

Multicore Challenge Conference 2012 29

SLIDE 30

Library

often end up re-inventing some standard

algorithmic skeleton

good potential for reuse of:

– structure – components

Multicore Challenge Conference 2012 30

SLIDE 31

Methodological choices

Multicore Challenge Conference 2012 31

skeleton do it yourself automatic parallelisation programmed parallelisation

perating

system explicit processes library hand crafted START

SLIDE 32

Hand crafted

very low level
shared memory

– critical regions via semaphores

distributed memory

– communication over RS232; USB

Multicore Challenge Conference 2012 32

SLIDE 33

Hand crafted

very high effort
highly problem/architecture specific
best for embedded systems

Multicore Challenge Conference 2012 33

SLIDE 34

Questions...

is my problem suitable for parallelisation?
how do I know how my problem scales?
if I parallelise my problem, how do I tell how

much communication overhead will be incurred?

how do I assess the benefits of shared versus

distributed memory?

28th June, 2011 KTN ICT Scalable Applications & Services 34

SLIDE 35

Questions...

can I do better with smarter solutions on my

existing technology?

where can I get help with deciding how to

proceed?

have other people already come up with

solutions that might work for me?

28th June, 2011 KTN ICT Scalable Applications & Services 35

SLIDE 36

Future

UK has major research strengths in multi-

processor architectures, parallel languages/compilers, skeletons etc

groups don’t talk much to each other or to

practitioners e.g. in eScience

need to build inclusive UK community
opportunities through

– EPSRC multi-core priority for ITC – TSB ICT KTN for multi-core

Multicore Challenge Conference 2012 36
