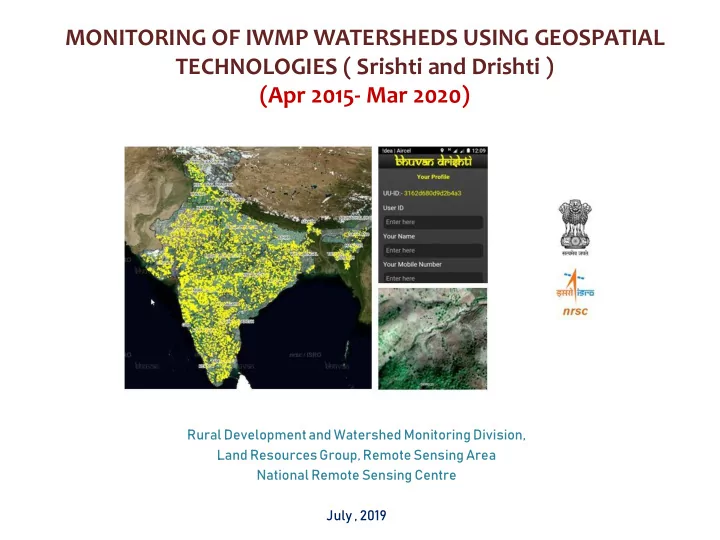

MONITORING OF IWMP WATERSHEDS USING GEOSPATIAL TECHNOLOGIES ( Srishti and Drishti ) (Apr 2015- Mar 2020)

Rural Development and Watershed Monitoring Division, Land Resources Group, Remote Sensing Area National Remote Sensing Centre July , 2019

O bjec tives

• Provide basic satellite data , GIS

platform and software tools for plan preparation

• Provide baseline satellite images for

all watersheds

• Enable up linking of DPRs for

respective watersheds

• Enable online M&E of all identified

watersheds

• Provide periodical satellite images

as part of monitoring and highlight temporal changes

• Enable technological tools for

participatory M&E

• Use satellite remote sensing, Web

GIS and field data ( Mobile smart phone) for M& E

D eliverables

• EO satellite data for all the IWMP watersheds - Till date12385 scenes

procured and uploaded

• Facilitate customized software tools on Bhuvan for Monitoring, online image

comparison and visualization - Enabled & Supported

• Create customized Bhuvan web page for IWMP project : Accomplished
• Customized mobile application for field data collection and data transfer to
• Bhuvan. Drishti developed (till now six versions released)
• Imparting training to DoLR nominated persons at 30 persons per workshop

at eight workshops through a common standard course curriculum relevant to watersheds. - Accomplished (1400 personnel trained)

• Analysis of land cover changes for the selected watersheds, impact

analysis and reporting. In progress

• Computing runoff in the pilot watersheds (pre and post to the

implementation of watershed management practices),runoff and soil erosion assessment as part of hydrological studies – Report writing in progress

• Service support to the programme managers of IWMP at DoLR & in the
• states. – Being provided

Srishti

http://bhuvan.nrsc.gov.in/projects/iwmp/

Drishti

10.579 Lakh Drishti points uploaded as on 26/07/2019

6 versions of Drishti developed Latest v2.4 (2019) Geo-fencing 10m for existing activities

National Summary. Report generated on Fri Jul 26 2019

SNo. State Total Projects Total Geotags Yet to be moderated Accepted Rejected 1 ANDHRA PRADESH 431 148063 8626 119092 20345 2 ARUNACHAL PRADESH 2 250 250 3 ASSAM 413 4751 2115 2555 81 4 BIHAR 123 4652 1419 2981 252 5 CHHATTISGARH 264 28419 395 24567 3457 6 GUJARAT 610 156401 6545 138508 11348 7 HARYANA 79 5097 51 4699 347 8 HIMACHAL PRADESH 159 16236 23 14833 1380 9 JAMMU AND KASHMIR 160 7016 601 5070 1345 10 JHARKHAND 144 12078 115 10945 1018 11 KARNATAKA 585 131474 5918 111406 14150 12 KERALA 83 8293 154 7133 1006 13 MADHYA PRADESH 504 22922 661 19976 2285 14 MAHARASHTRA 1177 180561 579 166863 13119 15 MANIPUR 68 2632 1295 1301 36 16 MEGHALAYA 39 1836 586 1227 23 17 MIZORAM 89 6279 33 5516 730 18 NAGALAND 98 5258 632 4219 407 19 ODISHA 310 38565 519 33907 4139 20 PUNJAB 62 1126 47 1019 60 21 RAJASTHAN 739 117947 653 108919 8375 22 SIKKIM 15 1088 13 1058 17 23 TAMIL NADU 273 68559 3725 61772 3062 24 TELANGANA 326 47801 36305 11496 25 TRIPURA 67 5307 8 4836 463 26 UTTARAKHAND 66 1794 439 1172 183 27 UTTAR PRADESH 420 27669 770 25832 1067 28 WEST BENGAL 163 5833 320 4011 1502 Total 7469 1057907 36492 919722 101693

ALL INDIA CATEGORY WISE ASSETS GEO-TAGGED

20000 40000 60000 80000 100000 120000 140000 160000 180000 200000 148106 250 4751 4653 28424 156402 5097 16236 7016 12078 131491 8293 22922 180561 2632 1836 6279 5258 38565 1126 117947 1088 68559 47801 5307 1794 27669 5833

Total Geotags: 10.57 Lakhs

Status of Geo-tagging in IWMP Projects ( Southern states)

SNo. State Total Projects Total Geotags Yet to be moderated Accepted Rejected 1 ANDHRA PRADESH 373 147343 8672 118400 20271 2 KARNATAKA 585 131195 5973 111073 14149 3 KERALA 92 8266 128 7132 1006 4 TAMIL NADU 273 68559 3725 61772 3062 5 TELANGANA 280 47801 3589 36305 11496

Total Geotags Across India under IWMP projects –10.57 lakh

Month 2016 2017 2018 2019 Jan 18452 846 2553 486 Feb 174 212 1305 213 Mar 30 140 415 200 Apr 3496 566 243 542 May 1435 5773 286 136 Jun 1273 13248 1630 1182 Jul 979 6540 337 20661 Aug 1205 3246 212 Sep 2227 811 1200 Oct 407 5640 2161 Nov 217 17913 868 Dec 1353 5499 547

Total 31248 60434 11757 23420

Total Geo tags collected in AP since 2015 --147343 Status of geo-tagging in Andhra Pradesh

Month 2016 2017 2018 2019 Jan 49 5267 2839 218 Feb 645 3102 5138 152 Mar 1651 2413 2098 948 Apr 3679 3530 3556 215 May 2011 3891 4520 482 Jun 2184 1733 5357 1959 Jul 1409 3258 15643 2704 Aug 1996 1739 2963 Sep 5431 1044 987 Oct 6008 1104 601 Nov 3802 1733 491 Dec 6423 706 535 Total 35288 29520 44728 6678 Total Geotags collected in Karnataka since 2015 –131195

Status of geo-tagging in Karnataka

Month 2016 2017 2018 2019 Jan 120 343 21 184 Feb 17 176 13 234 Mar 64 165 65 580 Apr 323 96 24 117 May 486 191 14 81 Jun 293 51 6 128 Jul 277 141 364 Aug 585 145 Sep 277 65 16 Oct 510 62 2 Nov 842 33 81 Dec 259 4 102 4053 1472 344 1688 Total Geo tags collected in Kerala since 2015 -- 8266

Status of geo-tagging in Kerala

Month 2016 2017 2018 2019 Jan 30685 958 185 Feb 994 839 267 Mar 309 1267 523 Apr 725 363 126 May 3691 377 154 Jun 2245 503 61 Jul 2296 341 31 Aug 3466 396 24 Sep 2171 258 1 Oct 2419 117 16 Nov 1858 462 Dec 842 148 Total 51701 6029 1388 Total Geo tags collected in Tamilnadu since 2015 -- 68559 Status of geo-tagging in Tamilnadu

Month 2016 2017 2018 2019 Jan 20479 57 640 Feb 1598 63 4210 Mar 428 6 19 536 Apr 285 2 206 May 117 84 41 Jun 55 Jul 5 56 33 Aug 33 1 1446 Sep 77 2 89 Oct 165 75 2618 Nov 21 43 3906 Dec 101 350 23208 228 8745 5666 Total Geo tags collected in Telangana since 2015 -- 47801 Status of geo-tagging in Telangana

Development of Horticulture in Erasakkanayakanur II Micro watershed, Theni Dt. Tamilnadu

Construction of New Oorani ( Village ponds) in Chellukudi MWS of IWMP-IV project of Pudukottai Dt. TN

Implementation of various activities in IWMP 1 (2009-10) Cuddalore Dt. TN

CONSTRUCTION OF PERCOLATION POND Mominpet (4E6D3e2b) Ranga Reddy District Telangana

2009 2015

Check dams constructed in Mahboobnagar District

Geotagging of assets (WHS) in Kerala ---Wayanad IWMP-4

• No. of Summary Reports Prepared- State-wise

S.No State Total Summary Reports

1 Andhra Pradesh 57 2 Arunachal Pradesh 3 Assam 24 4 Bihar 2 5 Chhattisgarh 47 6 Gujarat 354 7 Haryana 47 8 Himachal Pradesh 1 9 J & K 2 10 Jharkhand 13 11 Karnataka 118 12 Kerala 6 13 Madhya Pradesh 294 14 Maharashtra 713 15 Manipur 1 16 Meghalaya 17 Mizoram 18 Nagaland 5 19 Odisha 32 20 Punjab 8 21 Rajasthan 23 22 Sikkim 23 Tamilnadu 32 24 Tripura 4 25 Telangana 72 26 Uttar Pradesh 27 27 Uttarakhand 28 West Bengal Total 1879

SUMMAR ARY R REPORT RT

MONITORING OF IWMP WATERSHED PROJECTS USING GEO-SPATIAL TECHNOLOGIES Morena - IWMP-01 / 2009-10 (Joura) Madhya Pradesh State

Madhya Pradesh Council of Science & Technology

• Dept. of Science & Technology,
• Govt. of Madhya Pradesh

Vigyan Bhavan, Nehru Nagar, Bhopal. Rural Development and Watersheds Monitoring Division, LRUMG - RSA National Remote Sensing Centre – ISRO Hyderabad. Department of Land Resources, Ministry of Rural Development, Government of India New Delhi.

Submitted on dated 15-03-2018

T 0 - T 1 - T 2 - T 3 - T 4 - T 5

Revised report on dated 10-05-2019

• The Project area falls in Morena district of Madhya Pradesh state. The total geographical area of the project is 12,234.10 ha (as

per .shp file WS). It comprises of 20 micro watersheds. The Location Map of the study area is shown in Figure below.

• Analysis is done for 2009-10 period projects (Batch-I) taking 2013-14, 2014-15 and 2015-16 period satellite images.

PROJECT : IWMP-01/2009-10 (Joura) DISTRICT: Morena , STATE: Madhya Pradesh

• Morena district experiences both summers and winters climate. Physiographically Morena district is having NE– SW trending

ridges having elevation of 200-300 m and valleys having elevation of 165m above MSL. The ridges are characterized by sand stone and valleys by shale of vindhyan age. Chambal is the main river which is flowing from SW to NE direction Kunwari and Asan rivers are its tributaries .

• The average annual rainfall for the district is 753.7 mm. The average annual maximum and minimum temperature is 32.5°C and

18.7°C respectively.

Monitoring of IWMP1 Project Morena Dist. Madhya Pradesh Land use/ cover changes
