slide-1

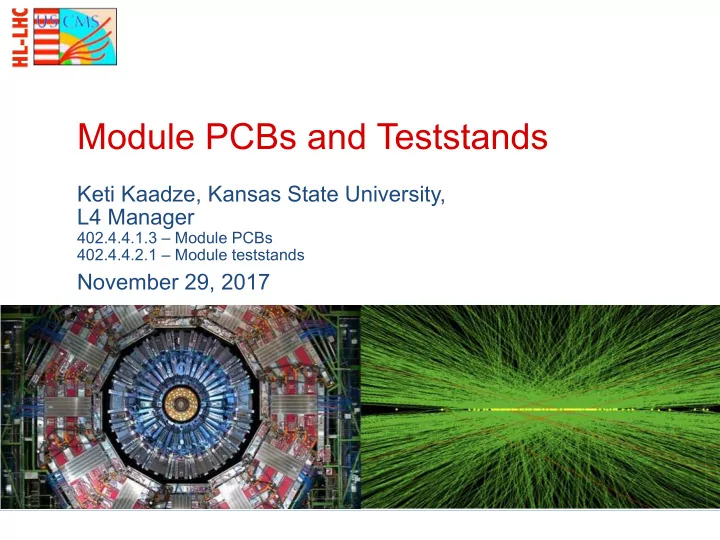

SLIDE 1

Module PCBs and Teststands

Keti Kaadze, Kansas State University, L4 Manager

402.4.4.1.3 – Module PCBs 402.4.4.2.1 – Module teststands

November 29, 2017

slide-2
SLIDE 2

§ The same Module PCBs will be used in CE-E and CE-H parts

§ Design is led by CERN group with some contribution for FNAL & KSU engineers

§ Full testing of each PCB needs to be carried out before assembling it into module

§ Test-stands for handling large quantities of PCBs as well as a single-module tester are needed for full production

Module PCBs

Ke# Kaadze, 2017 November 29 The module PCB, the hexaboard Module PCBs and Teststands

2

slide-3
SLIDE 3

§ Hexaboard contains several HGCROC § Using board-to-board connectors for connecting to motherboard

§ Same connector will be used to connect to board tester

Module PCBs

Ke# Kaadze, 2017 November 29 Module PCBs and Teststands

3

slide-4
SLIDE 4

Conceptual Design for Module PCB Tester

Ke# Kaadze, 2017 November 29 Module PCBs and Teststands

4

slide-5
SLIDE 5

§ The test procedure will be refined as we advance on HGCROC and module PCB design

§ Validation of HGCROC

  • Basic check that we can read and write registers
  • Exercise internal charge injection functionality

§ PCB Noise measurements

  • Pedestal measurement for each channel
  • Check for correlated noise levels

§ Verify that trigger output is appropriate for data during charge- injection tests § C-V scans

  • Confirms wire-bonding and sensor profile
  • Identify problems in PCB or anywhere in module

Test Procedure

Ke# Kaadze, 2017 November 29 Module PCBs and Teststands

5

slide-6
SLIDE 6
  • Full custom board or COTS FPGA board with custom mezzanine card
  • Ethernet connectivity to computer
  • Low voltage Control and monitoring
  • High voltage control and monitoring (800v)
  • Slow control (I2C)
  • Generate timing, control and calibration signals
  • Receive e-Links from HGCROC ASIC (1.28 Gb/s)
  • Low Density Module
  • 12 trigger e-Links
  • 3 DAQ e-Links
  • High Density Module
  • 18 trigger e-Links
  • 6 DAQ e-Links
  • Scale single test board to test stand
  • COTS temperature chamber with dry air purge
  • 25 Modules per test cycle

Conceptual Design

Ke# Kaadze, 2017 November 29 Module PCBs and Teststands

6

slide-7
SLIDE 7

Module Test Board Block Diagram

Ke# Kaadze, 2017 November 29 Module PCBs and Teststands

7

slide-8
SLIDE 8

§ Plan

§ The detector will operate at -30C § The U.S. will be responsible building about 12000 silicon modules

  • Testing procedure will be common between different institutions

contributing to this task: KSU, TTU, CMU, UCSB, and FNAL

§ Requirements for testing

§ Validation and functionality tests needs to be carried out before and during thrermal cycling, before PCBs are assembled into modules § Aim completing testing of full production within one year -- requires a test-stand to handle at least 50 PCBs per day § Perform testing in a clean room § Important starting point – develop and validate test-stand for testing prototype 1 PCBs, O(100) in quantity

Requirements

Ke# Kaadze, 2017 November 29 Module PCBs and Teststands

8

slide-9
SLIDE 9

§ We have 50 m2 class 10000 (ISO 7) clean room

§ Similar cleanroom facilities will be present at module and cassette factories, wherever we will work with unsealed modules

§ Thermal Cycler – currently considered: BTZ-475 (A) model from ESPEC

§ Sufficiently large volume: 4 cu. ft. § Temperature range: -70°C to 180°C § Humidity control § Computer interface § Similar cycler will be used at module and cassette factories

§ Develop tester board for testing module PBCs § Develop software for test-stand

Requirements for Test-Stand

Ke# Kaadze, 2017 November 29 Module PCBs and Teststands

9

slide-10
SLIDE 10

Module Test Board Block Diagram

Ke# Kaadze, 2017 November 29 Test system scaled for 25 modules Module PCBs and Teststands

10

slide-11
SLIDE 11

§ The development of test board is directly related to

§ Development of HGCROC § Design of module PCB

§ Thermal cycling and test procedures will be common between KSU test-stand and module assembly sites

§ Testing board will be developed as common effort of KSU/FNAL/ UCSB group § Test-stand software will be a common effort of KSU/Baylor U. group

Interfaces

Ke# Kaadze, 2017 November 29 Module PCBs and Teststands

11

slide-12
SLIDE 12

R&D and Engineering

Ke# Kaadze, 2017 November 29 Module PCBs and Teststands

12

slide-13
SLIDE 13

§ Personnel

§ Physicists:

  • Faculty: K. Kaadze, Y. Maravin
  • Postdoc: A. Mohammadi
  • G student: D. Kim
  • UG students

§ Engineers: Russell Taylor, Stephen Corkill

  • Developed test board for Phase I pixel TMB
  • Developed LED Pulser board for Phase I HCAL FE upgrade

§ Technician: David Huddleston

Institutional and Personnel Involvement

Ke# Kaadze, 2017 November 29 Module PCBs and Teststands

13

slide-14
SLIDE 14

§ Preparation of module PCBs and test-stands is has started

§ Development of HGCROC and module PCB design is an important input § Preparing test-stands to be able to test and verify full production

  • f module PCBs
  • Develop test-board to perform necessary tests
  • Obtain and setup thermal cycler
  • Develop necessary software

§ Timescale

§ First prototype testing – 2018-2019 § Full production testing – 2020-2022

Conclusion and Outlook

Ke# Kaadze, 2017 November 29 Module PCBs and Teststands

14
