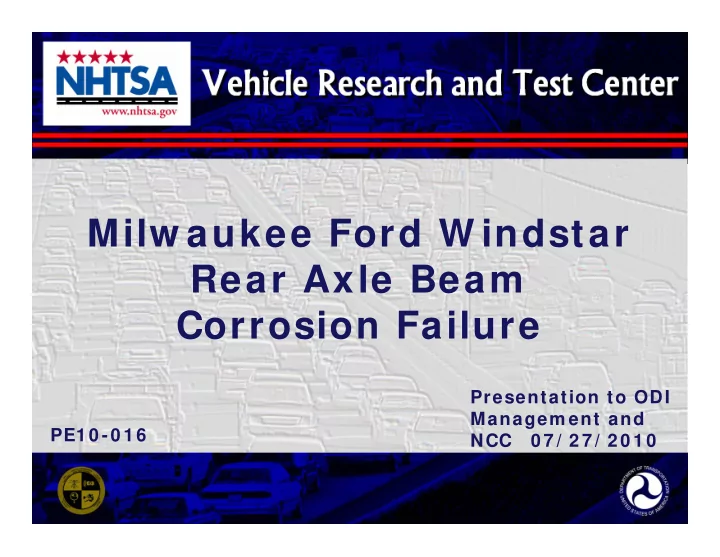

Milw aukee Ford W indstar Milw aukee Ford W indstar Rear Axle Beam C Corrosion Failure i F il Presentation to ODI Managem ent and PE1 0 -0 1 6 NCC 0 7 / 2 7 / 2 0 1 0 1 Milwaukee Ford Windstar Rear Axle B Beam Corrosion Failure C i

SLIDE 1

Milw aukee Ford W indstar Milw aukee Ford W indstar Rear Axle Beam C i F il Corrosion Failure

Presentation to ODI Managem ent and NCC 0 7 / 2 7 / 2 0 1 0 PE1 0 -0 1 6

SLIDE 2

Milwaukee Ford Windstar Rear Axle B C i F il Beam Corrosion Failure

The complaint vehicle (VOQ10342863) was inspected on p ( Q ) p 07/26/10 with a Ford representative. Then the accident site was visited (without the Ford rep) The rear axle had corroded was visited (without the Ford rep). The rear axle had corroded and failed on the left side. The Panhard rod buckled allowing h l f ili i d l i b i l l f the left rear trailing arm to twist and leaving substantial left rear fender-well tire marks. The vehicle was reported to have been traveling at 50 mph in the third lane when the axle failed, the driver lost control, hit the Jersey barrier, and both front air

bags deployed.

SLIDE 3

VOQ 10342863 3

SLIDE 4

VOQ 10342863 – PAR page 1 4

SLIDE 5

VOQ 10342863 – PAR page 2 5

SLIDE 6

VOQ 10342863 – PAR page 3 6

SLIDE 7

VOQ 10342863 – PAR page 4 7

SLIDE 8

American Family Insurance documentation 8

SLIDE 9

VIN data plate 9

SLIDE 10

Front view of vehicle 10

SLIDE 11

Left side of vehicle 11

SLIDE 12

Left side of vehicle 12

SLIDE 13

Both air bags deployed 13

SLIDE 14

Front view after vehicle was raised 14

SLIDE 15

Rear view after vehicle was raised 15

SLIDE 16

Left side of fractured axle 16

SLIDE 17

Right side of fractured axle 17

SLIDE 18

Evidence the axle dragged along the concrete roadway 18

SLIDE 19

Left rear fender well tire marks 19

SLIDE 20

Right rear fender well tire marks 20

SLIDE 21

Left rear trailing arm as viewed from in front of the left rear wheel 21

SLIDE 22

Fuel tank was contacted by the axle 22

SLIDE 23

View of axle from below 23

SLIDE 24

General location of the accident 24 Note: no gouges could be located along the roadway surface

SLIDE 25

Apparent site of accident 25

SLIDE 26

The End
