Microwave Photonics Micr crowave Ph e Photonics cs Phot otoni nics techni nique ues f s for g gene neration, on, t transm nsmissi ssion on, proc ocessi ssing o ng of microw owave ve sign gnals Why photonics techniques


slide-1
SLIDE 1

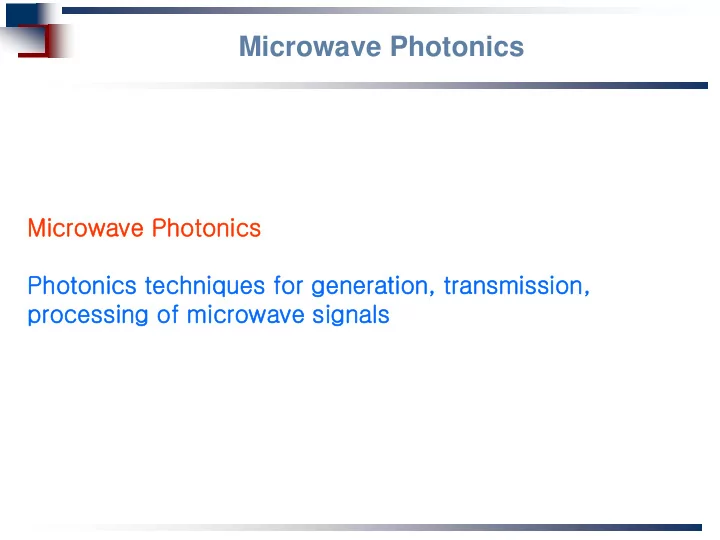

Microwave Photonics

Micr crowave Ph e Photonics cs Phot

  • toni

nics techni nique ues f s for g gene neration,

  • n, t

transm nsmissi ssion

  • n,

proc

  • cessi

ssing o ng of microw

  • wave

ve sign gnals

slide-2
SLIDE 2

Why photonics techniques

Microwave Photonic Link (Radio on Fiber Link)

INPUT µW SIGNALS OUTPUT µW SIGNALS

OPTICAL FIBER

OPTICAL SOURCE PHOTO - DETECTOR

  • Fiber can be better than coaxial cable
  • New functionalities
slide-3
SLIDE 3

Fiber Coax

  • Size 0.25 mm 2-6 mm
  • Weight 0.073 g/m 30~100 g/m
  • Loss(dB/km)

0.4~0.8 1000~1500

  • Time-Bandwidth Product >106 102

Advantage of Fiber over Coaxial Cable

slide-4
SLIDE 4

Application: Mobile Communication Networks

Established Cell Remote Antenna Unit Central Station

slide-5
SLIDE 5

Example of Fiber Radio system for closed-area shopping mall (Japan)

Tennjinnbashisuji Shopping Mall (Osaka) Base Station

Topology : Star Number of base units: 2, access units: 9 Fiber length: Approx. 2000 m/2 systems

Courtesy of NTT DoCoMo

slide-6
SLIDE 6

Optics fiber (DoCoMo) Fixed telephone lines (NTT)

  • Apporox. 50m

To another arcade

Courtesy of NTT DoCoMo

Tennjinnbashisuji Shopping Mall Base Station

slide-7
SLIDE 7

RoF in the Building

  • World Trade Center in Japan (very high building)

Topology:Star Number of base units: 2, access units: 15 Fiber length: Approx. 1200 m/2 systems Antenna

Courtesy of NTT DoCoMo

slide-8
SLIDE 8

Radio-on-Fiber for Closed Area Mobile Services

Optical fiber Shadow

  • f building

In-building Underground shopping mall Antenna base station Central Office Satellite communication To other building Household Antenna base station

► High transmission loss of millimeter-wave

  • Many antenna base stations
  • Many closed-area (no service area)

► Radio-on-fiber systems

slide-9
SLIDE 9

Broadband Wireless Access

CARRIER FREQ.: Millimeter Waves FCC opened 70, 80 and 90GHz bands for commercial uses (2004/10)

Millimeter-wave generation and processing are required

Broadband fixed backbone network fiber

slide-10
SLIDE 10

Military Applications – (1)

Fiber : flexible, small and light, no EMI  Communication Network  Radar Systems – Phased Array Antennas

slide-11
SLIDE 11

Military Applications – (2)

Fiber : flexible, small and light, no EMI  Communication and Radar Systems in Planes and Tanks  Inter-Connection between Complex Control Systems

slide-12
SLIDE 12

Atacama Large Millimeter Array (ALMA)

ALMA : study the structure of the early universe and the evolution of galaxies

 The array consists of 64 telescopes with 12-meter dish antennas  Location : high-altitude (5000 meters), extremely dry mountain site in Chile's Atacama desert for free from distortions caused by atmospheric water

slide-13
SLIDE 13

Construction Sight of ALMA

slide-14
SLIDE 14

Photonics in ALMA

slide-15
SLIDE 15

A Simple Picture for Fiber Radio Link

µwave to baseband light to µwave µwave to light

Requirements

  • Generation of microwave photonic signals
  • Transmission of microwave photonic signals
  • Detection of microwave photonic signal
slide-16
SLIDE 16

Important Parameters for Fiber Radio System

Digital Optical Communication

Transporting Bits. Bit rate Data Recovery Bit Error Ratio

Eye Opening, Q

Sensitivity (for BER=10-9) Jitter Intersymbol Interference Power penalties Dispersion, Chirp

Reflections, Channel Crosstalk Nonlinearities

Error-Free Transmission

Fiber Radio System

Transporting and Storing Signals Bandwidth Dynamic Range

Spurious Free Dynamic Range Compression Dynamic Range

Signal-to-Noise Ratio Noise Figure Phase Noise Intermodulation Distortion Power Penalties

Dispersion, Chirp Reflections, Channel Crosstalk Nonlinearities

Output Power High-Fidelity Transmission
