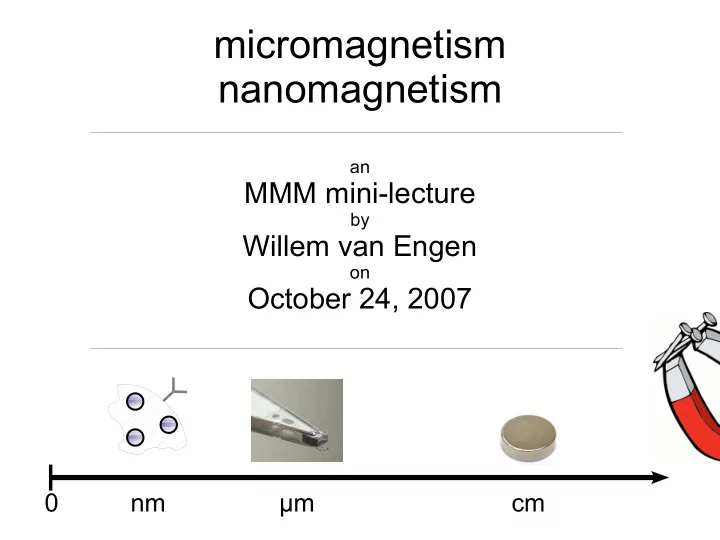

micromagnetism nanomagnetism

an

MMM mini-lecture

by

Willem van Engen

  • n

October 24, 2007

nm μm cm

slide-2
SLIDE 2

doi:10.1103/PhysRev.77.725

slide-3
SLIDE 3

0.06 T 0.06 T 0.21 T 0.21 T

slide-4
SLIDE 4

θ

easy axis

φ H

slide-5
SLIDE 5

θ

easy axis

H H

anti-parallel

φ = θ = π φ H

parallel

φ = θ = 0

slide-6
SLIDE 6

d

2 E

d

2 =0  Hext=

2K 0 M sat

slide-7
SLIDE 7

“Micromagnetism and the Microstructure of Ferromagnetic solids”, Kronmüller and Fahnle, 2003. ISBN 0521331358

slide-8
SLIDE 8

superparamagnetism

Dth

3=6kBT

 K ln m 0

kBT

slide-9
SLIDE 9

single vs. multi domain

Ddo= 18 0 M sat

2

slide-10
SLIDE 10

curling ...

“Micromagnetism”, Boardman, 2006. http://www.soton.ac.uk/~rpb/

slide-11
SLIDE 11

... or buckling

“Development of elongated particle magnets”, Luborsky, 1961. doi:10.1063/1.2000392

slide-12
SLIDE 12

Dth, Dnuc, Ddo Fe: Co: Dth Dnuc Ddo

“Development of elongated particle magnets”, Luborsky, 1961. doi:10.1063/1.2000392

slide-13
SLIDE 13

enough theory applications!

slide-14
SLIDE 14

microfluidics ...

“The origins and the future of microfluidics”, Whitesides, 2006. doi:10.1038/nature05058

slide-15
SLIDE 15

microfluidics ... ferrofluidics

+ =

~10nm

source: Technorama

slide-16
SLIDE 16

microfluidics ... ferrofluidic pump

“Magnetism and microfluidics”, Pamme, 2006. doi:10.1039/b513005k

slide-17
SLIDE 17

surface coating

biosensors magnetic bead

magnetite grains (Fe3O4) polymer matrix

slide-18
SLIDE 18

biosensors biochemical binding

Magnetic field sensor Current wire

Silicon chip

Silicon chip Agent Anti body

slide-19
SLIDE 19

biosensors bead attachment & measurement

Magnetic field sensor Current wire

Silicon chip

Silicon chip

slide-20
SLIDE 20

vortex switching simulations

“Current induced switching of vortex polarity in magnetic nanodisks”, Sheka et al., 2007. doi:10.1063/1.2775036

slide-21
SLIDE 21

vortex switching MFM measurements

“Electrical switching of the vortex core in a magnetic disk”, Yamada et al., 2007. doi:10.1038/nmat1867

slide-22
SLIDE 22
  • the end -
