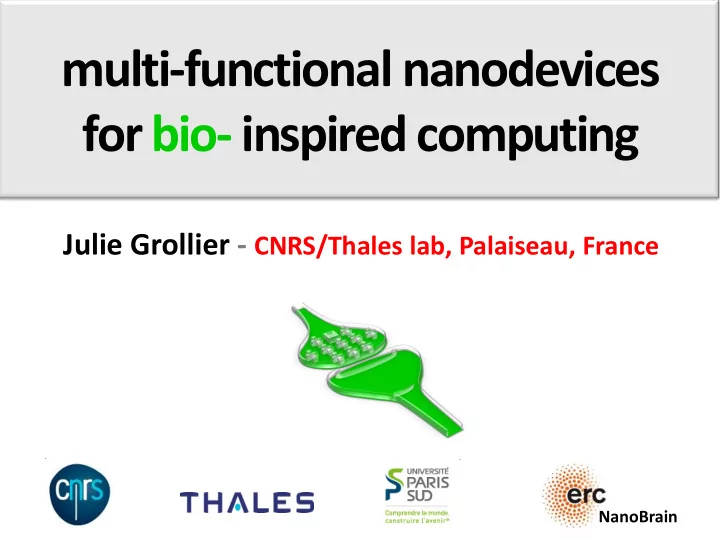

NanoBrain

Julie Grollier - CNRS/Thales lab, Palaiseau, France

multi-functional nanodevices for bio- inspired computing

slide-2
SLIDE 2
  • J. Grollier

Hipeac New Tech Talk 2013

UM CNRS/Thales

  • High Tc Superconductors
  • Spintronics and Nanomagnetism
  • Functional Oxides

memristors and more …  nanodevices for bio- inspired computing

Condensed matter physics laboratory

1

slide-3
SLIDE 3
  • J. Grollier

Hipeac New Tech Talk 2013

Acknowledgements

André Chanthbouala, Joao Sampaio, Steven Lequeux, Peter Metaxas, Nicolas Locatelli, P. Bortolotti, Madjid Anane, Cyrile Deranlot, Albert Fert, Vincent Cros

  • CNRS/Thales spintronic team:

André Chanthbouala, Agnès Barthélémy, Manuel Bibes, Vincent Garcia, Karim Bouzehouane, Sören Boyn, Flavio Bruno, Cécile Carretero, Ryan Chérifi, Stéphane Fusil, Stéphanie Girod, Eric Jacquet, Hiro Yamada

  • CNRS/Thales oxide team:
  • AIST, Japan:
  • University of Cambridge:

Rie Matsumoto, Akio Fukushima, Kay Yakushiji, Hitoshi Kubota, Shinji Yuasa Neil Mathur, Xavier Moya

2

slide-4
SLIDE 4
  • J. Grollier

Hipeac New Tech Talk 2013

3

Multi-functional nanodevices

Images : courtesy Stéphanie Girod

Complex functions at the nanoscale Renewed interest in bio-inspired architectures example: Memristors vs. Artificial Neural Networks

slide-5
SLIDE 5
  • J. Grollier

Hipeac New Tech Talk 2013

Outline

  • 1. introduction to memristors
  • 2. memristors as artificial nano-synapses
  • 3. purely electronic memristors

4

slide-6
SLIDE 6
  • J. Grollier

Hipeac New Tech Talk 2013 Chua, IEEE Trans. Circuit Theory (1971)

v = M(q) i

  • Nano resistance
  • Tunable (multi-resistance states)
  • Non volatile
  • Non-linear ( Vth )

Memory - resistor

Memristor definition

5

R V OFF ON Vth

resistive switching

slide-7
SLIDE 7
  • J. Grollier

Hipeac New Tech Talk 2013 Pt Pt TiO2

ROFF

Pt Pt TiO2-x

RON

q x 

Pt Pt TiO2-x TiO2 x (t) L

         L x R L x R R

OFF ON

1

V ionic displacement proportional to the charge migration of oxygen vacancies

< 30x30 nm2

q R 

An example: TiO2 memristor (Hewlett-Packard)

Strukov et al., Nature 2008 Yang et al., Nature Nano (2008)

ROFF/RON > 1000

6

slide-8
SLIDE 8
  • J. Grollier

Hipeac New Tech Talk 2013

memristors : small (< 50 x 50 nm2) + large OFF/ON ratio (>1000) HP

memristor crossbar arrays

possibility to remove selector build ultra-dense resistive matrices of memristors (crossbars)

memory architecture :

  • memory element (nanodevice)
  • selector (diode, transistor)

limiting element

7

slide-9
SLIDE 9
  • J. Grollier

Hipeac New Tech Talk 2013

memristor co-integration with CMOS

Xia et al., Nanoletters (2010)

CMOL concept

Strukov and Likharev, Nanotechnology 2005

to be solved : cross-talk, sneak paths, lithography, thermal issues « 4D » version (stacked crossbars)

Strukov and Williams, PNAS 2009

not many experimental implementations

8

slide-10
SLIDE 10
  • J. Grollier

Hipeac New Tech Talk 2013

Application 1 : non-volatile digital memories

Resistive RAM under development (1T-1R)

  • should be commercialized soon  2014

HP/Hynix, Elpida memory Inc., Panasonic…

 target : replace DRAM

  • performances (today)

ReRAM NAND Flash DRAM endurance 106 cycles 105 cycles 1016 cycles write speed 10 ns 100 µs 100 ns write energy

best projected : 0.02 fJ

0.2 fJ 5 fJ

  • can be scaled below 20 nm (but selector issue)

9

slide-11
SLIDE 11
  • J. Grollier

Hipeac New Tech Talk 2013

Application 2 : logic with memory

Field Programmable Nanowire Interconnect

If the OFF/ON ratio is large enough (>> 103), memristors could be used as latches, replacing transistors

Kuekes et al., JAP 2005 Borghetti et al., Nature 2010 Robinett et al., Nanotechnology 2010 Hasegawa et al., Adv. Mater. 2012 Strukov and Likharev, Nanotechnology 2005

  • logic functions
  • Reconfigurable Architectures (Field Programmable Gate Arrays)

IMP CMOL FPGA

Snider et al., Nanotechnology 2007

10

slide-12
SLIDE 12
  • J. Grollier

Hipeac New Tech Talk 2013

Application 3 : artificial nano-synapses

  • Non volatile
  • Analog & Tunable
  • Nano

R V OFF ON

 1 memristor can mimic 1 biological synapse

memristors

Interest from the device point of view:

  • takes full advantage of the device possibilities
  • stays away from Boolean logic (realm of CMOS)

 could be the key to the future developments of hardware Artificial Neural Netwoks

11

slide-13
SLIDE 13
  • J. Grollier

Hipeac New Tech Talk 2013

Outline

  • 1. introduction to memristors
  • 2. memristors as artificial nano-synapses
  • 3. purely electronic memristors

12

slide-14
SLIDE 14
  • J. Grollier

Hipeac New Tech Talk 2013

Why hardware neuromorphic architectures ?

Artificial Neural Networks algorithms:

  • Massively parallel
  • Analog
  • Relatively uniform
  • Fast
  • Low energy demand
  • Defect tolerant

Semiconductor industry hurdles :

  • Multicore scaling
  • Excessive dissipation
  • Defects
  • P. Dubey, Tech. Intel Magazine 2005

Temam, ISCA 2010 Chen, Temam et al. IISWC 2012

  • very performant (deep networks)
  • key applications : « Recognition, Mining and Synthesis »

13

slide-15
SLIDE 15
  • J. Grollier

Hipeac New Tech Talk 2013

Artificial Neural Networks / Memristors

wij

synapse neuron inputs

  • utputs

xj xi

Neuron : - processing unit

  • integrates information sent from
  • ther neurons through synapses
  • Spikes when threshold reached
  • « integrate and fire »

Synapse : - define how well the information is

transmitted : synaptic weight

  • the weigths are adjustable (synaptic

plasticity)

  • all synapses : network memory

Network performances :

  • interconnectivity

(human brain 104 synapses / neuron)

  • scale of the network

w1 and w3 reinforced

w1 3 2 1 w2 w3

threshold

14

slide-16
SLIDE 16
  • J. Grollier

Hipeac New Tech Talk 2013

CMOS implementation : neuron

Zamarreño-Ramos et al., Frontiers in Neuroscience 2011

~ 100 µm

 huge number of transistors and passive elements

15

slide-17
SLIDE 17
  • J. Grollier

Hipeac New Tech Talk 2013

CMOS implementation : synapse

1) Store synaptic weights : SRAM banks 2) Synaptic plasticity: learning rule

 10 µm

SRAM banks plasticity

STDP

Schemmel et al., IJCNN 2006

16

slide-18
SLIDE 18
  • J. Grollier

Hipeac New Tech Talk 2013 Chua, IEEE Trans. Circuit Theory (1971) Strukov et al., Nature 2008

v = M(q) i

  • Nano resistance
  • Tunable (multi-resistance states)
  • Non volatile
  • Non-linear ( Vth )

Memory - resistor

1 memristor = 1 nano-synapse

1) Store synaptic weights : 2) Synaptic plasticity:

< 30x30 nm2 Jo et al., Nanoletters 2010

STDP

Linarres-Barranco et al., Frontiers Neuro, 2011

non-volatile tunable

R V OFF ON

17

slide-19
SLIDE 19
  • J. Grollier

Hipeac New Tech Talk 2013

supervised learning

 the way traditional neural networks work

the correct answer is known, the network is trained to produce it

 neurons = state neurons (no spikes) very small (< 10 memristors) prototypes of perceptrons with memristive synapses

Agnus et al, Adv Mat 2010 Alibart , Strukov et al, to be published

 The memristor conductance is modified by applying the required voltage

R V OFF ON

18

slide-20
SLIDE 20
  • J. Grollier

Hipeac New Tech Talk 2013

unsupervised learning

 the neural networks learns by itself  memristors can implement an unsupervised learning rule :

spike timing dependent plasticity, inspired from biology

 neurons = spiking neurons

Bi & Poo 1998 Jo et al., Nanoletters 2010

19

slide-21
SLIDE 21
  • J. Grollier

Hipeac New Tech Talk 2013

STDP with memristors: simulations

Presented input Activated neuron Strengthened synapse Weakened synapse  IEF/CEA List : the system autonomously learns to recognize the handwritten digits or to count vehicles

Querlioz et al, IEEE IJCNN 2011 Bichler et al, Neural Networks, 2012

20

slide-22
SLIDE 22
  • J. Grollier

Hipeac New Tech Talk 2013

  • Hybrid architectures Von Neumann / ANN

 heterogenous multi-core, embedded applications  Goal : accelerating specific tasks  example : digital camera, accelerate smile recognition

  • Large scale hardware simulations of the human brain ?

 faster and less power consumption than supercomputer simulations  Goal : understanding the human brain  European Projects FACETS/Brainscales & Human Brain flagship project and others

Hardware ANNs : good at certain tasks Classical architectures : good at other tasks

Artificial Neural Networks : applications

21

slide-23
SLIDE 23
  • J. Grollier

Hipeac New Tech Talk 2013

Outline

  • 1. introduction to memristors
  • 2. memristors as artificial nano-synapses
  • 3. purely electronic memristors

22

slide-24
SLIDE 24
  • J. Grollier

Hipeac New Tech Talk 2013

After (and even before) Hewlett-Packard TiO2 memristor was proposed, many other very different memristor concepts were identified :

Erokhin et al., Surface and thin films (2007) PANI A.A. Zakhidov et al., Organic elec. (2009) metal/mixed conductor/metal

  • F. Alibart et al., Advanced Func. Mater. (2009) Pentacene + gold particles

Ben Jamaa et al., IEEE Nano (2009) Poly-cristalline Si nanowires Derycke et al., TNT (2009) Carbone nanotubes Driscol et al., APL (2009) Phase change material Gergel et al., IEEE EL (2009) flexible TiO2 Jo et al., Nanoletters (2009) Ag/Si Wang et al., IEEE EL (2009) spintronics Kim et al., Nanoletters (2009) nanoparticle assemblies Jeong et al., Nanoletters (2010) graphene Lee et al., Nature Materials (2011) Ta2O5 Ohno et al., Nature Materials (2011) atomic switches Chanthbouala, Grollier et al., Nature Physics (2011) spintronics Cavallini et al., Advanced Materials (2012) silicon oxide Chanthbouala, Grollier et al., Nature Materials (2012) ferroelectricity ………..

Many different kinds of memristors

23

slide-25
SLIDE 25
  • J. Grollier

Hipeac New Tech Talk 2013

Red-Ox Phase change Purely electronic effects

MX + de- MX1-d + dX-

  • large local heating
  • physics not understood
  • need of a forming step
  • most memristors are defect-mediated :

 thermal effects, ionic motion

ex : HP memristor based on electromigration : reliability / endurance issues

 can be problematic

Memristor : classification

24

slide-26
SLIDE 26
  • J. Grollier

Hipeac New Tech Talk 2013

Red-Ox Phase change Purely electronic effects

MX + de- MX1-d + dX-

  • @ UM CNRS/Thales:

 purely electronic interface effects modulate resistance

Two new concepts :

  • ferroelectric memristor, WO 2010/ 142762 A1, Nature Materials 2012
  • spin torque memristor, WO 2010/ 125181 A1 , Nature Physics 2011

Memristor : classification

24

slide-27
SLIDE 27
  • J. Grollier

Hipeac New Tech Talk 2013

both concepts: based on very promising digital memories

From binary memories to memristors

Ferroelectric memristor: based on the ferroelectric tunnel junction

electrode 1 ferroelectric tunnel barrier electrode 2

ITRS ERD 2011

Spin Torque memristor: based on the magnetic tunnel junction

ferromagnetic electrode 1

  • xide

tunnel barrier (MgO) ferromagnetic electrode 2

under industrial development STT-RAM expected on the market this year Fe ReRAM

25

slide-28
SLIDE 28
  • J. Grollier

Hipeac New Tech Talk 2013

“binary” switching “multi state” switching memristor R

V

OFF ON

M or P V M or P V

From binary memories to memristors

engineer switching through non-uniform magnetic or ferroelectric domain configurations

26

slide-29
SLIDE 29
  • J. Grollier

Hipeac New Tech Talk 2013

Ferroelectric memristor

27

slide-30
SLIDE 30
  • J. Grollier

Hipeac New Tech Talk 2013

   

Ferroelectric tunnel junctions (FTJs)

28

Gruverman et al., Nano Letters 2009 Maksymovych et al., Science 2009 Zhuravlev et al, PRL 2005

Garcia et al, Nature 2009 (CNRS/Thales)

Kohlstedt et al, PRB 2005

slide-31
SLIDE 31
  • J. Grollier

Hipeac New Tech Talk 2013

500 nm

  • Nanoscale ferroelectric tunnel junctions defined by e-beam

lithography

  • Each device is electrically connected by a conductive AFM tip

Solid state ferroelectric tunnel junctions

2 nm 30 nm 10 nm 10 nm

29

slide-32
SLIDE 32
  • J. Grollier

Hipeac New Tech Talk 2013

Piezoresponse force microscopy (PFM)

VAC ~

  • In ultrathing ferroelectric barriers, the domain size can be

extremely small < 5nm : promise of a fine control of polarization

Imaging the ferroelectric domain configuration

  • A. Gruverman et al., Phys. Rev. Lett. 100, 097601 (2008)
  • A. Gruverman, J. Mater. Sci. 44, 5182 (2009)

30

slide-33
SLIDE 33
  • J. Grollier

Hipeac New Tech Talk 2013

25 50 75 100 10

5

10

6

10

7

Fraction of down domains (%) R ()

phase (deg)

180

       

       

  • Resistance can be controlled by the ferroelectric domain configuration
  • The junction response can be well reproduced in a model of parallel resistors

Resistance vs domain configuration

increasing V+ increasing V-

31

slide-34
SLIDE 34
  • J. Grollier

Hipeac New Tech Talk 2013

  • 4
  • 2

2 4 10

5

10

6

10

7

10

8

R(Ohm) Vwrite (V)

  • Any intermediate resistance

state is reachable

  • Pseudo-continuous resistance

variation  memristive behaviour

Chanthbouala, JG et al, Nature Materials (2012)

Ferroelectric memristor

20 ns pulses

Chanthbouala , JG et al, Nature Nanotech. (2012)

32

slide-35
SLIDE 35
  • J. Grollier

Hipeac New Tech Talk 2013

  • Purely electronic memristor with large ON/OFF ratio
  • Fast (10 ns), cumulative, low write energy < 10 fJ
  • Physical modeling : ferroelectric reversal dynamics
  • Engineering memristor properties: control of the domain configuration

BaTiO3 BiFeO3

Conclusions on the ferroelectric memristor

  • Other versions of the tunneling ferroelectric memristor:

33

Kim et al, Nanoletters (2012) and Yin et al, Nature Materials (2013) Group of A. Gruverman:

poster of Flavio Bruno

slide-36
SLIDE 36
  • J. Grollier

Hipeac New Tech Talk 2013

Next step

40 x 40

Kim, Lu et al, Nanoletters 2012

Si/Ag

8

1) Fabricate crossbar array 2) Interface it with spiking CMOS neurons 3) Make a small neural network performing classification IMS Bordeaux + Thales embedded system labs + INRIA Collaboration (ANR P2N MHANN):

 Exploit large OFF/ON ratios

34

slide-37
SLIDE 37
  • J. Grollier

Hipeac New Tech Talk 2013

Spin Torque memristor

35

slide-38
SLIDE 38
  • J. Grollier

Hipeac New Tech Talk 2013

Anti-parallel state (AP) (logical 1) Parallel state (P) (logical 0)

RAP > RP

N S N S N S N S building block : magnetic tunnel junction free nanomagnet / oxide insulator / fixed nanomagnet

reading the magnetic state  measuring the resistance

Magnetic Random Access Memory

36

slide-39
SLIDE 39
  • J. Grollier

Hipeac New Tech Talk 2013

direct current injection J  107 A.cm-2

Idc

  • J. C. Slonczewski, JMMM 1996 & L. Berger, PRB 1996

Spin Transfer Torque : magnetization switching by angular momentum transfusion from a spin polarized current

  • 2
  • 1

1 2 180 240 300 360

resistance () dc current (mA)

AP P

Writing the magnetic state: spin torque

37

slide-40
SLIDE 40
  • J. Grollier

Hipeac New Tech Talk 2013

direct current injection J  107 A.cm-2

Idc

Possible thanks to the development of low resistivity MgO tunnel barriers

  • 2
  • 1

1 2 180 240 300 360

resistance () dc current (mA)

AP P

Writing the magnetic state: spin torque

Yuasa et al. & Parkin et al., Nature Materials 2004

  • J. C. Slonczewski, JMMM 1996 & L. Berger, PRB 1996

38

slide-41
SLIDE 41
  • J. Grollier

Hipeac New Tech Talk 2013

Binary memory  2 state spin torque controlled memristor

  • other works : combine 2 state TMR + resistive switching

Krzysteczko et al. APL 2009 - Prezioso et al. Adv Mater 2011

  • purely electronic write operation  ST induced DW motion
  • 2
  • 1

1 2 150 200 250 300 350 400

Resistance () d.c. current (mA)

How to obtain the quasi- analog behaviour ?

Magnetic tunnel junction as a memristor

39

slide-42
SLIDE 42
  • J. Grollier

Hipeac New Tech Talk 2013

Spin torque memristor: concept

40

L x ) R R ( R R

P AP p

   Resistance: proportion of parallel and anti-parallel domains

R t R t

t R

 

x0 x1 x0 x1 x2

  • Resistance: DW position
  • DW position: charge

injected

i ) q ( R V q t J x      

t j t j

Memristor

Grollier et al. WO 2010/ 125181 A1 Wang et al. IEEE 2009

slide-43
SLIDE 43
  • J. Grollier

Hipeac New Tech Talk 2013

  • 10
  • 5

5 10 15 16 17

  • 4
  • 2

2 4

resistance () dc current (mA) current density (10

6 A/cm 2)

∆T = 0.8 ns v = 621 m/s

2 4 6 8 10 12 200 400 600 800

DW velocity (m/s) Jpulse (MA/cm

2)

J=-7.8 MA/cm2

HToop

1 2 3 4 5 0.0 0.2 0.4 0.6 0.8 1.0

normalized resistance time (ns)

Chanthbouala, JG et al. Nature Phys. 2011

      Low current density: j  106 A/cm2, high speed: v > 600 m/s

Spin torque memristor

41

slide-44
SLIDE 44
  • J. Grollier

Hipeac New Tech Talk 2013

Conclusion on spin torque memristor

  • Purely electronic mechanism
  • Fast (sub-ns), low current density (MA/cm2)
  • 2-terminal device

Perspectives :

  • Miniaturization : perpendicularly magnetized layers
  • Multi-level resistance states

42

slide-45
SLIDE 45
  • J. Grollier

Hipeac New Tech Talk 2013

Conclusion on spin torque memristor

  • Purely electronic mechanism
  • Fast (sub-ns), low current density (MA/cm2)
  • 2-terminal device

Perspectives :

  • Miniaturization : perpendicularly magnetized layers
  • Multi-level resistance states

Issues : OFF/ON ratio today < 6

  • theoretical limit > 100
  • spin torque lego: assembling spin torque bricks to compute

Zhang and Buther Phys. Rev. B 2004

43

slide-46
SLIDE 46
  • J. Grollier

Hipeac New Tech Talk 2013

Conclusion

Ferroelectric memristor / Spin Torque memristor Potential of nanodevices for bio-inspired computing Potential of memristors for applications (memory, logic, synapses) Implementation of purely electronic memristors
