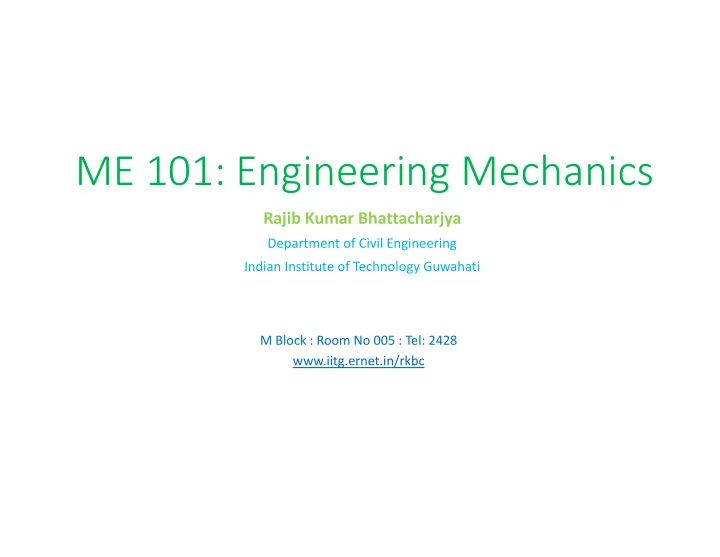

ME 101: Engineering Mechanics

Rajib Kumar Bhattacharjya

Department of Civil Engineering Indian Institute of Technology Guwahati M Block : Room No 005 : Tel: 2428 www.iitg.ernet.in/rkbc

slide-2
SLIDE 2

Center of Mass and Centroids

Concentrated Forces: If dimension of the contact area is negligible

compared to other dimensions of the body the contact forces may be treated as Concentrated Forces

Distributed Forces: If forces are applied over a region whose dimension

is not negligible compared with other pertinent dimensions proper distribution of contact forces must be accounted for to know intensity of force at any location.

Line Distribution (Ex: UDL on beams) Area Distribution Ex: Water Pressure Body Distribution (Ex: Self weight)

slide-3
SLIDE 3

Center of Mass and Centroids

Center of Mass

A body of mass m in equilibrium under the action of tension in the cord, and resultant W of the gravitational forces acting on all particles of the body.

  • The resultant is collinear with the cord

Suspend the body from different points

  • n the body
  • Dotted lines show lines of action of the resultant force in each case.
  • These lines of action will be concurrent at a single point G

As long as dimensions of the body are smaller compared with those of the earth.

  • we assume uniform and parallel force field due to the gravitational attraction of

the earth.

The unique Point G is called the Center of Gravity of the body (CG)

slide-4
SLIDE 4

Center of Mass and Centroids

Determination of CG

  • Apply Principle of Moments

Moment of resultant gravitational force W about any axis equals sum of the moments about the same axis of the gravitational forces dW acting

  • n all particles treated as infinitesimal elements.

Weight of the body W = dW Moment of weight of an element (dW) @ x-axis = ydW Sum of moments for all elements of body = ydW From Principle of Moments: ydW = W Numerator of these expressions represents the sum of the moments; Product of W and corresponding coordinate of G represents the moment of the sum Moment Principle.

W zdW z W ydW y W xdW x

  • =

= =

slide-5
SLIDE 5

Center of Mass and Centroids

Determination of CG

Substituting W = mg and dW = gdm

  • In vector notations:

Position vector for elemental mass: Position vector for mass center G:

The above equations are the

  • components of this single vector equation

Density of a body = mass per unit volume Mass of a differential element of volume dV dm = dV

may not be constant throughout the body

W zdW z W ydW y W xdW x

  • =

= =

m zdm z m ydm y m xdm x

  • =

= = k j i r z y x + + = k j i r z y x + + = m dm

  • =

r r

  • =

= = dV dV z z dV dV y y dV dV x x ρ ρ ρ ρ ρ ρ

slide-6
SLIDE 6

Center of Mass: Following equations independent of g

They define a unique point, which is a function of distribution of mass This point is Center of Mass (CM) CM coincides with CG as long as gravity field is treated as uniform and parallel CG or CM may lie outside the body

CM always lie on a line or a plane of symmetry in a homogeneous body

Right Circular Cone Half Right Circular Cone Half Ring CM on central axis CM on vertical plane of symmetry CM on intersection of two planes of symmetry (line AB)

Center of Mass and Centroids

m zdm z m ydm y m xdm x

  • =

= = m dm

  • =

r r

  • =

= = dV dV z z dV dV y y dV dV x x ρ ρ ρ ρ ρ ρ

slide-7
SLIDE 7

Center of Mass and Centroids

Centroids of Lines, Areas, and Volumes

Centroid is a geometrical property of a body When density of a body is uniform throughout, centroid and CM coincide

dV V Lines: Slender rod, Wire Cross-sectional area = A and A are constant over L dm = AdL; Centroid = CM L zdL z L ydL y L xdL x

  • =

= = Areas: Body with small but constant thickness t Cross-sectional area = A and A are constant over A dm = tdA; Centroid = CM

A zdA z A ydA y A xdA x

  • =

= = Volumes: Body with volume V constant over V dm = dV Centroid = CM V zdV z V ydV y V xdV x

  • =

= =

m zdm z m ydm y m xdm x

  • =

= = Numerator = First moments of Area

slide-8
SLIDE 8

Center of Mass and Centroids

Centroids of Lines, Areas, and Volumes

Guidelines for Choice of Elements for Integration

  • Order of Element Selected for Integration

A first order differential element should be selected in preference to a higher

  • rder element only one integration should cover the entire figure

A = dA = ldy A = dx dy V = dV = r2 dy V = dxdydz

slide-9
SLIDE 9

Center of Mass and Centroids

Centroids of Lines, Areas, and Volumes

Guidelines for Choice of Elements for Integration

  • Continuity

Choose an element that can be integrated in one continuous operation to cover the entire figure the function representing the body should be continuous

  • nly one integral will cover the entire figure

Discontinuity in the expression for the height of the strip at x = x1 Continuity in the expression for the width of the strip

slide-10
SLIDE 10

Center of Mass and Centroids

Centroids of Lines, Areas, and Volumes

Guidelines for Choice of Elements for Integration

  • Discarding Higher Order Terms

Higher order terms may always be dropped compared with lower order terms Vertical strip of area under the curve is given by the first order term dA = ydx The second order triangular area 0.5dxdy may be discarded

slide-11
SLIDE 11

Center of Mass and Centroids

Centroids of Lines, Areas, and Volumes

Guidelines for Choice of Elements for Integration

  • Choice of Coordinates

Coordinate system should best match the boundaries of the figure easiest coordinate system that satisfies boundary conditions should be chosen Boundaries of this area (not circular) can be easily described in rectangular coordinates Boundaries of this circular sector are best suited to polar coordinates

slide-12
SLIDE 12

Center of Mass and Centroids

Centroids of Lines, Areas, and Volumes

Guidelines for Choice of Elements for Integration

  • Centroidal Coordinate of Differential Elements

While expressing moment of differential elements, take coordinates of the centroid of the differential element as lever arm (not the coordinate describing the boundary of the area) Modified Equations

A dA z z A dA y y A dA x x

c c c

  • =

= = V dV z z V dV y y V dV x x

c c c

  • =

= =

slide-13
SLIDE 13

Center of Mass and Centroids

Centroids of Lines, Areas, and Volumes

Guidelines for Choice of Elements for Integration 1. Order of Element Selected for Integration 2. Continuity 3. Discarding Higher Order Terms 4. Choice of Coordinates 5. Centroidal Coordinate of Differential Elements

A dA z z A dA y y A dA x x

c c c

  • =

= =

V dV z z V dV y y V dV x x

c c c

  • =

= =

L zdL z L ydL y L xdL x

  • =

= =

slide-14
SLIDE 14

Center of Mass and Centroids

Examples: Centroids

Locate the centroid of the circular arc

Solution: Polar coordinate system is better Since the figure is symmetric: centroid lies on the x axis Differential element of arc has length dL = rd Total length of arc: L = 2r x-coordinate of the centroid of differential element: x=rcos For a semi-circular arc: 2 = centroid lies at 2r/ L zdL z L ydL y L xdL x

  • =

= = L = 2α =

  • 2α = 2

=

slide-15
SLIDE 15

Center of Mass and Centroids

Examples: Centroids

Locate the centroid of the triangle along h from the base

A dA z z A dA y y A dA x x

c c c

  • =

= =

A = ⇒ 2 = −

  • =

6

  • =

3 Solution: =

  • − =
  • Total Area A =

"

=

slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19

Center of Mass and Centroids

Composite Bodies and Figures

Divide bodies or figures into several parts such that their mass centers can be conveniently determined Use Principle of Moment for all finite elements of the body

x-coordinate of the center

  • f mass of the whole

Mass Center Coordinates can be written as: m’s can be replaced by L’s, A’s, and V’s for lines, areas, and volumes

( )

3 3 2 2 1 1 3 2 1

x m x m x m X m m m + + = + +

  • =

= = m z m Z m y m Y m x m X

slide-20
SLIDE 20

Center of Mass and Centroids: Center of Mass and Centroids: Center of Mass and Centroids: Center of Mass and Centroids: Composite Bodies and Figures Composite Bodies and Figures Composite Bodies and Figures Composite Bodies and Figures Integration vs Appx Summation: Irregular Area

In some cases, the boundaries of an area or volume might not be expressible mathematically or in terms of simple geometrical shapes Appx Summation may be used instead of integration

Divide the area into several strips Area of each strip = hx Moment of this area about x- and y-axis = (hx)yc and (hx)xc Sum of moments for all strips divided by the total area will give corresponding coordinate of the centroid Accuracy may be improved by reducing the width of the strip

  • =

= A y A y A x A x

c c

slide-21
SLIDE 21

Center of Mass and Centroids: Center of Mass and Centroids: Center of Mass and Centroids: Center of Mass and Centroids: Composite Bodies and Figures Composite Bodies and Figures Composite Bodies and Figures Composite Bodies and Figures Integration vs Appx Summation: Irregular Volume

Reduce the problem to one of locating the centroid of area Appx Summation may be used instead of integration

Divide the area into several strips Volume of each strip = Ax Plot all such A against x. Area under the plotted curve represents volume of whole body and the x-coordinate of the centroid of the area under the curve is given by: Accuracy may be improved by reducing the width of the strip ( )

  • =

∆ = V Vx x x A x x A x

c c

slide-22
SLIDE 22
slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25

Center of Mass and Centroids: Center of Mass and Centroids: Center of Mass and Centroids: Center of Mass and Centroids: Composite Bodies and Figures Composite Bodies and Figures Composite Bodies and Figures Composite Bodies and Figures

Example: Locate the centroid of the shaded area

Solution: Divide the area into four elementary shapes: Total Area = A1 + A2 - A3 - A4

120 100

slide-26
SLIDE 26
slide-27
SLIDE 27

For the area shown, determine the ratio a/b for which =

slide-28
SLIDE 28
slide-29
SLIDE 29

Center of Mass and Centroids

Theorems of Pappus: Areas and Volumes of Revolution

Method for calculating surface area generated by revolving a plane curve about a non-intersecting axis in the plane of the curve Method for calculating volume generated by revolving an area about a non intersecting axis in the plane of the area

slide-30
SLIDE 30

Center of Mass and Centroids

Theorems of Pappus can also be used to determine centroid of plane curves if area created by revolving these figures @ a non-intersecting axis is known Surface Area

Area of the ring element: circumference times dL dA = 2y dL Total area,

= 2#

  • =

= 2#

  • If area is revolved through an angle <2π,

in radians =

  • The area of a surface of revolution is equal to the length of the generating curve times

the distance traveled by the centroid of the curve while the surface is being generated

This is Theorems 1 of Pappus

slide-31
SLIDE 31

Center of Mass and Centroids

Volume

Volume of the ring element: circumference times dA dV = 2y dA Total Volume, $ = 2#

  • =

$ = 2#

  • The volume of a body of revolution is equal to the length of the generating area times

the distance traveled by the centroid of the area while the body is being generated

This is Theorems 2 of Pappus

If area is revolved through an angle <2π, in radians $ =

slide-32
SLIDE 32

Area Moments of Inertia

  • Previously considered distributed forces which were proportional to the area or volume
  • ver which they act.
  • The resultant was obtained by summing or integrating over the areas or volumes.
  • The moment of the resultant about any axis was determined by computing the first

moments of the areas or volumes about that axis.

  • Will now consider forces which are proportional to the area or volume over which they

act but also vary linearly with distance from a given axis.

  • the magnitude of the resultant depends on the first moment of the force distribution

with respect to the axis.

  • The point of application of the resultant depends on the second moment of the

distribution with respect to the axis.

slide-33
SLIDE 33

Area Moments of Inertia

  • Example: Consider a beam subjected to pure bending.

Internal forces vary linearly with distance from the neutral axis which passes through the section centroid. moment second moment first

2 2

= = = = = = ∆ = ∆

  • dA

y dA y k M Q dA y dA y k R A ky F

x

  • Consider distributed forces

whose magnitudes are proportional to the elemental areas

  • n which they

act and also vary linearly with the distance of from a given axis. F

A ∆ A ∆

First Moment of the whole section about the x-axis = A = 0 since the centroid of the section lies on the x-axis. Second Moment or the Moment of Inertia of the beam section about x-axis is denoted by Ix and has units of (length)4 (never –ve) y

slide-34
SLIDE 34

Area Moments of Inertia by Integration

  • Second moments or moments of inertia of

an area with respect to the x and y axes,

  • =

= dA x I dA y I

y x 2 2

  • Evaluation of the integrals is simplified by

choosing dΑ to be a thin strip parallel to

  • ne of the coordinate axes.
  • For a rectangular area,

3 3 1 2 2

bh bdy y dA y I

h x

= = =

  • The formula for rectangular areas may also

be applied to strips parallel to the axes, dx y x dA x dI dx y dI

y x 2 2 3 3 1

= = =

slide-35
SLIDE 35

Area Moments of Inertia

  • The polar moment of inertia is an important

parameter in problems involving torsion of cylindrical shafts and rotations of slabs.

  • =

= dA r I J

z 2

  • The polar moment of inertia is related to the

rectangular moments of inertia,

( )

x y z

I I dA y dA x dA y x dA r I J + = + = + = = =

  • 2

2 2 2 2

Polar Moment of Inertia

Moment of Inertia of an area is purely a mathematical property of the area and in itself has no physical significance.

slide-36
SLIDE 36

Area Moments of Inertia

Radius of Gyration of an Area

  • Consider area A with moment of inertia
  • Ix. Imagine that the area is

concentrated in a thin strip parallel to the x axis with equivalent Ix. A I k A k I

x x x x

= =

2

kx = radius of gyration with respect to the x axis

  • Similarly,

A J k k A k A k I J A I k A k I

O z O z O z O y y y y

= = = = = = =

2 2 2 2 2 2 2 y x z O

k k k k + = =

Radius of Gyration, k is a measure of distribution of area from a reference axis Radius of Gyration is different from centroidal distances

slide-37
SLIDE 37

Area Moments of Inertia

Example: Determine the moment of inertia of a triangle with respect to its base.

SOLUTION:

  • A differential strip parallel to the x axis is chosen for

dA. dy l dA dA y dIx = =

2

  • For similar triangles,

dy h y h b dA h y h b l h y h b l − = − = − =

  • Integrating dIx from y = 0 to y = h,

( )

h h h x

y y h h b dy y hy h b dy h y h b y dA y I

4 3 3 2 2 2

4 3

= − = − = =

  • 12

3

bh I x=

slide-38
SLIDE 38

Area Moments of Inertia

Example: a) Determine the centroidal polar moment of inertia of a circular area

by direct integration. b) Using the result of part a, determine the moment of inertia of a circular area with respect to a diameter. SOLUTION:

  • An annular differential area element is chosen,

( )

  • =

= = = =

r r O O O

du u du u u dJ J du u dA dA u dJ

3 2 2

2 2 2 π π π

4

2 r JO π =

  • From symmetry, Ix = Iy,

x x y x O

I r I I I J 2 2 2

4 =

= + = π

4

4r I I

x diameter

π = =

slide-39
SLIDE 39

Determine the area of the surface of revolution shown

slide-40
SLIDE 40
slide-41
SLIDE 41
slide-42
SLIDE 42
  • Q. No. 1 Locate the centroid of the plane shaded

area shown below.

a = 8 cm a = 8 cm r =16 cm

x y

  • Q. No. 2 Determine x- and y-coordinates of the

centroid of the trapezoidal area

slide-43
SLIDE 43
  • Q. No. 3 Determine the volume V and total surface area A of the

solid generated by revolving the area shown through 180o about the z-axis.

  • Q. No. 4 Determine moment of inertia of the area under the

parabola about x-axis. Solve by using (a) a horizontal strip of area and (b) a vertical strip of area.

slide-44
SLIDE 44

a = 8 cm a = 8 cm r =16 cm x

y

=

  • 4(16)/3

x y (1) C1 x y 4 cm C2

(2)

A (cm2) , cm A, cm3 1

%("'() *

= 201.06

*("') +% = 6.7906

1365.32 2

  • (8)(8) = - 64

4

  • 256

∑ 137.06 1109.32 Then - =

∑/0 ∑0 = ""1.+ "+3.' = 8.09 cm

9 = 8.09 cm (9 = - by symmetry)

Solution of Q. No. 1

slide-45
SLIDE 45

a a h

x

y

c dy b-a x1 = a

x2=(b-a) -

(:;)

  • .

b

Dividing the trapezoid into a rectangle of dimensions (a × h) and a triangle of base width (b-a). Total x = x1 + x2 = a + (b-a) -

(:;)

  • .

x=

;:

  • +

dA = xdy =

;:

  • +

Total area A =

;=:

  • =
  • (> + )

Centroid of differential element = 2 ; = K = K

/

  • ;:
  • +
  • =

" K [ ;:

  • + ]
  • K =

" K [( ;: ) + 2 ;:

  • + ]

=

" [( ;: ) NO + + 2 ;:

  • N(

+ ]

  • =
  • ' (> + + >)

Solution of Q. No. 2

slide-46
SLIDE 46

= > −

  • + = [(> −
  • ) + ]
  • = [

;:

  • NO

+ + N( ] = ( + (> + : )

= K

  • =
  • 6 (> + + >)
  • 2 (> + )

= > + + > 3(> + )

  • = K
  • =
  • 3 (> +

2)

  • 2 (> + )

= (2> + ) 3(> + )

a a h

x

y

c dy b-a x1 = a

x2=(b-a) -

(:;)

  • .

b

slide-47
SLIDE 47

Solution of Q. No. 3

z 40mm 75mm 30mm

Let A1 be the surface area excluding the end surfaces And A2 be the surface area of the end surfaces Using Pappus theorem: A1 = L = (75 + 40) (2×30 + 80 + ( × 40)) = 96000 mm2 End areas A2 = 2 (

% × 40 + 80 × 30)

= 9830 mm2 Total area A = A1+ A2 = 105800 mm2 Again using Pappus theorem for revolution of plane areas: V = A = (75 + 40) (30×80 + ×

*( ) = 1775 × 106 mm3

slide-48
SLIDE 48

R/ = R/ = Q 1 − 9

  • +
  • = 1Q.Q0

R/ = 1 3 + = 3 2 R/ = 1 3 3 2

  • *
  • = 1Q.Q0

(a) Horizontal strip (b) Vertical strip Solution of Q. No. 4
