SLIDE 1

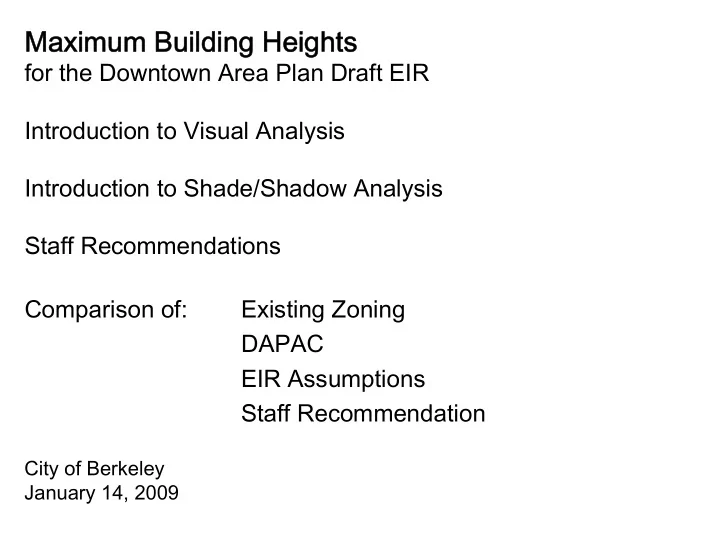

Maximum Building Heights
for the Downtown Area Plan Draft EIR Introduction to Visual Analysis Introduction to Shade/Shadow Analysis Staff Recommendations Comparison of: Existing Zoning DAPAC EIR Assumptions Staff Recommendation
City of Berkeley January 14, 2009
SLIDE 2 ALLOWABLE EXCEPTIONS: 6x120’ Buildings in Outer Core (2 of which on UC land) 4x180’ Buildings in Inner Core 2x225’ Hotel-Condo Projects In Inner Core Tall building locations are illustrative and for purposes of EIR analysis only. They do not represent actual projects.
SLIDE 3
Allowable under Existing Zoning
UC Campanile to Bay
Visual Simulation
EIR “Project” Assumptions
SLIDE 4
Existing Zoning (assuming UC uses as guide) EIR “Project” Assumptions
Shattuck at Hearst
Visual Simulation of Allowable Massing
SLIDE 5
University at Bonita
Visual Simulation of Allowable Massing
Allowable under Existing Zoning EIR “Project” Assumptions
SLIDE 6
University at Shattuck
Visual Simulation of Allowable Massing
Allowable under Existing Zoning EIR “Project” Assumptions
SLIDE 7
Allowable under Existing Zoning EIR “Project” Assumptions
Center at Shattuck
Visual Simulation of Allowable Massing
SLIDE 8
Allston at Milvia
Visual Simulation of Allowable Massing
Allowable under Existing Zoning EIR “Project” Assumptions
SLIDE 9 Consider Limiting Tall Buildings
Allowable under Existing Zoning EIR “Project” Assumptions
SLIDE 10
Shattuck at Dwight
Visual Simulation of Allowable Massing
Allowable under Existing Zoning EIR “Project” Assumptions
SLIDE 11
Berkeley is at 34 degrees latitude, meaning that the sun passes higher than is shown.
SLIDE 12
SLIDE 13
SLIDE 14
SLIDE 15 BART
LAND USE DESIGNATION
CORE AREA 85’ max Generally Allowed (non-UC) 100’ max Generally Allowed (UC only) 4 exceptions @ 120’ max (2 to be UC; stepbacks required for non-UC buildings)
SLIDE 16
BART
CORE AREA -- CORRECTION 85’ max Generally Allowed 6 Exceptions @ 120’ max (2 of which UC; stepbacks required for non-UC buildings)
SLIDE 17 BART
LAND USE DESIGNATION
INNER CORE 85’ max Generally Allowed 3 exceptions @ 180’ max (stepbacks req’d; 45’ bonus for hotels)
SLIDE 18
“3rd Tier” stepback only applies in Inner Core “2rd Tier stepback applies in larger Core Area No stepback for Generally Allowed Heights
SLIDE 19
BART
CORRIDOR / BUFFER 65’ maximum stepback adjacent to residential bldgs.
SLIDE 20
BART
CORRIDOR / BUFFER 65’ maximum SPECIAL SUBAREAS #1 – resid. & pkg. only at Milvia/Berkeley Wy #2 – special provisions for Dwight TBD
SLIDE 21
BART
R-2A 28’ / 2 Stories maximum
3 stories possible with State Bonus for affordable housing
SLIDE 22 BART
R-3 35’ / 3 Stories maximum
4 stories possible with State Bonus for affordable housing
Zoning “By Right” “By Right” w/ State Bonus With Use Permit R-4 35’ 3 Stories about 45’ 4 Stories 65’ 6 Stories R-3 35’ 3 Stories about 45’ 4 Stories No Use Permit
Place Southeast Residential in Southside Plan Comparison of R-4 & R-3
SLIDE 23 LU Designation Current Rules (1990 Plan + Zoning) DAPAC Recommends EIR Assumptions Staff Recommends Core Area
89’ w/o DB appx 110’ w/ DB* (UC n/a) 85’ w/ DB 100’ for UC + 4 @ 120’ + 4 @ 100’ + 2 hotels @ 225’ 85’ w/ DB 100’ for UC + 6 @ 120’ + 4 @ 180’ + 2 hotels @ 225’ 85’ w/ DB 100’ for UC + 4 @ 120’ + 3 @ 180’ (45’ bonus for hotels)
Corridor- Buffer Areas
35’-40’ w/o DB 60’ w/ DB 65’ w/ DB 65’ w/ DB 65’ w/ DB
Residential Areas
R-2A + R-4 R-2A + R-3 R-2A +R-4 R-2A + R-3
Comparison of Maximum Allowable Building Heights
“Ultimate Heights” inclusive of State Density Bonus
