MATERIALS We have developed a worldwide unique technology that we call deconstruction technology that allows us to extract the tire treads from the wheels in optimum conditions maintaining its structural and chemical properties TIRE- TREADS,

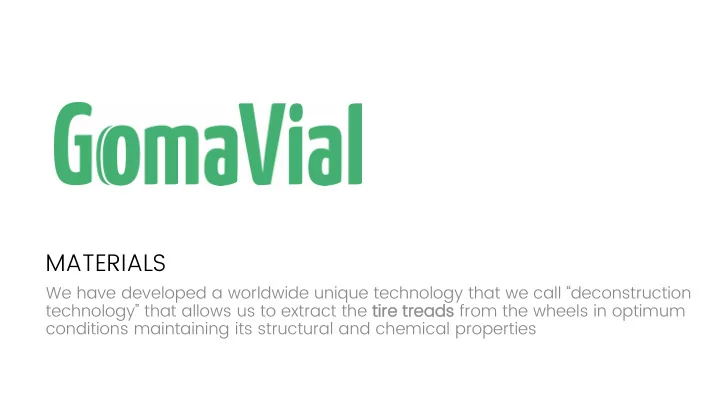

  1. MATERIALS We have developed a worldwide unique technology that we call “deconstruction technology” that allows us to extract the tire treads from the wheels in optimum conditions maintaining its structural and chemical properties

  2. TIRE- TREADS, also called “BANDS” With our exclusive “Deconstruction Technology” we are able to peel the tires like an orange. This process is how we get the tire- treads (average 1800mm x 140mm rubber strips – authentic metal free tire rubber pieces). The bands come originally with a TEXTILE REINFORCEMENT which can be maintained or removed with a splitter machine. Furthermore, we can adapt the thickness of the bands to the needs of each client. 1

  3. PROPERTIES OF THE MATERIAL Durability Excellent Grip High Quality Flexibility 10,5mm ECO 2mm No thermal, chemical or High Abrasion Circular economy Versatility shredding processes Resistance ZERO WASTE 2

  4. Description of the product: Raw Tiretread The raw tire-tread is the product that we obtain initially in the deconstruction process. With the properties of an authentic tire and 100% free of metal. It has always a textile reinforcement (nylon or aramid) in the opposite side of the tire pattern. As for the dimensions, there is a small variation among models (“V”, “I” and “C”) and also there is a small margin of tolerance for length, wideness and thickness. SEE TECH CHNIC NICAL L DATA A SHEETS ETS. The raw bands can have further processing. The textile can be removed and the thickness can be adjusted to the needs of the client. 10,5 mm 110 to 170 mm 3

  5. PROCESSING THE TIRE-TREADS A) ADJUSTING THICKNESS FROM 10±1mm TO 2,0±0,5mm FEATUR TURES: ES: FEATUR TURES: ES: - Sturdiness - Flexibility - Protection - Light Weight - Ideal for irregular surfaces as trekking, work - Versatility footwear, etc. - Ideal for all kinds of footwear, casual, sport, etc. 4 (*) With textile, thicknesses below 3,5mm can lose the tire pattern.

  6. PROCESSING THE TIRE-TREADS B) REMOVING THE TEXTILE WITH TEXTILE WITHOUT TEXTILE FEATURES: TURES: FEATUR TURES: ES: - Sturdiness - Flexibility - Protection - Light Weight - Ideal for sturdy footwear, traditional footwear, - Versatility work footwear, etc. - Ideal for all kinds of footwear, casual, sport, etc. 5 (*) With textile, thicknesses below 3,5mm can lose the tire pattern.

  7. AVAILABLE MODELS More than the 90% of our patterns are SUMMER and barely the 10% are WINTER. Within non summer, there are 3 limited editions. a Gomavial brand 6

  8. SUMMER PATTERN Model: “V” - Pattern: Longitudinal lines - Length: 1975 mm ( ± 225mm) - Wideness: 150 mm ( ± 20mm) - Thickness WITH TEXTILE: 3,5 – 10mm - Thickness WITHOUT TEXTILE: 3 – 8mm - Designed to roll in summer - High abrasion resistance - Drains water - Excellent grip 7 (*) With textile, thicknesses under 3,5mm can lose the tire pattern

  9. WINTER PATTERNS Model: “I - 3” Model: “C” Model: “I - 2” Limited Edition Limited edition Limited Edition - Pattern: Gleaned design - Pattern: Gleaned design - Pattern: Gleaned design - Length: 1900 mm ( ± 200mm) - Length: 1900 mm ( ± 200mm) - Length: 1900 mm ( ± 200mm) - Wideness: 135 mm ( ± 25mm) - Wideness: 135 mm ( ± 25mm) - Wideness: 135 mm ( ± 25mm) - Thickness WITH TEXTILE: 3,5 – 10mm - Thickness WITH TEXTILE: 3,5 – 10 mm - Thickness WITH TEXTILE: 3,5 – 10 mm - Thickness WITHOUT TEXTILE: 3 – 8mm - Thickness WITHOUT TEXTILE: 3 – 8mm - Thickness WITHOUT TEXTILE: 3 – 8mm - Designed to roll in winter, with snow and ice - Designed to roll in winter, with snow and ice - All-season, designed to roll in both - High abrasion resistance - High abrasion resistance summer and winter. - Severe grip in extreme conditions - Severe grip in extreme conditions - High abrasion resistance - Limited quantity - Limited quantity - Limited quantity 8 (*) With textile, thicknesses under 3,5mm can lose the tire pattern

  10. REFERENCES BANDS WITH TEXTILE REFER EREN ENCE CE Desc scrip riptio tion THICKN CKNES ESS S Adjustab able le TV New summer tires with textile reinforcement [2,5mm – 10mm] TI-2 New winter tires with textile reinforcement [2,5mm – 10mm] TI-3 New winter tires with textile reinforcement [2,5mm – 10mm] TC New crossclimate tires with textile reinforcement [2,5mm – 10mm] BANDS WITHOUT TEXTILE REFER EREN ENCE CE Desc scrip riptio tion THICK CKNESS ESS Adjust stab able le GV New summer tires without textile, rubber alone [2,5mm – 8,5mm] GI-2 New winter tires without textile, rubber alone [2,5mm – 8,5mm] GI-3 New winter tires without textile, rubber alone [2,5mm – 8,5mm] GC New crossclimate tires without textile, rubber alone [2,5mm – 8,5mm] 9

  11. SUPPLY FORMAT  SUPPLY PPLY FORMAT * Unit: Tire-tread - “band” 1 band  * Capacities: Below * Delivery time: Standard - 15 days 20’ container – 45 days + freight 40’ container – 45/60 days + freight  QUANTITIES per PALLET & CONTAINER 20’/40’ (APPROX.) CAPACITIE CITIES (Bands) s) approx. x. – Varie ies accord rding ing to the thickne ness 10 mm 8 m mm 7 mm 6 mm 5 5 mm mm 4 m mm 3 mm 2mm One Palle let* 300 372 426 498 600 750 1002 750 20 20 ´ 4500 5580 6390 7470 9000 11250 15030 22500 Conta taine iner 40 ´ 40 8100 10044 11502 13446 16200 20250 27054 40500 Conta taine iner * Palle let: 2000 x 1000 x 750mm, (1.000kg approx.) stackable in 3 levels. * One 20 ´ Container has a capacity for 15 pallets. * One 40 ´ Container has a capacity for 27 pallets. 10

  12. CONTACT www.gomavial.com/en info@gomavial.com +34 943 04 98 34 Gomavial is committed with the Environment and Sustainable Growth
