MAKE TO INNOVATE Mid-Term Review Spring 2019 Micro-g Project Overview Activity Report Design Review Design Constraints Current Design AGENDA Proposed Changes Design Risks Budget Status Conclusion Spring 2019 Make to

slide-1

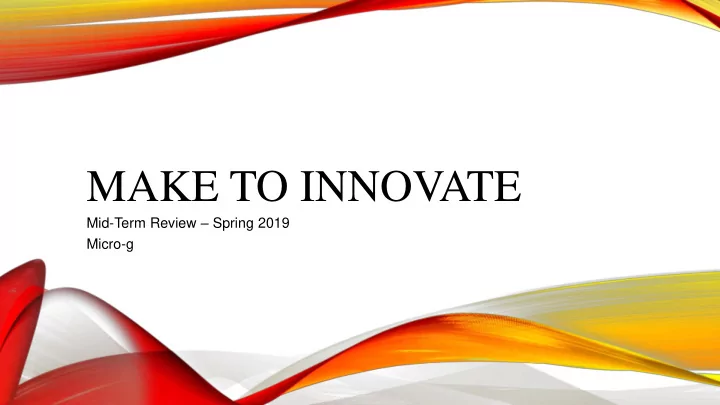

SLIDE 1

MAKE TO INNOVATE

Mid-Term Review – Spring 2019 Micro-g

slide-2
SLIDE 2

AGENDA

Project Overview Activity Report

  • Design Constraints
  • Current Design
  • Proposed Changes
  • Design Risks

Design Review Budget Status Conclusion

Spring 2019 Make to Innovate (M:2:I)

slide-3
SLIDE 3

PROJECT OVERVIEW

Project Executive Summary

slide-4
SLIDE 4

PROJECT OVERVIEW

  • Micro-g NExT
  • Challenge for undergraduate students to design tools in partnership with National

Aeronautics and Space Administration (NASA)

  • M:2:I Micro-g
  • Manufacture and test an Extravehicular Activity (EVA) Camera Mount

EVA Camera Mount Neutral Buoyancy Laboratory

Make to Innovate (M:2:I) Spring 2019

slide-5
SLIDE 5

Pictured (Left to Right, Top to Bottom): Justin Stein, Ty Sandene, Jeremy Hayhurst, Tyler Hoppe, Daniel Partida-Wittman, Dakota Fouts, Bryce Miles, Katerina Connelly, James LaPorta, Trevor Lyon, Jacob Thompson

Make to Innovate (M:2:I) Spring 2019

PROJECT OVERVIEW

slide-6
SLIDE 6

PROJECT OVERVIEW

Spring 2019 Make to Innovate (M:2:I)

Project Stake Holders

Micro-g NExT University – NASA Space Grant Consortium – NASA Make to Innovate – Iowa State University

Project Team Lead

Ty Sandene – Aerospace Engineering

Project Technical Advisers

  • Dr. Cullinan – Material Science and Engineering

Jessica Tramaglini – NASA Mentor

Project Faculty Adviser

Tomas Gonzalez-Torres – Aerospace Engineering

slide-7
SLIDE 7

Project Lead

Ty Sandene

Design and Manufacturing Team Lead

Trevor Lyon

Design and Manufacturing Team

Dakota Fouts Jeremy Hayhurst Katerina Connelly Tyler Hoppe

Test and Prototype Team Lead

Justin Stein

Test and Prototype Team

Bryce Miles Daniel Partida-Wittman Jacob Thompson James LaPorta

PROJECT OVERVIEW

Make to Innovate (M:2:I) Spring 2019

slide-8
SLIDE 8
  • Project Mission Statement: Micro-g’s mission is to develop tools for NASA which will be

used in a micro-gravity environment. The end goal is to generate new technology that will be used in future spaceflight missions, having a significant impact on the world of manned spaceflight.

  • Project Objectives: The objective of Micro-g is to design, manufacture, and test an

Extravehicular Camera Mount to be used by NASA. For this semester, the team will submit a Test Equipment Data Package, Proof of Concept Video, and Test Readiness Review prior to traveling to Houston for the final test week in the Neutral Buoyancy Laboratory (NBL).

Make to Innovate (M:2:I) Spring 2019

PROJECT OVERVIEW

slide-9
SLIDE 9

Semester Goals:

  • Manufacture a test-ready EVA Camera Mount for NASA
  • Submit a Proof of Concept Video, Test Equipment Data Package, and Test Readiness

Review

  • Successfully test Micro-g’s EVA Camera Mount design in the Neutral Buoyancy Laboratory.

Deliverables:

  • Micro-g’s deliverables include a test-ready EVA camera mount, comprehensive Test

Equipment Data Package (TEDP), Proof of Concept Video, and Test Readiness Review (TRR).

Make to Innovate (M:2:I) Spring 2019

PROJECT OVERVIEW

slide-10
SLIDE 10

PROJECT PLAN

High Level Plan:

  • Manufacture EVA Camera Mount
  • Successfully test in the NBL

Spring 2019 Make to Innovate (M:2:I)

slide-11
SLIDE 11

ACTIVITY REPORT

Milestones, Tasks, and Health Report

slide-12
SLIDE 12

Design and Manufacturing:

  • Milestone 1 Deliverables:
  • ANSYS analysis on the camera mount design.
  • Test and Equipment Data Package
  • Proof of Concept Video
  • Hardware Design
  • Milestone 2 Deliverables:
  • Test Readiness Review
  • Device Overview
  • Component Review

Spring 2019

MILESTONES

Make to Innovate (M:2:I)

slide-13
SLIDE 13

TASK BREAKDOWN

Design team

Spring 2019 Make to Innovate (M:2:I)

slide-14
SLIDE 14

Test and Prototype Team

  • Milestone 1 Deliverables:
  • Completion of the Testing
  • Test Equipment Data Package:
  • Operations
  • Hazard Analysis
  • Milestone 2 Deliverables:
  • Completion of the Operation
  • Test Readiness Review:
  • Technical Requirements
  • Hazard Analysis

Spring 2019

MILESTONES

Make to Innovate (M:2:I)

slide-15
SLIDE 15

Test team

TASK BREAKDOWN

Spring 2019 Make to Innovate (M:2:I)

slide-16
SLIDE 16

PROJECT HEALTH REPORT

Spring 2019 Make to Innovate (M:2:I)

  • Project is currently on

schedule

  • Delays in outsourced parts

may delay manufacturing of final camera mounts

  • Prototype built will be used

for the TEDP

Task: Status: Due Date: Accelerated Date: Notes:

Manufacturing of final camera mount In progress 3/25/2019 3/12/2019 Purchased from Re3dtech TEDP: In progress 3/25/2019 3/15/2019 Micro-g accelerated date: 3/15/2019 Hardware Design In progress 3/25/2019 3/15/2019 Requires photos of the final camera mount Analysis and Testing In progress 3/25/2019 3/15/2019 Requires the final camera mount Operations Plan In progress 3/25/2019 3/15/2019 Does not require physical camera mount Hazard Analysis In progress 3/25/2019 3/15/2019 Does not require physical camera mount Forward Plan Not Started 3/25/2019 3/15/2019 Back up section addressing any issues Proof of Concept Video Not Started 3/25/2019 3/23/2019 Micro-g accelerated date: 3/23/2019 Test Readiness Review Not Started 5/13/2019 5/1/2019 2 months out

slide-17
SLIDE 17

DESIGN REVIEW

Overview

slide-18
SLIDE 18

DESIGN OVERVIEW

Prototype V2 Prototype V3

Spring 2019 Make to Innovate (M:2:I)

slide-19
SLIDE 19

PROTOTYPE V2

  • Two switches engage/disengage the

pawl

  • Springs provide the tension to create

the moment to hold the switch in locked/ unlocked position

  • If one switch fails, the other can still

lock the mechanism

Make to Innovate (M:2:I) Spring 2019

slide-20
SLIDE 20

PROTOTYPE V3

  • One switch to engage/disengage the

pawl

  • Constant force spring on the other side of

the double gear

  • If the one fails the other is able to keep

the clamps shut

Make to Innovate (M:2:I) Spring 2019

slide-21
SLIDE 21

DESIGN REVIEW

Constraints

slide-22
SLIDE 22

DESIGN CONSTRAINTS

  • With Micro-g’s budget, the EVA camera

mount will be manufactured from cheaper test-ready materials

  • To be consider for flight, the camera

mount was designed to fit all three interfaces

Spring 2019

Micro-g NExT Requirements

1

The device shall attach to at least two of three interfaces

2 The device shall include a 1-fault tolerant attach method 3 The device shall use only manual power 4

The device shall allow for camera pitch and yaw adjustability of ±45˚

5

The device shall be able to pack within 12" x 16" x 18"

6 The total must be less than 15 lbs. 7 Device shall be made from NBL approved materials 8 Device shall allow a GoPro to mount to it 9 Pinch points should be minimized

Make to Innovate (M:2:I)

slide-23
SLIDE 23

DESIGN REVIEW

Current Design

slide-24
SLIDE 24

CURRENT DESIGN

  • Decided to continue with prototype V2

due to constant spring causing issues

  • Reduces pinch hazard caused by

constant spring

  • Simpler to assemble

Spring 2019 Make to Innovate (M:2:I)

slide-25
SLIDE 25

CURRENT DESIGN

  • Current design uses a double gear
  • Larger gear moves both sliding arms

the same length and in the same direction

  • Pawl engages smaller gear to lock the

sliding arms from opening while attached

Spring 2019 Make to Innovate (M:2:I)

slide-26
SLIDE 26

DESIGN REVIEW

Proposed Changes

slide-27
SLIDE 27

PROPOSED CHANGES

  • Removed away from pin design
  • Added switch system instead of

traditional ratcheting system

  • Removed end of the sliding arm

to ease manufacturing/assembly

Spring 2019 Make to Innovate (M:2:I)

slide-28
SLIDE 28

DESIGN REVIEW

Design Risks

slide-29
SLIDE 29

DESIGN RISKS

  • Risk 1: Missing NASA deadlines for Micro-g NExT
  • Mitigation 1: The Micro-g timeline has been advanced
  • Risk 2: Key component failing during testing at the NBL
  • Mitigation 2: Conduct comprehensive testing and analysis prior to May
  • Risk 3: Design flaw resulting in failure to meet requirements
  • Mitigation 3: 3D print and test prototype version prior to final build

Spring 2019 Make to Innovate (M:2:I)

slide-30
SLIDE 30

BUDGET

Status and requests

slide-31
SLIDE 31

BUDGET STATUS

  • In total, Micro-g received $6,250 in

funding: $5,000 from the Iowa Space Grant Consortium and $1,250 from the Department of Aerospace Engineering

  • Micro-g has consumed $225 or

3.6% of the budget as of March.

Spring 2019 Make to Innovate (M:2:I) Requested Budget Approved Budget Budget Spent Remaining

  • Est. March

Expenditures

Raw Supplies $2,000 $2,000 $225.47 $1,775 $1,250 Equipment $2,000 $2,000 $0 $2,000 $1,250 Travel $2,250 $2,250 $0 $2,000 $0 Total $6,250 $6,250 $225.47 $6,024.53 Remaining: $3,524.53

slide-32
SLIDE 32
  • Expected additional $1000 stipend from

NASA for meeting milestones

  • $200 – Team Roster/organization chart
  • $200 – Gantt Chart/timeline
  • $400 – TEDP

$400 – Proof of Concept Video

  • No additional funding is being pursued for

Micro-g

BUDGET STATUS

slide-33
SLIDE 33

CONCLUSION

slide-34
SLIDE 34

CLOSING

  • Micro-g will manufacture the final camera mount this March
  • Project is on schedule to meet required deadlines
  • No major risks or scheduling threats requiring additional mitigation at this time
slide-35
SLIDE 35

EXTRA SLIDES

slide-36
SLIDE 36

ISS INTERFACES:

slide-37
SLIDE 37

SWITCH (SIDE VIEW)

Make to Innovate (M:2:I) Spring 2019

slide-38
SLIDE 38

SWITCH (FRONT)

Make to Innovate (M:2:I) Spring 2019

slide-39
SLIDE 39

SWITCH & DOUBLE PAWL

Make to Innovate (M:2:I) Spring 2019

slide-40
SLIDE 40

SWITCH & DOUBLE PAWL

Make to Innovate (M:2:I) Spring 2019

slide-41
SLIDE 41

INTERFACE ATTACHMENT

Make to Innovate (M:2:I) Spring 2019

slide-42
SLIDE 42

INTERFACE ATTACHMENT
