New Control Pla Ne trol Plane e in in 3GPP 3GPP LT LTE/ E/EPC EPC Ar Archite itectur cture e fo for r On-De On Deman mand d Connec ectiv tivity ity Se Serv rvic ice Siwar BEN HADJ SAID, Malla la Reddy SA SAMA, Karine


slide-1
SLIDE 1

France Telecom - Orange confidential

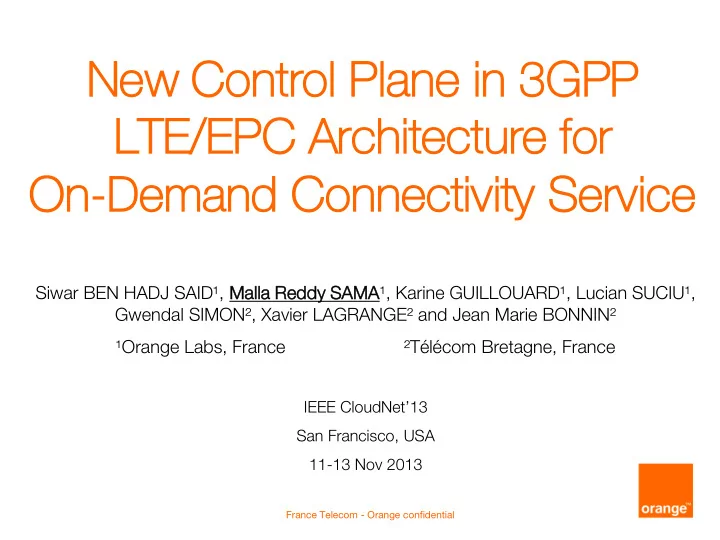

Ne New Control Pla trol Plane e in in 3GPP 3GPP LT LTE/ E/EPC EPC Ar Archite itectur cture e fo for r On On-De Deman mand d Connec ectiv tivity ity Se Serv rvic ice

Siwar BEN HADJ SAID¹, Malla la Reddy SA SAMA¹, Karine GUILLOUARD¹, Lucian SUCIU¹, Gwendal SIMON², Xavier LAGRANGE² and Jean Marie BONNIN² ¹Orange Labs, France ²Télécom Bretagne, France

IEEE CloudNet’13 San Francisco, USA 11-13 Nov 2013

slide-2
SLIDE 2

2

France Telecom - Orange confidential

Outline

I.

Introduction & Background

II.

OF-Based LTE/EPC Architecture

I. Architecture Description II. Data Plane Establishment Procedure

III.

On-Demand Connectivity Service

I. Resiliency II. Load Balancing

IV.

Implementation Challenges

V.

Conclusion & perspectives

slide-3
SLIDE 3

3

France Telecom - Orange confidential

Introduction

  • Mobile data traffic has

been growing at an unprecedented rate over the last few years.

  • Huge data traffic increase

and may cause signaling storms in the network.

– Smartphones and tablets generate 40% of the data traffic and 99%

  • f the signaling traffic.
slide-4
SLIDE 4

4

France Telecom - Orange confidential

LTE/EPC Architecture

External Packet Data Networks eNB UE S1(GTP-U) S5 (GTP-U)

SGi

S1 (S1-AP) S11 (GTP-C) S6a (Diameter) S5 (GTP-C) Control Plane User Plane Evolved Packet Core (EPC) E-UTRAN MME HSS SGW-D SGW-C PGW-D PGW-C eNB

  • The LTE/EPC has been designed to support only packet based

services.

  • The EPC has a flat, all-IP architecture with separation of control plane

and data plane.

slide-5
SLIDE 5

5

France Telecom - Orange confidential

LTE/EPC Drawbacks

  • The initial attachments lead to a systematic establishment of the data

plane, even when there is no data traffic to be sent.

  • The data plane establishment procedure is unaware of the session

type.

  • The TEID values are locally allocated by each node  new TEID

values should be exchanged for each node relocation.

slide-6
SLIDE 6

6

France Telecom - Orange confidential

LTE/EPC Drawbacks - 2

  • SGW could be a bottle neck for possible user traffic congestion.
  • Network equipment failure.

This PGW can be any where in all

  • ver the world

Home PDN PGW SGW Internet (Ex. SIPTO above RAN) PGW IMS Semi-distributed GW (SGi) PGW This PGW could be allocated per county or region.

slide-7
SLIDE 7

7

France Telecom - Orange confidential

OF-Based LTE/EPC Architecture

  • Separation of control and

data plane from SGW.

  • Replacing S1-MME and S11

interfaces with OF.

  • SGW-D represents an

advanced OF switch that is able to en/decapsulate GTP packets.

  • Unique TEID values per

session.

  • eNB keeps the same radio

functions.

eNB eNB

OpenFlow Controller MME SGW-C S5 (GTP-C) OpenFlow protocol

UE

S 1 ( G T P

  • U

) S5 (GTP-U) SGW-D PGW-D PGW-C

API

SGW-D SGW-D

slide-8
SLIDE 8

8

France Telecom - Orange confidential

On-Demand Connectivity Service

  • Resiliency
  • Load Balancing
slide-9
SLIDE 9

9

France Telecom - Orange confidential

Resiliency – 3GPP LTE/EPC case

  • The 3GPP restoration procedure related to the SGW failure is not

transparent as it cuts off active sessions.

  • Session re-establishment of impacted users may generate

significant amount of signaling.

slide-10
SLIDE 10

10

France Telecom - Orange confidential

Resiliency – OF-Based LTE/EPC case

  • Easily manage the active sessions during any SGW-D failures.
  • Less packet loss.
  • Centralized the TEID allocation function.
slide-11
SLIDE 11

11

France Telecom - Orange confidential

Load Balancing – 3GPP LTE/EPC case

  • SGW and PGW selection is performed by the MME.
  • Offline weight factors in DNS server.
  • Proactive load balancing.
  • SGW could be a bottle neck for possible user traffic congestion.
slide-12
SLIDE 12

12

France Telecom - Orange confidential

Load Balancing – OF-Based LTE/EPC case

  • Real time load statistics.
  • Free the overloaded SGW by moving some sessions seamlessly to

another SGW in the same domain.

slide-13
SLIDE 13

13

France Telecom - Orange confidential

Implementation Challenges

  • SGW control and data plane separation.
  • Building mobile network based OF controller.
  • The OF protocol should be extended to transport the UE-MME

exchanges transparently, e.g.

– Authentication messages – Mobility messages

  • Shifting all control plane entities into cloud platform.
slide-14
SLIDE 14

14

France Telecom - Orange confidential

Conclusion & Perspectives

  • Proposal
  • sal: OpenFlow-based control plane for LTE/EPC

architecture

– The SGW control plane is separated from the data forwarding plane – The SGW control plane is centralized and uses the OpenFlow protocol to remotely manage the SGW data forwarding plane  The proposed architecture ensures the on-demand connectivity service even in critic situation such as network equipment failure and overload situations

  • Perspect

spectives: ives:

– Realize a testbed to validate the resiliency and load balancing aspects in our proposal – Try to make standardize the OF-based LTE/EPC in ONF working groups.

slide-15
SLIDE 15

15
