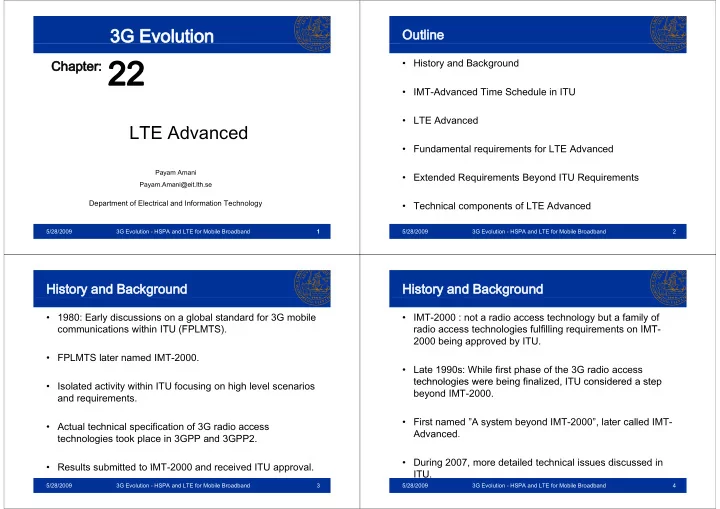

Chapter: 22 p 22 History and Background IMT-Advanced Time - - PowerPoint PPT Presentation

3G Evolution

Chapter: 22 p 22

LTE Ad d LTE Advanced

Payam Amani P A i@ it lth

Department of Electrical and Information Technology

Payam.Amani@eit.lth.se

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 1 1

Outline

• History and Background
• IMT-Advanced Time Schedule in ITU
• LTE Advanced
• Fundamental requirements for LTE Advanced
• Extended Requirements Beyond ITU Requirements
• Technical components of LTE Advanced

p

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 2

History and Background

• 1980: Early discussions on a global standard for 3G mobile

i ti ithi ITU (FPLMTS) communications within ITU (FPLMTS).

• FPLMTS later named IMT-2000.
• Isolated activity within ITU focusing on high level scenarios

and requirements.

• Actual technical specification of 3G radio access

technologies took place in 3GPP and 3GPP2 technologies took place in 3GPP and 3GPP2. R lt b itt d t IMT 2000 d i d ITU l

• Results submitted to IMT-2000 and received ITU approval.

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 3

History and Background

• IMT-2000 : not a radio access technology but a family of

di t h l i f lfilli i t IMT radio access technologies fulfilling requirements on IMT- 2000 being approved by ITU.

• Late 1990s: While first phase of the 3G radio access

technologies were being finalized ITU considered a step technologies were being finalized, ITU considered a step beyond IMT-2000.

• First named ”A system beyond IMT-2000”, later called IMT-

Advanced. d a ced

• During 2007, more detailed technical issues discussed in

During 2007, more detailed technical issues discussed in ITU.

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 4

History and Background

• March 2008, ITU issued a circular letter inviting for candidate

di i t f t h l i f IMT d d radio interface technologies for IMT advanced. S h b i i t d t t k l d i 2009

• Such submissions are expected to take place during 2009.

Evaluation of the submitted candidates till mid 2010

• Evaluation of the submitted candidates till mid 2010.
• Early 2011: Based of the outcome of the evaluation formal
• Early 2011: Based of the outcome of the evaluation, formal

ITU-R recommendations for the IMT-Advanced radio interface specification will be drafted. p

• LTE-Advanced: 3GPP’s candidate radio access technology for

gy IMT-Advanced.

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 5

IMT-Advanced Time Schedule in ITU

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 6

LTE Advanced

• A study item on LTE-Advanced started in 3GPP in March

2008 2008.

• Main tasks: Requirements definition and investigation and

proposal of technology components to be part of LTE- Advanced Advanced.

• LTE Advanced: The next major step in evolution of LTE
• LTE-Advanced: The next major step in evolution of LTE.
• LTE should provide the starting point for a smooth transition
• LTE should provide the starting point for a smooth transition

to 4G (IMT-Advanced) radio access.

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 7

LTE Advanced and ITU Advanced

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 8

LTE-Advanced

• April 2008: A workshop held by 3GPP to discuss different

i t d b i t h l t f LTE requirements and basic technology components for LTE- Advanced.

• The study Item will follow till fall 2009 when all technical

specifications will be finalized. specifications will be finalized.

• Initialization of a work item to discuss detailed specification of

p LTE-Advanced.

• Early 2011: Making LTE-Advanced ready for first commercial

deployment will be finalized.

• Well alligned with IMT-Advanced time line.

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 9

Fundamental requirements for LTE Advanced Advanced

• Complete fulfillment of the requirement for IMT-Advanced defined by

ITU ITU.

• LTE-Advanced is an evolution of LTE and has to fulfill a set of

backwards compatibility requirements.

Backward compatibility in terms of : 1: Spectrum coexistence:For a LTE release terminal, an LTE Advanced cell should appear as a LTE release 8 cell 2: Infrastructure: Upgrading already installed LTE infrastructure to LTE Advanced capabilities with a reasonable cost.

• 3. Terminal implementation: Possibility of introducing LTE Advanced

functionality in mobile terminals with a reasonable incremental complexity and associated cost compared to current LTE capability.

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 10

Fundamental requirements for LTE Advanced Advanced

L t d th t iti f LTE Ad d biliti ithi th

• Low cost and smooth transition of LTE Advanced capabilities within the

network.

• Self Optimising Networks

– Enhanced Self Optimising and Self Configuring capabilities, to further reduce operational resources, complexity and cost. This should allow SON to work in a fully autonomous manner. – SON and O&M to fully function in multi-vendor environment.

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 11

Extended Requirements Beyond ITU Requirements Requirements

• 3GPP’s LTE Advanced should not be limited to fulfillment of

th ITU IMT Ad d i t the ITU IMT-Advanced requirements.

Support for pic data rates upto 1 Gbpsin the downlink and 500 Mbps – Support for pic data rates upto 1 Gbpsin the downlink and 500 Mbps in the uplink. – Substantial improvement in system performance such as cell and user throughput with target values significantly exceeding those of IMT-Advanced. – Possibility for low cost infrastructure deployment and terminals Possibility for low cost infrastructure deployment and terminals. – High power efficiency, that is low power consumption for both terminals and infrastructure. – Efficient spectrum utilization including efficient utilization of fragmented spectrum.

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 12

Technical components of LTE Advanced

• Wider bandwidth and carrier aggregation:

– The targeted peak data rate for LTE Advanced can only be fulfilled in a reasonable way with a furthure increase of transmission in a reasonable way with a furthure increase of transmission bandwidth compared to what is supported by the first LTE release. – Increase of maximum transmission bandwidth beyond 20 MHz, possibly up to 100 MHz or even beyond for both downlink and Uplink. p

Component carriers

(LTE Rel. 8 carriers) e.g. 20 MHz

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 13 Five component carriers Total bandwidth of 100 MHz

Technical components of LTE Advanced

– However, for many operators consecutive allocation of 100 MHz unlikely unlikely

• optimised performance needed for smaller bandwidths of e.g. 50 MHz
• low cost/complexity (i.e. not fully flexible) resource aggregation to be

considered

• Extended multi-antenna solutions:

– As a minimum, support for spatial multiplexing on the uplink is anticipated to be part of LTE Advanced. This is needed to fulfill the peak spectral efficiency requirements peak spectral efficiency requirements.

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 14

Technical components of LTE Advanced

E t ti f d li k ti l lti l i t th f l – Extention of downlink spatial multiplexing to more than four layers

• Limitted application to high SNR scenarios as benefits of 8 layer spatial

multiplexing are only present in these cases.

M lti l hi ll di d t t d t t l – Multiple geographically dispersed antennas connected to a central baseband processing unit are used. – Coordinated multipoint transmission-reception beyond the traditional th t it three sector sites.

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 15

Technical components of LTE Advanced

• Introduction of carrier aggregation as part of LTE Advanced

ll f t ti hi h i i lt allows for spectrum aggregation which is simultaneous usage of different non-contiguous spectrum fragments for communication to/from a single mobile terminal communication to/from a single mobile terminal.

• Major impact on terminal implementation.

– Implementation: Implementation:

• Limmited number of aggregation scenarios.
• Aggregation over dispersed spectrum only being supported by most

d d t i l advanced terminals.

Two aggregated carriers Total bandwidth of 40 MHz

20 MHz 20 MHz

gg g 5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 16

Technical components of LTE Advanced

• Coordinating the transmission from the multiple antennas

b d t i th i l t i ti f can be used to increase the signal to noise ratio for users far from the antenna sites. Also can improve power amplifier utilization in the network amplifier utilization in the network.

Central unit

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 17

Advanced repeaters and relaying functionality functionality

• Link performance of LTE is quite close to Shannon limit.
• From a link budget prospective, very high data rates

targeted by LTE Advanced require a higher SNR compared to the same for wide area cellular networks.

• Denser infrastructure deployment and/or various

beamforming strategies beamforming strategies.

• Difference relaying solutions can also be used to provide
• Difference relaying solutions can also be used to provide

very high data rates over large geographical areas.

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 18

Advanced repeaters and relaying functionality functionality

• A wide range of relay types can be envisioned, ranging

f i l t hi h l d d t d f from simple repeaters which are already used today for coverage improvement in troublesom spots to more advanced solutions where the relay can be seen as a base advanced solutions where the relay can be seen as a base station (self-backhauling: the transport network from the relay uses the same air interface as the terminals.). y )

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 19

LTE Advanced Workshop

Draft LTE Advanced Requirements Source: 3GPP TSG RAN Chairman

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 20

Draft LTE Advanced Requirements

• General

LTE Advanced shall be an evolution of LTE – LTE Advanced shall be an evolution of LTE

• All requirements/targets in TR25.913 apply to LTE-Advanced
• LTE terminal shall be supported in LTE-advanced networks
• an LTE Advanced terminal can work in an LTE part of the
• an LTE-Advanced terminal can work in an LTE part of the

network – Allow coverage ranging from Macro cells to indoor environment g g g such as Home coverage – Primary focus of LTE-Advanced is low mobility users – Self-configuration and optimization shall be further enhanced F t l d t d i i l – Features already supported in previous releases are a pre- requisite for being supported by LTE advanced

• Handovers with legacy RATs
• Network sharing

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 21

Network sharing

Draft LTE Advanced Requirements

• General

– Non backward compatible elements introduction shall be subject to TSG RAN Decisions – LTE advanced shall support FDD and TDD mode of operation with maximum commonality – Cost reduction

• Low cost of the infrastructure deployment and terminal for LTE

advanced shall be an essential element advanced shall be an essential element

• Power efficiency in the infrastructure and terminal shall be an essential

element

• Backhauling shall minimize cost per bit
• Backhauling shall minimize cost per bit

– Minimizing additional complexity for the terminal

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 22

– Multi-vendor support shall not be degraded from LTE Release 8

Draft LTE Advanced Requirements

• Spectrum
• Spectrum

– Aggregation of LTE spectrum

• Non contiguous as well as contiguous

– Scalable Up to 100 MHz – Potential bands in addition to the already allocated ones for

• 450−470 MHz band,
• 698−862 MHz band

698 862 MHz band,

• 790−862 MHz band,
• 2.3−2.4 GHz band,
• 3 4−4 2 GHz band and
• 3.4 4.2 GHz band, and
• 4.4-4.99 GHz band.

O ti f LTE d LTE Ad d i th t

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 23

– Operation of LTE and LTE-Advanced in the same spectrum

Draft LTE Advanced Requirements

• Performances

– Fulfill IMT-Advanced requirements within the ITU-R time plan – Target for Peak data rate: – Target for Peak data rate:

• Peak data rate in DL: [up to] 1 Gbps
• Peak data rate in UL: [Greater than 500 Mbps]

– Target for spectrum efficiency P k

• Peak

– Uplink: [15] b/Hz/s – Downlink: [30] b/Hz/s

• Average

– Uplink: [2] b/Hz/s – Downlink: [3.2] b/Hz/s

• And at cell edge

– Uplink: [0.05] b/Hz/s p [ ] – Downlink: [0.1] b/Hz/s

• Assumption:

– Minimum antenna configuration to be considered, 2x2 for Downlink, 1x2 for Uplink 1x2 for Uplink – Deployment scenario considered for absolute values is case 1 in TR25.814 – Similar relative gains are targeted for other system scenario in TR25.814 5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 24 – Additional indoor scenarios[TBD] should be considered

Draft LTE Advanced Requirements

• Performances
• Performances

– The same inter-RAT interworking capability with at least same performance as in LTE Release 8 – Intra-RAT handover performance shall be same or better than LTE Release 8 than LTE Release 8 – Delay

• Not worse than LTE, i.e. control plane delay <100ms and

(unloaded) user plane delay < [5 ms/10 ms]

– VoIP capacity

• [300] concurrent VoIP @5MHz

5/28/2009 3G Evolution - HSPA and LTE for Mobile Broadband 25
