Livingston Avenue Complete Streets Public Meeting #2 August 18, 2015 Introduction Middlesex County Engineering - Richard Wallner, P.E. County Engineer - Ken Preteroti, P.E. Supervising Engineer City of New Brunswick - Glenn

slide-1

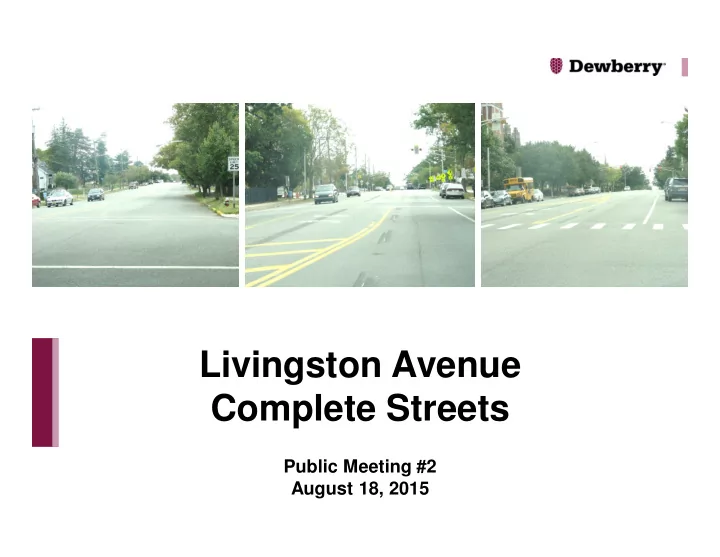

SLIDE 1

Livingston Avenue Complete Streets

Public Meeting #2 August 18, 2015

slide-2
SLIDE 2

Introduction

2 | Livingston Avenue Complete Streets August 2015

Middlesex County Engineering

  • Richard Wallner, P.E. – County Engineer
  • Ken Preteroti, P.E. – Supervising Engineer

City of New Brunswick

  • Glenn Patterson, P.P. – City Planner
  • Mark Siegle – Principal Planner

Dewberry Engineers Inc.

  • Peter Agnello, P.E.
  • Janet Sharkey, P.E., PTOE, LEED AP
slide-3
SLIDE 3
  • Presentation of Alternatives
  • Simulation Models
  • Comments/Questions

Agenda

3 | Livingston Avenue Complete Streets August 2015

slide-4
SLIDE 4

Project Study Area

4 | Livingston Avenue Complete Streets August 2015

slide-5
SLIDE 5
  • From 2012-2014, 271 crashes reported

along Livingston Avenue

11 involving a bicycle 19 involving a pedestrian

  • Public Meeting held February 2015

Cycling safety / Need for bike lanes Pedestrian safety / Need for improved crossings Speeding / Need to slow down vehicles

  • Middlesex County Road Diet Segments

3 existing segments Existing travel lanes restriped to include

  • ne travel lane in each direction and a

wide center left-turn lane

Purpose & Need

5 | Livingston Avenue Complete Streets August 2015

slide-6
SLIDE 6

Existing Conditions

6 | Livingston Avenue Complete Streets August 2015

  • 4 vehicular travel lanes with parking on both sides
  • 4 signalized intersections and 22 unsignalized intersections
  • 25 MPH posted speed
  • Residential and commercial land uses along study corridor
  • Wide roadway makes pedestrian crossing difficult
  • Lack of shoulders or bike lane make bicycling undesirable
slide-7
SLIDE 7
  • Improve safety for all roadway users (vehicular,

pedestrian, cyclist, public transit)

  • Roadway design that fits within the community it serves
  • Livingston Avenue Road Diet Concept

Enhance accommodations for bicycles and pedestrians Reduce number of vehicle travel lanes Install center left-turn lane Slow vehicle travel speeds

Complete Streets Concepts

7 | Livingston Avenue Complete Streets August 2015

slide-8
SLIDE 8

Complete Streets Features

8 | Livingston Avenue Complete Streets August 2015

High Visibility Crosswalk Modified Bulb Out/Curb Extension Bike Lane

slide-9
SLIDE 9

Signal & Intersection Features

9 | Livingston Avenue Complete Streets August 2015

Audible Push Buttons Pedestrian Countdown Signals ADA Detectible Warning Surfaces

slide-10
SLIDE 10

Potential New Street Intersection Concept

10 | Livingston Avenue Complete Streets August 2015

  • Exclusive pedestrian signal

phase

  • Westbound New Street

approach lead phase with northbound Livingston Avenue right-turn overlap

  • Realign crosswalks to reduce

crossing distance

  • Restripe northbound and

southbound Livingston Avenue approaches to add exclusive left-turn lanes

  • Signal retiming/optimization
slide-11
SLIDE 11

Alternate 1 – Hybrid Road Diet

11 | Livingston Avenue Complete Streets August 2015

Elizabeth Street to Sandford Street

slide-12
SLIDE 12

12 | Livingston Avenue Complete Streets August 2015

Alternate 1 – Hybrid Road Diet

Sandford Street to New Street

slide-13
SLIDE 13

13 | Livingston Avenue Complete Streets August 2015

Alternate 1 – Simulation

slide-14
SLIDE 14

Alternate 2 – Center Median

14 | Livingston Avenue Complete Streets August 2015

Elizabeth Street to Sandford Street

slide-15
SLIDE 15

Alternate 2 – Center Median

15 | Livingston Avenue Complete Streets August 2015

Sandford Street to New Street

slide-16
SLIDE 16

16 | Livingston Avenue Complete Streets August 2015

Alternate 2 – Simulation

slide-17
SLIDE 17

17 | Livingston Avenue Complete Streets August 2015

Alternate 3 – Classic Road Diet

slide-18
SLIDE 18

18 | Livingston Avenue Complete Streets August 2015

Alternate 3A – Classic Road Diet

slide-19
SLIDE 19

19 | Livingston Avenue Complete Streets August 2015

Alternate 3 – Simulation

slide-20
SLIDE 20

Alternate 4 – Multi-Use Path

20 | Livingston Avenue Complete Streets August 2015

slide-21
SLIDE 21

21 | Livingston Avenue Complete Streets August 2015

Alternate 4 – Simulation

slide-22
SLIDE 22

Alternative Summary

22 | Livingston Avenue Complete Streets August 2015

Alternative Estimated Project Cost Estimated Design Time Estimated Construction Time Benefit- Cost Ratio 1 $3.5M 18 months 12 months 3.13 2 $3.6M 18 months 12 months 4.02 3 $3.5M 18 months 12 months 6.15 4 $4.2M 36 months 12 months 5.48

slide-23
SLIDE 23

23 | Livingston Avenue Complete Streets August 2015

Questions/Comments
