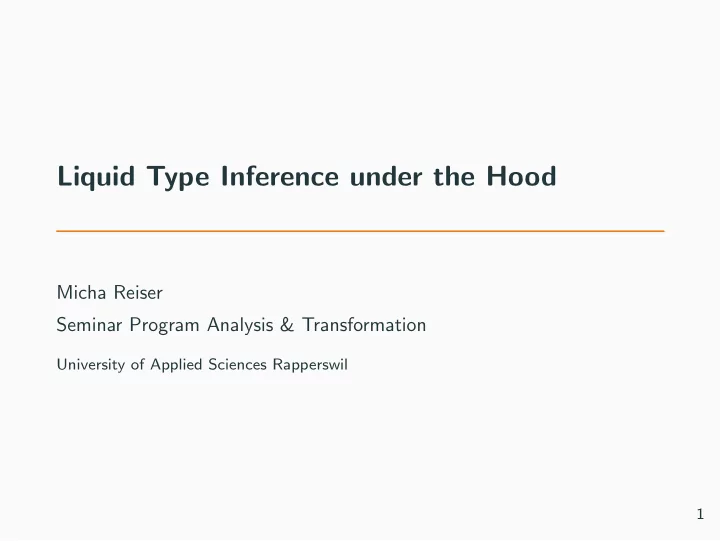

Liquid Type Inference under the Hood

Micha Reiser Seminar Program Analysis & Transformation

University of Applied Sciences Rapperswil 1

Motivation Liquid Type Inference Conclusion

2

Motivation

Motivation for Liquid Types

• Proof fine-granular invariants

3

Motivation for Liquid Types

• Proof fine-granular invariants
• . . . by using Dependent Types

3

Motivation for Liquid Types

• Proof fine-granular invariants
• . . . by using Dependent Types
• . . . but with Type Inference

The more interesting your types get, the less fun it is to write them down [1].

• Benjamin Pierce

3

The List-Average Example

avg :: [Int] -> Int avg xs = total `div` n where total = sum xs n = length xs main = do putStrLn "Enter List" list <- readLn putStrLn ("The Avg is: " ++ (show (avg list)))

4

What can possibly go wrong, it is too easy!

./avglist Enter List [1, 5, 10] The Avg is: 5

5

Quite a Lot. . .

./avglist Enter List [] avglist: divide by zero

6

Liquid Haskell Catches these Errors for You

avglist.hs:2:10-22: Error: Liquid Type Mismatch 2 | avg xs = total `div` n ^^^^^^^^^^^^^ Inferred type VV : {VV : Int | VV >= 0 && VV == len xs && VV == n} not a subtype of Required type VV : {VV : Int | VV /= 0} In Context xs : {v : [Int] | len v >= 0} n : {n : Int | n >= 0

7

Liquid Type Inference

The Goal

. . . is to infer the unknown refinement predicates p of the dependent types T in the program.

8

The Structure of a Dependent Type

{ν : B | p}

• ν: The special value-variable
• B: Base Type like int, bool, char. . .
• p: The refinement predicate

9

What is a Liquid Type?

A liquid type is a dependent type where the refinement predicate is a conjunction of qualifiers from Q. Q = {0 ≤ ν, ⋆ ≤ ν, ν < ⋆}

Dependent Types (over 𝐹) Liquid Types (over ℚ)

10

What is a Liquid Type?

A liquid type is a dependent type where the refinement predicate is a conjunction of qualifiers from Q. Q = {0 ≤ ν, ⋆ ≤ ν, ν < ⋆} {ν : int | 0 ≤ ν}

• Dependent Types (over 𝐹)

Liquid Types (over ℚ)

10

What is a Liquid Type?

A liquid type is a dependent type where the refinement predicate is a conjunction of qualifiers from Q. Q = {0 ≤ ν, ⋆ ≤ ν, ν < ⋆} {ν : int | 0 ≤ ν}

• {ν : int | 0 ≤ ν ∧ n ≤ ν}
• Dependent Types (over 𝐹)

Liquid Types (over ℚ)

10

What is a Liquid Type?

A liquid type is a dependent type where the refinement predicate is a conjunction of qualifiers from Q. Q = {0 ≤ ν, ⋆ ≤ ν, ν < ⋆} {ν : int | 0 ≤ ν}

• {ν : int | 0 ≤ ν ∧ n ≤ ν}
• {ν : int | ν = 0 ∧ 0 ≤ ν}

✗

Dependent Types (over 𝐹) Liquid Types (over ℚ)

10

What is a Liquid Type?

A liquid type is a dependent type where the refinement predicate is a conjunction of qualifiers from Q. Q = {0 ≤ ν, ⋆ ≤ ν, ν < ⋆} {ν : int | 0 ≤ ν}

• {ν : int | 0 ≤ ν ∧ n ≤ ν}
• {ν : int | ν = 0 ∧ 0 ≤ ν}

✗ {ν : int | 0 ≤ ν = ⇒ c ≤ ν} ✗

Dependent Types (over 𝐹) Liquid Types (over ℚ)

10

The Approach

Do you still remember these: If Alice doubles her age, she would still be 10 years younger than Bob, who was born in 1952. How old are Alice and Bob? [2]

11

The Approach

Do you still remember these: If Alice doubles her age, she would still be 10 years younger than Bob, who was born in 1952. How old are Alice and Bob? [2]

• 1. Create Templates for the Unknown:

Alice’s age: a Bob’s age: b

11

The Approach

Do you still remember these: If Alice doubles her age, she would still be 10 years younger than Bob, who was born in 1952. How old are Alice and Bob? [2]

• 1. Create Templates for the Unknown:

Alice’s age: a Bob’s age: b

• 2. Constraints on Templates:

2a = b − 10 b = 2016 − 1952

11

The Approach

Do you still remember these: If Alice doubles her age, she would still be 10 years younger than Bob, who was born in 1952. How old are Alice and Bob? [2]

• 1. Create Templates for the Unknown:

Alice’s age: a Bob’s age: b

• 2. Constraints on Templates:

2a = b − 10 b = 2016 − 1952

• 3. Solve constraints: a = 27, b = 64

11

Let’s apply this to the sum function

In Haskell sum :: Int -> Int sum n = if n < 0 then 0 else n + sum (n - 1) In L1 let rec sum = n ⇒ if n < 0 then 0 else let s = sum(n − 1) in s + n

12

Step 1: Template Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum(n − 1) in s + n

13

Step 1: Template Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum(n − 1) in s + n n : int → int ML-Type

13

Step 1: Template Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum(n − 1) in s + n n : int → int ML-Type n : {ν : int |?} → {ν : int |?} Liquid-Type

13

Step 1: Template Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum(n − 1) in s + n n : int → int ML-Type n : {ν : int |?} → {ν : int |?} Liquid-Type n : {ν : int | κn} → {ν : int | κret} Template

13

Step 1: Template Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum(n − 1) in s + n n : int → int ML-Type n : {ν : int |?} → {ν : int |?} Liquid-Type n : {ν : int | κn} → {ν : int | κret} Template Definition A Liquid Type Variable κ is a placeholder for the unknown refinements

13

Two Kind Of Constraints

Definition Well-Formedness Constraints define which variables can be used in a refinement predicate. Γ ⊢ T Definition Subtyping Constraints capture proof a subtyping relation between two types (and therefore, the data flow of values). Γ ⊢ T1 <: T2

14

Step 2: Well-Formedness Constraint Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum(n − 1) in s + n Template sum :: n : {ν : int | κn} → {ν : int | κret} Well-Formedness Constraints:

15

Step 2: Well-Formedness Constraint Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum(n − 1) in s + n Template sum :: n : {ν : int | κn} → {ν : int | κret} Well-Formedness Constraints: ∅ ⊢ κn

15

Step 2: Well-Formedness Constraint Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum(n − 1) in s + n Template sum :: n : {ν : int | κn} → {ν : int | κret} Well-Formedness Constraints: ∅ ⊢ κn n : {ν : int | κn} ⊢ κret

15

Step 2: Subtyping Constraint Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum(n − 1) in s + n Template sum :: n : {ν : int | κn} → {ν : int | κret} The then branch flows into the result:

16

Step 2: Subtyping Constraint Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum(n − 1) in s + n Template sum :: n : {ν : int | κn} → {ν : int | κret} The then branch flows into the result:

sum : . . . , n : {ν : int | κn} , n < 0 ⊢ {ν : int | ν = 0} <: {ν : int | κret}

16

Step 2: Subtyping Constraint Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum(n − 1) in s + n Template sum :: n : {ν : int | κn} → {ν : int | κret} The then branch flows into the result:

sum : . . . , n : {ν : int | κn} , n < 0 ⊢ {ν : int | ν = 0} <: {ν : int | κret} n : κn , n < 0 ⊢ ν = 0 <: κret

16

Step 2: Subtyping Constraint Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum( n − 1 ) in s + n Template sum :: n : {ν : int | κn} → {ν : int | κret} n − 1 flows into the argument of sum: n : κn , ¬ n < 0 ⊢ ν = n − 1 <: κn

17

Step 2: Subtyping Constraint Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum( n − 1 ) in s + n Template sum :: n : {ν : int | κn} → {ν : int | κret} The type of sum(n − 1) (s): {ν : int ⊢ κret [ n − 1 / n ]}

18

Step 2: Subtyping Constraint Generation

let rec sum = n ⇒ if n < 0 then 0 else let s = sum( n − 1 ) in s + n Template sum :: n : {ν : int | κn} → {ν : int | κret} The else branch flows into the result n : κn , s : κret [ n − 1 / n ], ¬ n < 0 ⊢ ν = s + n <: κret

19

Step 2: Constraints

Well-Formedness ∅ ⊢ κn n : κn ⊢ κret Subtyping n : κn, n < 0 ⊢ ν = 0 <: κret n : κn, ¬n < 0 ⊢ ν = n − 1 <: κn n : κn, s : κret[n − 1/n], ¬n < 0 ⊢ ν = s + n <: κret

20

Step 3: Solve Constraints

• 1. Initial assignment map A(κ) with all Qualifiers Q
• 2. Remove qualifiers that do not satisfy a constraint

21

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν, ⋆ ≤ ν, ν ≤ ⋆ κret ֌ 0 ≤ ν, ⋆ ≤ ν, ν ≤ ⋆ Well-Formedness Constraint ∅ ⊢ κn n : κn ⊢ κret

22

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν , ⋆ ≤ ν, ν ≤ ⋆ κret ֌ 0 ≤ ν, ⋆ ≤ ν, ν ≤ ⋆ Well-Formedness Constraint ∅ ⊢ κn SAT

22

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν, ⋆ ≤ ν , ν ≤ ⋆ κret ֌ 0 ≤ ν, ⋆ ≤ ν, ν ≤ ⋆ Well-Formedness Constraint ∅ ⊢ κn UNSAT: No free variables allowed

22

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν, ✘✘

✘ ❳❳ ❳

⋆ ≤ ν , ν ≤ ⋆ κret ֌ 0 ≤ ν, ⋆ ≤ ν, ν ≤ ⋆ Well-Formedness Constraint ∅ ⊢ κn UNSAT: No free variables allowed

22

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν, ν ≤ ⋆ κret ֌ 0 ≤ ν, ⋆ ≤ ν, ν ≤ ⋆ Well-Formedness Constraint ∅ ⊢ κn UNSAT: No free variables allowed

22

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν, ✘✘

✘ ❳❳ ❳

ν ≤ ⋆ κret ֌ 0 ≤ ν, ⋆ ≤ ν, ν ≤ ⋆ Well-Formedness Constraint ∅ ⊢ κn UNSAT: No free variables allowed

22

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν κret ֌ 0 ≤ ν, ⋆ ≤ ν, ν ≤ ⋆ Well-Formedness Constraint n : κn ⊢ κret

22

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν κret ֌ 0 ≤ ν , ⋆ ≤ ν, ν ≤ ⋆ Well-Formedness Constraint n : κn ⊢ κret SAT

22

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν κret ֌ 0 ≤ ν, ⋆ ≤ ν , ν ≤ ⋆ Well-Formedness Constraint n : κn ⊢ κret SAT

22

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν κret ֌ 0 ≤ ν, n ≤ ν , ν ≤ ⋆ Well-Formedness Constraint n : κn ⊢ κret SAT

22

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν κret ֌ 0 ≤ ν, n ≤ ν, ν ≤ ⋆ Well-Formedness Constraint n : κn ⊢ κret SAT

22

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν κret ֌ 0 ≤ ν, n ≤ ν, ν ≤ n Well-Formedness Constraint n : κn ⊢ κret SAT

22

Step 3: Solve Well-Formedness Constraints

Assignment Map A(κ) / Current Solution κn ֌ 0 ≤ ν κret ֌ 0 ≤ ν, n ≤ ν, ν ≤ n Well-Formedness Constraint ∅ ⊢ κn n : κn ⊢ κret

22

Step 3: Solve Subtyping Constraint

Subtyping-Constraint Γ ⊢ {ν : τ | P} <: {ν : τ | κx} Embedding (Γ ∧ P) = ⇒ q, q ∈ A(κx) Valid?1 Yes = ⇒ Keep q No = ⇒ Drop q

1Use SAT-Solver like Z3, Yices

23

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ 0 ≤ ν κret ֌ 0 ≤ ν, n ≤ ν, ν ≤ n Subtyping Constraint T1 <: T2: n : κn, ¬n < 0 ⊢ ν = n − 1 <: κn

24

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ 0 ≤ ν κret ֌ 0 ≤ ν, n ≤ ν, ν ≤ n Subtyping Constraint T1 <: T2: n : κn, ¬n < 0 ⊢ ν = n − 1 <: κn Embedding: 0 ≤ n ∧ ¬n < 0 ∧ ν = n − 1 = ⇒ q

24

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ 0 ≤ ν κret ֌ 0 ≤ ν, n ≤ ν, ν ≤ n Subtyping Constraint T1 <: T2: n : κn, ¬n < 0 ⊢ ν = n − 1 <: κn Embedding: 0 ≤ n ∧ ¬n < 0 ∧ ν = n − 1 = ⇒ 0 ≤ ν UNSAT: (If n = 0 then n − 1 = ⇒ ν < 0)

24

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ ✘✘

✘ ❳❳ ❳

0 ≤ ν κret ֌ 0 ≤ ν, n ≤ ν, ν ≤ n Subtyping Constraint T1 <: T2: n : κn, ¬n < 0 ⊢ ν = n − 1 <: κn Embedding: 0 ≤ n ∧ ¬n < 0 ∧ ν = n − 1 = ⇒ 0 ≤ ν UNSAT: (If n = 0 then n − 1 = ⇒ ν < 0)

24

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ κret ֌ 0 ≤ ν, n ≤ ν, ν ≤ n Subtyping Constraint T1 <: T2: n : κn, n < 0 ⊢ ν = 0 <: κret Embedding: n < 0 ∧ ν = 0 = ⇒ q

24

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ κret ֌ 0 ≤ ν , n ≤ ν, ν ≤ n Subtyping Constraint T1 <: T2: n : κn, n < 0 ⊢ ν = 0 <: κret Embedding: n < 0 ∧ ν = 0 = ⇒ 0 ≤ ν SAT

24

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ κret ֌ 0 ≤ ν, n ≤ ν , ν ≤ n Subtyping Constraint T1 <: T2: n : κn, n < 0 ⊢ ν = 0 <: κret Embedding: n < 0 ∧ ν = 0 = ⇒ n ≤ ν SAT

24

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ κret ֌ 0 ≤ ν, n ≤ ν, ν ≤ n Subtyping Constraint T1 <: T2: n : κn, n < 0 ⊢ ν = 0 <: κret Embedding: n < 0 ∧ ν = 0 = ⇒ ν ≤ n UNSAT

24

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ κret ֌ 0 ≤ ν, n ≤ ν, ✘✘✘

❳❳❳

ν ≤ n Subtyping Constraint T1 <: T2: n : κn, n < 0 ⊢ ν = 0 <: κret Embedding: n < 0 ∧ ν = 0 = ⇒ ν ≤ n UNSAT

24

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ κret ֌ 0 ≤ ν, n ≤ ν Subtyping Constraint T1 <: T2: n : κn, n < 0 ⊢ ν = 0 <: κret Embedding: n < 0 ∧ ν = 0 = ⇒ ν ≤ n UNSAT

24

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ κret ֌ 0 ≤ ν, n ≤ ν Subtyping Constraint T1 <: T2: n : κn, s : κret[n − 1/n], ¬n < 0 ⊢ ν = s + n <: κret Embedding: 0 ≤ s ∧ n − 1 ≤ s ∧ ¬n < 0 ∧ ν = s + n = ⇒ q

24

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ κret ֌ 0 ≤ ν , n ≤ ν Subtyping Constraint T1 <: T2: n : κn, s : κret[n − 1/n], ¬n < 0 ⊢ ν = s + n <: κret Embedding: 0 ≤ s ∧ n − 1 ≤ s ∧ ¬n < 0 ∧ ν = s + n = ⇒ 0 ≤ ν SAT (s ≥ 0, n ≥ 0)

24

Step 3: Solve Subtyping Constraint

Assignment Map A(κ) / Current Solution: κn ֌ κret ֌ 0 ≤ ν, n ≤ ν Subtyping Constraint T1 <: T2: n : κn, s : κret[n − 1/n], ¬n < 0 ⊢ ν = s + n <: κret Embedding: 0 ≤ s ∧ n − 1 ≤ s ∧ ¬n < 0 ∧ ν = s + n = ⇒ n ≤ ν SAT (s ≥ 0 = ⇒ s + n ≥ n)

24

Final Solution

Assignment Map A(κ) κn ֌ κret ֌ 0 ≤ ν, n ≤ ν Template sum :: n : {ν : int | κn} → {ν : int | κret} Liquid Type sum :: n : int → {ν : int | 0 ≤ ν ∧ n ≤ ν}

25

Conclusion

Conclusion

• Reveals the power of Dependent Types
• . . . without having the burden to write them down
• Supports
• Polymorphism
• Higher Order Functions
• Recursive Data Types
• Very well supported by Liquid Haskell
• Implementations for imperative languages exist [3], [4]

26

Further Resources

• Original Liquid Types Paper [2]
• Programming with Refinement Types [5]

27

Questions and Discussion

27

References I

• B. C. Pierce, Types and programming languages - the next

generation, 2003. [Online]. Available: http://www.cis.upenn.edu/~bcpierce/papers/tng- lics2003-slides.pdf (visited on 11/30/2016).

• J. Ranjit. (Jul. 2008), Liquid Types, [Online]. Available:

https://www.microsoft.com/en- us/research/video/liquid-types/ (visited on 10/28/2016).

References II

• P. Rondon, A. Bakst, M. Kawaguchi, and R. Jhala, “CSolve:

Verifying C with Liquid Types”, in Proceedings of the 24th International Conference on Computer Aided Verification, ser. CAV’12, Berkeley, CA: Springer-Verlag, 2012, pp. 744–750, isbn: 978-3-642-31423-0. doi: 10.1007/978-3-642-31424-7_59. [Online]. Available: http://dx.doi.org/10.1007/978-3-642-31424-7_59.

• P. Vekris, B. Cosman, and R. Jhala, “Refinement Types for

TypeScript”, SIGPLAN Not., vol. 51, no. 6, pp. 310–325, Jun. 2016, issn: 0362-1340. doi: 10.1145/2980983.2908110. [Online]. Available: http://doi.acm.org/10.1145/2980983.2908110.

References III

• R. Jhala, E. Seidel, and N. Vazou, Programming with

Refinement Types. 2016. [Online]. Available: https://ucsd- progsys.github.io/liquidhaskell-tutorial/book.pdf (visited on 09/28/2016).

Why does it Work

• Liquid Types are a small subset of Dependent Types
• Therefore, the solution space is much smaller
• The used implications are simple
• . . . and therefore, can be efficiently solved by (some) SMT

solvers

Why are Dependent Types not Inferable

if x = 0 then ... else ... Subtyping Constraint Tthen <: Tif Telse <: Telse Embedding (Env ∧ ν = 0) = ⇒ ????

• Qualifiers of Liquid Types can be enumerate
• The Qualifiers of Dependent Types not
