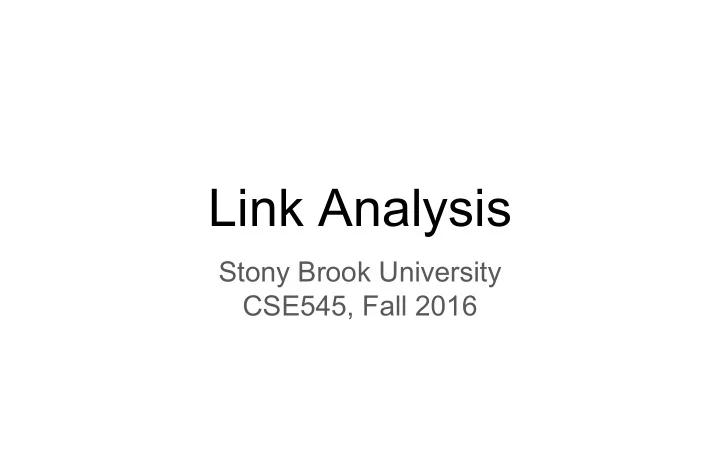

Link Analysis Stony Brook University CSE545, Fall 2016 The Web , - - PowerPoint PPT Presentation
Link Analysis Stony Brook University CSE545, Fall 2016 The Web , - - PowerPoint PPT Presentation
Link Analysis Stony Brook University CSE545, Fall 2016 The Web , circa 1998 The Web , circa 1998 The Web , circa 1998 Match keywords, language ( information retrieval ) Explore directory The Web , circa 1998 Easy to game with term
SLIDE 2
SLIDE 3
The Web , circa 1998
SLIDE 4
The Web , circa 1998
Match keywords, language (information retrieval) Explore directory
SLIDE 5
The Web , circa 1998
Match keywords, language (information retrieval) Explore directory
Easy to game with “term spam” Time-consuming; Not open-ended
SLIDE 6
Enter PageRank
...
SLIDE 7
PageRank
Key Idea: Consider the citations of the website in addition to keywords.
SLIDE 8
PageRank
Key Idea: Consider the citations of the website in addition to keywords. Who links to it? and what are their citations?
SLIDE 9
PageRank
Key Idea: Consider the citations of the website in addition to keywords. The Web as a directed graph: Who links to it? and what are their citations?
SLIDE 10
PageRank
Key Idea: Consider the citations of the website in addition to keywords. Who links to it? and what are their citations? Innovation 1: What pages would a “random Web surfer” end up at? Innovation 2: Not just own terms but what terms are used by citations?
SLIDE 11
PageRank
Key Idea: Consider the citations of the website in addition to keywords. Flow Model: in-links as votes Innovation 1: What pages would a “random Web surfer” end up at? Innovation 2: Not just own terms but what terms are used by citations?
SLIDE 12
PageRank
Key Idea: Consider the citations of the website in addition to keywords. Flow Model: in-links (citations) as votes But citations from important pages should count more. Use recursion to figure out if each page is important. Innovation 1: What pages would a “random Web surfer” end up at? Innovation 2: Not just own terms but what terms are used by citations?
SLIDE 13
Key Idea: Consider the citations of the website in addition to keywords.
PageRank
Flow Model: in-links (citations) as votes But citations from important pages should count more. Use recursion to figure out if each page is important. Innovation 1: What pages would a “random Web surfer” end up at? Innovation 2: Not just own terms but what terms are used by citations?
SLIDE 14
PageRank
Key Idea: Consider the citations of the website in addition to keywords. Flow Model: in-links (citations) as votes But citations from important pages should count more. Use recursion to figure out if each page is important. Innovation 1: What pages would a “random Web surfer” end up at? Innovation 2: Not just own terms but what terms are used by citations? How to compute? Each page (j) has an importance (i.e. rank, rj) (nj is |out-links|)
SLIDE 15
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? Innovation 2: Not just own terms but what terms are used by citations? How to compute? Each page (j) has an importance (i.e. rank, rj) (nj is |out-links|) A B C D
SLIDE 16
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? Innovation 2: Not just own terms but what terms are used by citations? How to compute? Each page (j) has an importance (i.e. rank, rj) (nj is |out-links|) A B C D rA/1 rB/4 rC/2 rD = rA/1 + rB/4 + rC/2
SLIDE 17
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? Innovation 2: Not just own terms but what terms are used by citations? How to compute? Each page (j) has an importance (i.e. rank, rj) (nj is |out-links|) A B C D
SLIDE 18
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? Innovation 2: Not just own terms but what terms are used by citations? How to compute? Each page (j) has an importance (i.e. rank, rj) (nj is |out-links|) A B C D A system of equations?
SLIDE 19
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? Innovation 2: Not just own terms but what terms are used by citations? How to compute? Each page (j) has an importance (i.e. rank, rj) (nj is |out-links|) A B C D A system of equations?
SLIDE 20
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? Innovation 2: Not just own terms but what terms are used by citations? How to compute? Each page (j) has an importance (i.e. rank, rj) (nj is |out-links|) A B C D A system of equations? Provides intuition, but impractical to solve at scale.
SLIDE 21
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? A B C D
to \ from A B C D A 1/2 1 B 1/3 1/2 C 1/3 1/2 D 1/3 1/2
“Transition Matrix”, M
SLIDE 22
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? To start: N=4 nodes, so r = [¼, ¼, ¼, ¼,] A B C D
to \ from A B C D A 1/2 1 B 1/3 1/2 C 1/3 1/2 D 1/3 1/2
“Transition Matrix”, M
SLIDE 23
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? To start: N=4 nodes, so r = [¼, ¼, ¼, ¼,] after first iteration: M·r = [3/8, 5/24, 5/24, 5/24] A B C D
to \ from A B C D A 1/2 1 B 1/3 1/2 C 1/3 1/2 D 1/3 1/2
“Transition Matrix”, M
SLIDE 24
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? To start: N=4 nodes, so r = [¼, ¼, ¼, ¼,] after first iteration: M·r = [3/8, 5/24, 5/24, 5/24] after second iteration: M(M·r) = M2·r = [15/48, 11/48, …] A B C D
to \ from A B C D A 1/2 1 B 1/3 1/2 C 1/3 1/2 D 1/3 1/2
“Transition Matrix”, M
SLIDE 25
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? To start: N=4 nodes, so r = [¼, ¼, ¼, ¼,] after first iteration: M·r = [3/8, 5/24, 5/24, 5/24] after second iteration: M(M·r) = M2·r = [15/48, 11/48, …] A B C D
to \ from A B C D A 1/2 1 B 1/3 1/2 C 1/3 1/2 D 1/3 1/2
“Transition Matrix”, M Power iteration algorithm Initialize: r[0] = [1/N, …, 1/N], r[-1]=[0,...,0] while (err_norm(r[t],r[t-1])>min_err): r[t+1] = M·r[t] t+=1 solution = r[t] err_norm(v1, v2) = |v1 - v2| #L1 norm
SLIDE 26
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? To start: N=4 nodes, so r = [¼, ¼, ¼, ¼,] after first iteration: M·r = [3/8, 5/24, 5/24, 5/24] after second iteration: M(M·r) = M2·r = [15/48, 11/48, …] A B C D
to \ from A B C D A 1/2 1 B 1/3 1/2 C 1/3 1/2 D 1/3 1/2
“Transition Matrix”, M Power iteration algorithm Initialize: r[0] = [1/N, …, 1/N], r[-1]=[0,...,0] while (err_norm(r[t],r[t-1])>min_err): r[t+1] = M·r[t] t+=1 solution = r[t] err_norm(v1, v2) = |v1 - v2| #L1 norm
SLIDE 27
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? To start: N=4 nodes, so r = [¼, ¼, ¼, ¼,] after first iteration: M·r = [3/8, 5/24, 5/24, 5/24] after second iteration: M(M·r) = M2·r = [15/48, 11/48, …] Power iteration algorithm Initialize: r[0] = [1/N, …, 1/N], r[-1]=[0,...,0] while (err_norm(r[t],r[t-1])>min_err): r[t+1] = M·r[t] t+=1 solution = r[t] err_norm(v1, v2) = |v1 - v2| #L1 norm As err_norm gets smaller we are moving toward: r = M·r We are actually just finding the eigenvector of M.
SLIDE 28
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? To start: N=4 nodes, so r = [¼, ¼, ¼, ¼,] after first iteration: M·r = [3/8, 5/24, 5/24, 5/24] after second iteration: M(M·r) = M2·r = [15/48, 11/48, …] Power iteration algorithm Initialize: r[0] = [1/N, …, 1/N], r[-1]=[0,...,0] while (err_norm(r[t],r[t-1])>min_err): r[t+1] = M·r[t] t+=1 solution = r[t] err_norm(v1, v2) = |v1 - v2| #L1 norm As err_norm gets smaller we are moving toward: r = M·r We are actually just finding the eigenvector of M. x is an eigenvector of if: A·x = ·x
SLIDE 29
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? To start: N=4 nodes, so r = [¼, ¼, ¼, ¼,] after first iteration: M·r = [3/8, 5/24, 5/24, 5/24] after second iteration: M(M·r) = M2·r = [15/48, 11/48, …] Power iteration algorithm Initialize: r[0] = [1/N, …, 1/N], r[-1]=[0,...,0] while (err_norm(r[t],r[t-1])>min_err): r[t+1] = M·r[t] t+=1 solution = r[t] err_norm(v1, v2) = |v1 - v2| #L1 norm As err_norm gets smaller we are moving toward: r = M·r We are actually just finding the eigenvector of M. x is an eigenvector of if: A·x = ·x A = 1 since columns of M sum to 1. thus, 1r=Mr finds the...
SLIDE 30
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? To start: N=4 nodes, so r = [¼, ¼, ¼, ¼,] after first iteration: M·r = [3/8, 5/24, 5/24, 5/24] after second iteration: M(M·r) = M2·r = [15/48, 11/48, …] Power iteration algorithm Initialize: r[0] = [1/N, …, 1/N], r[-1]=[0,...,0] while (err_norm(r[t],r[t-1])>min_err): r[t+1] = M·r[t] t+=1 solution = r[t] err_norm(v1, v2) = |v1 - v2| #L1 norm As err_norm gets smaller we are moving toward: r = M·r We are actually just finding the eigenvector of M. x is an eigenvector of if: A·x = ·x A = 1 since columns of M sum to 1. thus, 1r=Mr finds the...
SLIDE 31
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? Where is surfer at time t+1? p(t+1) = M · p(t) Suppose: p(t+1) = p(t), then p(t) is a stationary distribution
- f a random walk.
Thus, r is a stationary
- distribution. Probability of
being at given node. Power iteration algorithm Initialize: r[0] = [1/N, …, 1/N], r[-1]=[0,...,0] while (err_norm(r[t],r[t-1])>min_err): r[t+1] = M·r[t] t+=1 solution = r[t] err_norm(v1, v2) = |v1 - v2| #L1 norm
SLIDE 32
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? Where is surfer at time t+1? p(t+1) = M · p(t) Suppose: p(t+1) = p(t), then p(t) is a stationary distribution
- f a random walk.
Thus, r is a stationary
- distribution. Probability of
being at given node. aka 1st order Markov Process
- Rich probabilistic theory. One finding:
○ Stationary distributions have a unique distribution if:
SLIDE 33
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? Where is surfer at time t+1? p(t+1) = M · p(t) Suppose: p(t+1) = p(t), then p(t) is a stationary distribution
- f a random walk.
Thus, r is a stationary
- distribution. Probability of
being at given node. aka 1st order Markov Process
- Rich probabilistic theory. One finding:
○ Stationary distributions have a unique distribution if: ■ No “dead-ends” a node can’t propagate its rank ■ No “spider traps” set of nodes with no way out.
SLIDE 34
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? Where is surfer at time t+1? p(t+1) = M · p(t) Suppose: p(t+1) = p(t), then p(t) is a stationary distribution
- f a random walk.
Thus, r is a stationary
- distribution. Probability of
being at given node. aka 1st order Markov Process
- Rich probabilistic theory. One finding:
○ Stationary distributions have a unique distribution if: ■ No “dead-ends” a node can’t propagate its rank ■ No “spider traps” set of nodes with no way out. (technically: it needs to be: stochastic, irreducible, and aperiodic )
SLIDE 35
PageRank
Where is surfer at time t+1? p(t+1) = M · p(t) Suppose: p(t+1) = p(t), then p(t) is a stationary distribution
- f a random walk.
Thus, r is a stationary
- distribution. Probability of
being at given node. aka 1st order Markov Process
- Rich probabilistic theory. One finding:
○ Stationary distributions have a unique distribution if: ■ No “dead-ends” a node can’t propagate its rank ■ No “spider traps” set of nodes with no way out. A B C D
to \ from A B C D A 1 B 1/3 1 C 1/3 D 1/3
r would eventually converge to [0, 0, …]
SLIDE 36
PageRank
Where is surfer at time t+1? p(t+1) = M · p(t) Suppose: p(t+1) = p(t), then p(t) is a stationary distribution
- f a random walk.
Thus, r is a stationary
- distribution. Probability of
being at given node. aka 1st order Markov Process
- Rich probabilistic theory. One finding:
○ Stationary distributions have a unique distribution if: ■ No “dead-ends” a node can’t propagate its rank ■ No “spider traps” set of nodes with no way out. A B C D
SLIDE 37
PageRank
Innovation 1: What pages would a “random Web surfer” end up at? Where is surfer at time t+1? p(t+1) = M · p(t) Suppose: p(t+1) = p(t), then p(t) is a stationary distribution
- f a random walk.
Thus, r is a stationary
- distribution. Probability of
being at given node. aka 1st order Markov Process
- Rich probabilistic theory. One finding:
○ Stationary distributions have a unique distribution if: ■ No “dead-ends” a node can’t propagate its rank ■ No “spider traps” set of nodes with no way out. (technically: it needs to be: stochastic, irreducible, and aperiodic ) columns sum to 1 same node doesn’t repeat at a regular interval non-zero chance of going to any another node
SLIDE 38
PageRank
No “dead-ends” No “spider traps” A B C D
The “Google” PageRank Formulation
Add teleportation:At each step, two choices 1. Follow a random link (probability, = ~.85) 2. Teleport to a random node (probability, 1-)
SLIDE 39
PageRank
No “dead-ends” No “spider traps”
The “Google” PageRank Formulation
Add teleportation:At each step, two choices 1. Follow a random link (probability, = ~.85) 2. Teleport to a random node (probability, 1-) A B C D
SLIDE 40
PageRank
No “dead-ends” No “spider traps”
The “Google” PageRank Formulation
Add teleportation chance at all nodes. i.e. at each step, two choices 1. Follow a random link (probability, = ~.85) 2. Teleport to a random node (probability, 1-) Add teleportation from dead end with probability 1 A B C D
to \ from A B C D A 1 B 1/3 1 C 1/3 D 1/3
SLIDE 41
PageRank
No “dead-ends” No “spider traps”
The “Google” PageRank Formulation
Add teleportation chance at all nodes. i.e. at each step, two choices 1. Follow a random link (probability, = ~.85) 2. Teleport to a random node (probability, 1-) Add teleportation from dead end with probability 1 A B C D
to \ from A B C D A ¼ 1 B 1/3 ¼ 1 C 1/3 ¼ D 1/3 ¼
SLIDE 42
PageRank
No “dead-ends” No “spider traps”
The “Google” PageRank Formulation
Add teleportation chance at all nodes. i.e. at each step, two choices 1. Follow a random link (probability, = ~.85) 2. Teleport to a random node (probability, 1-) Add teleportation from dead end with probability 1
(Brin and Page, 1998)
A B C D
to \ from A B C D A 1 B 1/3 1 C 1/3 D 1/3
SLIDE 43
PageRank
No “dead-ends” No “spider traps”
The “Google” PageRank Formulation
Add teleportation chance at all nodes. i.e. at each step, two choices 1. Follow a random link (probability, = ~.85) 2. Teleport to a random node (probability, 1-) Add teleportation from dead end with probability 1
(Brin and Page, 1998)
A B C D
to \ from A B C D A 1 B 1/3 1 C 1/3 D 1/3 A B ... A ⅘*0 + ⅕*¼ ¼ B ⅘*⅓ + ⅕*¼ ¼ C ⅘*⅓ + ⅕*¼ ¼ D ⅘*⅓ + ⅕*¼ ¼
assume = ⅘ Flow Model Matrix Model
SLIDE 44
PageRank
No “dead-ends” No “spider traps”
The “Google” PageRank Formulation
Add teleportation chance at all nodes. i.e. at each step, two choices 1. Follow a random link (probability, = ~.85) 2. Teleport to a random node (probability, 1-) Add teleportation from dead end with probability 1
A B ... A ⅘*0 + ⅕*¼ ¼ B ⅘*⅓ + ⅕*¼ ¼ C ⅘*⅓ + ⅕*¼ ¼ D ⅘*⅓ + ⅕*¼ ¼
assume = ⅘ To apply: run power iterations over M’ instead of M. Matrix Model
