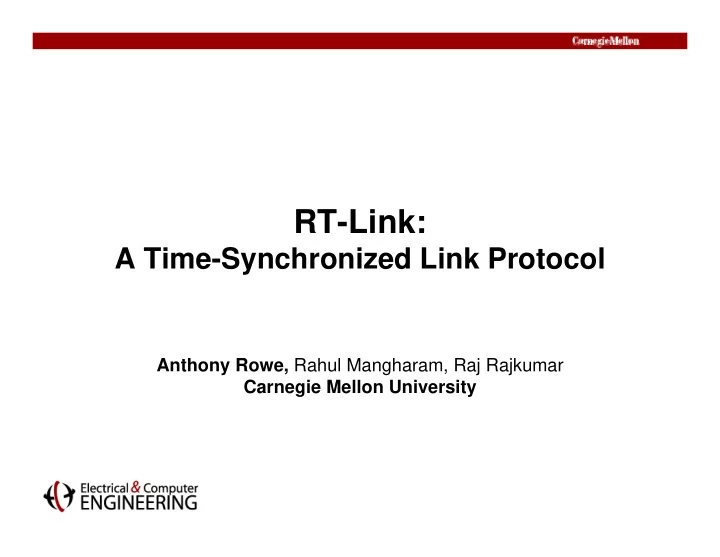

RT-Link:

A Time-Synchronized Link Protocol

Anthony Rowe, Rahul Mangharam, Raj Rajkumar C i M ll U i it Carnegie Mellon University

What is RT-Link?

• RT-Link is a scalable energy efficient

multi-hop link protocol for:

– Industrial Control S ill – Surveillance – Inventory Tracking

• Provides Bounded Latency, Energy

Efficient and Deterministic Operation Efficient and Deterministic Operation

– Achieved through global time synchronization

2

NIOSH Research Coal Mine

3

Overview

• Hardware Assisted Global Time Synchronization
• RT-Link TDMA Protocol
• Energy Benefits of TDMA

4

CMU FireFly Sensor Node

Hardware Time Sync CC2420 Radio Atmega128L Processor FLASH Temperature Expansion Port Audio Light Acceleration Expansion Port 5 PIR Motion

Global Time Synchronization Beacon y

Power Grid AM Transmitter Antenna

6

Carrier Current Adapter Nodes

FireFly v2.0 y

Expansion Port Chipcon cc2420 802.15.4 Radio Atmega 1281 8K RAM 128K ROM Programming Port Mini-SD slot 128K ROM (RDS, carrier current, atomic clock modules)

7

FireFly Synchronization Hardware

8

Current CSMA based approaches

• Low-Power Listen Carrier Sense Multiple Access

(LPL CSMA) h (LPL-CSMA) schemes

Radio RX Radio TX

Check for Data

Radio TX

Extended TX Preamble

• Tradeoff: Check Faster or Listen Longer

9

LPL-CSMA

ms)

Multiple Sampling Intervals

k Interval (m

(yrs)

40 min 60 min

mal Check

Life (

20 min 30 min 40 min

Optim

Data Sampling Interval (min) Radio Check Interval (ms)

Radio Check Interval

Radio RX

10 Data Sampling Interval

Radio TX

TDMA-Based Approach (RT-Link)

Time-Sync Cycle AM Sync Pulse y y Frame (32 per TDMA Cycle) Scheduled Slots Contention Slots 32 Slots Per Frame

11

RT-Link Graph Coloring

• Color Topology Graph to Avoid Collisions

Each Color represents a TDMA slot

• Each Color represents a TDMA slot

a

TX

a f

Gateway

a f a

RX TX

b c f e b c f e b

TX RX

d c

TX RX

12

TDMA Frame

In-Band Time Synchronization y

a c

Gateway

a c f m b d e b d e

Header Packet Body

Time Slot Application Data

Header Packet Body

Overhearing Node Now Knows Time

13

Starting Time of Overheard Packet Overhearing Node Now Knows Time Offset Within Cycle…

Lifetime Given Periodic Sampling

s) ifetime (yrs

Optimal

Li

Optimal LPL-CSMA RT-Link Hardware RT-Link Software

S l I t l ( i )

14

Sample Interval (min)

Lifetime vs Neighboring Degree

15

Logical Topology Pruning

16

NIOSH Research Coal Mine

In-Band Time In-Band Time Synchronization Global Time Global Time Sync Pulse “Leaky Feeder”

17

Conclusion

• Hardware-based Time Synchronization is a

b t d l bl ti robust and scalable option Global Time Synchronization is economical

• Global Time Synchronization is economical

and convenient for indoor and outdoor deployments p y

• RT-Link achieves practical lifetimes of 2 years

p y

18
