Lincoln Heights Storm Drainage Improvement Project Existing Conditions Public Meeting Steven McCraney Project Manager Phone 704-432-0967 Email smccraney@charlottenc.gov May 6, 2014 Armstr strong Glen Beatties Ford Road Regional

slide-1

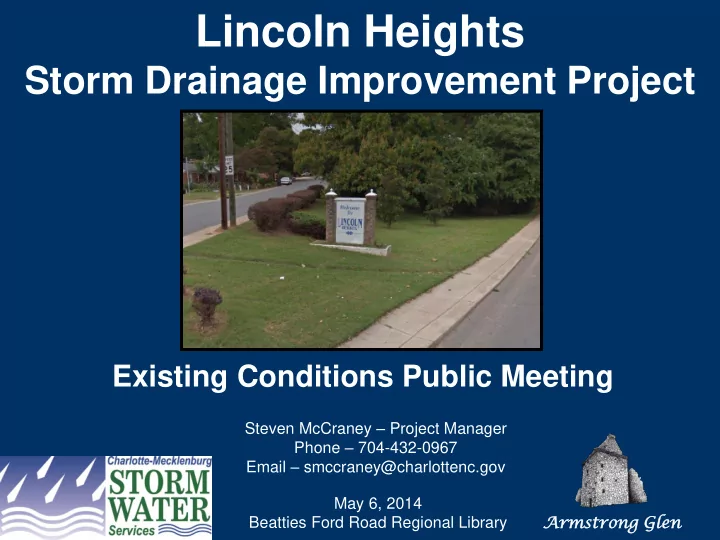

SLIDE 1

Lincoln Heights

Storm Drainage Improvement Project

Armstr strong Glen May 6, 2014 Beatties Ford Road Regional Library

Existing Conditions Public Meeting

Steven McCraney – Project Manager Phone – 704-432-0967 Email – smccraney@charlottenc.gov

slide-2
SLIDE 2

WELCOME AND INTRODUCTIONS

Charlotte-Mecklenburg Storm Water Services (CMSWS) Staff

Steven McCraney– Project Manager

Phone: 704-432-0967 E-mail: smccraney@charlottenc.gov

Doug Lozner– Watershed Area Manager

Armstrong Glen Staff

Josh Letourneau – Project Manager Russell Parker– Project Engineer Arms mstro trong g Glen len

slide-3
SLIDE 3

MEETING PURPOSE

  • Provide a summary of the Existing Conditions analysis.
  • Request input from property owners/residents on the

Existing Conditions analysis results.

  • Obtain additional information from property
  • wners/residents on perceived drainage issues.
slide-4
SLIDE 4

MEETING AGENDA

  • Project Selection and Citizen Involvement
  • Existing Conditions Analysis Summary
  • Future Project Milestones – Path Forward
  • General Questions and Comments
slide-5
SLIDE 5

Why was the Lincoln Heights area chosen?

  • Requests for service from property owners

56 TOTAL REQUESTS REPORTED TO 311 IN THIS NEIGHBORHOOD Example Requests:

  • Inadequate and Deteriorating Infrastructure
  • Road Flooding
  • First Floor & Crawl Space Flooding
  • Old Culverts, Pipes, Inlets
  • Sink Holes
  • Erosion, Blockages in Streams
  • Larger watershed-wide issues that cannot be managed by spot

repairs or without potentially impacting downstream properties

PROJECT SELECTION AND CITIZEN INVOLVEMENT

slide-6
SLIDE 6

Presented by:

Armstro trong ng Glen, , P.C.

Civil Engineers

LINCOLN HEIGHTS

STORM DRAINAGE IMPROVEMENT PROJECT

Existing Conditions Analysis Results

slide-7
SLIDE 7

EXISTING CONDITIONS RESULTS MAP

  • Highlights

undersized storm systems

  • Highlights storm

systems that are structurally deficient. (determined from pipe video)

  • Summarizes 311

Requests filed by residents.

slide-8
SLIDE 8

EXISTING CONDITIONS RESULTS MAP

GILBERT ST. HOLLY ST.

slide-9
SLIDE 9

EXISTING CONDITIONS RESULTS MAP

slide-10
SLIDE 10

CATHERINE SIMMONS AVE. HAINES ST. IRMA ST. JENNINGS ST. KENNESAW DR. LA SALLE ST.. ERIE ST.

EXISTING CONDITIONS RESULTS MAP

slide-11
SLIDE 11

EXISTING CONDITIONS RESULTS MAP

ODESSA AVE. KENNESAW DR. JENNINGS ST. MADRID ST.

slide-12
SLIDE 12

STORM DRAINAGE IMPROVEMENT PROJECT PHASES

PLANNING (Typically 12 to 27 months)

  • Existing Conditions Analysis – Finding the Problems (Current

Phase)

  • Alternative Analysis – Developing Alternative Improvements

DESIGN (Typically 21 to 34 months)

  • Designing the Improvements

PERMITTING (Typically 9 months, but usually overlaps the design phase) EASEMENT ACQUISITION (Typically 12+ months) BID (Typically 5 to 6 months) CONSTRUCTION (From 1 to 2+ years)

slide-13
SLIDE 13

PATH FOWARD

  • Additional information obtained during this meeting will

be considered and incorporated into the existing conditions analysis, where applicable.

  • Alternatives will be evaluated, and a recommended

alternative will be developed.

  • Charlotte-Mecklenburg Storm Water Services will hold a

second public meeting to present and obtain feedback

  • n the recommended alternative.
slide-14
SLIDE 14

Questions?

Thank you for coming to the meeting! Please remember to sign-in and fill out a customer service card.
