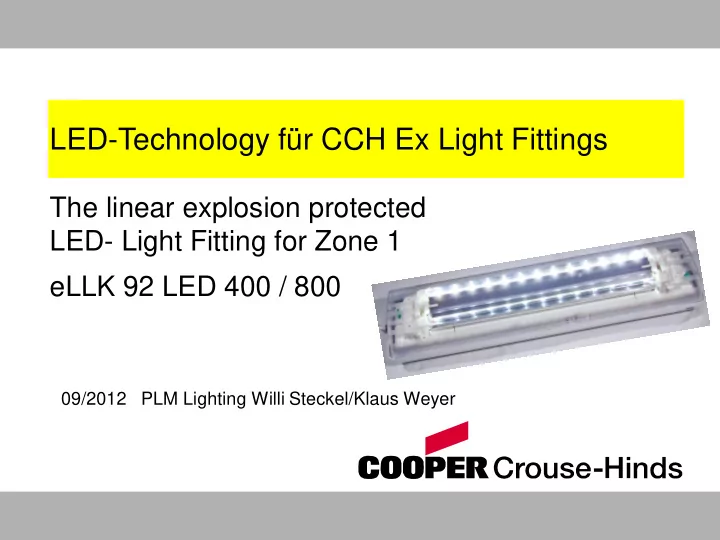

LED-Technology für CCH Ex Light Fittings

The linear explosion protected LED- Light Fitting for Zone 1 eLLK 92 LED 400 / 800

09/2012 PLM Lighting Willi Steckel/Klaus Weyer

2

Conventional light sources vs. LED Light for the future?

3

Inorganic LEDs and Retrofits

LED T8 replacements may contain dozens of high power LEDs or hundreds of 5 mm SMD- LED‘s behind a clear or frosted lens, all in a bi- pin T8 lamp package.

4

OLED (organic light emitting diode)

5

Zone 1 Handlamps / torches Div 2 & zone 2 Flood light Div 2 & zone 2 Plant lighting Div 1 & zone 1 Plant lighting Zone1 Plant lighting Zone1 & Div2 Signalling Zone1 & Div2 Exit lighting Div2 obstruction lighting

LED Lighting for Hazardous Area But what about Linear LED ??

6

At present linear LED solutions are mainly

• ffered for non-hazardous applications.

Widely known and offered are LED tubes as retrofit for existing fluorescent lamps very few with LED modules or LED stripes Both systems still do not offer light output levels equiv. to T8 fluorescent lamps.

Linear LED Retrofits

7

Linear LED Retrofits

On the market there are many suppliers of LED tubes who want to replace T8 fluorescent lamps:

Type Consumption Lumen output Lm/W T8 TL-D 36W 36 W 3350 93 LED tube Type A 15 W 975 65 LED tube Type B 9 W 700 77 LED tube Type C 25 W 2000 80 Off Stage LGN LedLight Europe Trophies LED Lighting BS Ledlight LED Line

8

Points to observe for hazardous environment:

Type of protection Temperature Blinding/glare Component life time/reliability Light output Light distribution /directionality Energy saving

Linear LED in hazardous area light fittings

9

LED retrofit tubes in light fittings of increased safety type Ex-e require an approved type of protection acc. IEC/EN ex-standards. Thus they require to be operated with components that do not spark, arc or create heat above T-ratings. LED´s are semi conductors and can only be operated in an Ex d - flameproof enclosure – without special protection. For use in Ex e light fittings a suitable type of protection has to be selected. Visible Light

Heat

Linear LED in hazardous area light fittings

10

90°-140° viewing angle

(light) (heat) (light)

Temperature plays a vital role in explosion protection but also has a large influence on the life time of any LED. Why is temperature so critical?

Lumen output is reduced as junction temperature increase. 5% reduction in light output for every 20º C increase Life-time dependant on junction temperature Varies by manufacturer and thermal resistance is crucial in selection process

Linear LED in hazardous area light fittings

11

650 lm 1000 lm

Blinding effect of LED dots

Equivalent lumen is distributed on LED on a fraction

• f the surface of a conventional light source

Linear LED in hazardous area light fittings

12

A light density > 30k cd/m² is inconvenient = disability glare Fluorescent tubes T8: 10..15k cd/m² T5: 15..35k cd/m² Incandescent bulb (100 W) : ~25k cd/m² LED Fortimo 2000: ~700k cd/m² (LLM 225k cd/m²) Chip 1 W: ~1…6.000k cd/m² Arrays 10 W: ~3…6.000k cd/m² Typical solution would be a diffuser or frosted glass: => >50% loss of light output and change of light distribution curve. ´ Light is not only important for safety but also for human wellness

Linear LED in hazardous area light fittings

13

eLLK 92 LED linear with LED module Our Solution

LED module for our eLLK 92 in Type of protection encapsulation

14

eLLK 92 LED linear / LED module

Considering the b. m. details of the New Linear LED light fitting are based on the well-known, well proven eLLK 92 series

• Heart piece is the LED Module replacing

two 18 W or two 36 W fluorescent tubes

• Includes optimized temperature management for excellent

life time and reliability

15

Learned from automobile industry (head light): Indirect Light output => LED via reflector

• Prevent blinding effect of LED dots
• > 70% efficiency of light
• no multi shadowing

eLLK 92 LED linear / Light technology

16

• Usable light output comparable with 18W fluorescent lamps
• Optimization of light distribution in range +/-45°.

2x tubesT8 LED module

eLLK 92 LED linear / Light technology

17

eLLK 92 2x18 W T8 vs. eLLK 92 LED 26 W

Comparison Room illumination

18

Visible impression eLLK 92 2x18 W T8

19

Visible impression eLLK 92 LED 26W

20

Comparison Route illumination

eLLK 92 2x18 W T8 vs. eLLK 92 LED 26 W

21

Visible impression eLLK 92 2x18 W T8

22

Visible impression eLLK 92 LED 26W

23

eLLK92 2x18W T8 eLLK92 LED 26W

Area illumination low reflection

24

eLLK92 2x18W T8 eLLK92 LED 26W

Area illumination high reflection (80%)

25

LED Module can be plugged into eLLK 92 – Retrofit!

• Upgrade of already installed eLLK 92 (produced with EVG 09)
• For 18 and 36 W version with same electrical specifications,

but 20% Energy saving

• Certification effort “only” for LED module (with given spec.)

eLLK 92 LED linear Retrofit

26

What about the LED DRIVER?

EVG 09

CCH own design – proven technology since mid 90´s

• Approx. 2 Mio pcs. on site

Failure rate @ 0,0001 %

eLLK 92 LED linear / LED Driver

It`s our well approved EVG 09!
