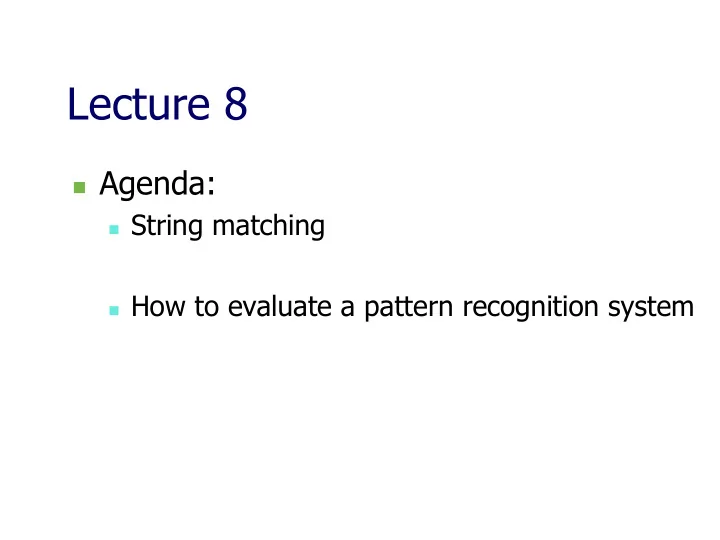

Lecture 8

n Agenda:

n String matching n How to evaluate a pattern recognition system

String Matching

n

(note 1)

n Definitions:

n x = ”movi”. Text:”zlatanibrahimovic” n Shift: s = offset from start of text to start position of x n Valid shift: s = offset to a complete match

n Applications: Find word in text, count words, etc.

String Matching - Algorithm

n Naive string matching: brute force n Ok, but slow for large texts n Alternative: Boyer-Moore string matching

n Faster because s = s+k, where k>1 n k=1 for the naive algorithm

Boyer-Moore: Definitions

n Algorithm (tavle) n Good suffix:

n The elements (from right) which match

n Bad character:

n The first (from right) wrong element

n Calculate the effect of both and apply max.

Boyer-Moore: Definitions

n F(x): Last occurrence function (bad character)

n Look-up table containing each letter in the alphabet together

with their right-most location in x

n Example: x = ”bror”. F(x): o = 3, r = 2, b = 1, the rest = 0 n Example: x = ”estimates”

F(x): e = 8, t = 7, a = 6, m = 5, i = 4, s = 2, the rest = 0

n NB: note that the right-most element is ignored since this

corresponds to the current shift

Boyer-Moore: Definitions

n G(x): Good-suffix function

n Look-up table containing the second right-most position of

each suffix, which can be (re)found in x

n Ex: x = ”bror”. G(x): r = 2, the rest = 0,

hence or = 0, ror = 0

n Ex: x = ”estimates”

G(x): s = 2, es = 1, the rest = 0

Boyer-Moore String Matching

Distance measure for Strings

n We know what to do for features… n x = ”hej” y = ”her” z = ”haj” n Dist(x,y) ?? Dist(x,y) > Dist(x,z) ?? n Applications: Spell-checking, speech recognition,

DNA analysis, copy-cat detection, …

n Hamming distance: |x| = |z|

n Measures the number of positions where a difference

• ccurs

n Dist(x,y)=1, Dist(y,z)=2, Dist(x,y) = Dist(x,z)

Distance measure for Strings

n Levenshtein distance n |x| = |z| is not required => better

measure

n Aka Edit distance, since the distance is

defined as the number of operations that need to be preformed on x in order to

• btain y

Edit Distance (change x to y)

n Cost matrix: C (1.row, 1.col., hereafter one col. at a time)

n

C[i,j] = min[ C[i-1,j] +1 , C[i,j-1] +1 , C[i-1,j-1] +1 – δ(x[i],y[j]) ]

deletion insertion No change / exchange δ(x[i],y[j])= 1 if x[i]=y[j]

• therwise 0

Recognition rate

n In some system specifications you need technical

success criteria for your project (product)

n HW, SW, Real-time, recognition rate,…

n Recognition rate =

(number of correct classified / number of tested samples)

n Multiply by 100% and you have it in percentages

n How do you test a system? n How do you present and interpret the results?

Methods for test

n Cross-validation

n Train on α % of the samples (α > 50) and test on the rest n α is typically 90, depending on the number of samples and

the complexity of the system

n M-fold cross validation

n Divide (randomly) all samples in M equally sized groups n Use M-1 groups to train the system and test on the rest n Do this M times and average the results

Interpretation of the results

n Recognition rate =

(number of correct classified / number of tested samples)

n

Multiply by 100% and you have it in percentages

n Error % = 100% - ( Recognition rate x 100% ) n Distribution of errors? n Confusion matrix

n 3 classes n 25 samples

per class

P1 P2 P3 P1 19 5 1 P2 24 1 P3 1 4 20

Input (the truth) Output (from the system)

General Representation of errors

n Number of errors = Incorrect recognized + Not recognized n The total number of errors can be represented like this:

Yes No Yes No

Input (the truth) Output (from the system) Incorrect recognized (Type I error) (False positiv = FP) (False accept = FA) (False accept rate = FAR) (Ghost object) (False alarm) Not recognized (Type II error) (False negativ = FN) (False reject = FR) (False reject rate = FRR) (Miss)

General Representation of errors

• Example: SETI
• Find intelligent signals in input data
• FN versus FP – are they equally important?

Yes No Yes No

Input (the truth) Output (from the system) Incorrect recognized (Type I error) (False positiv = FP) (False accept = FA) (False accept rate = FAR) (Ghost object) (False alarm) Not recognized (Type II error) (False negativ = FN) (False reject = FR) (False reject rate = FRR) (Miss) Ok

No !!

General Representation of errors

• Example: Access control to nuclear weapons
• Is the person trying to enter ok?
• FN versus FP – are they equally important?

Yes No Yes No

Input (the truth) Output (from the system) Incorrect recognized (Type I error) (False positiv = FP) (False accept = FA) (False accept rate = FAR) (Ghost object) (False alarm) Not recognized (Type II error) (False negativ = FN) (False reject = FR) (False reject rate = FRR) (Miss) Ok

No !!

Receiver Operating Characteristic Methodology

Introduction to ROC curves

• ROC = Receiver Operating Characteristic
• Started in electronic signal detection

theory (1940s - 1950s)

• Has become very popular in biomedical

applications, particularly radiology and imaging

• Also used in machine learning applications to

assess classifiers

• Can be used to compare tests/procedures

ROC curve

ROC curves: simplest case

• Consider diagnostic test for a disease
• Test has 2 possible outcomes:

– ‘postive’ = suggesting presence of disease – ‘negative’

• An individual can test either positive or

negative for the disease

• Prof. Mean...

True disease state vs. Test result

not rejected rejected No disease (D = 0) J specificity

X

Type I error (False +) α Disease (D = 1)

X

Type II error (False -) β J Power 1 - β; sensitivity Disease Test

Specific Example

Test Result Pts with disease Pts without the disease

Test Result

Call these patients “negative” Call these patients “positive”

Threshold

Test Result

Call these patients “negative” Call these patients “positive” without the disease with the disease

True Positives

Some definitions ...

Test Result

Call these patients “negative” Call these patients “positive” without the disease with the disease

False Positives

Test Result

Call these patients “negative” Call these patients “positive” without the disease with the disease

True negatives

Test Result

Call these patients “negative” Call these patients “positive” without the disease with the disease

False negatives

Test Result

without the disease with the disease

‘‘

• ’’

‘‘ +’’

Moving the Threshold: right

Test Result

without the disease with the disease

‘‘

• ’’

‘‘ +’’

Moving the Threshold: left

True Positive Rate (sensitivity)

0% 100%

False Positive Rate (1-specificity)

0% 100%

ROC curve

True Positive Rate

%

100%

False Positive Rate

% 100%

True Positive Rate

%

100%

False Positive Rate

% 100%

A good test: A poor test:

ROC curve comparison

Best Test: Worst test:

True Positive Rate

%

100%

False Positive Rate

% 100 %

True Positive Rate

%

100%

False Positive Rate

% 100 %

The distributions don’t overlap at all The distributions

• verlap completely

ROC curve extremes

Area under ROC curve (AUC)

• Overall measure of test performance
• Comparisons between two tests based on

differences between (estimated) AUC

• For continuous data, AUC equivalent to Mann-

Whitney U-statistic (nonparametric test of difference in location between two populations)

True Positive Rate

%

100%

False Positive Rate

% 100 %

True Positive Rate

%

100%

False Positive Rate

% 100 %

True Positive Rate

%

100%

False Positive Rate

% 100 %

AUC = 50% AUC = 90% AUC = 65% AUC = 100%

True Positive Rate

%

100%

False Positive Rate

% 100 %

AUC for ROC curves

K-fold Cross-Validation

• Randomly sort data
• Divide into k folds (e.g. k=10)
• Use one fold for validation and the remaining for

training

• Average the accuracy
