10/19/2009 Last week Processor (CPU) made of millions of transistors Integrated circuits allow small powerful CPUs Control Unit, ALU, Registers, Bus, Cache Co- and multi-core processors Moores law: transistors on chip


slide-1
SLIDE 1

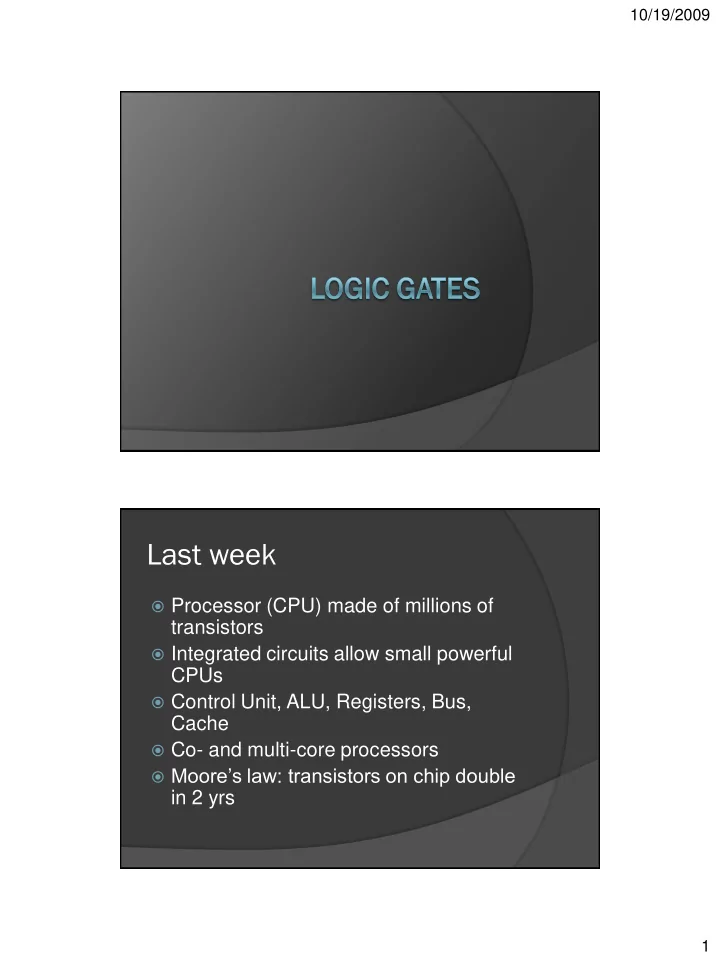

10/19/2009 1

Last week

 Processor (CPU) made of millions of

transistors

 Integrated circuits allow small powerful

CPUs

 Control Unit, ALU, Registers, Bus,

Cache

 Co- and multi-core processors  Moore’s law: transistors on chip double

in 2 yrs

slide-2
SLIDE 2

10/19/2009 2

This week

 How are transistors used to process

data?

 Combining transistors  Logic gates  The NAND gate  Digital circuits  Adding two bits

Transistors control electricity

 Control current (0 or 1) via base

voltage (0 or 1)

 An open transistor lets current flow

through

 NPN: open only if base is on (1)  PNP: open only if base is off (0)

slide-3
SLIDE 3

10/19/2009 3

Transistors control electricity

 Control current (0 or 1) via base

voltage (0 or 1)

 An open transistor lets current flow

through

 NPN: open only if base is on (1)  PNP: open only if base is off (0)

Transistors control electricity

 Control current (0 or 1) via base

voltage (0 or 1)

 An open transistor lets current flow

through

 NPN: open only if base is on (1)  PNP: open only if base is off (0)

slide-4
SLIDE 4

10/19/2009 4

Combining transistors

The NOT gate

 Can build a NOT gate using 2

transistors

 If A is 0 then X is 1  If A is 1 then X is 0

Combining transistors

The NOT gate

 Can build a NOT gate using 2

transistors

 If A is 0 then X is 1  If A is 1 then X is 0

slide-5
SLIDE 5

10/19/2009 5

Combining transistors

The NOT gate

 Can build a NOT gate using 2

transistors

 If A is 0 then X is 1  If A is 1 then X is 0

Logic gates

NOT T gate

 On only when input is off  X = NOT A

slide-6
SLIDE 6

10/19/2009 6

Logic gates

AND gate

 On when both inputs are on  X = AND A, B

Logic gates

OR gate

 On when either input is on  X = OR A, B

slide-7
SLIDE 7

10/19/2009 7

Logic gates

NAND D gate

 NOT AND: On unless both inputs are on  X = NAND A, B

Logic gates

NOR gate

 NOT OR: On when neither input is on  X = NOR A, B

slide-8
SLIDE 8

10/19/2009 8

Logic gates

XOR gate

 Exclusive OR: On when only one input

is on

 X = XOR A, B

Logic gates

XNOR OR gate

 Exclusive NOT OR: On when both

inputs equal

 X = XNOR A, B

slide-9
SLIDE 9

10/19/2009 9

Logic gates

The NAND gate Not

  • t in the exam

Buildi ding g a NA NAND

 Can build a NAND gate using 4

transistors

slide-10
SLIDE 10

10/19/2009 10

The NAND gate Not

  • t in the exam

Buildi ding ng a NAND

 Can build a NAND gate using 4

transistors

The NAND gate Not

  • t in the exam

Building lding a NAND

 Can build a NAND gate using 4

transistors

slide-11
SLIDE 11

10/19/2009 11

The NAND gate Not

  • t in the exam

Building lding a NAND

 Can build a NAND gate using 4

transistors

The NAND gate Not

  • t in the exam

Building lding a NAND

 Can build a NAND gate using 4

transistors

slide-12
SLIDE 12

10/19/2009 12

The NAND gate

Funct ction ional al Comp mplet eten eness ess

 Can build a NAND gate using 4 transistors  NAND & NOR are simplest 2-input gates  NAND is functionally complete (so is NOR)  It can be used to build all the other gates  e.g. an AND gate  In practice, processors contain just NAND

gates

The NAND gate

Funct ction ional al Comp mplet eten eness ess

NOT A = NAND A, A AND A, B = NOT (NAND A, B) OR A, B = NAND (NOT A), (NOT B) XOR A, B = OR (AND (NOT A), B), (AND A (NOT B))

slide-13
SLIDE 13

10/19/2009 13

Digital circuits

The Half Ad Adder er

 Adds two bits (A and B) together (sum S)  Carry bit (C) indicates if sum is more

than one bit

Digital circuits

The Half Ad Adder

 Sum S = XOR A, B  Carry C = AND A, B

slide-14
SLIDE 14

10/19/2009 14

Digital circuits

The Full Ad Adder

 When adding

column of binary digits may get a carry bit from the previous column

 Adds together two

bits (A and B) and a carry in bit C1

 Carry-out C2

indicates if sum is more than one bit

Digital circuits Not

  • t in the exam

The Full Ad Adder

Sum S = XOR (XOR A, B), C Carry-out C2 = OR (AND A, B), (AND C1, (XOR A, B))

slide-15
SLIDE 15

10/19/2009 15

Digital circuits

Arithm thmetic etic-Log

  • gic

c Unit (ALU)

 ALU contains circuits for different

  • perations

 Arithmetic operations  Addition (Full adder for each binary column)  Subtraction, multiplication, division  Logical operations  AND, OR, NOT, ...  Bitwise operations  Shifts, rotations

Summary

 Logic gates are built out of transistors  There are many different logic gates  NAND is functionally complete  Digital circuits process data using gates  Half and full adder  Reading: Brookshear §1.1, White p.68-

69

 http://en.wikipedia.org/wiki/Logic_gate
