205 EAST 17TH STREET Landmark Preservation Commission Public Hearing Presentation February 20 th , 2018 Presented to the Community Board 6 on February 6 th , 2018 Project: 205 E 17th Street 10003 New York, NY Title Sheet Landmark Preservation

slide-1

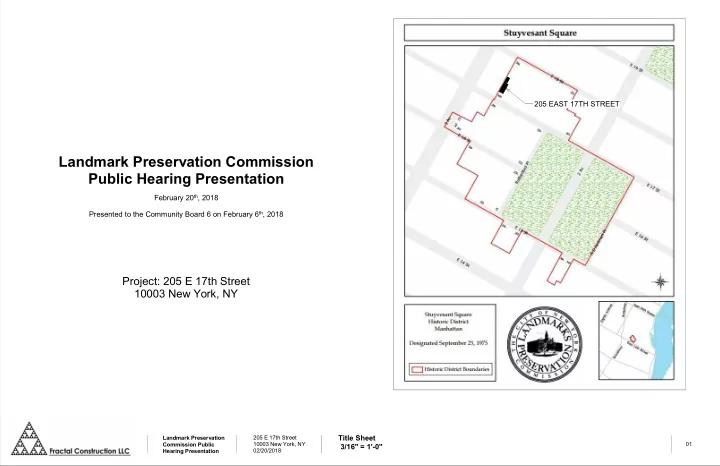

SLIDE 1

205 EAST 17TH STREET

Landmark Preservation Commission Public Hearing Presentation 205 E 17th Street 10003 New York, NY 02/20/2018

Title Sheet 3/16" = 1'-0"

01

Project: 205 E 17th Street 10003 New York, NY

Landmark Preservation Commission Public Hearing Presentation

February 20th, 2018 Presented to the Community Board 6 on February 6th, 2018

slide-2
SLIDE 2

Landmark Preservation Commission Public Hearing Presentation 205 E 17th Street 10003 New York, NY 02/20/2018

Existing Conditions

02

Tax Photo 1940 Existing Front Facade Designation Photo

slide-3
SLIDE 3

Landmark Preservation Commission Public Hearing Presentation 205 E 17th Street 10003 New York, NY 02/20/2018

Existing Entry Conditions

03 VIEW OF BUILDING BASE (ASSUMED AROUND 2010) VIEW OF BUILDING BASE (2017) VIEW OF BUILDING BASE (2017) VIEW OF BUILDING FACADE (2016) VIEW OF BUILDING BASE (2016)

slide-4
SLIDE 4

EAST 17TH STREET 3RD AVENUE LOT 7 LOT 8 LOT 9 L O T 1 L O T 1 1 L O T 1 3 L O T 1 4 L O T 1 5 L O T 1 6 L O T 1 8 L O T 2 1 L O T 1 3 Stories +Cellar 32 Stories +Cellar 3 Stories +Cellar + Bulkhead 3 Stories +Cellar 4 Stories +Cellar 4 Stories +Cellar 4 Stories +Cellar 4 Stories +Cellar 3 Stories +Cellar 8 Stories +Cellar 4 Stories +Cellar 5 Stories +Cellar 6 Stories +Cellar 6 Stories +Cellar 7 Stories +Cellar 4 Stories +Cellar 4 Stories +Cellar 4 Stories +Cellar 4 Stories +Cellar 4 Stories +Cellar 5 Stories +Cellar 4' 10' PROPERTY LINE YARD & STAIRS STAIRS DIRECTION & RAMP SLOPE TREES 4' 6' Landmark Preservation Commission Public Hearing Presentation 205 E 17th Street 10003 New York, NY 02/20/2018

Block Plan & Streetscape 1/32" = 1'-0"

04

EAST 17TH STREET NORTH SIDE

201 205 207 211 215 217 219 221 209 225 233 237 243 239 241 245

EAST 17TH STREET SOUTH SIDE

Stuyvesant Square 1 Rutherford Place 226 222 218 216 214 210 206 200

BLOCK PLAN

slide-5
SLIDE 5

BASEMENT

  • 1' - 6"

1ST FLOOR 7' - 5" EXISTING CELLAR

  • 9' - 6"

SIDEWALK (35' above sea level) 0' - 0" PROPOSED CELLAR

  • 11' - 0"

DEMOLISH STAIRS DEMOLISH ENTRY WALL KEEP & REPAINT EXISTING WINDOW BARS DEMOLISH AND PREPARE FOR NEW SLAB REMOVE WINDOW AND BARS AND PREPARE FOR NEW DOOR REPATCH BROWNSTONE FACADE 207 E. 17TH STREET 201 E. 17TH STREET 205 E. 17TH STREET 209 E. 17TH STREET

BASEMENT

  • 1' - 6"

1ST FLOOR 7' - 5" EXISTING CELLAR

  • 9' - 6"

SIDEWALK (35' above sea level) 0' - 0" PROPOSED CELLAR

  • 11' - 0"

207 E. 17TH STREET 201 E. 17TH STREET 205 E. 17TH STREET 209 E. 17TH STREET EXISTING BROWSTONE REPATCHED NEW STEEL RAILING PAINTED IN BLACK NEW ADA LIFT NEW DOOR FOR DOCTOR OFFICE ENTRANCE MATCHING EXISTING NEW RAILING PAINTED IN BLACK EXISTING BRICK FACADE Landmark Preservation Commission Public Hearing Presentation 205 E 17th Street 10003 New York, NY 02/20/2018

Existing & Proposed Front Elevations with Context 1/8" = 1'-0"

05

1/8" = 1'-0" 1 LPC - EXISTING FRONT ELEVATION WITH CONTEXT 1/8" = 1'-0" 2 LPC - PROPOSED FRONT ELEVATION WITH CONTEXT

slide-6
SLIDE 6

1'-6" 1'-6" 6"

NEW POWERED OPEN FOR ADA ACCESS, MATCHING EXISTING GLASS & STEEL DOOR DETAILS NEW STAIRS NEW ADA LIFT

1'-1" 1'-3 1/4" 3'-11" 3'-4" 3'-8" 4'-0 1/4" 3'-11" 1'-9 1/2" 2" 5'-0" 23'-0" 7'-0" 207 E 17TH STREET STOOP 9'-3" 4'-7" 9'-2"

NEW RAILING TO BE PAINTED IN BLACK NEW SLAB ADA ACCESS SIGNAGE BEHIND ADA LIFT STRUCTURAL 2 1/2" POSTS PAINTED IN BLACK BEHIND RAILING

3'-11" 3'-8" 5'-0" 5'-0" 3'-8"

KEEP & REPAINT EXISTING WINDOW BARS REMOVE WINDOW AND BARS AND PREPARE OPENING FOR NEW DOOR REPATCH BROWNSTONE REMOVE EXISTING HATCH EXCAVATE CONCRETE SIDEWALK DOWN DEMOLISH EXISTING STAIRS & WALL

1'-1" 6'-5" 1'-1" 1'-0" 3'-8" 9'-9" 1'-6" 2'-0" 23'-0" 7'-0" 5'-0" 2" 207 E 17TH STREET STOOP 7'-10" 5'-3" 8'-10"

KEEP EXISTING DOOR

Landmark Preservation Commission Public Hearing Presentation 205 E 17th Street 10003 New York, NY 02/20/2018

Existing & Proposed Entrance Elevations 1/4" = 1'-0"

06

1/4" = 1'-0" 2 LPC - PROPOSED FRONT ENTRANCE ELEVATION 1/4" = 1'-0" 1 LPC - EXISTING ENTRANCE ELEVATION

slide-7
SLIDE 7

3'-11"

207 E 17TH STREET 201 E 17TH STREET

4'-0" 23'-0"

207 E 17TH STREET STOOP NEW POWERED OPEN DOOR FOR ADA MATCHING EXISTING NEW ADA LIFT WALL MOUNTED PROPERTY LINE 4' FROM FACADE

ø 60"

EXISTING DOOR STEEL AND GLASS

UP UP 3'-6"

NEIGHBOR WALL

3'-11"

EAST 17TH STREET

6" 3'-6" 1'-1" 6'-0" 1'-10" 5'-3" 1'-10" 6'-6" 6"

NEW STRUCTURAL WALL NEW STAIRS NEW RAILING EXISTING WALL NEW STRUCTURAL WALL T-TURNING SPACE

3'-0" 5'-0" 5'-0"

NEW ADA LIFT STRUCTURAL POST NEW STAIRS NEW RAILING 207 E 17TH STREET 201 E 17TH STREET

3'-8" 3'-8"

EAST 17TH STREET REMOVE EXISTING STAIRS

23'-0"

PROPERTY LINE 4' FROM FACADE

3'-11"

DEMOLISH WALL KEEP EXISTING DOOR, REPAINT AND CHANGE HARDWARE

7'-8" 8'-10" 4'-0"

EXCAVATE EXISTING SLAB DOWN 2' REMOVE EXISTING HATCH TO BASEMENT

2'-0" 3'-8" 4'-1" 3'-8" 1'-0" 1'-1" 6'-5" 1'-1"

NEIGHBOR WALL 207 E 17TH STREET STOOP EXISTING WALL TO KEEP REMOVE EXISTING WINDOW PREPARE OPENING FOR NEW DOOR

Landmark Preservation Commission Public Hearing Presentation 205 E 17th Street 10003 New York, NY 02/20/2018

Existing & Proposed Entrance Plan 1/4" = 1'-0"

07

1/4" = 1'-0" 2 LPC - PROPOSED BASEMENT ENTRY ADA 1/4" = 1'-0" 1 LPC - EXISTING BASEMENT ENTRY

slide-8
SLIDE 8

6'-11" 4'-1" 1" 5" 1" 5'-7" 1" 9" 1" 5" 1" 3'-0" 1" 5" 1"

1/2" STEEL BARS STEEL FRAME DOOR STEEL FRAME LOW-E CLEAR GLASS PANEL

Landmark Preservation Commission Public Hearing Presentation 205 E 17th Street 10003 New York, NY 02/20/2018

Proposed Front Entrance Door 3/4" = 1'-0"

08

3/4" = 1'-0" LPC - PROPOSED NEW ENTRY DOOR

STEEL FRAME, RAILING AND HANDI- LIFT PAINT BLACK RAL 9017 BALDWIN HARDWARE MADISON HANDLE BLACK SATIN NEW OUTDOOR LED LIGHTING WITH MOTION SENSOR BLACK FINISH

1 EXISTING ENTRY DOOR

EXISITING DOOR HARDWARE TO BE REMOVED & REPLACED WITH NEW ONE EXISTING DOOR NUMBER TO KEEP & LIGHTING FIXTURE TO BE REMOVED & REPLACED WITH MATCHING ONE NEW DOOR TO BE DONE BY SPIRIT IRON WORK.

slide-9
SLIDE 9

NEW LIFT XPRESS II GARAVENTA LIFT NEW RAILING BEHIND 1'-6" NEW SLOPPED CONCRETE SLAB WITH DRAIN NEW CONCRETE PAVERS LEVELED NEW CONCRETE STAIRS

207 E 17TH STREET

4'-0" 6" 6'-6" 11" 11" 5'-3 1/4" NEW HANDI-LIFT GARAVENTA LIFT XPRESS III PLATFORM SIZE 27 1/2" X 29 1/2" ø 60" 102 UP 6" 3'-6" 3'-11" 4'-11" NEW CONCRETE PAVERS POWERED OPEN DOOR FOR ADA ACCESS TOP 60" TURNING RADIUS NEW POWER OPEN DOOR FOR ADA ACCESS MATCHING EXISTING ENTRY DOOR STEEL & GLASS

207 E 17TH STREET STOOP

NEW RAILING PROPERTY LINE BOTTOM T-TURNING SPACE 5'-0" ADA ACCESS SIGNAGE 6'-10" PROPERTY LINE 207 E 17TH ST STOOP NEW RAILING NEW AD LIFT GARAVENTA LIFT XPRESS II NEW STRUCTURAL CONCRETE SLAB WITH DRAIN & RETAINING WALL 3'-6" NEW POWER OPEN DOOR Landmark Preservation Commission Public Hearing Presentation 205 E 17th Street 10003 New York, NY 02/20/2018

Proposed Handi-lift 1/2" = 1'-0"

09 GARAVENTA LIFT - XPRESS 2 STAIR LIFT INCLINED PLATFORM LIFT FOR STRAIGHT STAIRWAYS COLOR COATING BLACK MATCHING RAILING & DOORS PLATFORM SIZE: 31-1/2" X 49-1/4" SURFACE MOUNTED PAINTED IN BLACK RAL 9017

1/2" = 1'-0" 3 PROPOSED - ADA ACCESS LIFT ELEVATION NORTH SECTION 1/2" = 1'-0" 1 PROPOSED - ADA ACCESS LIFT PLAN1 1/2" = 1'-0" 2 PROPOSED - ADA ACCESS LIFT SECTION2

LIFT CLOSED LIFT OPENED

slide-10
SLIDE 10

UPPER LANDING LOWER LANDING Landmark Preservation Commission Public Hearing Presentation 205 E 17th Street 10003 New York, NY 02/20/2018

Proposed Handi-Lift Operating 1/2" = 1'-0"

010

1/2" = 1'-0" 1 PROPOSED - ADA ACCESS LIFT ELEVATION UP 1/2" = 1'-0" 2 PROPOSED - ADA ACCESS LIFT ELEVATION DOWN 1/2" = 1'-0" 3 PROPOSED - ADA ACCESS LIFT ELEVATION NOT IN USE GARAVENTA LIFT XPRESS II

slide-11
SLIDE 11

1" BOTTOM RAIL SQUARE PROFILE 2-1/2" SQUARE POST 1/2" SPINDLE BARS 4" DIAMETER O-RING BAND FINAL SPIKES 1" TOP RAIL SQUARE PROFILE 4" 1" 2'-1 3/4" 1" 4" 1" 5" 1/2" 2" 3'-11" 3'-4" 3'-11" 8'-8" 9'-1" 3'-6" 1" BOTTOM RAIL SQUARE PROFILE 2-1/2" SQUARE POST 1/2" SPINDLE BARS 4" DIAMETER O-RING BAND FINAL SPIKES 1" TOP RAIL SQUARE PROFILE ø 4 " Landmark Preservation Commission Public Hearing Presentation 205 E 17th Street 10003 New York, NY 02/20/2018

Proposed Front Railing As indicated

011

17TH STREET EXISTING HISTORICAL RAILINGS

216 E 17TH STREET 243 E 17TH STREET

1 1/2" = 1'-0" 3 LPC - RAILING SECTION 2 1/4" = 1'-0" 1 LPC - PROPOSED RAILING FRONT ENTRANCE 1 1/2" = 1'-0" LPC - RAILING PROFILE1

slide-12
SLIDE 12

UP UP

207 E 17TH STREET 201 E 17TH STREET

EXISTING STORE 763 SF

W/D

EXISTING DWELLING 488 SF BACKYARD TERRACE 294 SF

EAST 17TH STREET

15'-4" 7'-8" 92'-0" PROPERTY LINE

VESTIBULE 45 SF FOYER 144 SF HALLWAY 31 SF

EXIT 1 EXIT 2 207 E 17TH STREET 201 E 17TH STREET ø 6 "

698 SF NEW DOCTOR OFFICE 1

EAST 17TH STREET

293 SF NEW DOCTOR OFFICE 2

ø 60" 15'-4" 7'-8" PROPERTY LINE 92'-0"

49 SF NEW ADA BATH. 68 SF VESTIBULE 104 SF FOYER 12 SF CELLAR ACC. 128 SF NEW HALLWAY 37 SF NEW BATH. BACKYARD TERRACE 294 SF

EGRESS 1 RESIDENTIAL EXIT 2 TO BACKYARD EXIT 1 DOCTOR OFFICE W/ HANDI-LIFT 4'-0" 5'-0" 5'-0" 3'-11" 3'-11"

DOOR W/ ACCESSIBLE SIGNAGE ENTRY DOOR W/ ACCESSIBLE SIGNAGE

1'-6" 1'-6"

Landmark Preservation Commission Public Hearing Presentation 205 E 17th Street 10003 New York, NY 02/20/2018

Existing & Proposed Basement Exit 1/8" = 1'-0"

012

1/8" = 1'-0" 1 EXISTING - 00 BASEMENT PLAN 1/8" = 1'-0" 2 PROPOSED - 00 BASEMENT

2 EGRESS:

  • 1 IN FRONT
  • 1 IN THE BACK TO THE TERRACE

3 ACCESS, 1 EGRESS:

  • 1 ACCESS & EGRESS IN FRONT
  • 1 ACCESS IN THE BACK TO THE

ENCLOSED TERRACE

  • 1 ACCESS IN FRONT WITH ADA LIFT
