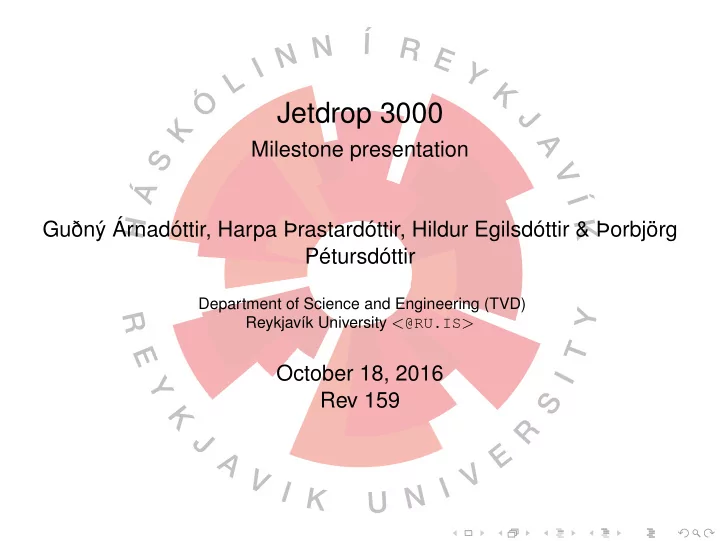

Jetdrop 3000

Milestone presentation Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir

Department of Science and Engineering (TVD) Reykjavík University <@RU.IS>

October 18, 2016 Rev 159

Overview of the talk

1

Introduction Background Use case Customer Needs

2

Design Overview Module1 Bill of Materials (BOM)

3

Management Status Tasks remaining

4

Questions

Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir (RU) Jetdrop 3000 October 18, 2016Rev 159 2 / 14

Introduction

• Jetdrop 3000
• Altimeter for a rocket that delivers data down to the ground and

drops an object in a parachute at a certain height.

• Target audiance: Students at the Swedish technical school.
• Problem: Rocket modelers can always use a cool addition to their

rockets.

Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir (RU) Jetdrop 3000 October 18, 2016Rev 159 3 / 14

Background

Figure 1: a drone [Dro16]

• Drones
• Keychain camera

Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir (RU) Jetdrop 3000 October 18, 2016Rev 159 4 / 14

Use case

Figure 2: The Swedish flag [15]

• Customer selects what item he wants to drop
• Customer selects whether he wants to drop manually or

automatically at a certain height

Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir (RU) Jetdrop 3000 October 18, 2016Rev 159 5 / 14

Customer Needs

Figure 3: Our Swedish friends building the rocket at the [AA15]

CN0 To know the altitude of the rocket at any given time. CN1 To drop a thing down from the rocket. CN2 To get pictures or videos from the rocket.

Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir (RU) Jetdrop 3000 October 18, 2016Rev 159 6 / 14

Design: Overview

FR0 Measure height of the rocket FR1 Drop an object down from the rocket FR2 Take pictures from rocket

Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir (RU) Jetdrop 3000 October 18, 2016Rev 159 7 / 14

Design: Parameters

DP0 Altimeter DP1 A hatch and a spring DP2 Camera

Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir (RU) Jetdrop 3000 October 18, 2016Rev 159 8 / 14

Design: Matrix

Table 1: First level FR-DP mapping. [Fol16]

ID Functional Requirement Design Parameter Measuring height of the rocket Altimeter 1 Drop an object down from the rocket A hatch and a spring 2 Taking pictures from rocket Camera    FR0 FR1 FR2    =   X X X      DP0 DP1 DP2    (1)

Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir (RU) Jetdrop 3000 October 18, 2016Rev 159 9 / 14

Design: Modules

• 2 modules: Flight computer and mission control
• Altimeter (DP0) is on the flight computer
• Hatch (DP1) is also on the flight computer
• The item to be dropped (fx. a camera) is also on the flight

computer

• Hatch open command can be sent from mission control
• Hatch can be automatically opened at a certain height

Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir (RU) Jetdrop 3000 October 18, 2016Rev 159 10 / 14

Design: Bill of materials (BOM)

Bought and arrived

• 2 x SparkFun [Spa16c] RedBoard = 12.000ISK
• 1 x SparkFun [Spa16b] Altitude/pressure sensor = 2.242ISK
• 2 x SparkFun [wixel] Wixel = 5.712ISK
• 2 x Sparkfun [logiclevel] Logic Level Converter = 842ISK
• 1 x 50W servo-motor = 1.000ISK
• 1 x 9V Battery [Spa16a] = 800ISK

Donated

• GoPro [Fot16] GoPro camera = 39.990ISK

Total: 22.596 ISK Budget: 25.000 ISK

Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir (RU) Jetdrop 3000 October 18, 2016Rev 159 11 / 14

Status

Figure 4: Our system dropping a camera in a parachute.

• Software is in pretty good state after Lab 3 and 4
• We need to build a hatch and test

Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir (RU) Jetdrop 3000 October 18, 2016Rev 159 12 / 14

Tasks remaining

• Barely 4 weeks left
• This week: Plan how to design the hatch
• Next two weeks: Build the hatch
• Final week: Test

Guðný Árnadóttir, Harpa Þrastardóttir, Hildur Egilsdóttir & Þorbjörg Pétursdóttir (RU) Jetdrop 3000 October 18, 2016Rev 159 13 / 14

References

[15] Swedish Club of Sarasota. 2015. URL: http://www.swedishclubsarasota.org/news. [AA15] National Aeronautics and Space Administration. National Aeronautics and Space Administration. 2015. URL: http://www.nasa.gov/exploration/systems/ sls/nasa-tests-provide-rare-opportunity-to- get-3-D-printed-part-comparison-data.html. [Dro16] My First Drone. Best Drones For Sale and Why. 2016. URL: http://myfirstdrone.com/tutorials/buying- guides/best-drones-for-sale/. [Fol16] Joseph Timothy Foley. Introduction to Axiomatic Design. Lecture Notes. Sept. 1, 2016. [Fot16] Reykjavík Foto. GoPro Hero4 Session. Sept. 1, 2016. URL: http://reykjavikfoto.is/gopro-hero4- session.html. [Spa16a]

• SparkFun. 9V Alkaline Battery. 2016. URL:

https://www.sparkfun.com/products/10218.
