JBatch with Apache BatchEE Mark Struberg / INSO, TU Vienna About the Speakers http://github.com/struberg http://people.apache.org/~struberg Apache Software Foundation member Apache OpenWebBeans, MyFaces, BVal, OpenJPA, Maven,


slide-1
SLIDE 1

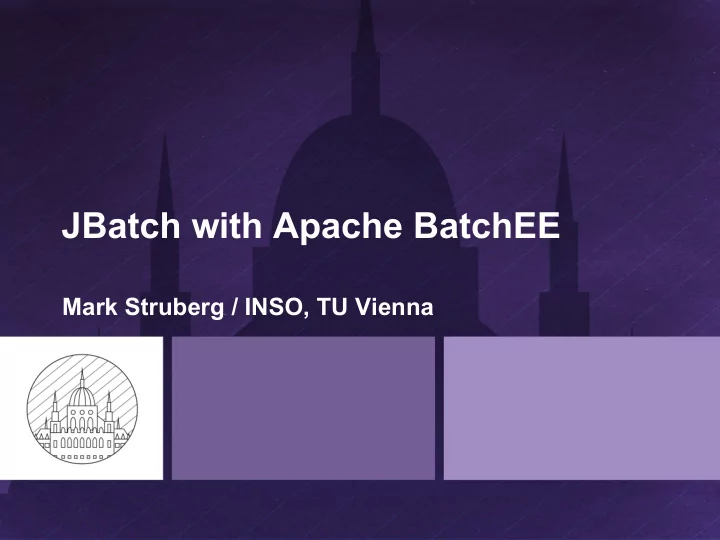

Mark Struberg / INSO, TU Vienna

JBatch with Apache BatchEE

slide-2
SLIDE 2

About the Speakers

  • http://github.com/struberg
  • http://people.apache.org/~struberg
  • Apache Software Foundation member
  • Apache OpenWebBeans, MyFaces, BVal,

OpenJPA, Maven, DeltaSpike, BatchEE, ...

  • Java EG member
slide-3
SLIDE 3

Agenda

  • JBatch and Apache BatchEE
  • JBatch Terms and Ideas
  • Writing a simple Batch
  • Threading and Transactions
  • JBatch Execution Environments
  • BatchEE add-ons
slide-4
SLIDE 4

About Apache BatchEE

  • Apache Incubator Project since 2013-10
  • Homepage:

http://batchee.incubator.apache.org

  • Source:

git://git.apache.org/incubator-batchee.git

  • dev@batchee.incubator.apache.org
  • irc.freenode.net channel #apache-batchee
  • https://issues.apache.org/jira/browse/BATCHEE
slide-5
SLIDE 5

Diff JBatch and BatchEE

  • JBatch

– The specification – The RI

  • BatchEE

– includes forked and bug-fixed RI code for Java EE – adds tons of features on top of it: – different SPI implementations – various ItemReader and Writer, – JAX-RS and simple Job UI, – Standalone Java EE Batch Environment

slide-6
SLIDE 6

JBatch Basics

slide-7
SLIDE 7

What is JBatch

  • A Java EE specification, JSR-352

– https://jcp.org/en/jsr/detail?id=352

  • Inspired by WebSphere-Batch, Spring-

Batch, JES, JCL, ...

  • To write and execute Java Batches
  • Why do I need Batches ?

– Migration – Bulk Import/Export – Mass processing

slide-8
SLIDE 8

Batch Classification

  • Online vs Offline Tasks
  • Bulk vs On-demand Batches
  • Synchronous vs Asynchronous

processing

slide-9
SLIDE 9

Benefits of JBatch Spec

  • improved maintainability
  • improved portability
  • reuse of existing app components
  • out-of-the-box monitoring and control
slide-10
SLIDE 10

JBatch Architecture

JobOperator Job Step ItemReader ItemProcessor ItemWriter Batchlet JobRepository

slide-11
SLIDE 11

JobRepository

JobRepository JobInstance JobExecution JobInstance StepExecution

slide-12
SLIDE 12

Batch JSL

  • JSL: Job Specification Language
  • META-INF/batch-jobs/*.xml

<job id="myjob" restartable="false"> <step id="firststep"> <chunk item-count="1"> <reader ref="myReader"/> <processor ref="myProcessor"/> <writer ref="myWriter"/> </chunk> </step> </job>

slide-13
SLIDE 13

Batch Artifact Loading

  • Available as @Named CDI beans
  • Or as class names
  • Registered via META-INF/batch.xml
slide-14
SLIDE 14

Batch Properties (1/2)

  • Defined In JSL:

<properties> <property name="myProp" value="myVal"/> </properties>

  • for:

– <job> – <reader>, <processor>, <writer> – <batchlet>

  • Dynamically via JobOperator
slide-15
SLIDE 15

Batch Properties (2/2)

  • Usage in Code via
  • JobContext#getProperties();
  • StepContext#getProperties();
  • @Inject @BatchProperty("myProp") String val;
  • Can leverage Expression Language:
  • <property name="csvFile"
  • value="#{jobProperties['infile.name']}"/>
  • <property name="jobDay"
  • value="#{partitionPlan['schedule.day']}"/>
slide-16
SLIDE 16

Basic Step Structure

  • Batchlet or
  • ItemReader, plus
  • ItemProcessor (optional), plus
  • ItemWriter
  • Steps can form Sequence Flows
  • Steps can use Partitioning and Splits
  • each Partition gets an own Thread
slide-17
SLIDE 17

Batchlet

  • performs all the processing in one go
  • Batchlet#process()
  • Batchlet#stop()
  • Return the exit status of the batch
slide-18
SLIDE 18

ItemReader

  • Read single Item for a chunk step
  • Can set and read 'Checkpoints'
  • readItem() invoked until

null returned

slide-19
SLIDE 19

BatchEE TypedItemReader

  • <R, C> version of ItemReader

– R: Type of item to Read – C: Type of Checkpoint (? extends Serializable)

  • <R> NoStateTypedItemReader
  • <R> BufferedItemReader
slide-20
SLIDE 20

ItemProcessor

  • Optional!
  • Processes the read item
  • Returning null will skip the item
slide-21
SLIDE 21

BatchEE TypedItemProcessor

  • <I, O> version of ItemProcessor

– I: Type of item input – O: Type of Output

slide-22
SLIDE 22

ItemWriter

  • Writes n items (according to chunk-size)
  • Each writeItems is an own Transaction
  • Can set and read 'Checkpoints'
slide-23
SLIDE 23

BatchEE TypedItemWriter

  • <W, C> version of ItemWriter

– W: Type of item to Write – C: Type of Checkpoint (? extends Serializable)

  • <R> NoStateTypedItemWriter
slide-24
SLIDE 24

Batch Transaction Handling

  • JBatch uses JTA by default
  • JTA TX is always per Thread in Java
  • Each 'Split' Partition has an own

Transaction

  • Commit packages can be set via

chunk-size

slide-25
SLIDE 25

Batch Chunks

  • chunk-size=100 means

– beginTransaction(); – 100x ItemReader#readItem(); – (optional) 100x ItemProcessor#processItem(); – 1x ItemWriter#writeItems(all100); – commit();

slide-26
SLIDE 26

Chunk Exception Handling

  • default: abort w FAILED on Exception
  • possible to define Exceptions for:

– retry <retryable-exception-classes> plus optionally: Retry*Listener – skip <skippable-exception-classes> plus optionally: Skip*Listener – Retry is always done with item-count=1 – Retry precedes Skip

slide-27
SLIDE 27

The JobOperator

  • THE central interface to communicate

with the Batch Runtime

  • can start, stop and restart Jobs
  • can list Jobs
slide-28
SLIDE 28

Batch Listener

  • JobListener
  • beforeJob()
  • afterJob()
  • StepListener
  • beforeStep()
  • afterStep()
  • e.g. for setting up Authentication
  • e.g. for starting CDI Contexts
slide-29
SLIDE 29

BatchEE SPI

slide-30
SLIDE 30

BatchEE SPI activation

  • batchee.properties
  • BatchThreadPoolService=....
  • SecurityService
  • PersistenceManagerService
  • BatchThreadPoolService
  • TransactionManagementService
  • http://batchee.incubator.apache.org/configuration.html
slide-31
SLIDE 31

Batch Environments

slide-32
SLIDE 32

Batch WAR

  • BatchEE Servlet
  • UI for

– showing status – creating Jobs – starting Jobs

slide-33
SLIDE 33

JAX-RS Integration

  • Exposes JobOperator via JAX-RS
  • Allows to start Jobs from UC4, JES, etc
  • We also have 'simple-rest'

– http://localhost/myApp/jbatch/rest/start/mybatch? param1=val1&param2=val2 – http://localhost/myApp/jbatch/rest/status/${execId}

slide-34
SLIDE 34

CLI Batch

  • We introduced our own BAR format

BATCH-INF +-- batch-jobs/*.xml +-- classes/.. +-- lib/..

  • $> java -jar batchee-cli.jar start \
  • archive demo-1.0.bar -name mybatch
slide-35
SLIDE 35

CDI Batch Scopes

  • @StepScoped
  • @JobScoped
  • technically done via StepListener and

JobListener

slide-36
SLIDE 36

Clustering

  • TODO... it's just not yet done...
  • ... helping hands are welcome...
slide-37
SLIDE 37

Legal stuff

  • Apache, BatchEE, OpenWebBeans,

OpenEJB, TomEE and OpenJPA are trademarks of the Apache Software Foundation
