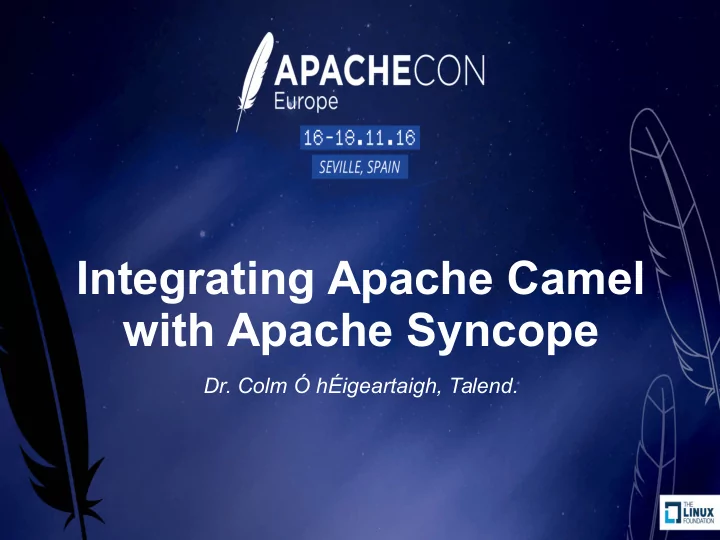

Integrating Apache Camel with Apache Syncope

• Dr. Colm Ó hÉigeartaigh, Talend.

Speaker Introduction

Introducing Apache Syncope

• Apache Syncope is an Open Source

system for managing digital identities in enterprise environments.

• T
• p Level Project @ Apache since

11/2012.

• Currently 20 committers and 11

PMC members.

• Latest release: 2.0.1 “Jazz”.

Apache Syncope basics

Architecture

Deployment Options

Persistence

Connectors

• Maven

archetype

• Standalone
• .deb fjles
• UI installer

Installation Options

• Apache Syncope features a rich

REST API based on Apache CXF, e.g

– List users (JSON):

/syncope/rest/users

– Get authenticated user:

/syncope/rest/users/self

– List groups (JSON):

/syncope/rest/groups REST API

• The REST API supports search via

FIQL, e.g.

– Get the user called “verdi”:

syncope/rest/users? fjql=username==verdi

– See which users were created

since January 01 2016: syncope/rest/users? fjql=creationDate=ge=2016-01- 01 REST API search

• A powerful Java client library is also

available. Java Client Library

• Apache Syncope leverages Apache

CXF to generate both WADL and SWAGGER documents

• WADL is accessible via the URI

"/syncope/rest/?_wadl".

• Swagger documentation is also

available via Swagger UI: “/syncope/swagger/” REST API documentation

• Multi-tenancy support via

“Domains”.

• New Console Layout
• Support for “Internet of Things”
• Support for “Realms”.
• End-user UI.
• Improved documentation.
• Apache Camel provisioning engine

New Features in Syncope 2.0.0

The new Apache Camel Provisioning Engine

• What if you want to perform some

action when something changes in Apache Syncope?

• One option is to poll the REST API of

Apache Syncope.

• Let’s look at an example using the Java

DSL of Apache Camel to get the “total count” of users in Syncope.

Polling the REST API

Polling the REST API

• However, there are obvious

disadvantages to this approach.

–

Excessive resource consumption

–

Impossible to perform an action immediately on a change in Syncope

–

Impossible to make a provisioning change in Syncope dependent on the action that you are performing.

• We need a better approach!

Polling the REST API

• A new provisioning manager is available

in Apache Syncope 2.0.0 based on Apache Camel.

• Contributed by Giacomo Lamonaco from

Tirasa.

• USP of Apache Syncope: We can easily

integrate routing rules to any kind of endpoint with identity management!

Camel Provisioning Manager

• Natural fjt: Open-source integration

framework at Apache

• XML (Spring) DSL available
• Flexible and easy to use

routing/mediation rules

• Supports a huge range of messaging

components

• Easy to create custom Camel

components.

Why Apache Camel?

• A set of Camel routes are available by

default which are invoked when the User, Groups and Any Objects in question are changed in some way.

• This allows the administrator to plug in

custom logic on any of these state changes.

• The routes can be viewed and edited in

the Admin Console.

Camel Provisioning Manager

Create User Route

Camel Provisioning Manager

• A new "propagate" Camel component is

available in Syncope 2.0.0.

• Example: <to

uri="propagate:<propagateT ype>? anyT ypeKind=<anyT ypeKind>&options"/ >

• PropagateT

ype: create, update, delete, provision, deprovision, status, suspend, confjrmPasswordReset.

• AnyT

ypeKind: USER, GROUP, ANY .

Examples

Example 1

• Use Case: Send an email to an

administrator when a User is created, with some details about the created User in the email.

• We’ll use mailtrap.io as a test email

server.

• Extra Jars needed in Syncope:

javax.mail, camel-mail

New “createUser” route

Example 2

• Use Case: Audit when a user changes a

password.

• Apache Syncope stores users in internal

storage in a table called "SyncopeUser".

• Previous passwords associated with the

User are stored in another table (note no Timestamp):

Example 2

• The administrator wants a stronger

audit trail…

• We’ll edit the Camel route to store the

password + Timestamp to a fjle associated with that user.

• For simplicity we won’t salt + hash the

password :-)

• No additional jars required

New “updateUser” route

Example 3

• Use Case: Gather information about new

users and process it dynamically

• Example: Age + location of new users.
• Decouple applications from Syncope by

using a message solution (Apache ActiveMQ).

• When new users are created, we will

modify the default Camel route to send a message to two queues corresponding to the age and location of the user.

Example 3

• We need to copy some jars from Apache

ActiveMQ into Syncope.

• Also, add the following to the T
• mcat lib

directory (called "camelRoutesContext.xml"):

New “createUser” route

Thank you!

Questions?
