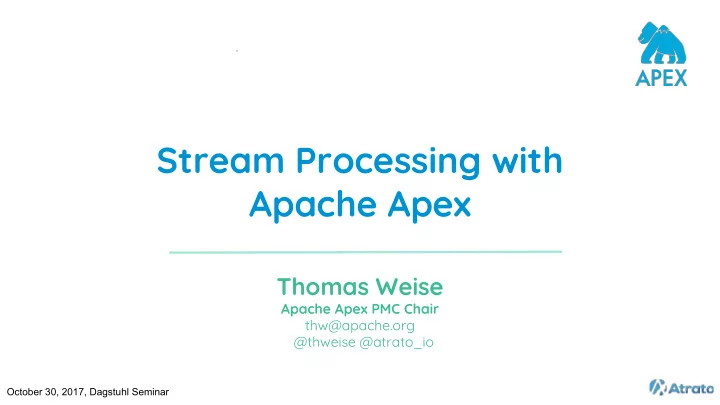

SLIDE 1

Stream Processing with Apache Apex

Thomas Weise

Apache Apex PMC Chair thw@apache.org @thweise @atrato_io

October 30, 2017, Dagstuhl Seminar

SLIDE 2

Stream Processing with Apache Apex

2 Mobile Devices Logs Sensor Data Social Databases CDC

Oper1 Oper2 Oper3

Real-time visualization, storage, etc Data Delivery & Storage

Transform / Analytics

SQL Declarative API DAG API

SAMOA

Beam Operator Library

SAMOA

Beam

(roadmap)

Data Sources

SLIDE 3

State Management & Fault tolerance

○ End-to-end Exactly-once, Checkpointing and Windowing ○ Fine grained recovery, low-latency SLA support ○ Queryable state ○ Accuracy, Repeatable/Replay

Scalable, high throughput and low latency

○ Native Streaming, pipelined processing (data in motion) ○ Dynamic scaling and resource allocation, elasticity

Comprehensive library of connectors and transformations

○ Accelerate development ○ Event time windowing ○ High-level and low level Java API, SQL, Beam Runner

Used by GE (Predix), Capital One, Royal Bank of Canada, Pubmatic, Silver

Spring Networks (more at https://apex.apache.org/powered-by-apex.html)

Why Apex

3

SLIDE 4

Application Model

4

A Stream is a sequence of data tuples An Operator takes one or more input streams, performs computations & emits one or more output streams

Custom business logic or

built-in operator from Apex library

Operator has many

instances that run in parallel and each instance is single-threaded Directed Acyclic Graph (DAG)

f operators and streams

Directed Acyclic Graph (DAG)

Operator Operator Operator Operator Operator Operator Tuple Output Stream Filtered Stream Enriched Stream Filtered Stream Enriched Stream

SLIDE 5

DAG Translation

5

SLIDE 6

Execution Layer

6

AM requests worker containers

from YARN to run physical

perators
Worker Containers send data

using a pub-sub mechanism

Workers heartbeat to master

Apex CLI YARN RM Apex AM

Worker Worker Worker Worker Worker

6 4 1 3 2 5 1 2 3 4 5 6 DFS

(or other distributed storage)

Checkpoints

SLIDE 7

Operator API

7

setup (Component) activate (ActivationListener) beginWindow (Operator) endWindow (Operator) process (InputPort)

r

emitTuples (InputOperator) teardown (Component) deactivate (ActivationListener) beforeCheckpoint checkpointed committed (CheckpointListener)

SLIDE 8

Operator Library

8

Stateful Transformations

Windowing: sliding, tumbling, session
Accumulations: sum, merge, join, sort, top n, …
Triggering, Watermarks
Dimensional Aggregations (with state management for historical

data + query)

Deduplication

RDBMS

JDBC
MySQL
Oracle
MemSQL

NoSQL

Cassandra, HBase
Aerospike, Accumulo
Couchbase, CouchDB
Redis, MongoDB
Geode, Kudu

Messaging

Kafka
JMS (ActiveMQ etc.)
Kinesis, SQS
Flume, NiFi
MQTT

File Systems

HDFS / Hive
Local File
S3
FTP

Stateless Transformations

Parsers: XML, JSON, CSV, Avro
Filter
Enrich
Configurable POJO schema
Map, FlatMap (custom Java function)
Script (JavaScript, Jython)

Other

Elastic Search
Solr
Twitter
WebSocket / HTTP
SMTP

SLIDE 9

Queryable State

A set of operators in the library that support real-time queries of operator state.

9

Hashtag Extractor TopN Window Twitter Feed Input Operator CountByKey Window Snapshot Server Result

Pub/Sub Broker

HTTP WebSocket

Query Input

Example: https://github.com/tweise/apex-samples/tree/master/twitter
Pub/Sub server: https://github.com/atrato/pubsub-server
Grafana data source: https://github.com/atrato/apex-grafana-datasource-server

SLIDE 10

Application API

10

Stream API (declarative) DAG API (compositional)

SLIDE 11

Fault Tolerance - Checkpointing

11

Stream is divided into fixed time slices

called streaming windows

Checkpoint is performed by Worker

Containers at streaming window boundaries

Worker Containers send heartbeats to

AM

Recovery is incremental without resetting

full DAG

Checkpoints are purged after the

corresponding window is committed

AM is also checkpointed

BeginWindow n EndWindow n BeginWindow n+1 EndWindow n+1

Time ... ...

Bookkeeping & Checkpointing done here

SLIDE 12

In-Memory PubSub & Recovery

12

Buffer results until committed
Backpressure / spillover to disk
Ordering, idempotency

Operator 1 Container 1

Buffer Server

Node 1 Operator 2 Container 2 Node 2

Downstream Operators reset Independent pipelines (can be used for speculative execution)

SLIDE 13

Processing Guarantees

13

SLIDE 14

End-to-End Exactly-Once

14

Exactly-once results = at-least-once + idempotency +

perator logic

SLIDE 15

Scaling/Partitioning

15

Partitioning with Unifiers: NxM Partitioning (Shuffle):

1 2

1 a 1 b 1 c U

2

Logical DAG Physical DAG with operator 1 with 3 partitions

2 1 3

2 a 1 b

3

1 a 1 c 2 b U U 2 a 1 b

3

1 a 1 c 2 b U1 U U2

SLIDE 16

Scaling/Partitioning (cont’d)

16

Parallel Partition: Cascading Unifiers:

1 a 1 b U

2 3 4

1 a 1 b U

4

2 a 3 a 2 b 3 b

1 2 1 1 1 1

U

2 1 1 1 1

U 1

2

U 2 U 3

SLIDE 17

Dynamic Scaling

17

Partitioning change while application is running

ᵒ Change number of partitions at runtime based on stats ᵒ Determine initial number of partitions dynamically

Kafka operators scale according to number of kafka partitions

ᵒ Supports redistribution of state when number of partitions change ᵒ API for custom scaler or partitioner

1b 1c 2 1a 1d 0b 0a 0a 1a 0b 1b 2 0a 1b 0b 1c 2b 1a 1d 2a

Unifiers not shown

SLIDE 18

Compute Locality

18

Host Locality

ᵒ Operators can be deployed on specific hosts

(Anti-)Affinity

ᵒ Ability to express relative deployment without specifying a host

Default

(serialization+IPC)

HOST

(serialization, loopback)

CONTAINER

(in-process queue)

THREAD

(callstack)

By default operators are distributed on different nodes in the cluster
Can be collocated on machine, container or thread basis for efficiency

SLIDE 19

Compute Locality (cont’d)

19

Message size (bytes) (default locality) (bytes/s) CONTAINER_LOCAL (bytes/s) THREAD_LOCAL (bytes/s) 64 59,176,512 204,748,032 2,480,432,448 128 89,803,904 395,023,360 3,662,684,672 256 137,019,648 671,409,664 5,218,227,968 512 156,255,744 1,255,749,632 4,416,738,304 1024 167,139,328 2,022,868,992 3,423,519,744 2048 182,349,824 3,508,013,056 4,050,688,000 4096 255,229,952 3,732,725,760 3,884,101,632 https://www.datatorrent.com/blog/blog-apex-performance-benchmark/

SLIDE 20

Apex runner in Apache Beam
Iterative processing, Integrated with Apache Samoa, opens up ML
Integrated with Apache Calcite, enables SQL
Scalable, incremental state management
User defined control tuples (watermarks, batch control, …)
Apache Kudu connectors
Support for Python
Support for Docker, Mesos and Kubernetes
Enhanced support for Batch Processing
Encrypted Streams

Recent Additions & Roadmap

20

SLIDE 21

Adoption Challenges for Big Stream Processing

21

Functionality Performance Usability Testing Operations

SLIDE 22

Resources

22

http://apex.apache.org/
Powered by Apex - http://apex.apache.org/powered-by-apex.html
Learn more - http://apex.apache.org/docs.html
Getting involved - http://apex.apache.org/community.html
Download - http://apex.apache.org/downloads.html
Follow @ApacheApex - https://twitter.com/apacheapex
Meetups - https://www.meetup.com/topics/apache-apex/
Examples - https://github.com/apache/apex-malhar/tree/master/examples
Slideshare - http://www.slideshare.net/ApacheApex/presentations
