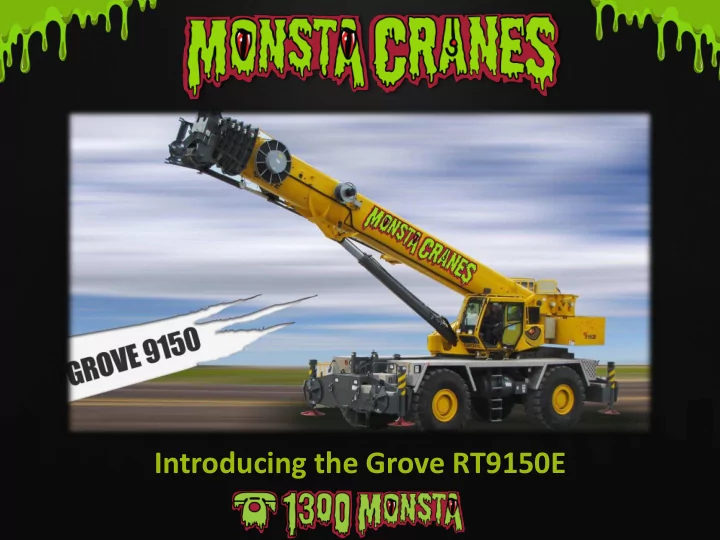

Introducing the Grove RT9150E

The Grove RT9150E

Pioneering technology for rough terrain cranes:

• Very first crane of its type

in Australia

• Full powered pin lock boom

system

• CraneSTAR asset

Management system

60m Power Boom

Overall tip height – 63.6m

• 1.5 tonne capability at 56m
• 4.5 tonne capability at 40m
• 9.7 tonne capability at 20m

11m – 18m Fly Extension

• Hydraulically luff to 40°
• Overall tip height – 81.4m
• 1 tonne capability at 60m

8m – 14m Fly Extension Inserts

• Overall tip height – 95.3m
• 1.2 tonne capability at 67m

Cab designed for

• perator comfort

and safety

• Tilting cab up to 20 degrees
• “Full vision” design
• Drive and operate from same cab

Easy to get around site

• Mobilise with full counterweight

contingent

• Packed up and on the way in under

18 minutes

• Four wheel drive
• Manoeuvrable with crab or

co-ordinated movement

• This crane will go anywhere on any

type of terrain !

Versatile

• From unloading barges to the laydown

yard

• Tailing loads, dog-box work and steel

erection

• Heavy lifts
• Complements large lift crane erection:

– Tracks to boom to counterweights

• Potential to replace multiple cranes due

to mobility around site

Ideal for civil construction

• First on last off
• Thrives in poor site

conditions: – 4WD ability – Carrying full counterweight contingent

• 60 metre power boom

enables REO and Formwork install at over 50 metres

RT9150 is more mobile than GMK5130

• GMK5130 has an axle rating of 12 tonnes

– Can handle driving on sealed roads – Struggles with on-site and rough conditions

• RT9150 designed for working on-site:

– Mobile with maximum counterweight – Possible under hook height of 92m

RT9150 outperforms GMK5130 head-to-head

Capability (tonnes) 10 10 6.9 2.8 1.0 10 10 7.6 4.5 2.3 9 18 28 40 50

GMK51302 RT91501

Radius (metres)

Notes: 1. RT9150 with full contingent counterweight, full outriggers, 60m power boom 2. GMK5130 with 28.5t of counterweight, full outriggers, 60m power boom

RT9150 is at full counterweight, ready to rumble all the time

• To stay within construction site’s 75% capacity safety limit the

GMK5130 may require additional wing weights and counterweights.

• Fully set up with 60m power boom this would take:

– 14 minutes to retract the boom to minimum radius for wing weight and counterweight installation – At least 20 minutes to install extra counterweights – Another 14 minutes to extend boom – Plus time and resource for counterweight transport to crane

The RT9150 enables efficient use of resources

RT9150: Start to end 2 hours 56 minutes

Drive to site Set up Work Pack up Drive to yard 10 min 18 min 2 hours 18 min 10 min 1 operator 2 riggers 1 crane 1 operator 2 riggers 1 crane 1 operator 2 riggers 1 crane 1 operator 2 riggers 1 crane 1 operator 2 riggers 1 crane

GMK5130: Start to end 4 hours 38 minutes

Load extra c/w Drive to site Basic set up Set up extra c/w Extend boom Work Retract boom Pack up extra c/w Basic pack up Drive to yard Unload extra c/w 20 min 15 min 10 min 20 min 14 min 2 hours 14 min 20 min 10 min 15 min 20 min 1 operator 1 driver 2 riggers 2 cranes 1 truck 1 operator 1 driver 2 riggers 1 crane 1 truck 1 operator 2 riggers 1 crane 1 operator 2 riggers 1 driver 1 crane 1 truck 1 operator 2 riggers 1 crane 1 operator 2 riggers 1 crane 1 operator 2 riggers 1 crane 1 operator 2 riggers 1 crane 1 driver 1 truck 1 operator 2 riggers 1 crane 1 operator 1 driver 2 riggers 2 cranes 1 truck 1 operator 1 driver 2 riggers 2 cranes 1 truck

Easy to move to and from site

The 9150 is easy to mobilise and de-mobilise

• Transported to site with

float and two trailers

• Removes its own outrigger
• Boom and extensions easy

to adjust and remove
