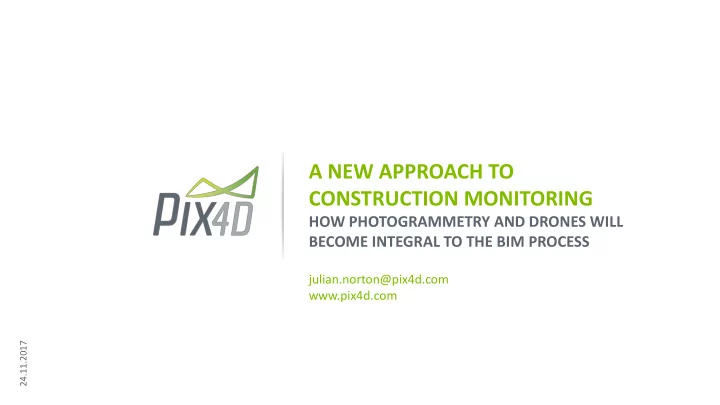

A NEW APPROACH TO CONSTRUCTION MONITORING HOW PHOTOGRAMMETRY AND DRONES WILL BECOME INTEGRAL TO THE BIM PROCESS julian.norton@pix4d.com www.pix4d.com 24.11.2017 WE TAKE IMAGES CAPTURED BY DRONES www.pix4d.com CONVERT THEM INTO 3D MODELS

A NEW APPROACH TO CONSTRUCTION MONITORING HOW PHOTOGRAMMETRY AND DRONES WILL BECOME INTEGRAL TO THE BIM PROCESS julian.norton@pix4d.com www.pix4d.com 24.11.2017
WE TAKE IMAGES CAPTURED BY DRONES … www.pix4d.com
CONVERT THEM INTO 3D MODELS FOR MEASUREMENT AND VISUALIZATION www.pix4d.com
AND 2D ORTHO-PHOTOS FOR CAD/BIM/GIS COMPATIBILITY www.pix4d.com
END-TO-END WORKFLOW From flight to results www.pix4d.com
ORTHOGRAPHIC 2D MAPPING
PROGRESS MONITORING www.pix4d.com
FINDING ERRORS EARLY 10 11 May May www.pix4d.com
AS-BUILT VS. AS-DESIGN www.pix4d.com
3D POINT CLOUD IN BIM DESIGN APPLICATION CLASH DETECTION: AS-BUILT VS. AS-DESIGN
BUT IT IS NOT ALWAYS EASY TO FLY A DRONE ON SITE EVERYDAY www.pix4d.com
VIDEO www.pix4d.com
SO WE HAVE DEVELOPED A CAMERA SYSTEM THAT ATTACHES TO THE TOWER CRANE AND CAPTURES IMAGES FROM THERE Images wirelessly transmitted to Pix4D Cloud processed automatically Images captured during normal crane and results available on-line via web operation or on-demand browser www.pix4d.com
www.pix4d.com
www.pix4d.com
www.pix4d.com
www.pix4d.com
www.pix4d.com
FLOOR PENETRATION MANAGEMENT
CRANE CAMERA COMMERCIAL STATUS Twenty-two projects Twenty companies Including a super hospital, 70 floor Major construction companies building, high-tech US government from USA, Canada, Switzerland, office, underground metro station Germany, Denmark and France and railway viaduct Sixty systems Multiple systems on same crane and multiple systems on same site www.pix4d.com
THE FUTURE AT PIX4D CONSTRUCTION www.pix4d.com
MULTIPLE SOLUTIONS SURVEYING AGRICULTURE CONSTRUCTION REAL ESTATE • Land surveying • Crop Science • Earthworks • Communication • Mining surveying • Forestry • Site Management • Landscape Modeling • GIS & Mapping • Turfgrass Management • Building Inspection • Architecture • Forensics • BIM • Hobby & Design • Thermal Modeling www.pix4d.com
THANK YOU julian.norton@pix4d.com www.pix4d.com 15,000 CUSTOMERS 120+ global employees 23+ nationalities 26+ business languages spoken SHANGHAI LAUSANNE BERLIN SAN FRANCISCO CHINA SWITZERLAND GERMANY U.S.A www.pix4d.com
