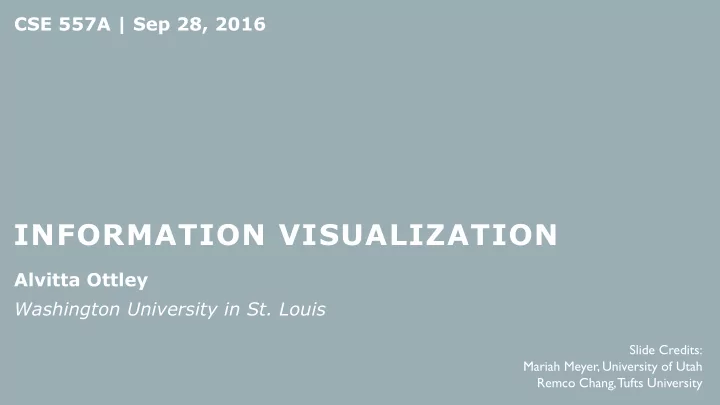

SLIDE 1
INFORMATION VISUALIZATION
Alvitta Ottley Washington University in St. Louis CSE 557A | Sep 28, 2016
Slide Credits: Mariah Meyer, University of Utah Remco Chang, Tufts University
INFORMATION VISUALIZATION Alvitta Ottley Washington University in - - PowerPoint PPT Presentation
INFORMATION VISUALIZATION Alvitta Ottley Washington University in - - PowerPoint PPT Presentation
CSE 557A | Sep 28, 2016 INFORMATION VISUALIZATION Alvitta Ottley Washington University in St. Louis Slide Credits: Mariah Meyer, University of Utah Remco Chang, Tufts University Recap Visual Encoding identify (what and where) magnitude
SLIDE 2
SLIDE 3
SLIDE 4
identify (what and where) magnitude (how much)
SLIDE 5
identify (what and where) magnitude (how much)
SLIDE 6
Expressiveness & effectiveness
SLIDE 7
magnitude (how much) identify (what or where)
expressiveness
SLIDE 8
SLIDE 9
Where do the ranking come from?
SLIDE 10
SLIDE 11
encoding semantics
Ware 2010
SLIDE 12
Today…
More on data mapping Multidimensional data
SLIDE 13
IN CLASS EXERCISE
- 4 groups
- Each group is assigned a visual channel:
- shape, color, length, area
- Represent the following dataset using only
your visual channel Animal Times bitten Cat 2 Dog 12 Bird 6 Animal Color Cat brown Dog brown Bird blue Animal Level training Cat high Dog poor Bird fair
SLIDE 14
EXAMPLE
Animal Times bitten Cat 2 Dog 12 Bird 6
2 4 6 8 10 12 14
C D B
SLIDE 15
EXAMPLE
Animal Times bitten Cat 2 Dog 12 Bird 6 C D B Animal Color Cat brown Dog brown Bird blue
brown blue
SLIDE 16
EXAMPLE
Animal Times bitten Cat 2 Dog 12 Bird 6 C D B Animal Level training Cat high Dog poor Bird fair
GOOD POOR
Level of training
SLIDE 17
IN CLASS EXERCISE
- 4 groups of 4
- Each group is assigned a visual channel:
- shape, color, length, area
- Represent the following dataset using only
your visual channel Animal Times bitten Cat 2 Dog 12 Bird 6 Animal Color Cat brown Dog brown Bird blue Animal Level training Cat high Dog poor Bird fair
SLIDE 18
WHAT ABOUT A TABLE WITH MORE DIMENSIONS?
SLIDE 19
TABLE LENS
- Rao, Card (1994)
SLIDE 20
TABLE LENS
SLIDE 21
TABLE LENS
SLIDE 22
TABLE LENS
SLIDE 23
TABLE LENS
- Video: http://www.open-video.org/details.php?videoid=8304
SLIDE 24
PARALLEL COORDINATES
SLIDE 25
PARALLEL COORDINATES
SLIDE 26
DIMENSION ORIENTATION
Dasgupta InfoVis 2010
SLIDE 27
DIMENSION ORDERING
SLIDE 28
DIMENSION ORDERING
SLIDE 29
DENSITY REDUCTION
Johansson EuroVis 2008
SLIDE 30
PROTOVIS DEMO
SLIDE 31
LOTS OF EXTENSIONS…
Drosophila Gene Expression Data Exploration and Visualization Lawrence Berkeley National Lab
SLIDE 32
LOTS OF EXTENSIONS…
Fanea et al. InfoVis 05 Villaveces, UNC / Renci Streit, Cytometry Part A, 2006
SLIDE 33
Due next in 2 weeks
SLIDE 34
