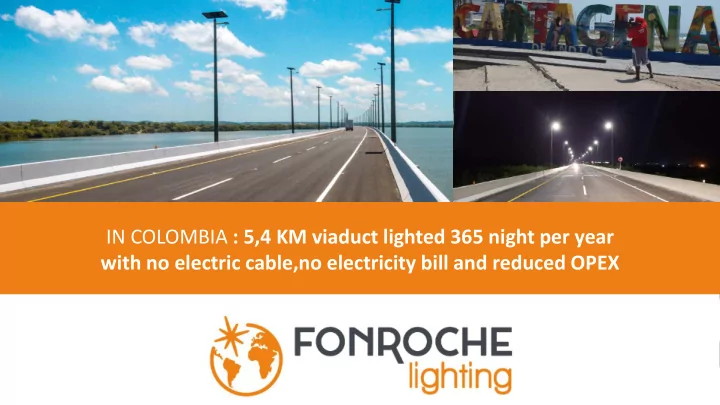

IN COLOMBIA : 5,4 KM viaduct lighted 365 night per year with no - - PowerPoint PPT Presentation

▶

Nov 24, 2022 215 likes •338 views

IN COLOMBIA : 5,4 KM viaduct lighted 365 night per year with no electric cable,no electricity bill and reduced OPEX Case study of El viaducto de la pazin Colombia Case study Project purpose - Economic development of Carthagena region -

SLIDE 1

IN COLOMBIA : 5,4 KM viaduct lighted 365 night per year with no electric cable,no electricity bill and reduced OPEX

SLIDE 2

Case study of “El viaducto de la paz”in Colombia

SLIDE 3

Case study

Project purpose

Economic development of Carthagena region
Safer travel for the population (reduce distance by 50%)

Requirements and constraints:

Complexity and CAPEX cost of electric installation on

viaducts (norms, exposure to splash etc…)

365 nights/year of light for transit safety
Environmental friendly construction and operation

(protection of natural site of Ciénaga de la Virgen)

OPEX reduction
Equipment suitable for marine environment

SLIDE 4

Fonroche Solution

10/09/2019 Fonroche Eclairage – Présentation Générale 4

Fonroche Lighting proposed a set of 388 Smartlight

Power365 9.1 for the whole viaduct.

Easy installation of solar street lamp with no civil

works and electric equipment requiered reducing the

verall CAPEX of the project.
Product sized according to full solar study to ensure

365 nights of light per year.

Fonroche solar street light remove electrical

consumption thus saving CO2 .

All components have long life, with first maintenance

after 10 years reducing significantly OPEX.

PV Modules manufactured in France LED Light

Solar Battery FONROCHE LIGHTING

Nickel Alloy Smart management system

SLIDE 5

FONROCHE technical solution

10/09/2019 Fonroche Eclairage – Présentation Générale 5

Capacity : 280 Wp
Self cleaning tempered glass
Optimized light collection
High efficiency cells
Lifetime: minimum30 years

PV Solar Panel SOLAR

60 W nominal
Low energy consumption
High efficiency 180 Lm/W
Integrated heat dissipation
Lifetime : minimum12 years

LED Light

LIGHT

Operated from -40 to +70°C
Technology NiMH
Capacity : 936 Wh
Compact size and light weight
Lifetime : 3650 cycles minimum

10 to 12 years

Nickel Solar Battery POWER 365

STORAGE

Smart system developed by Fonroche

specifically for solar lighting

Operating ranges programming based
n installation location
Anti Blackout security

Technology Power 365

INTELLIGENCE

Long range communication (5-10km)
Real time monitoring of Street light
GPS coordiante of each light
Lighting programmation capability

Smart communication system

FONROCHE CONNECT

SLIDE 6

Day view

10/09/2019 6

SLIDE 7

Night view

10/09/2019 Fonroche Eclairage – Présentation Générale 7

SLIDE 8

10/09/2019 Fonroche Eclairage – Présentation Générale 8

SLIDE 9

GLOBAL LEADER IN SOLAR LIGHTING

SLIDE 10

Fonroche Eclairage – Présentation Générale 10

Worldwide : Presence on the 5 continents
