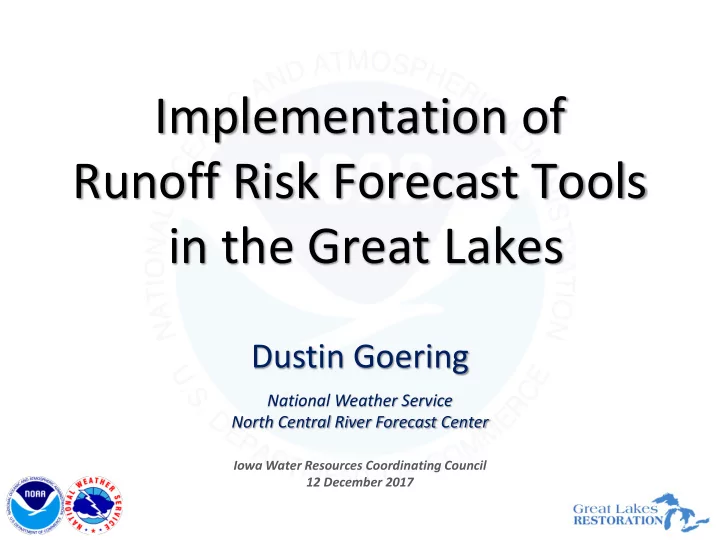

Implementation of Runoff Risk Forecast Tools in the Great Lakes

Dustin Goering

National Weather Service North Central River Forecast Center

Iowa Water Resources Coordinating Council 12 December 2017

2

Excess Nutrient Impacts

3

• Decision Support tools for farmers and producers based on real-time

NWS weather/hydrologic forecast models to support short-term field management decisions for nutrient applications

• Goal is to reduce acute loss events  Don’t make the problem worse

− Identify future conditions correlated with field runoff − Delay applications  Reduce nutrient loads leaving fields

• Collaborative partnerships where states build and own their tool in the

regional network

− State working groups of federal/state agencies, academia, industry

• Long-term Impact? Initiate voluntary behavioral change to support state

nutrient reduction goals while providing multiple benefits

− Producer economics and environment

What are Runoff Risk Tools?

4

• Many BMPs are focused on Right Place, Right Amount, Right Source,
• r landscape modifications

− NMPs and buffers/no-till/etc. aimed at chronic long-term losses

Importance of Nutrient Application Timing

5

• Many BMPs are focused on Right Place, Right Amount, Right Source,
• r landscape modifications

− NMPs and buffers/no till/etc. aimed at chronic long-term losses

• Typical Right Time guidance is often (1) crop demand centric or (2)

generic/static weather guidelines, but what about challenging day-to- day decisions/situations?

− Actionable real-time guidance related to runoff threat doesn’t exist

• Would more emphasis on daily field management decisions lead to

additional nutrient loss reductions? What does EOF data indicate?

− (1) Some parts of the year are more important (critical loss periods) − (2) Field activity in relation to runoff occurrence is a water quality factor − (3) Largest runoff events contribute significantly to nutrient losses

Importance of Nutrient Application Timing

6

Critical Loss Periods and Field Activity

23 EOF sites with year-round data collection between 2003-2008 in Wisconsin Slide courtesy of Todd Stuntebeck, WI USGS

7

• In the north, 50% or more of annual runoff can occur on frozen ground
• Vegetation based conservation practices to limit soil/nutrient loss are

not effective  Timing is the major factor during this period

− Timing of field-management practices strongly influenced nutrient yields

Timing Decisions Critical on Frozen Ground

Manure applied 5-6 days before rain-on-snow runoff event. Samples from first day of snowmelt.

8

Impact of Timing Decisions Prior to Runoff

Slide courtesy of Tim Radatz, MN Discovery Farms

Suspended Sediment Yield (kg ha-1) Total Phosphorus Yield (kg ha-1)

Events where manure or nutrients applied shortly before runoff occurred

9

Largest Runoff Events Drive Most Losses  Avoid Applying Before

Slide courtesy of Tim Radatz, MN Discovery Farms 2,184 runoff events over 127 site years across 27 fields from 2004-2016

Smallest Events Largest Events

Top 10% runoff events = 65% TP, 59% TN losses Most of the surface runoff losses are associated with only a few of the largest runoff events

Rainfall Events, Runoff Events, and Nutrient Losses

Return Period Site Start Precip (in) Duration (hr) Avg Intensity (in/hr) 30 Min Max Intensity (in/hr) Runoff (in) Soil (lb/ac) TP (lb/ac) TN (lb/ac) 1000 ST1 5/31/2014 5.10 4.02 1.27 5.50 1.18 880.59 0.85 8.80 1000 P1 8/18/2005 4.59 3.38 1.36 5.19 0.01 0.50 0.01 0.04

Data courtesy of Tim Radatz, MN Discovery Farms

10

ST1 5-31-2014 P1 8-18-2005 Field management requires consideration

• f current conditions as well as expected

weather conditions (Runoff Risk) Runoff threat not simply = rainfall magnitude threat

11

Producers have need for more than “Is it going to rain tomorrow?”

• Continuous soil moisture, snow pack, & runoff models

− 7 days of future precipitation (QPF) − 10 days forecast temperatures

• Specific model states evaluated for risk conditions

− Runoff, soil saturation, meteorological driver − Basin specific thresholds based on 60+ year simulation − Post-processing ran on output to produce risk events

• Model compared against Edge-of-Field response

12

NWS Modeling behind Runoff Risk V1

• 3-times daily (0700, 1100, 2100L)
• University of Wisconsin

built/maintains the website

• DATCP leads working group (tool
• wner) and coordinates outreach

and training

• Wisconsin approach to show

highest risk in next 72-hours

13

• Goal: demonstrate need and desire for runoff risk tools across larger

region by building runoff risk network based on consistent modeling framework

GLRI Partnership Spurs Version 2

EOF Data from:

• USGS
• WI Discovery Farms
• MN Discovery Farms
• USDA-ARS Ohio
• Iowa State

Performance evaluated between 2002 – 2015 using 54 EOF sites and 31 grid cells (67,302 cells in the 4 states)

• Required all new model

validation and algorithms (4km x 4km grid)

• MN, MI, OH, WI = rollout in 2017
• IL, IN, NY = 2018

SAC-HTET model ran hourly out 10-days

14

Regional Runoff Risk Version 2

• Runoff Risk

downscaled to produce daily 2km x 2km geoTIFF files for states

• Will be updated

4x daily later this winter

High Risk Low Risk

States Own the Tools, Build the Websites

15

States Own the Tools, Build the Websites

16

17

• Runoff Risk is strictly water quantity based, not modeling water quality
• Risk is stratified by runoff magnitude: higher runoff  higher risk

− Focus attention on larger events − More confidence in models, more likely to transport nutrients from fields

• Weather model uncertainty incorporated into Runoff Risk
• Not possible to account for liquid applied to fields (affects soil moisture)
• Spatial scale concerns recognized
• Dynamic tools that incorporate many factors producers must consider in

short-term management decisions

− Backup perspective: “It’s red today… why?”, “Did I miss something?”

• Shouldn’t be only information used :: Not intended to be regulatory

Additional Runoff Risk Considerations

18

• U Wisconsin: Ongoing social science analysis

− Professional Nutrient Applicator Conference (PNAAW) (n=41)

• Before: 59% heard of RR, 37% looked at it, 32% used it in decisions
• After: 85% useful info, 65% likely to use it, 84% tell other producers

− Focus Group

• “factors consider in spreading?” #1 answer is weather
• What they liked about RR? 1 source of info, liked finer resolution, more updates
• “biggest thing for us…have the most info to do the best job we can”
• GLRI project with Ohio State in fall 2017

− Evaluate historical runoff risk forecasts in Maumee River SWAT models to

quantify usage impact on nutrient loads into Lake Erie

Next Steps: Evaluate Impact, Strive to Improve

19

• 2018: Begin transition to Runoff Risk Version 3

− Move over to NWS National Water Model (WRF-Hydro) − Possible 1km or 250m grid on national scale with several daily runs − Allows additional States the opportunity for runoff risk tools − Requires all new validation planned to start in 2018 − Expect 3-5 year process?

Next Steps: Evaluate Impact, Strive to Improve

• Multiple NWM runs daily

− Every hour  out 18 hours − Every 6-hrs  out 10 days

• Finer resolution forcings
• Water quality modeling down

the road?

20

Runoff Risk Take Home Points

YouTube “runoff risk” 1 min Version: https://youtu.be/ebCwM6wlJdg Full Version: https://youtu.be/FAOLSjtRFZo

• Real-time forecast guidance for producers to

avoid losing nutrients (acute events)

• Promotes and expands Right Time message
• State owned tools developed out of

successful collaboration

• Understand limitations and communicate

expectations

• Plan is for continuous improvement

21

Partnerships Are Essential

steve.buan@noaa.gov dustin.goering@noaa.gov

1 – min You Tube Video: https://youtu.be/ebCwM6wlJdg Provide Feedback to NWS on Runoff Risk Output/Expansion:

• - Product Description Document: https://go.usa.gov/xnR2U
• - NWS Survey: https://go.usa.gov/xnR2B
